GE IC697PWR710 Power Supply Module One-year warranty

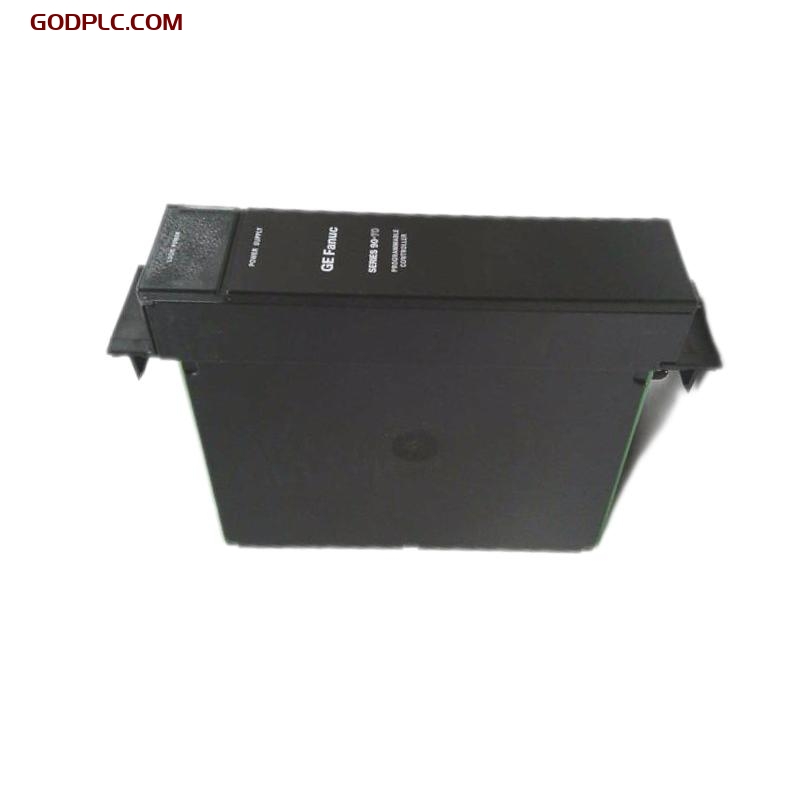

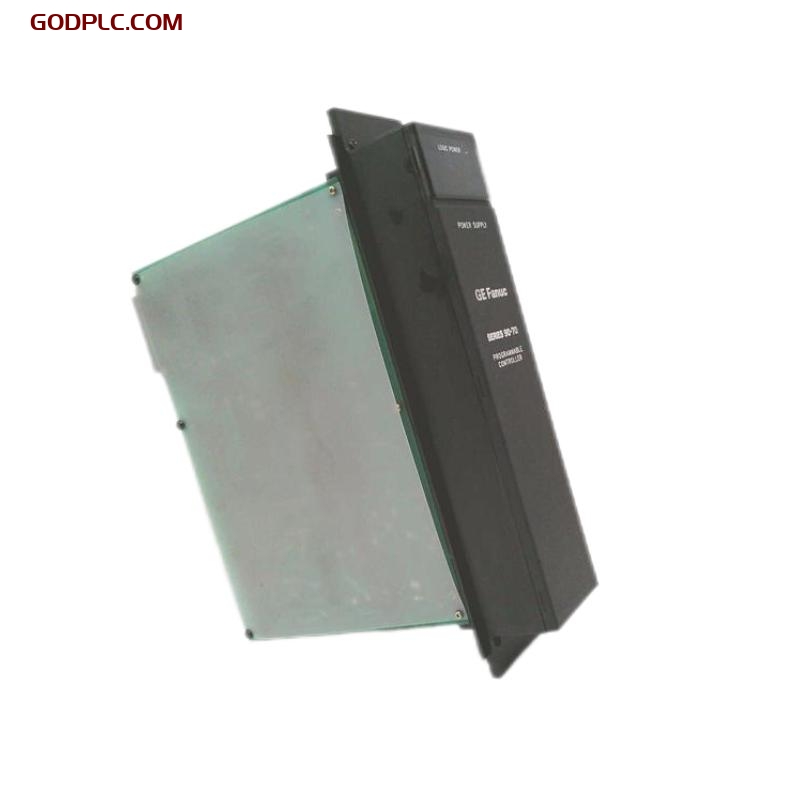

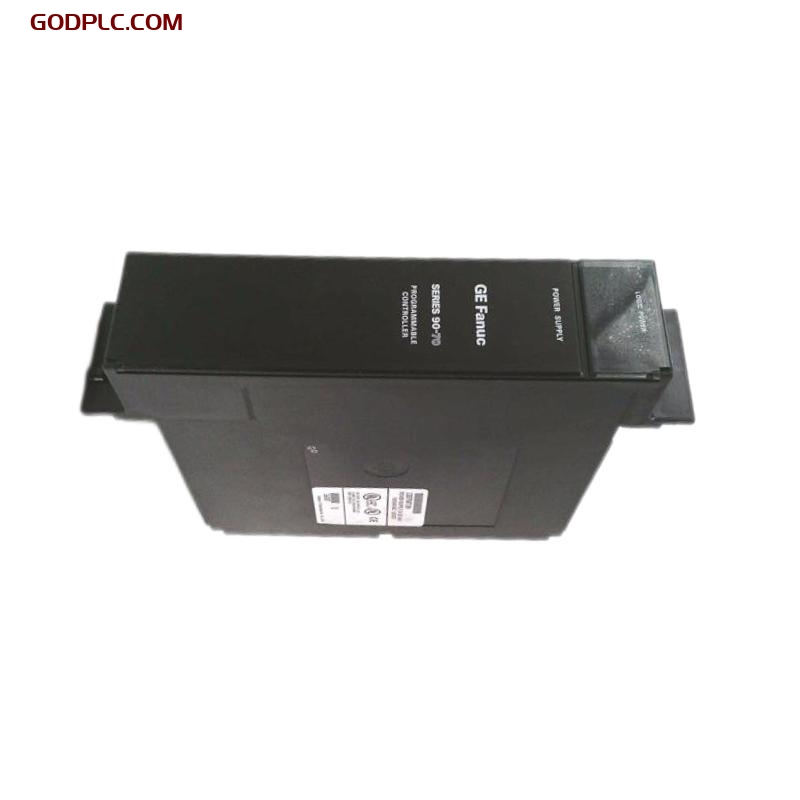

Product Overview: GE IC697PWR710 Power Supply Module
The GE IC697PWR710 is a robust 55-watt power supply module designed for the Series 90-70 Programmable Logic Controller (PLC) systems. It ensures reliable operation by providing necessary power to the PLC and its modules, supporting both alternating current (AC) and direct current (DC) inputs.
Key Features:
-
Versatile Input Voltage: Supports a wide input voltage range from 90 to 264 VAC at 47 to 63 Hz, accommodating global power standards. It also accepts DC input voltages ranging from 100 to 150 VDC.
-
High Output Capacity: Delivers a steady +5 VDC output with a current capacity of up to 11 amps, ensuring sufficient power for various PLC modules.
-
Compact Design: With dimensions of 111.5 mm (H) x 381 mm (W) x 165.1 mm (D) and a weight of 1.36 kg, it is designed for efficient rack-mounted installation.
-
Enhanced Protection: Features electronic overvoltage and overcurrent protection mechanisms to safeguard connected components from electrical faults.
-
Power Factor Correction: Incorporates active power factor correction for AC inputs, improving energy efficiency and reducing the load on electrical infrastructure.
Technical Specifications:
| Parameter | Specification |
|---|---|
| Model Number | IC697PWR710 |
| Input Voltage Range | 90 to 264 VAC (47 to 63 Hz); 100 to 150 VDC |
| Nominal Input Voltage | 120/240 VAC; 125 VDC |
| Input Power | 90 watts maximum at full load |
| Output Voltage | +5 VDC |
| Output Current | Up to 11 amps |
| Power Output | 55 watts |
| Dimensions (H x W x D) | 111.5 mm x 381 mm x 165.1 mm |
| Weight | 1.36 kg |
| Mounting | Slide-in rack mount |
| Connector | 48-pin backplane-mounted |
| Overvoltage Protection | Activates at 6.2 volts (typical) |
| Overcurrent Protection | Electronic short circuit protection on 5V bus |
| Power Factor | > 0.95 with active power factor correction for AC inputs |
| Inrush Current | 3 amps (typical) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Certifications | UL, CE |
Detailed Description:
The GE IC697PWR710 power supply module is engineered to meet the demanding requirements of industrial automation systems. Its ability to operate across a broad range of input voltages makes it suitable for diverse global applications. The module’s design ensures seamless integration into Series 90-70 PLC racks, occupying the leftmost slot and connecting via a 48-pin backplane-mounted connector.
One of the standout features of the IC697PWR710 is its active power factor correction on AC inputs, which enhances energy efficiency and reduces the burden on facility power systems. This feature is particularly beneficial in large-scale industrial settings where power efficiency is paramount.
The module’s robust protection mechanisms, including electronic overvoltage and overcurrent safeguards, ensure the longevity and reliability of both the power supply and the connected PLC components. In the event of a fault, these protections prevent damage by promptly responding to irregularities.
Designed for flexibility, the IC697PWR710 can support two racks from a single power supply, provided the total load remains within its rating. This capability simplifies system architecture and can lead to cost savings in complex installations.
With a compact form factor and a weight of 1.36 kg, the module is easy to handle and install. Its slide-in rack mount construction facilitates straightforward maintenance and replacement, minimizing system downtime.
Recommended Related Models:
For those seeking alternative or complementary power supply modules within the Series 90-70 platform, the following models are available:
| Model Number | Description |
|---|---|
| IC697PWR711 | Power Supply Module, 90W output, supports 120/240 VAC or 125 VDC input, provides +5 VDC up to 15 amps. |
| IC697PWR724 | Power Supply Module, 90W output, supports 24 VDC input, provides +5 VDC up to 15 amps. |
| IC697PWR748 | Power Supply Module, 120W output, supports 48 VDC input, provides +5 VDC up to 20 amps. |
| IC697PWR748J | Power Supply Module, 120W output, supports 48 VDC input, enhanced environmental specifications. |
| IC697PWR749 | Power Supply Module, 160W output, supports 24 VDC input, provides +5 VDC up to 30 amps. |
| IC697PWR749K | Power Supply Module, 160W output, supports 24 VDC input, enhanced environmental specifications. |
| IC697PWR750 | Power Supply Module, 200W output, supports 120/240 VAC input, provides +5 VDC up to 40 amps. |
| IC697PWR750L | Power Supply Module, 200W output, supports 120/240 VAC input, enhanced environmental specifications. |
| IC697PWR760 | Power Supply Module, 300W output, supports 120/240 VAC input, provides +5 VDC up to 60 amps. |
| IC697PWR760M | Power Supply Module, 300W output, supports 120/240 VAC input, enhanced environmental specifications. |
GE IC697PWR710 is in stock. Please contact us for a quick quote and competitive pricing.
