Product Overview

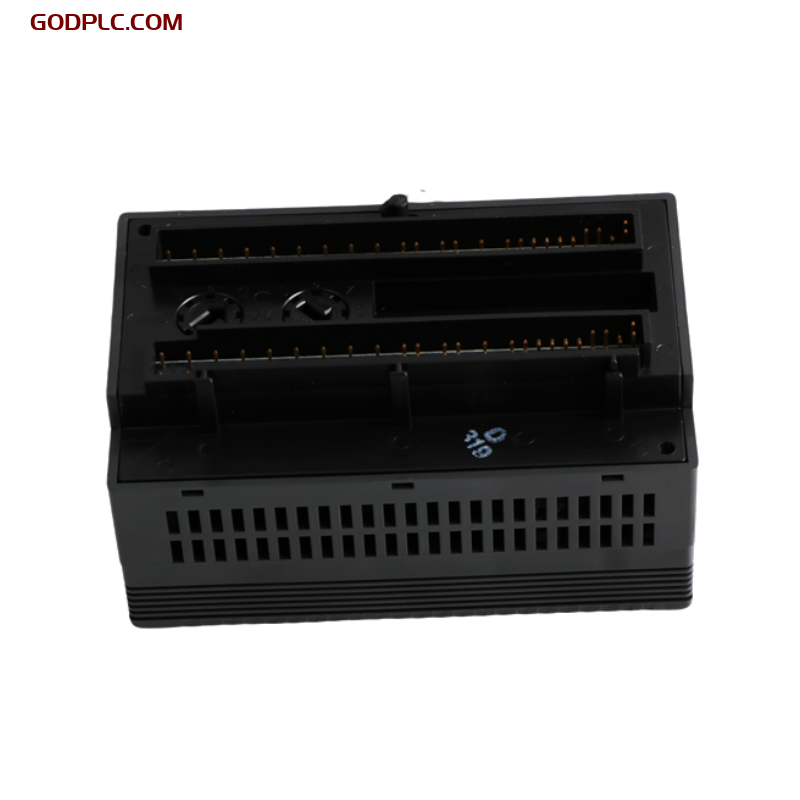

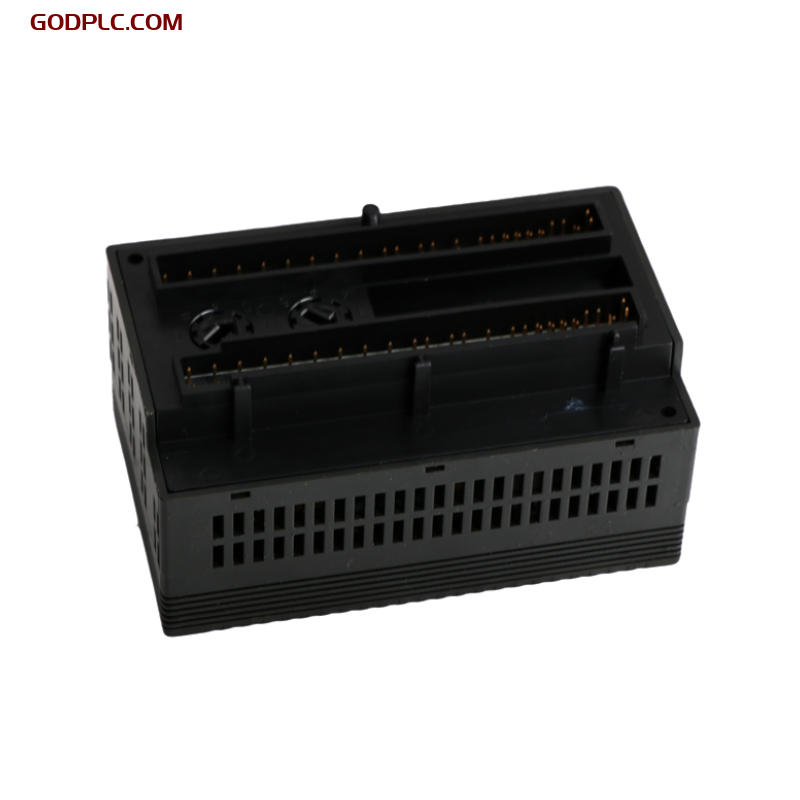

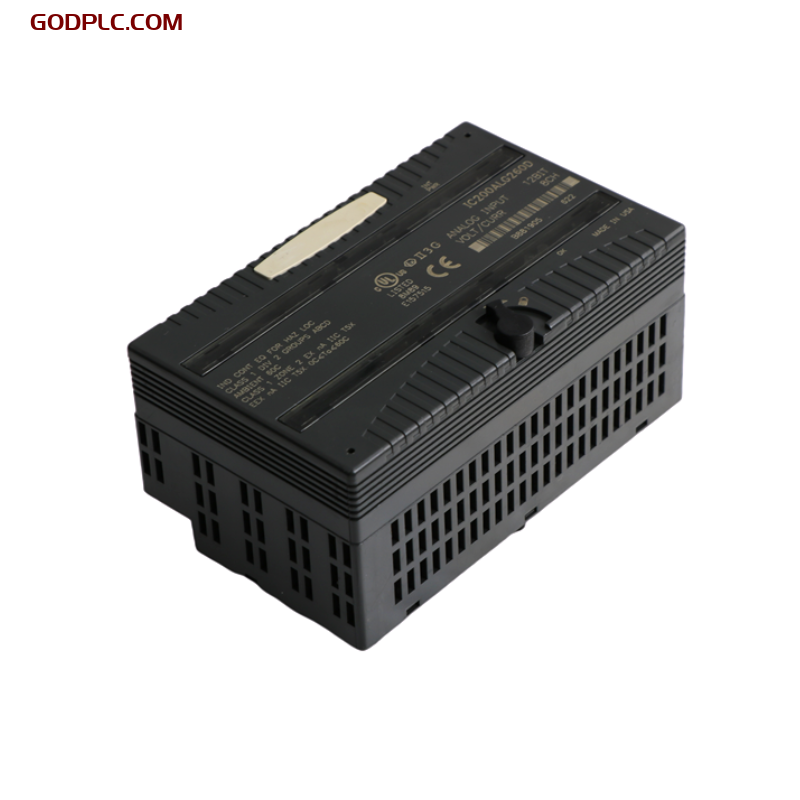

The GE IC200ALG260H is a state-of-the-art analog input module designed for VersaMax I/O systems, providing precise, high-resolution measurements for a wide range of industrial applications. It offers 16 channels of analog inputs, capable of handling both voltage (0-10V) and current (4-20mA) signals. This flexibility allows users to interface the module with a variety of industrial sensors for monitoring critical parameters such as temperature, pressure, flow, and level.

Built to meet the demands of industrial control systems, the IC200ALG260H is equipped with 16-bit resolution, offering an excellent balance between precision and speed. It is engineered for real-time monitoring and control applications, with features such as input-to-ground isolation, low power consumption, and fast processing speed. Designed for robust performance in harsh industrial environments, this module provides reliable and accurate data, ensuring that systems can operate smoothly and efficiently.

The GE IC200ALG260H integrates seamlessly into VersaMax I/O systems, which is ideal for applications such as process control, factory automation, energy management, and building systems automation.

Key Features

• 16 Analog Input Channels: Supports 16 channels for simultaneous monitoring of various analog signals.
• High Resolution (16-bit): Offers 16-bit resolution for highly accurate and detailed data collection.
• Flexible Input Types: Capable of handling voltage (0-10V) and current (4-20mA) inputs, providing compatibility with a broad range of sensors.
• Input Isolation: Features input-to-ground isolation, reducing noise interference and improving signal integrity.
• Compact Design: Fits into VersaMax I/O base, saving space while providing efficient modularity.
• Low Power Consumption: Consumes minimal power, reducing operational costs and enhancing system efficiency.
• Real-Time Data Processing: Provides fast processing to handle real-time feedback and control requirements.
• Wide Operating Temperature Range: Operates in environments with temperatures ranging from 0°C to 60°C.
• Durable Construction: Built to withstand harsh industrial conditions, ensuring longevity and reliable performance.

Applications

The GE IC200ALG260H is ideal for various industrial applications where precise analog signal measurement is crucial. Key use cases include:

• Process Control: Used to monitor critical variables such as temperature, pressure, and flow in chemical, oil & gas, and pharmaceutical industries.
• Factory Automation: Essential in automated manufacturing environments where accurate data from sensors is necessary for robotic control systems, assembly lines, and equipment monitoring.
• Energy Management: Utilized in power generation and distribution systems for monitoring electrical parameters like voltage, current, and frequency.
• Building Automation: Perfect for applications in HVAC systems, lighting control, and environmental monitoring for smart buildings.
• Test and Measurement: Used in laboratory settings or custom test systems for acquiring accurate measurements from sensors.

Technical Specifications

Detailed Product Features

1. 16 Analog Input Channels

The GE IC200ALG260H provides 16 input channels, enabling the simultaneous acquisition of multiple analog signals. This is particularly beneficial in industrial environments where you need to monitor and control various process variables at the same time, such as temperature, pressure, and level.

2. 16-Bit High-Resolution Data Processing

The module offers 16-bit resolution, ensuring that even small fluctuations in analog signals are accurately captured. This high resolution guarantees precise data collection, making it ideal for applications that require the monitoring of subtle changes in critical parameters.

3. Flexible Input Types

The IC200ALG260H supports both voltage (0-10V) and current (4-20mA) input types, providing compatibility with a wide range of industrial sensors. Whether you are using a voltage-based temperature sensor or a current-loop flow meter, this module can accommodate both.

4. Input-to-Ground Isolation

The input-to-ground isolation feature prevents noise and electrical interference from affecting the accuracy of the input signals. This isolation helps maintain the integrity of the measurements, especially in environments with high levels of electrical noise, such as factory floors or heavy machinery.

5. Compact and Modular Design

The module’s compact size allows for easy installation in a VersaMax I/O base. Its modular design allows you to expand your I/O system without taking up additional space, making it perfect for both large and small automation systems.

6. Low Power Consumption

With a typical power consumption of just 0.75W, the IC200ALG260H is energy-efficient, reducing operational costs in long-term use. This is particularly beneficial in large-scale installations where multiple I/O modules are used.

7. Real-Time Data Processing

The IC200ALG260H provides real-time data processing capabilities, ensuring that your system can respond to changing conditions promptly. This is essential for control systems that require immediate feedback, such as process control and automated manufacturing systems.

8. Wide Operating Temperature Range

Designed to withstand varying environmental conditions, the IC200ALG260H operates in a wide temperature range from 0°C to 60°C, making it suitable for diverse industrial applications. Whether in hot or cold environments, this module ensures reliable performance.
