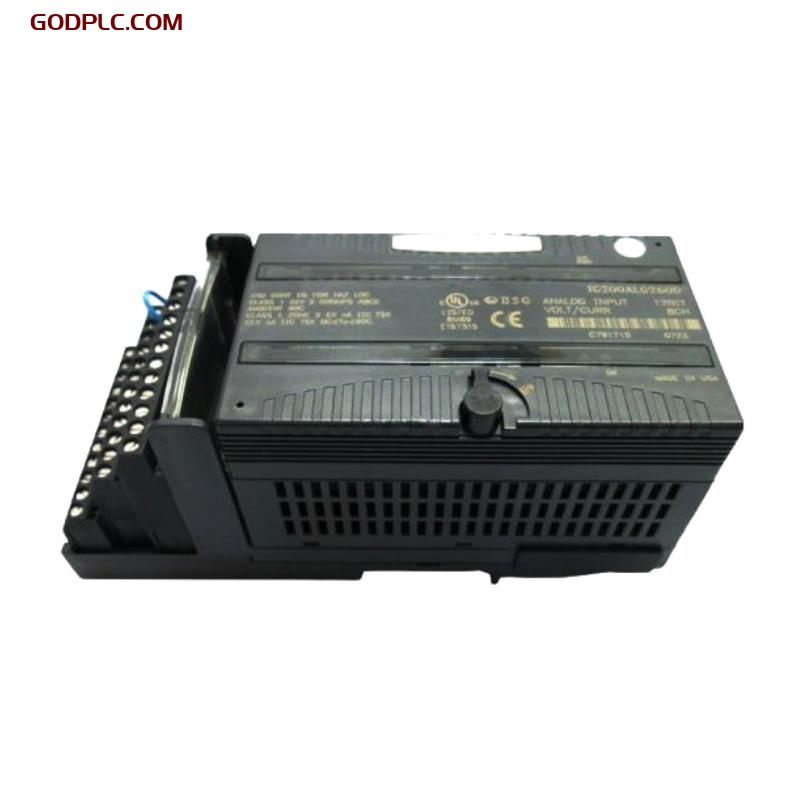

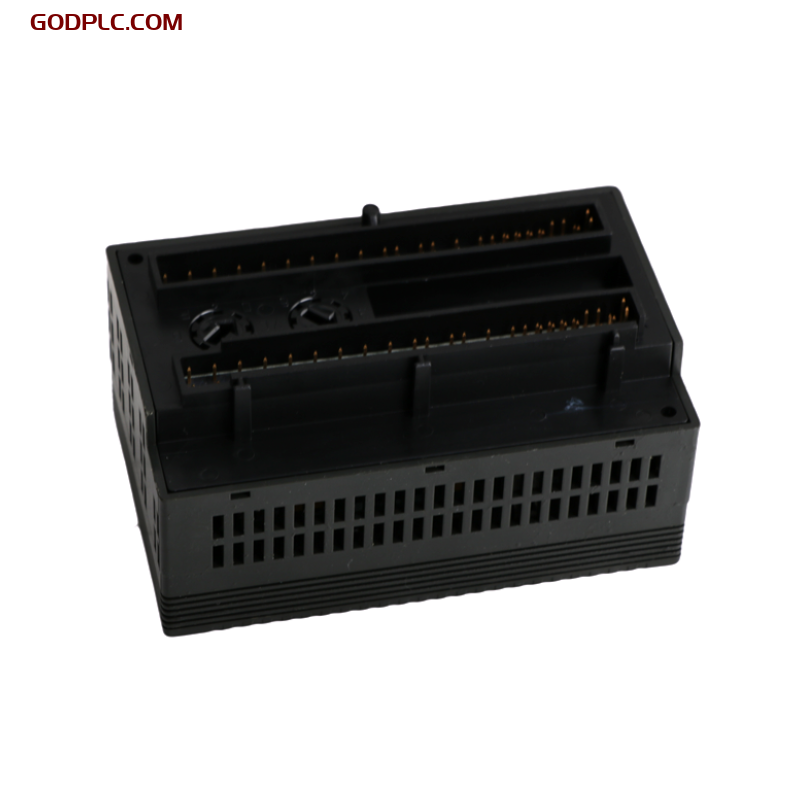

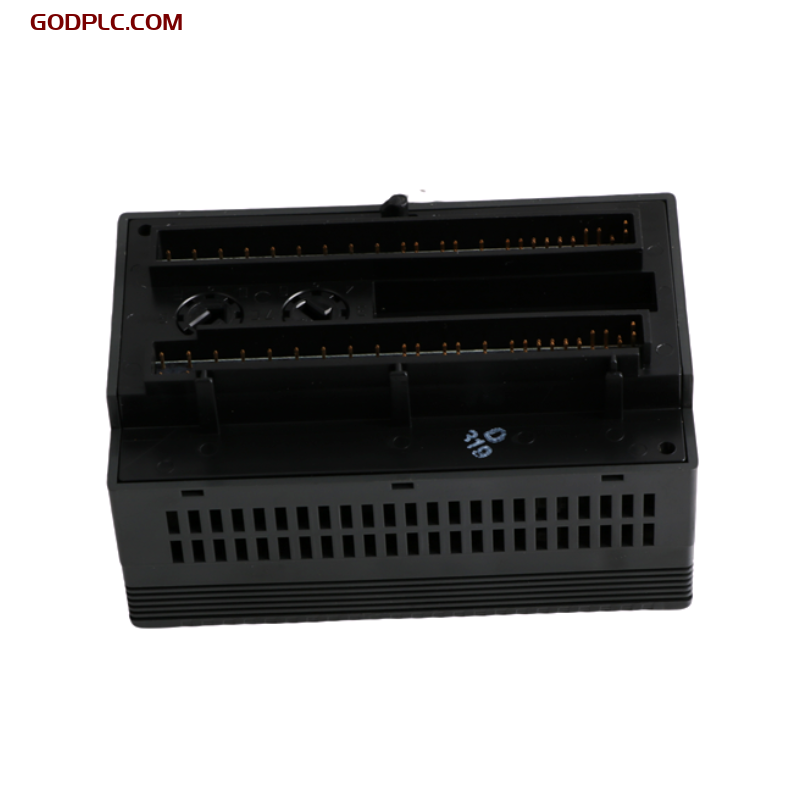

GE IC200ALG260F Analog Input Module Brand new and original
Product Overview
The GE IC200ALG260F is a 16-channel analog input module designed for use in VersaMax PLC systems. It is built to provide accurate analog signal acquisition for a wide range of industrial automation and control applications. This module is ideal for handling signals from various types of analog sensors, transducers, and measuring instruments used in process control, manufacturing, building automation, and more.
The IC200ALG260F offers flexibility and high precision in monitoring signals such as voltage and current. With user-configurable input ranges, it can handle multiple types of analog signals, making it suitable for environments with varying control requirements.
With its high-density configuration and easy installation features, the IC200ALG260F integrates smoothly into VersaMax I/O systems, enabling precise data collection and control. Its 12-bit resolution ensures that even small changes in the analog signal are captured, making it a crucial component in applications requiring precise analog monitoring and control.
Key Features
- 16 Analog Input Channels: Capable of handling up to 16 analog input channels, ideal for systems that need to monitor multiple process parameters simultaneously.
- User-Configurable Input Ranges: Supports a wide range of input signals, including 0-10V, 4-20mA, and others, making it adaptable for various industrial sensors and applications.
- High Accuracy and Resolution: Provides 12-bit resolution, ensuring precise measurement and control for applications requiring high data accuracy.
- Compact Design: Designed for easy mounting in the VersaMax I/O base, saving space in control panels and improving system organization.
- Input Isolation: Features input-to-ground isolation to protect the system from electrical noise and interference, ensuring data integrity.
- Wide Operating Temperature Range: Can operate in a wide temperature range, from 0°C to 60°C, making it suitable for demanding industrial environments.
- Low Power Consumption: Designed for energy-efficient operation, consuming low power while maintaining high performance.
- Modular I/O System: Part of the VersaMax modular I/O system, allowing for easy customization and scalability of the control system.
- Fast Data Processing: Ensures that analog signals are processed and communicated to the system quickly, supporting real-time control operations.
Applications
The GE IC200ALG260F analog input module is used in various applications where precise monitoring and control of analog signals are critical. Some typical applications include:
- Process Control: Used in industries like chemical, oil & gas, and water treatment to monitor and control variables such as temperature, pressure, and flow.
- Automation Systems: Ideal for automated manufacturing, robotics, and CNC machines that rely on accurate analog feedback for efficient operation.
- Building Automation: Applied in HVAC systems, energy management, and lighting control for monitoring parameters such as temperature, humidity, and light levels.
- Power Generation: Used in power plants for monitoring analog signals such as voltage, current, and power to ensure stable operation.
- Test Equipment: Provides reliable signal acquisition for test setups and equipment monitoring in industries requiring precise analog measurements.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | GE IC200ALG260F |
| Type | Analog Input Module |
| Number of Channels | 16 Analog Inputs |
| Input Types | Voltage (0-10V), Current (4-20mA) |
| Input Range | Configurable ranges: 0-10V, 4-20mA, and others |
| Resolution | 12-bit resolution |
| Input Impedance | High input impedance (for voltage inputs) |
| Accuracy | ±0.1% of full scale (typical) |
| Power Supply | 24V DC (±10%) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 85°C |
| Dimensions | 110 x 66.8 x 50 mm |
| Weight | 0.3 kg |
| I/O Isolation | Input-to-ground isolation |
| Power Consumption | Typically 0.6W |
| Mounting Type | Mounts to VersaMax I/O base |
| Signal Conditioning | Yes, internal signal conditioning for analog inputs |
| Output Type | Analog output signal processed and ready for use in control systems |
| Environmental Rating | IP20 (indoor use) |
| Certifications | CE, UL Listed |
| Data Transmission Rate | Fast data processing rate for real-time control systems |
Detailed Product Features
1. 16 Analog Input Channels
The GE IC200ALG260F module offers 16 input channels, providing a high-density configuration for applications that need to monitor several analog signals simultaneously. Whether used for temperature, pressure, flow, or other types of measurements, this module is capable of handling multiple sensor inputs within a single device, reducing the need for additional modules and improving overall system efficiency.
2. Flexible Input Range
The module features user-configurable input ranges that support a variety of signals, including 0-10V for voltage inputs and 4-20mA for current inputs. This adaptability ensures that the IC200ALG260F can interface with a wide range of industrial sensors, such as temperature sensors, pressure transducers, and level indicators, making it a highly versatile module for numerous industrial environments.
3. High Accuracy and 12-Bit Resolution
The 12-bit resolution of the IC200ALG260F provides high accuracy in reading analog inputs, making it suitable for applications that require precise measurements. The ±0.1% accuracy ensures that the module can capture even small fluctuations in signal strength, which is critical in process control systems where slight deviations can have significant effects.
4. Compact and Modular Design
The module is designed to be compact and fit into the VersaMax I/O base. Its small footprint allows for easy installation in control panels or distributed I/O systems. The VersaMax modular system allows for easy expansion and customization, enabling users to add more modules as the system grows.
5. Input Isolation for Signal Integrity
The IC200ALG260F provides input-to-ground isolation, which helps protect the module and the rest of the system from electrical noise, voltage spikes, and ground loops. This feature is particularly important in industrial environments where electromagnetic interference (EMI) is common, ensuring that the analog signals are accurately transmitted without degradation.
6. Low Power Consumption
With a low power consumption of approximately 0.6W, the IC200ALG260F is energy-efficient, reducing the overall power requirements of the control system. This makes the module an eco-friendly choice, especially in systems where power efficiency is important.
7. Wide Operating Temperature Range
The IC200ALG260F can operate in temperatures ranging from 0°C to 60°C, making it suitable for a wide range of industrial environments. Whether used in a factory floor, power plant, or outdoor application, this module can withstand fluctuating environmental conditions while maintaining reliable performance.
8. Fast Data Processing
The IC200ALG260F processes analog signals quickly and efficiently, allowing for real-time data transmission to the system. This capability is crucial for applications that require immediate responses to changing conditions, such as automated control systems and feedback loops.
GE IC200ALG260F is in stock. Contact us for quick quotes and competitive prices.
