Product Overview

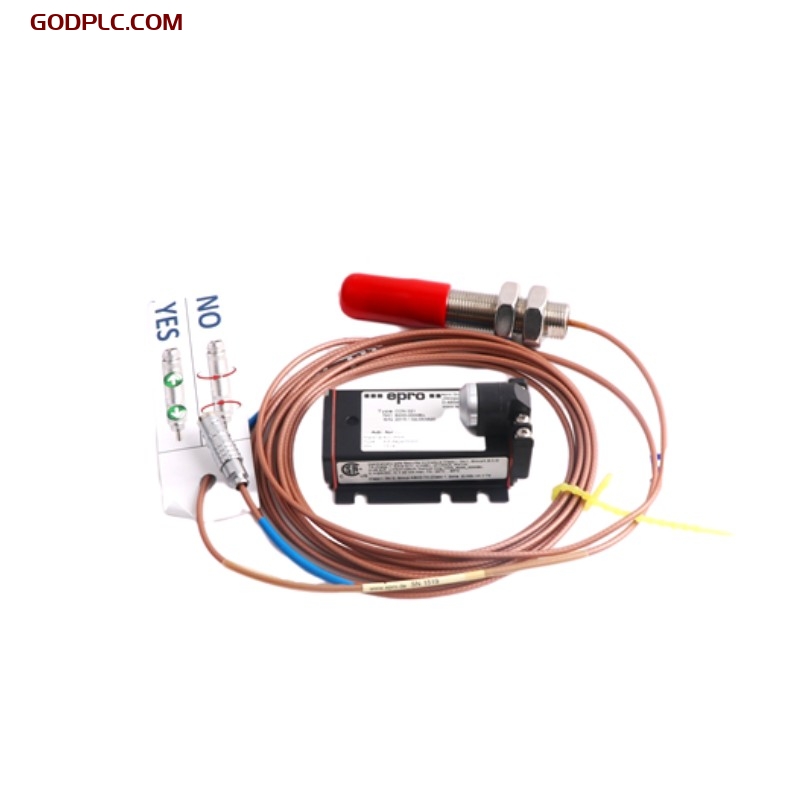

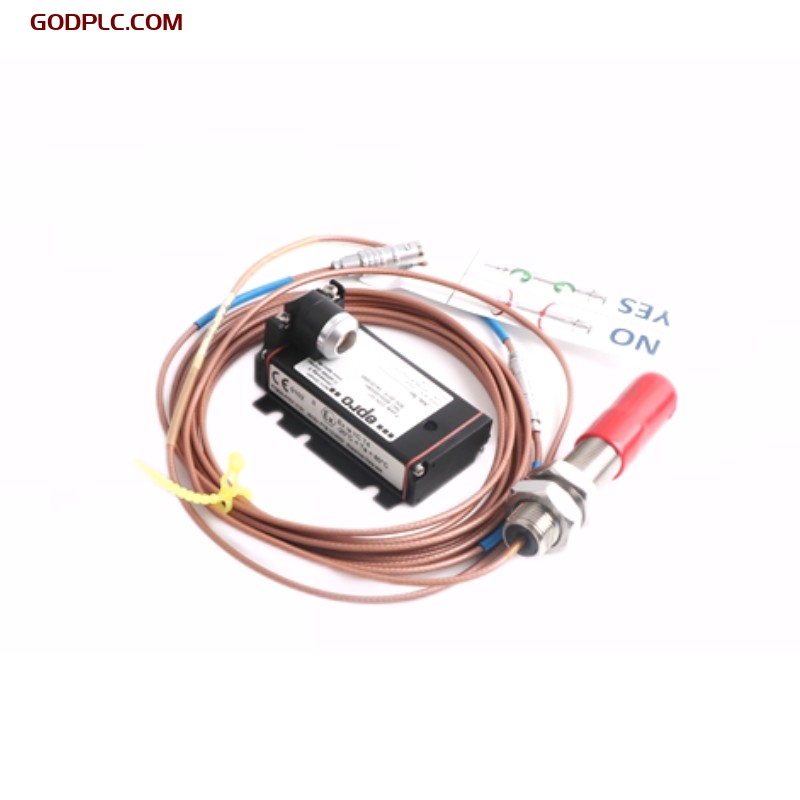

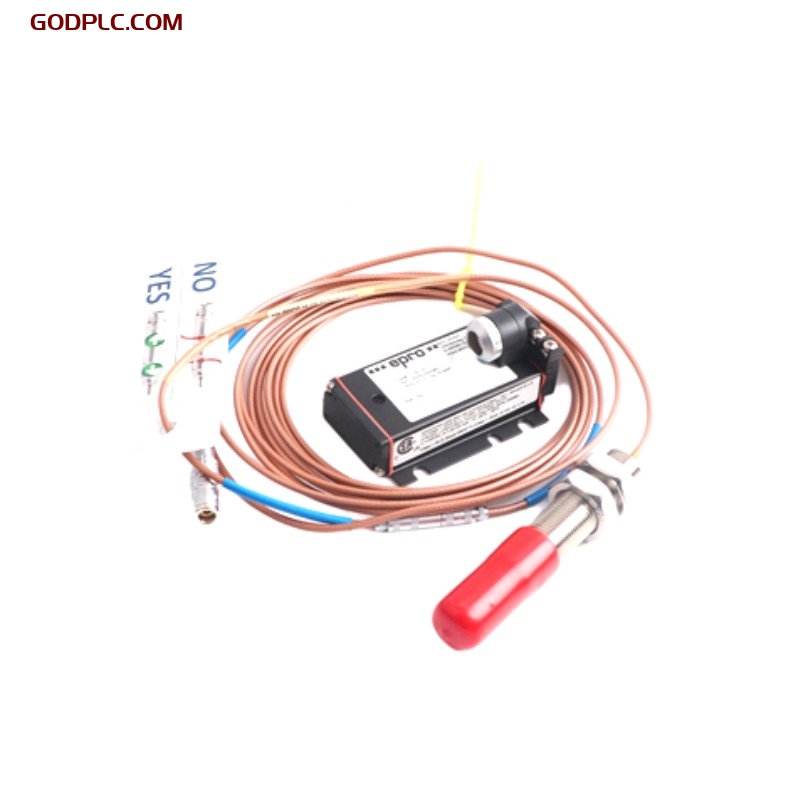

The Epro PR6424/002-030 is a state-of-the-art pressure sensor developed to meet the most demanding industrial needs. Designed as part of the Epro PR6424 series, the PR6424/002-030 combines high-precision pressure measurement with robust construction for applications across a wide range of industries, including oil and gas, chemical processing, hydraulics, and automation systems.

This model offers a 0 to 30 bar pressure range, providing excellent accuracy, making it ideal for monitoring and controlling pressure in systems where precision is crucial. Featuring a 4-20 mA output, it integrates easily into industrial systems, providing continuous real-time feedback on system performance.

The sensor’s stainless steel housing and IP67 protection rating ensure long-lasting durability, even in harsh environments where exposure to moisture, dust, and chemicals is frequent. The PR6424/002-030 operates in extreme temperatures ranging from -40°C to +85°C, making it a versatile choice for a wide variety of industrial applications.

Key Features

• Pressure Range: 0 to 30 bar, ideal for applications requiring moderate pressure measurement.
• Accuracy: ±0.05% of full-scale, providing high precision for critical pressure applications.
• Output Signal: 4-20 mA analog output, widely accepted by industrial controllers and automation systems.
• Housing Material: 316L Stainless Steel, providing excellent resistance to corrosion and harsh environmental conditions.
• Ingress Protection: IP67, ensuring the device is fully protected against dust and water ingress.
• Operating Temperature Range: -40°C to +85°C, making the sensor suitable for use in a variety of environments, including extreme temperatures.
• Long Service Life: Designed for minimal maintenance, the sensor is reliable and durable, even under tough conditions.
• Compact Design: The small size allows for installation in tight spaces without sacrificing performance.


  Technical Specifications

  Feature	Specification
  Model	Epro PR6424/002-030
  Pressure Range	0 to 30 bar
  Accuracy	±0.05% full-scale
  Output Signal	4-20 mA
  Supply Voltage	24V DC ±10%
  Electrical Connection	M12 5-pin (CON021 optional)
  Ingress Protection	IP67
  Housing Material	316L Stainless Steel
  Sensor Head Diameter	16 mm
  Weight	0.2 kg
  Operating Temperature Range	-40°C to +85°C
  Signal Type	Analog
  Protection Class	Class III

Installation and Maintenance

The Epro PR6424/002-030 is designed for simple installation and minimal maintenance. With an M12 5-pin connector for electrical connection, installation is both secure and quick. The 316L stainless steel housing offers superior durability, providing excellent protection against harsh environmental elements, such as moisture, dust, and chemicals, making it ideal for industrial environments.

While the sensor is designed to require little maintenance, it is recommended to check periodically for any external damage or signs of wear and tear, especially in environments with high exposure to aggressive chemicals or extreme temperatures. Thanks to its IP67 rating and robust design, the PR6424/002-030 provides reliable, long-term operation with minimal downtime.

Applications

The Epro PR6424/002-030 is suited for a wide range of industrial applications where reliable pressure measurement is crucial. Its versatility and robust design make it suitable for the following:

• Hydraulic Systems: Pressure measurement in pumps, cylinders, and valves.
• Chemical and Petrochemical Industry: Monitoring and controlling pressure in reactors, pipelines, and vessels.
• Oil & Gas: Used for pressure measurement in pipelines, refining processes, and offshore operations.
• Water Treatment: Measuring pressure in filtration systems, pumps, and water distribution networks.
• Automation Systems: Providing feedback to control systems in automated manufacturing and industrial applications.
• General Industrial Use: Pressure monitoring in compressors, turbines, and other machinery requiring precise control.
