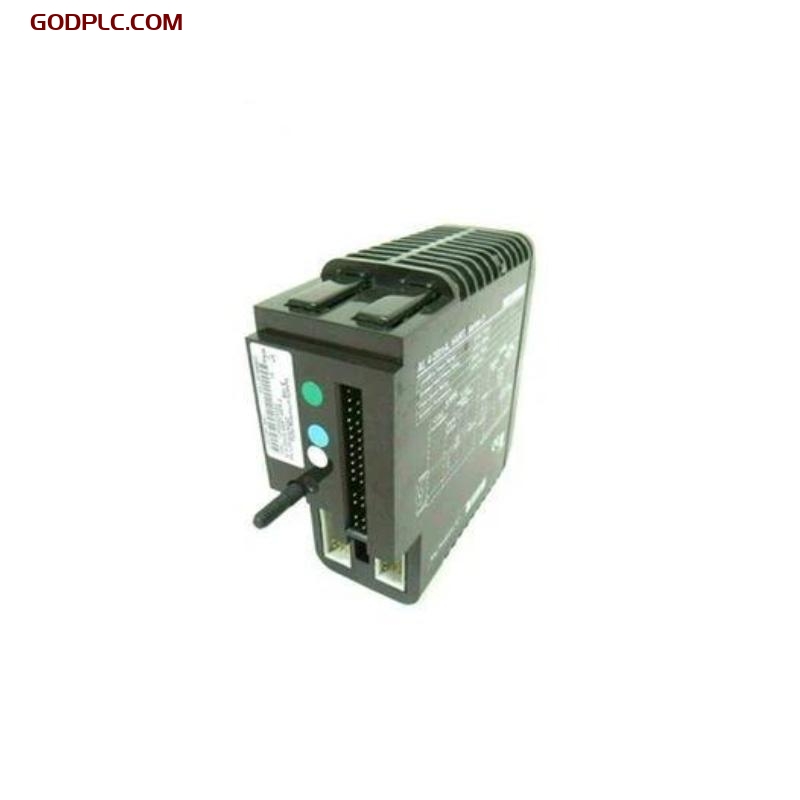

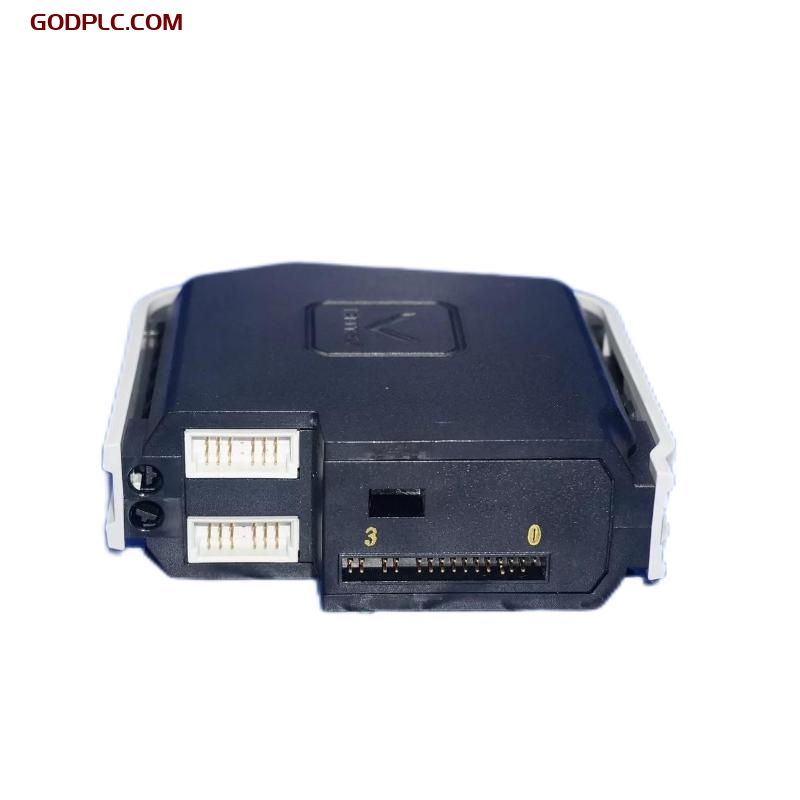

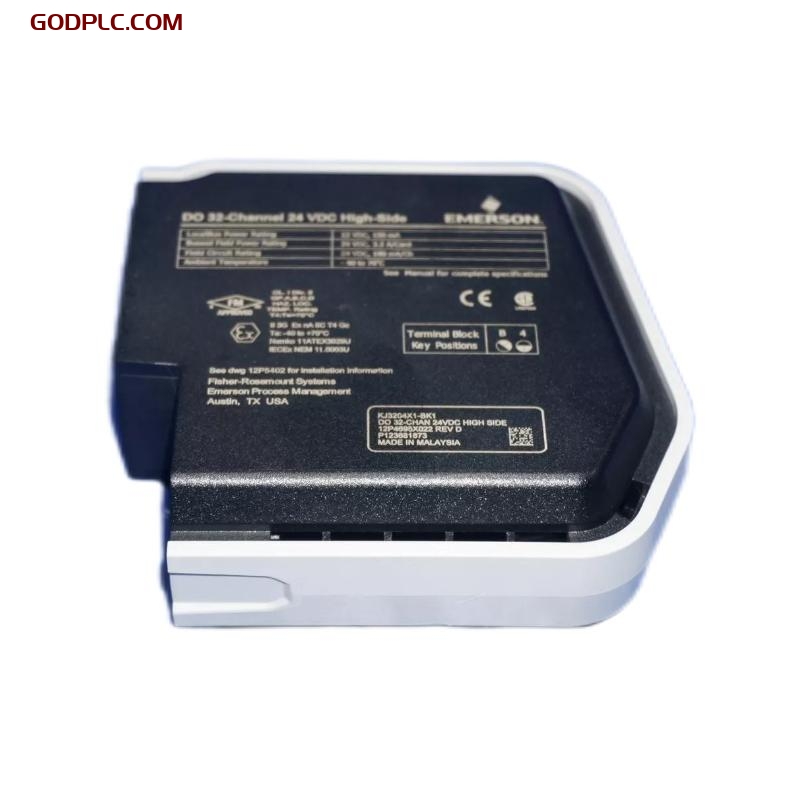

Emerson KJ3204X1-BK1 SE4002S1T2B6 DeltaV Discrete Output Module
Emerson KJ3204X1-BK1 SE4002S1T2B6 DeltaV Discrete Output Module Product Overview
Emerson KJ3204X1-BK1 SE4002S1T2B6 is a high-performance discrete output module designed for DeltaV distributed control systems (DCS) . The module provides precise and reliable digital output signals , which is very suitable for industrial automation, process control and safety-critical applications .
This discrete output module can control external devices such as solenoids, relays, and motor starters by sending digital signals from the DeltaV system . The module supports high-speed switching , ensuring efficient real-time operation of field devices.
The KJ3204X1-BK1 SE4002S1T2B6 module is designed for harsh industrial environments , providing galvanic isolation to prevent electrical noise and transient voltage spikes. The compact design ensures easy integration into existing DeltaV systems, and the redundant architecture improves system reliability.
The module measures 102 x 45 x 130 mm and weighs 0.4 kg and is designed for DIN rail mounting , ensuring efficient use of space in the control cabinet.
Main Features
- High-performance discrete output modules – provide fast and reliable digital signal output .
- Supports control of external devices – suitable for solenoids, relays, contactors and motor starters .
- Fast switching times – ensuring real-time response in process control applications .
- Galvanic Isolation – protects against electrical noise and transient voltage spikes .
- DeltaV DCS Compatible – Integrates seamlessly with Emerson’s DeltaV control system .
- Compact and rugged design – designed for industrial applications and harsh environments .
- Redundant architecture support – enhances system reliability and availability .
- Comprehensive diagnostics – monitor module status, output health and fault conditions .
- Optimized power efficiency – ensures low energy consumption without compromising performance .
- DIN Rail Mounting – Easily mounts in a control panel .
Technical specifications
| scope | Specification |
|---|---|
| Module Type | Discrete output modules |
| aspect | 102 x 45 x 130 mm |
| weight | 0.4 kg |
| Output Channel | 16 discrete output channels |
| Output voltage range | 24V DC (nominal) |
| Maximum output current | 0.5A per channel |
| Isolation protection | Electrical isolation between channels |
| Response time | Fast switching for real-time control |
| Redundancy support | Yes, redundant configuration is supported |
| diagnosis | Monitor output health in real time |
| Power consumption | Low energy consumption design |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -50°C to +85°C |
| Humidity range | 5% to 95% RH (non-condensing) |
| Installation Type | DIN rail mounting |
| Communication interface | Integrate with DeltaV control systems |
| Security certification | IEC 61508 SIL 2 / SIL 3 certified |
| Electromagnetic compatibility | Strong resistance to electromagnetic interference and electrical noise |
application
Emerson KJ3204X1-BK1 SE4002S1T2B6 discrete output module is widely used in process automation and industrial control systems that require fast and reliable digital output control . Some of the main industries where this module is used include:
- Oil & Gas – For pipeline valve control, emergency shutdown systems (ESD), and compressor monitoring .
- Chemical and Petrochemical – Ensure safe operation of chemical processes, reactor controls and hazardous area automation .
- Power Generation – Applications include turbine control, generator synchronization and grid automation .
- Water and Wastewater Treatment – Helps monitor pump operation, valve actuation and remote SCADA integration .
- Manufacturing and Automotive – Controls assembly line automation, conveyor systems, and robotic operations .
- Pharmaceuticals – Supports FDA-compliant process automation and batch control systems .
- Mining and Metals – For conveyor belt safety, ore processing automation and environmental monitoring .
- Aerospace & Defense – Integration into mission-critical safety systems and remote control applications .
- Renewable Energy – For remote monitoring and control of solar and wind power plants .
- Food and Beverages – Ensure consistent product quality through automated processing and packaging controls .
Related Models
Here are 10 related models in Emerson’s DeltaV Automation family that offer similar or complementary capabilities:
| Model | describe |
|---|---|
| KJ3202X1-BA1 | Discrete Input Module (16 channels) |
| KJ3222X1-BA1 | Analog input module (8 channels) |
| KJ3221X1-BA1 | Analog output module (8 channels) |
| KJ3241X1-BA1 | High Density Digital Input Module |
| KJ3250X1-BA1 | High Density Digital Output Modules |
| KJ3001X1-BB1 | DeltaV System Power Modules |
| KJ3204X1-BA1 | 8-Channel Discrete Output Module |
| KJ3208X1-BA1 | 32-channel high-density discrete output module |
| KJ3224X1-BA1 | Thermocouple Input Module |
| KJ3243X1-BA1 | Pulse input module for high-speed applications |
Emerson KJ3204X1-BK1 SE4002S1T2B6 is in stock. Please contact us for a quick quote and competitive pricing.
