Product Introduction

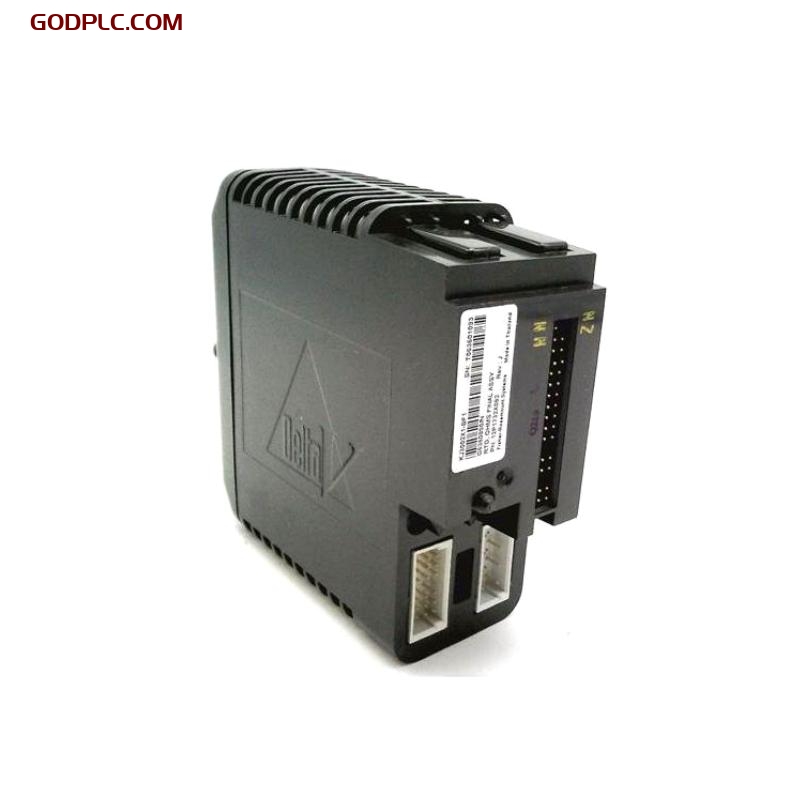

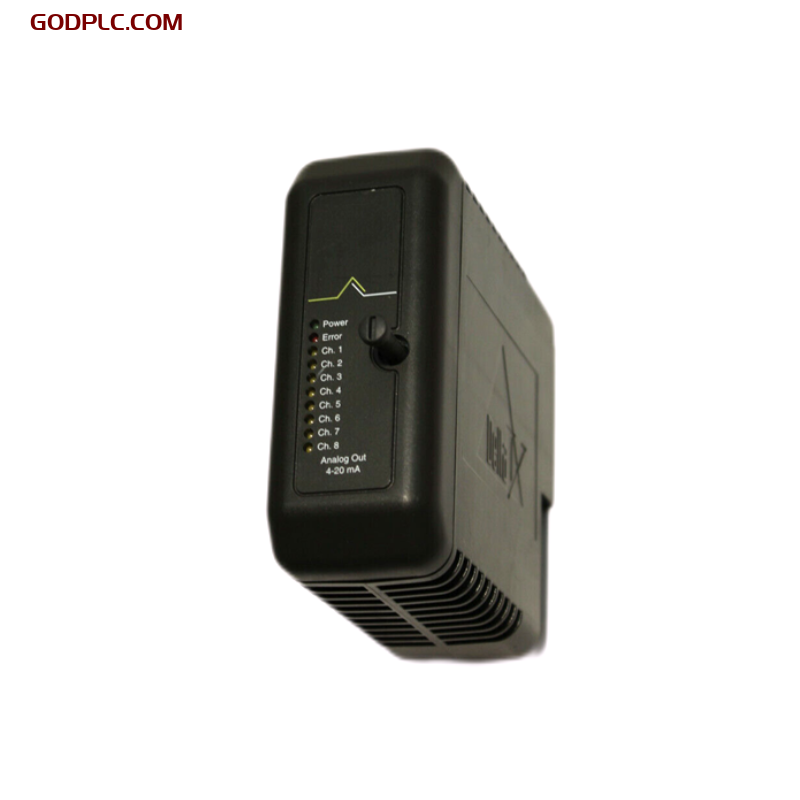

The Emerson KJ3002X1-BB1 12P0683X082 Analog Output Module is a highly reliable and robust component designed for use in the Emerson DeltaV distributed control system. This module is specifically engineered for accurate analog signal output, crucial for precise control in various industrial applications such as process automation, power generation, and manufacturing.

The KJ3002X1-BB1 module offers 12 channels of analog output, capable of providing continuous signals for control and monitoring systems. The DeltaV system, with this module, ensures seamless integration with field devices, allowing for effective regulation of parameters such as flow, temperature, pressure, and level in a variety of applications.

Built with high-quality materials, the KJ3002X1-BB1 delivers high-precision analog signals while ensuring durability, flexibility, and compatibility with the Emerson DeltaV system architecture. It is a vital element for applications that demand precise output control in industries including chemical, oil and gas, energy, and water treatment.

Product Specifications

Applications

The Emerson KJ3002X1-BB1 Analog Output Module is widely used in industries where precise control and data output management are critical.

1. Process Automation

• Manufacturing and Chemical Plants: Used for controlling temperature, pressure, and flow in automated process systems.
• Provides a stable output to regulate production processes.

2. Power Generation

• Power plants: Delivers signals to control critical systems such as turbines, generators, and electrical substations.
• Ensures consistent power output and system monitoring.

3. Oil and Gas

• Monitors pressure, flow rates, and valve positions within refining and extraction systems.
• Enhances control over critical safety parameters.

4. Water Treatment

• Used for managing pumping stations, filtration systems, and water distribution systems.
• Ensures accurate control of the water flow and pressure.

5. HVAC Systems

• Regulates air flow and temperature in HVAC systems in large commercial buildings and industrial facilities.
• Integrates with central monitoring systems for real-time feedback.

Product Advantages

The KJ3002X1-BB1 12P0683X082 Analog Output Module offers several distinct advantages:

1. High Precision and Accuracy

• This module ensures high-precision analog output with an accuracy of ±0.1% of full scale.
• Ideal for critical applications that require precise control over physical parameters.

2. Wide Output Range

• The module supports a wide range of output signals, including 4-20 mA and 0-10V, offering flexibility for various field devices.
• Suitable for a range of different sensor and actuator configurations.

3. Reliable Performance

• With an update time of just 50ms and a robust design, the module ensures fast and reliable signal output, which is essential for real-time control in dynamic environments.

4. Seamless Integration

• Fully compatible with Emerson DeltaV systems, this module allows easy integration into existing control architectures without the need for additional configuration.
• Simplifies installation and setup in distributed control systems.

5. Robust and Durable

• Built with a high degree of reliability, the module can withstand challenging industrial environments.
• Offers long-term performance with protection from external factors such as humidity and temperature fluctuations.

6. Cost-Effective Solution

• The KJ3002X1-BB1 offers an economical choice for users seeking high-quality, precise analog output without the need for complex and costly systems.
