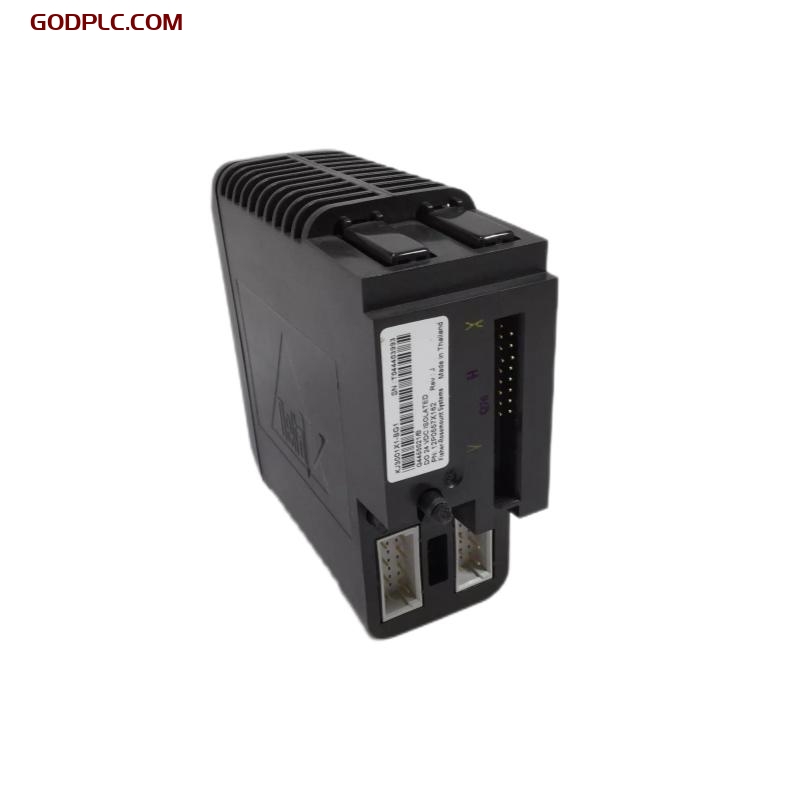

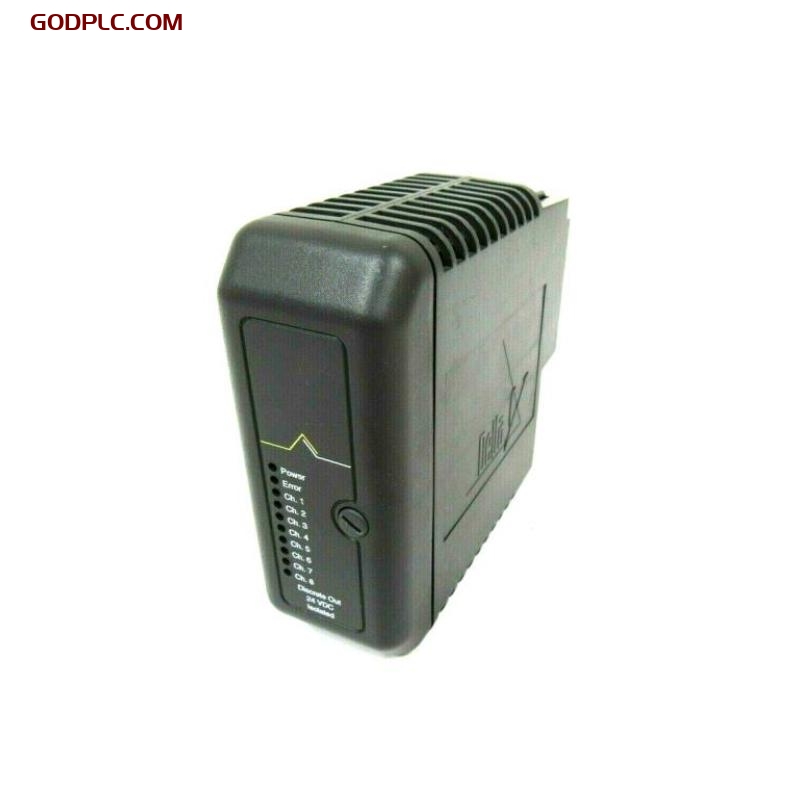

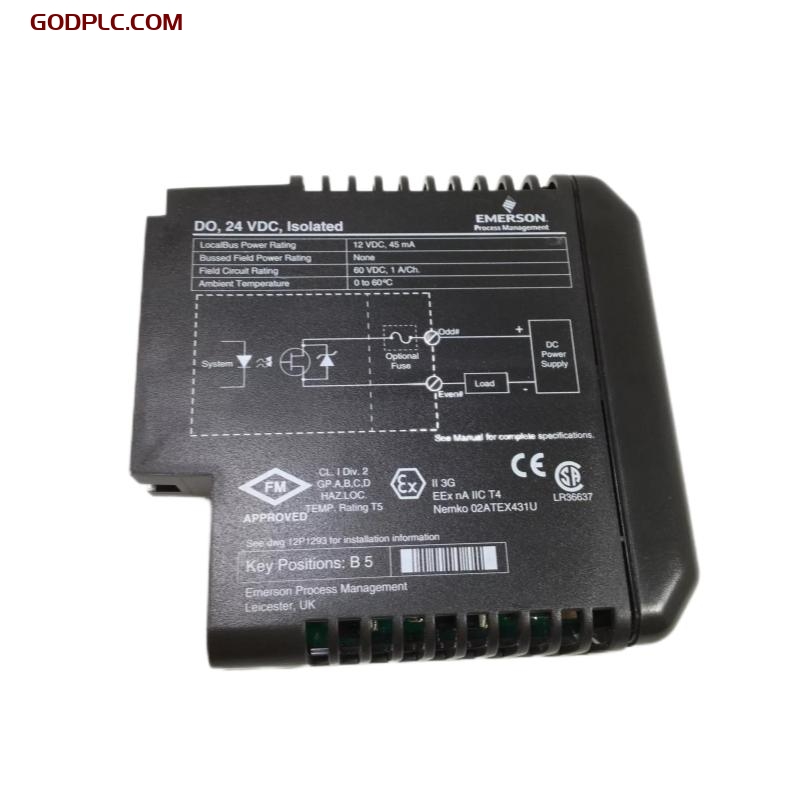

Emerson KJ3001X1-BG1 12P0557X162 Discrete Output Module
Emerson KJ3001X1-BG1 12P0557X162 Discrete Output Module
The Emerson KJ3001X1-BG1 12P0557X162 is a high-quality discrete output module designed to be used in Emerson’s DeltaV™ Distributed Control System (DCS). This module is specifically engineered to control discrete signals and outputs for industrial automation and process control systems. The module provides reliable and precise control over various connected devices such as solenoids, motors, and other binary-actuated devices.
Being part of the DeltaV system, the KJ3001X1-BG1 12P0557X162 module is designed to integrate seamlessly with other DeltaV hardware and software, providing a comprehensive solution for process automation. With the DeltaV DCS system’s robust features, this module helps ensure the continuous and efficient operation of industrial processes by reliably outputting discrete signals that can be used for controlling actuators or monitoring systems.
The module is compact, highly reliable, and designed to work under demanding conditions. Its construction ensures protection from electromagnetic interference (EMI) and minimizes the impact of environmental factors, making it a highly effective solution for critical industrial applications.
Key Features:
- Discrete Outputs: Provides binary output control for devices such as solenoids, actuators, and switches.
- Robust Design: Built to withstand harsh industrial environments and deliver consistent performance over time.
- Seamless Integration: Easily integrates into the DeltaV DCS system, providing an efficient and flexible control solution.
- EMI Protection: Offers electromagnetic interference protection, ensuring stable operation in environments with electrical noise.
- Compact Form Factor: Space-efficient design that minimizes the footprint within control cabinets.
- High Reliability: Ensures accurate signal output with minimal failure rates, enhancing system uptime.
- Wide Range of Applications: Ideal for process control, manufacturing automation, and safety systems.
- Enhanced Diagnostics: Provides advanced diagnostic features that help monitor module health and performance.
Technical Parameters:
The following table outlines the technical specifications for the Emerson KJ3001X1-BG1 12P0557X162 discrete output module:
| Parameter | Specification |
|---|---|
| Model | Emerson KJ3001X1-BG1 12P0557X162 |
| Type | Discrete Output Module |
| Input Voltage | 24 VDC (Nominal) |
| Output Type | Discrete (Binary) |
| Output Channels | 12 Outputs |
| Output Current per Channel | 0.5 A per channel |
| Operating Temperature Range | -20°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Mounting Type | DIN Rail Mountable |
| Protection Features | Short Circuit Protection, Overcurrent Protection |
| Weight | 0.19 kg |
| Dimensions | 145 x 55 x 45 mm |
| EMC Compliance | Meets IEC standards for electromagnetic compatibility |
| Certifications | CE, UL |
| Diagnostic Features | Yes (Advanced diagnostics for output health) |
Applications:
The Emerson KJ3001X1-BG1 12P0557X162 discrete output module is commonly used in industrial applications requiring the control of binary devices. Its main uses include:
- Process Automation: Controlling devices like actuators, solenoids, and valves in process control applications.
- Manufacturing Automation: Integration into automated production lines, machinery, and other manufacturing processes requiring discrete control signals.
- Safety Systems: Provides outputs to safety devices like emergency shutoff valves or safety relays.
- Control Systems: Used to interface with systems that require discrete control over pumps, motors, and other equipment.
- Oil & Gas: Used in offshore rigs, refineries, and other oil & gas installations for controlling field devices.
- Water and Wastewater Treatment: Provides outputs to control systems such as pumps, valves, and gates in water treatment facilities.
Related Models (Same Series / Similar Products):
Here are some other models from Emerson’s DeltaV DCS or related products that may be suitable for various applications:
| Model | Description |
|---|---|
| KJ3001X1-BG2 | 24VDC discrete output module with 16 outputs for larger systems. |
| KJ3001X1-BG3 | A 24VDC output module designed for high-power applications. |
| KJ3001X1-BG4 | Provides 12 outputs with enhanced diagnostic capabilities. |
| KJ3001X1-BG5 | Discrete output module with built-in surge protection for industrial applications. |
| KJ3001X1-BG6 | 8-channel discrete output module for smaller control systems. |
| KJ3001X1-BG7 | Designed for critical infrastructure with high reliability outputs. |
| KJ3001X1-BG8 | 16-channel discrete output module for large-scale systems. |
| KJ3001X1-BG9 | Compact design with 8 output channels for smaller automation setups. |
| KJ3001X1-BG10 | Advanced discrete output module with real-time monitoring for process control systems. |
| KJ3001X1-BG11 | High-performance module with diagnostics for extensive industrial processes. |
Emerson KJ3001X1-BG1 12P0557X162 is in stock. Contact us for quick quotes and competitive prices.
