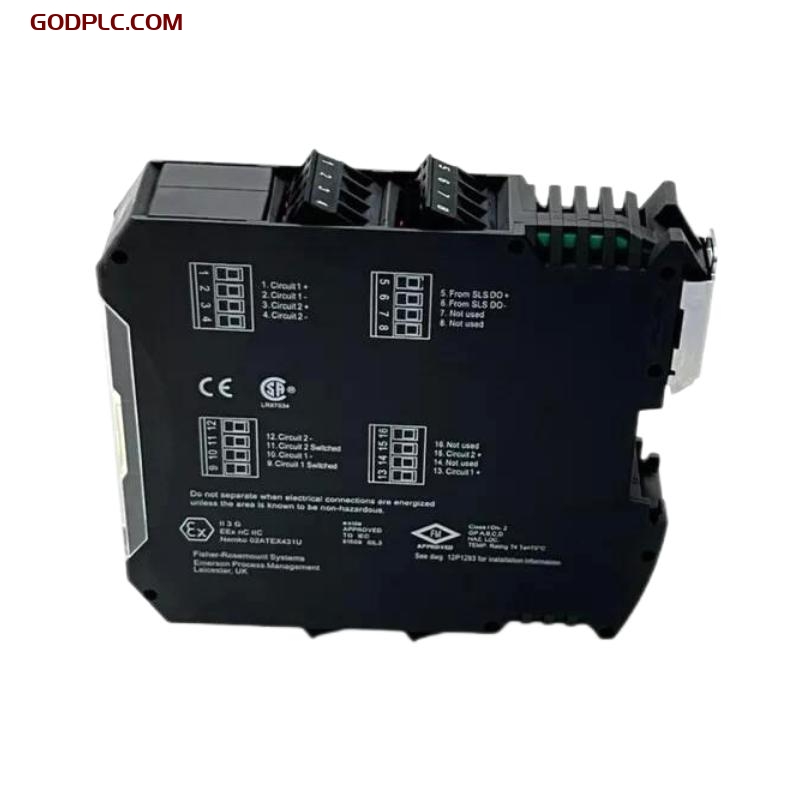

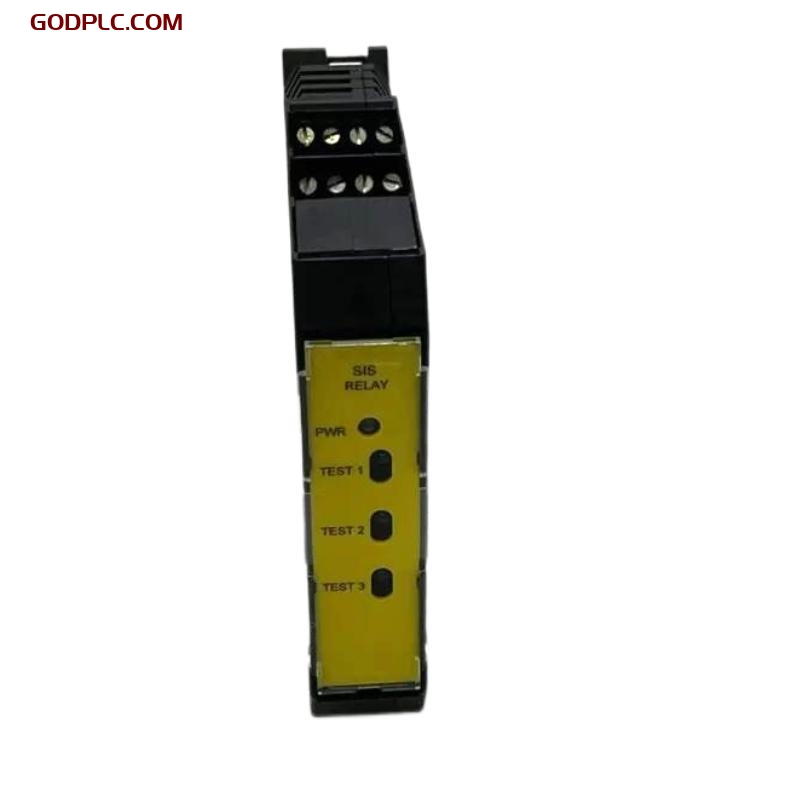

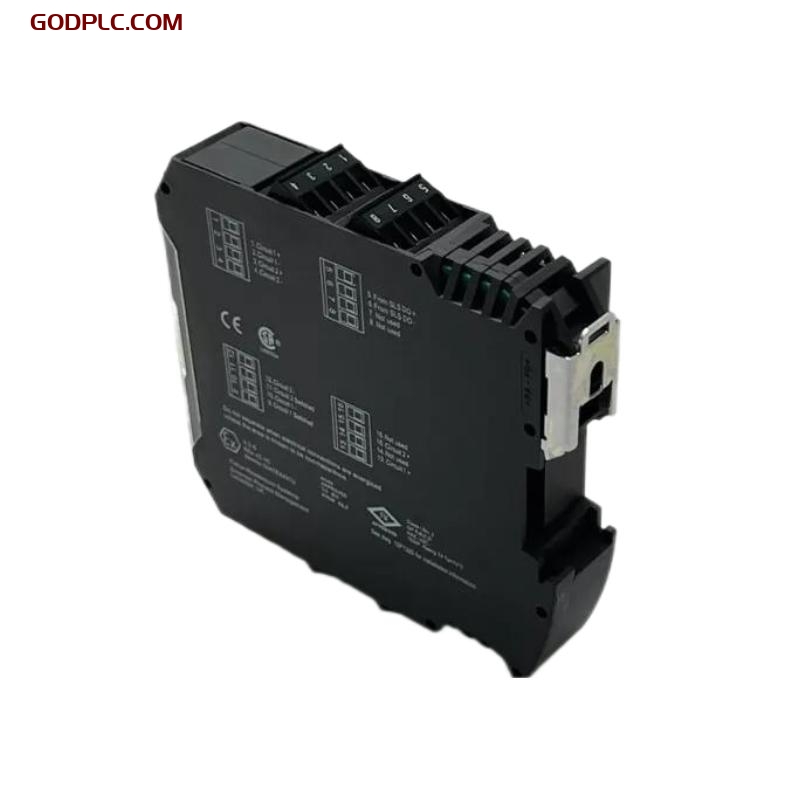

Emerson KJ2231X1-EA1 SIS Relay Module Genuine Low Price
Emerson KJ2231X1-EA1 SIS Relay Module Product Overview
The Emerson KJ2231X1-EA1 SIS Relay Module is a high-reliability safety instrumented system (SIS) relay module designed for DeltaV™ SIS (Safety Instrumented System) applications. It provides fail-safe switching of safety-critical loads, ensuring reliable operation in emergency shutdown (ESD) and safety interlock applications.
The KJ2231X1-EA1 relay module features mechanically linked relays to meet the highest safety integrity levels (SIL 3), making it ideal for process industries such as oil & gas, petrochemical, and power generation. It is built to comply with IEC 61508 and IEC 61511 safety standards, ensuring it meets the stringent requirements of safety systems in industrial environments.
With dimensions of 36 x 229 x 51 mm and a weight of 0.4 kg, this module is compact and easy to integrate into existing SIS architectures. It provides redundant and fault-tolerant capabilities, ensuring safe and reliable operation even in harsh industrial environments.
Key Features
- High-reliability relay module – Designed for safety-critical applications in SIS environments.
- SIL 3 certified – Complies with IEC 61508 and IEC 61511 safety standards.
- Mechanically linked relays – Provides fail-safe operation and redundancy.
- Supports emergency shutdown (ESD) systems – Ensures safe shutdown of critical processes.
- Compact and modular design – Easily integrates into DeltaV SIS architectures.
- Fast switching time – Ensures rapid response to emergency situations.
- Built-in diagnostics – Monitors relay health, status, and fault conditions.
- High electromagnetic compatibility (EMC) – Resistant to industrial electrical noise and interference.
- Redundant configuration support – Enhances system reliability and availability.
- Long operational life – Designed for extended use in harsh environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Module Type | SIS Relay Module |
| Dimensions | 36 x 229 x 51 mm |
| Weight | 0.4 kg |
| Relay Type | Mechanically linked relays |
| Safety Integrity Level (SIL) | SIL 3 (Certified per IEC 61508/61511) |
| Number of Channels | 2 independent relay outputs |
| Operating Voltage | 24V DC (Nominal) |
| Maximum Switching Current | 6A per channel (Resistive Load) |
| Switching Voltage Range | 24V to 250V AC/DC |
| Response Time | Fast switching for emergency applications |
| Isolation Protection | Galvanic isolation between channels |
| Diagnostics | Real-time monitoring of relay health |
| Power Consumption | Low energy consumption |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -50°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Mounting Type | DIN rail mounting |
| Communication Interface | Integrated with DeltaV SIS system |
| Electromagnetic Compatibility (EMC) | High resistance to EMI and electrical noise |
Applications
The Emerson KJ2231X1-EA1 SIS Relay Module is widely used in process automation and safety systems that require high-reliability relay switching for safety-critical operations. Some key applications include:
- Oil & Gas – Used in emergency shutdown (ESD) systems, blowout preventers, and compressor safety controls.
- Chemical & Petrochemical – Ensures safe operation of hazardous chemical processes and reactor shut-off systems.
- Power Generation – Applied in turbine protection, generator fault shutdown, and grid isolation.
- Water & Wastewater Treatment – Helps in pump overcurrent protection and automated safety interlocks.
- Manufacturing & Automotive – Provides safety relay switching for robotic automation and machine shutdown systems.
- Pharmaceuticals – Supports GMP-compliant process automation and safety systems.
- Mining & Metals – Used in conveyor belt emergency stop systems and process safety interlocks.
- Aerospace & Defense – Integrated into mission-critical safety shutdown applications.
- Renewable Energy – Used in wind and solar power systems for emergency disconnect functions.
- Food & Beverage – Ensures safe shutdown of process lines in hazardous conditions.
Related Models
Below are 10 related models from Emerson’s DeltaV SIS automation series that offer similar or complementary functionalities:
| Model | Description |
|---|---|
| KJ2232X1-EA1 | SIS Digital Input Module |
| KJ2233X1-EA1 | SIS Digital Output Module |
| KJ2234X1-EA1 | SIS Analog Input Module |
| KJ2235X1-EA1 | SIS Analog Output Module |
| KJ2236X1-EA1 | High-Density Digital Input Module |
| KJ2237X1-EA1 | High-Density Digital Output Module |
| KJ2238X1-EA1 | SIS Redundant Relay Module |
| KJ2239X1-EA1 | Thermocouple Input Module |
| KJ2240X1-EA1 | Pulse Input Module for Safety Applications |
| KJ2241X1-EA1 | Redundant Power Supply Module for SIS |
Emerson KJ2231X1-EA1 is in stock. Contact us for quick quotes and competitive prices.
