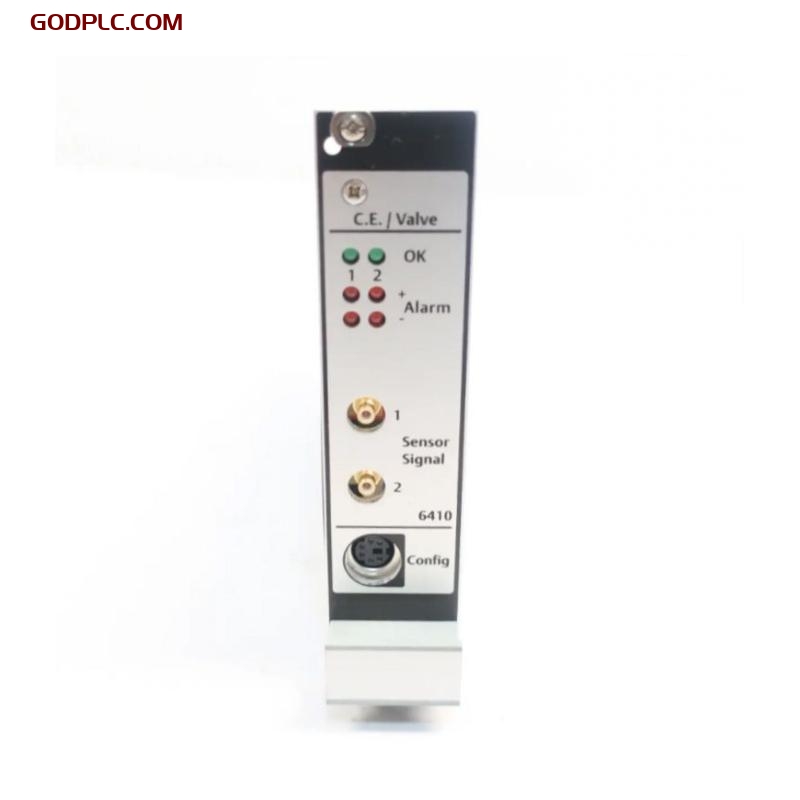

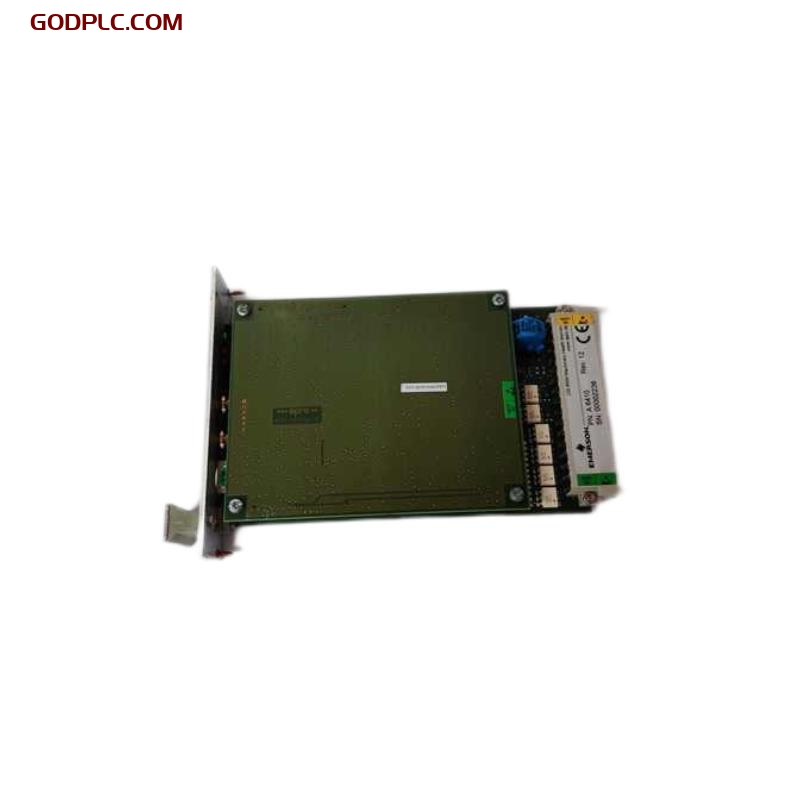

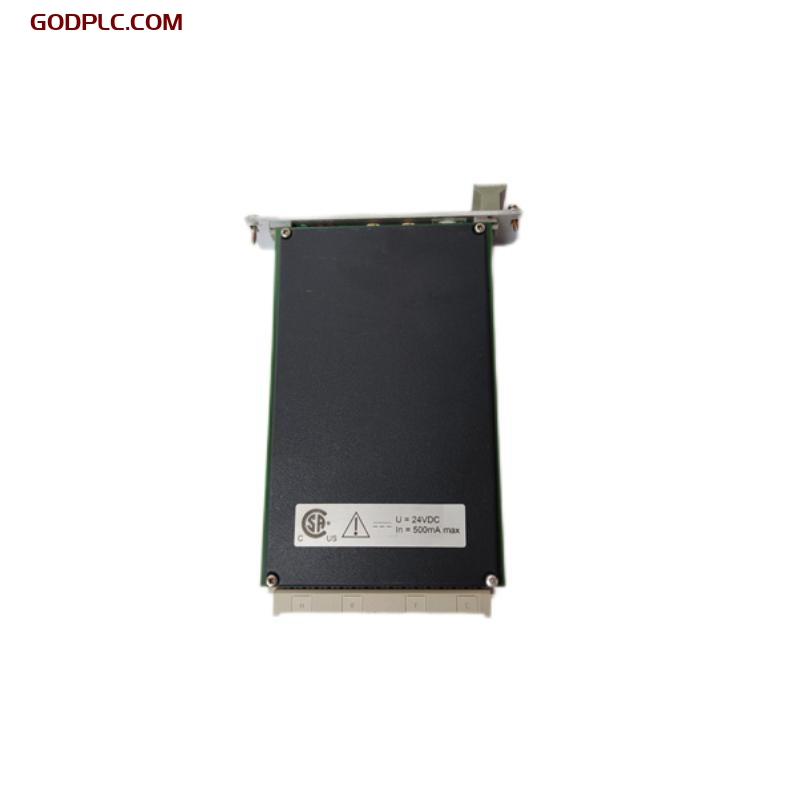

Emerson A6410 Product Introduction

The Emerson A6410 is a Dual-channel Valve and Case Expansion Monitor designed to provide high performance and reliability in a wide range of industrial applications. Engineered to support the needs of industries such as power generation, oil and gas, petrochemical, and manufacturing, the A6410 ensures precise control and monitoring of critical processes. The module is designed for seamless integration into automation systems, where it facilitates the control of machinery, sensors, actuators, and other essential components, making it a versatile solution for a variety of industrial systems.

With its compact and durable design, the A6410 module is built to perform in demanding environments. Its small form factor (160 mm x 128.4 mm x 30 mm) and low weight (0.32 kg) make it an ideal solution for applications where space is limited, yet the need for high performance remains crucial. The A6410 excels in providing real-time data processing, signal management, and control, offering industrial operations the precision and reliability required for optimal performance.

This module is engineered to operate effectively across a broad temperature range and withstand common electrical disturbances, making it suitable for a wide array of industrial sectors. Whether used in large-scale control systems or smaller applications, the A6410 can easily integrate with existing Emerson control modules and other industrial equipment.

Product Features

• Compact and Robust Design: The A6410 module features a compact size of 160 x 128.4 x 30 mm and weighs just 0.32 kg, making it suitable for installations in space-constrained areas. Despite its small size, the module is highly durable and can withstand harsh industrial environments.
• Real-Time Control and Monitoring: The module supports real-time data processing, enabling it to manage signals and control various devices with precision and efficiency. This is particularly important for industrial applications that require fast response times and reliable performance.
• Wide Compatibility: The A6410 is compatible with various input/output signals, making it flexible enough to integrate into diverse industrial control systems. Whether the application requires analog or digital inputs, the module can handle a broad range of signals.
• Built-in Protection Features: To safeguard sensitive equipment, the A6410 includes built-in protection against overvoltage, undervoltage, and power surges. These protective features help to prevent damage from electrical disturbances, ensuring the longevity of connected devices.
• Energy-Efficient Operation: The A6410 operates with minimal power consumption, contributing to energy savings in industrial operations. This is particularly advantageous for systems that run continuously or for extended periods.
• Reliability and Durability: Built to withstand extreme environmental conditions, the A6410 module is resistant to temperature fluctuations, electrical noise, and mechanical vibrations, making it a highly reliable choice for demanding industrial settings.
• Easy Installation and Integration: The A6410 module is designed for easy installation with a standard DIN rail mounting option. It integrates seamlessly with other Emerson control systems, ensuring minimal downtime and reduced setup complexity.

Technical Specifications

The following table summarizes the key technical specifications of the Emerson A6410 module:

Installation and Connection

The A6410 module uses a standard DIN rail mounting method, making installation straightforward and secure. The compact size (160 x 128.4 x 30 mm) allows for easy integration into existing control panels or systems, even in tight spaces. The module is designed to be connected to a 24V DC power source, and all necessary connections are clearly labeled for ease of installation.

The terminal blocks are designed to handle both digital and analog signals, allowing for a wide range of industrial applications. The A6410 also includes built-in protection against overvoltage, undervoltage, and power surges, which enhances the overall reliability of the system. Once installed, the module can be integrated with other Emerson control modules and industrial devices, providing seamless control and monitoring.

Applications

The Emerson A6410 is designed for use in a variety of industrial sectors, offering high precision and reliability in controlling and monitoring equipment. Some of the industries and applications where the A6410 can be used include:

• Power Generation: The A6410 module is ideal for power plants where it can be used to monitor and control critical equipment such as turbines, generators, and circuit breakers. It ensures the smooth operation of power generation systems, helping to maintain efficiency and reliability.
• Oil and Gas: In the oil and gas sector, the A6410 is used to control pumps, valves, and other equipment, ensuring safety and efficiency in upstream, midstream, and downstream operations.
• Petrochemical: The module is used in petrochemical plants for controlling various processes, from refining to chemical production, ensuring safe and efficient operation.
• Manufacturing: The A6410 is employed in automated manufacturing systems to control machinery, assembly lines, and robotics. It helps optimize production processes, reduce downtime, and increase throughput.
• Industrial Automation: The A6410 is a valuable component in industrial automation systems, where it can control and monitor a wide variety of devices such as sensors, actuators, and controllers, helping to improve system performance and reliability.
