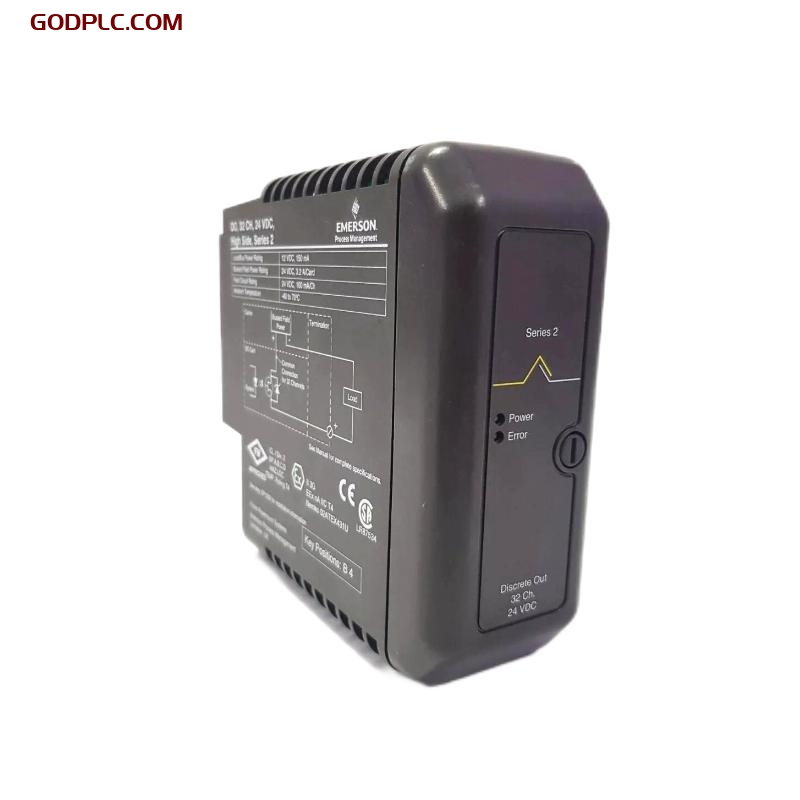

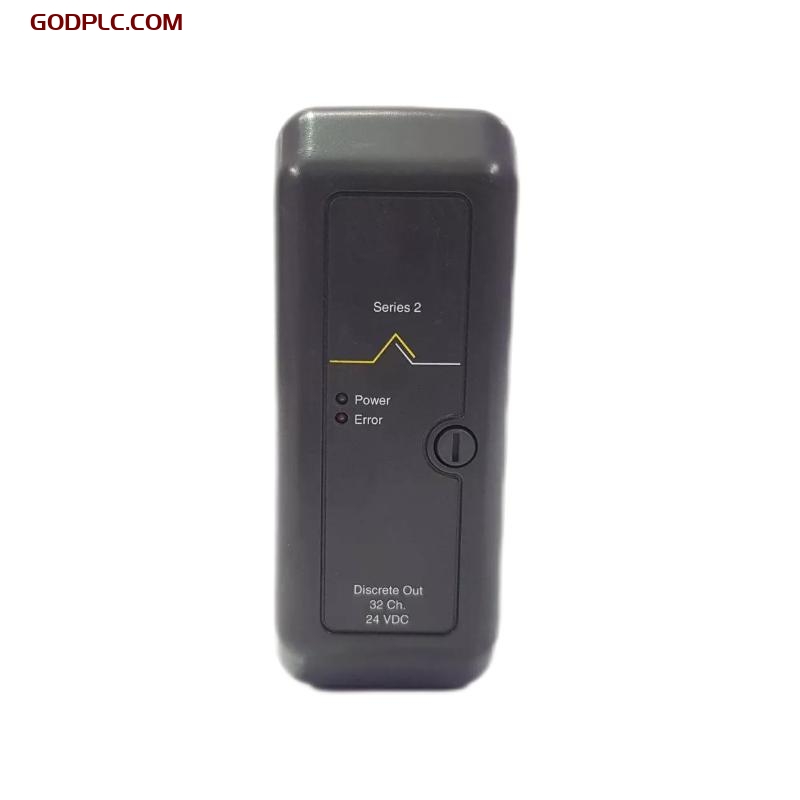

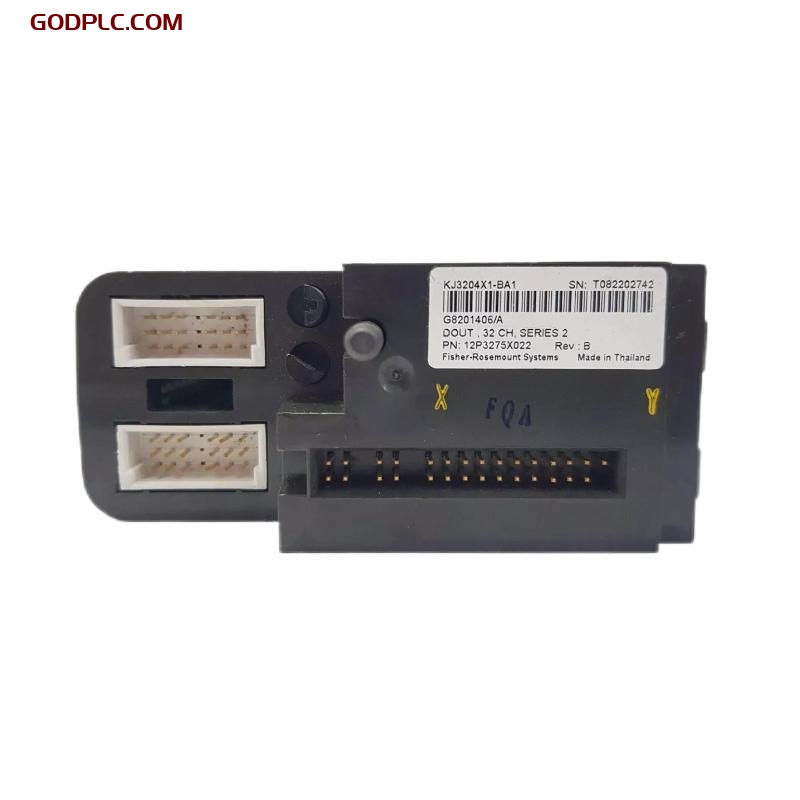

Emerson 12P3275X022 KJ3204X1-BA1 DeltaV Discrete Output Module

  • Manufacturer: Emerson
  • Product Number: KJ3204X1-BA1
  • Condition: New & In Stock
  • Product Type: DeltaV Discrete Output Module
  • Origin: USA
  • Payment Methods: T/T, Western Union
  • Dimensions: 160 x  130  x 50 mm
  • Weight: 0.181kg
  • Order Number: 12P3275X022
  • Shipping Port: Xiamen, China
  • Lead Time: 1-3 Working Days
  • Warranty: One Year
  • Certificate: COO
  • Courier partners: DHL, UPS, TNT, FedEx and EMS.

Product Detail

Contact Us

FAQS

Packing & Delivery

Emerson 12P3275X022 KJ3204X1-BA1 DeltaV Discrete Output Module

The Emerson 12P3275X022 KJ3204X1-BA1 is a Discrete Output Module designed specifically for use with DeltaV™ process control systems. This module is optimized for controlling digital output devices in industrial automation environments, including solenoids, relays, actuators, and valves. It is an integral part of Emerson’s DeltaV automation solution, providing fast, reliable, and precise control of various field devices in both small and large-scale industrial applications.

The KJ3204X1-BA1 module offers advanced features including high-density output control, integrated diagnostics, and fast response times, which are crucial for time-sensitive control systems. Its compact form factor and seamless integration with DeltaV™ systems make it a preferred choice for process control, energy management, and other industrial automation applications.

Key Features:

  • High-Performance Output Control: The module is designed to control a wide range of field devices with digital outputs, providing consistent and reliable performance across various industrial applications.
  • Fast Response Time: It is optimized for applications that require high-speed processing and precise control of output signals to meet the stringent needs of modern industrial automation.
  • Integrated Diagnostics: The module features built-in diagnostics for monitoring system health and providing early warnings of any potential issues. This helps prevent system failures and improves the overall reliability of the automation system.
  • Wide Voltage Range: The KJ3204X1-BA1 supports a broad output voltage range, typically from 12-24 VDC, allowing it to control a wide variety of field devices, making it highly versatile.
  • Reverse Polarity Protection: This feature helps protect the module from potential damage caused by incorrect wiring, ensuring that the output module operates safely and reliably.
  • DIN Rail Mountable: The module can be mounted on standard DIN rails, which makes installation quick and easy. This provides flexibility in the configuration of control panels and helps to optimize space in the control system.
  • Compact and Robust Design: The KJ3204X1-BA1 has a compact footprint, allowing it to be used in space-constrained environments without compromising on performance or functionality. It is designed to withstand the harsh industrial conditions commonly encountered in automation systems.
  • Energy Efficient: The module is designed with power efficiency in mind, consuming minimal power during operation, which contributes to cost savings in long-term industrial automation systems.
  • Safety Certifications: The KJ3204X1-BA1 meets global safety standards, including UL, CE, and CSA certifications, ensuring it can be used in highly regulated industries that require rigorous safety and quality control.

Applications:

The Emerson 12P3275X022 KJ3204X1-BA1 DeltaV Discrete Output Module is well-suited for a broad range of industrial automation applications, including but not limited to:

  • Process Control: Ideal for controlling devices such as solenoids, actuators, and relays in process industries, including chemical processing, pharmaceuticals, and food and beverage manufacturing.
  • Energy Management: Used to control field devices in energy systems, including circuit breakers, power switches, and energy meters, ensuring optimal energy efficiency and improved system performance.
  • Manufacturing Automation: Supports the control of digital devices in automated manufacturing environments, including conveyors, robots, and assembly lines.
  • Oil & Gas: A critical component in controlling solenoids, actuators, and valves in both upstream and downstream oil and gas operations, ensuring the reliability and safety of industrial processes.
  • Power Generation: Provides essential control over digital field devices in power plants, improving operational safety and system efficiency.
  • Building Automation: Enables the control of HVAC systems, lighting, and security systems in commercial and industrial buildings, helping optimize energy use and maintain operational integrity.
  • Water & Wastewater Treatment: Used to control pumps, valves, and flow meters in water treatment and wastewater plants, helping improve the efficiency of critical infrastructure systems.
  • Industrial Equipment Control: Perfect for controlling machinery and equipment in various industrial sectors, including automated material handling, robotics, and production lines.
  • Transportation Systems: Controls digital output devices in transportation infrastructure systems, such as signaling devices, automated gates, and traffic management systems.
  • Agricultural Automation: Ideal for controlling irrigation systems, environmental monitoring sensors, and automation equipment used in agricultural production processes.

Technical Specifications:

The following table summarizes the key specifications for the Emerson 12P3275X022 KJ3204X1-BA1 DeltaV Discrete Output Module:

Parameter Specification
Model Emerson 12P3275X022 KJ3204X1-BA1
Module Type Discrete Output Module
Dimensions 160 x  130  x 50 mm
Weight 0.181 kg
Number of Channels 16 Channels (8 outputs per group)
Output Voltage Range 12-24 VDC (Nominal 24 VDC)
Output Current 0.5 A per output (maximum)
Response Time 2 ms (Typical)
Mounting Type DIN Rail Mountable
Operating Temperature Range -20°C to +60°C
Storage Temperature -40°C to +85°C
Power Consumption 1.5 W (typical)
Status Indicators LED indicators for each output
Protection Reverse polarity protection
Safety Certifications UL, CE, CSA
System Compatibility Compatible with DeltaV control systems
Diagnostic Features Built-in diagnostics for error detection and monitoring

Recommended Related Models (Same Series / Similar Products):

Here are 10 other models from the DeltaV™ series or related Emerson products that are suitable for various applications:

Model Description
Emerson 12P3275X023 KJ3204X1-BB1 A 16-channel discrete output module with faster response times.
Emerson 12P3275X024 KJ3204X1-BC1 High-density output card with integrated diagnostics.
Emerson 12P3275X025 KJ3204X1-BD1 Digital output card designed for harsh environments.
Emerson 12P3275X026 KJ3204X1-BE1 Advanced output card with expanded voltage support.
Emerson 12P3275X027 KJ3204X1-BF1 Basic version for standard industrial applications.
Emerson 12P3275X028 KJ3204X1-BG1 Optimized for large-scale automation and process control.
Emerson 12P3275X029 KJ3204X1-BH1 Compact version for space-constrained environments.
Emerson 12P3275X030 KJ3204X1-BI1 High-performance card with built-in redundancy features.
Emerson 12P3275X031 KJ3204X1-BJ1 High-speed output module designed for real-time control.
Emerson 12P3275X032 KJ3204X1-BK1 Multi-functional output card with integrated monitoring.

Emerson 12P3275X022 KJ3204X1-BA1 is in stock. Contact us for quick quotes and competitive prices.
