Bently Nevada 3500/15 106M1079-01 Universal AC Power Supply Module Order online
Product Overview

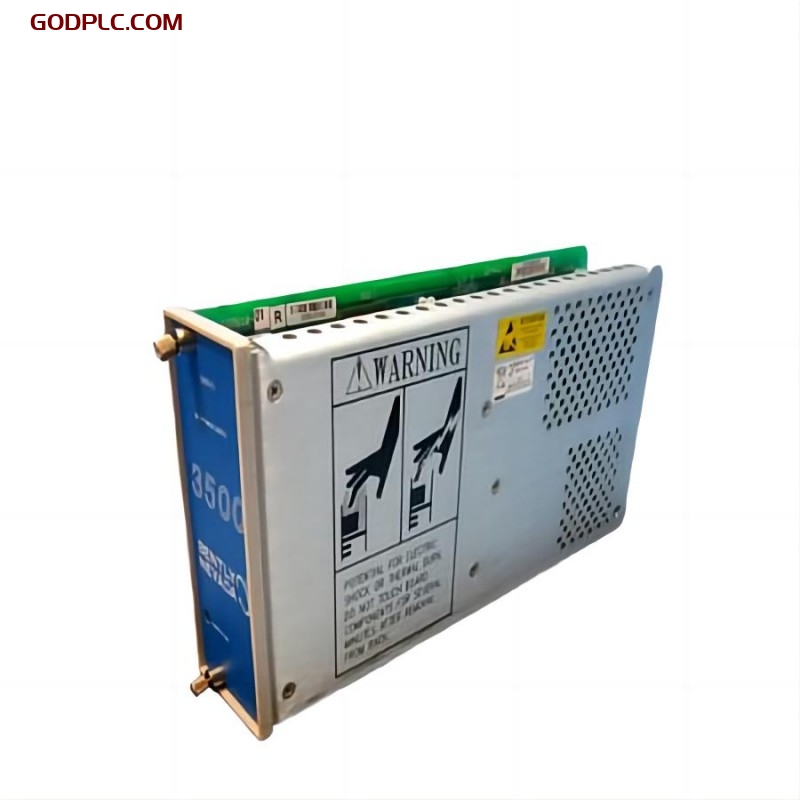

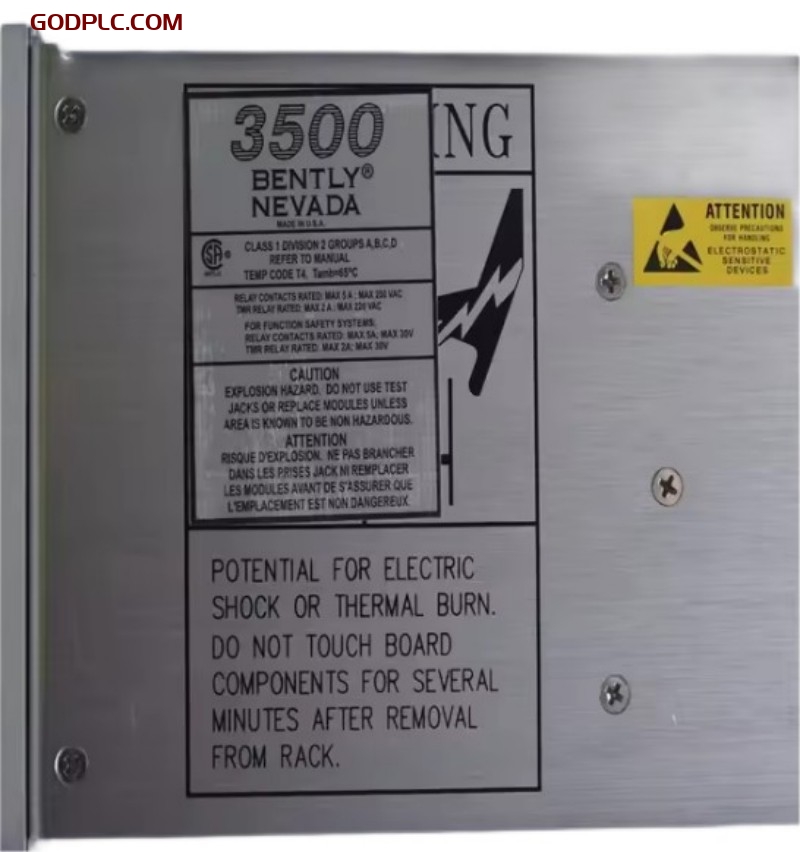

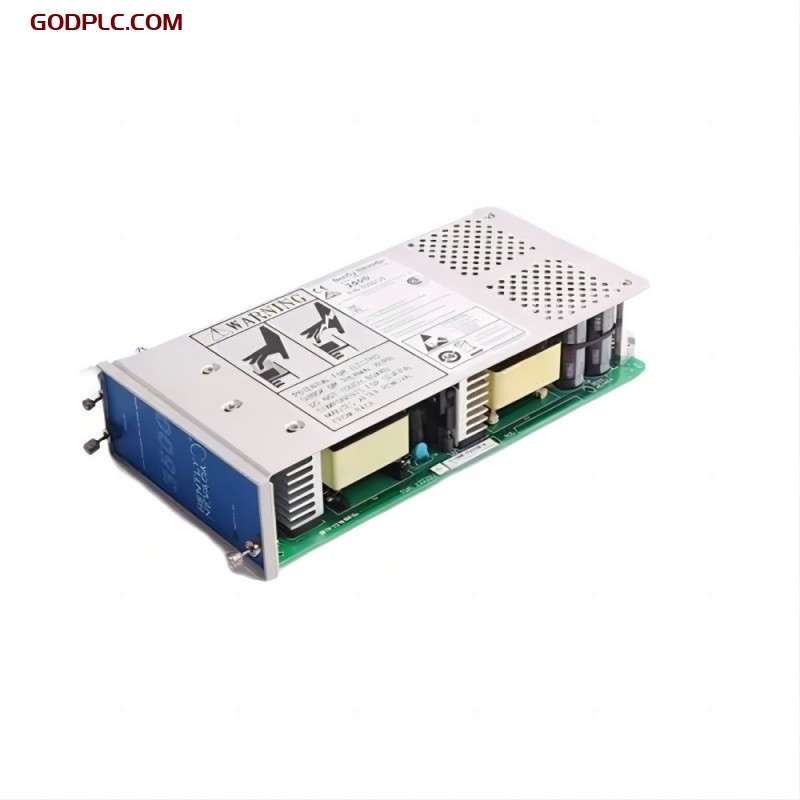

The Bently Nevada 3500/15 106M1079-01 Universal AC Power Supply Module is a critical component of the 3500 Machinery Protection System, designed to provide stable power to other modules within the 3500 series rack. The module supports a wide input voltage range and ensures high reliability in industrial applications. It is installed in dedicated power supply slots on the left side of the 3500 rack and supports redundant power configurations for enhanced system uptime.
When two power supply modules are installed in the rack, the lower-slot module serves as the primary power supply, while the upper-slot module acts as a backup. If both modules are installed, removing or replacing one does not disrupt the rack’s operation.
Key Features
- Universal Input Voltage: Supports a broad input voltage range from 85-264 Vac, ensuring global compatibility.
- Redundant Power Configuration: Enables automatic switchover between primary and backup power supplies to maintain continuous operation.
- Hot-Swappable Design: Allows power supply replacement without system downtime.
- Front Panel LED Indicators: Provides real-time monitoring of power status.
- Compact, Half-Height Design: Optimizes rack space efficiency.
- High Environmental Resistance: Built to operate in harsh industrial conditions.
- Certified for Industrial Use: Compliant with FCC, CE, ATEX, IECEx, and other industry standards for hazardous environments.
Technical Specifications
Physical Dimensions & Weight
| Parameter | Specification |
| Module Dimensions | 120.7 mm × 50.8 mm × 251.5 mm |
| Module Weight | 1.39 kg |
General Information
| Parameter | Specification |
| Rack Installation Position | Left side of the rack, occupying two half-height slots |
| Power Input Module Installation | Positioned directly behind the corresponding power supply module |
| Minimum Load Requirement | No minimum load required |
Power Input
| Parameter | Specification |
| Nominal Input Voltage | 110-220 Vac |
| Input Voltage Range (Non-Hazardous Areas) | 85-264 Vac rms |
| Input Voltage Range (Hazardous Areas) | 85-250 Vac rms |
| Peak Voltage | 120-373 Vac pk |
| Input Frequency | 47-63 Hz |
Power Output
| Parameter | Specification |
| Full Rack Current Draw (Universal AC Power) | 2.8 A rms (maximum) |
| Full Rack Current Draw (High Voltage DC Power) | 2.5 A (maximum) |
| Full Rack Current Draw (Low Voltage DC Power) | 11.0 A (maximum) |
Environmental Conditions
| Parameter | Specification |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 95%, non-condensing |
Compliance & Certifications
| Standard | Certification |
| FCC | Complies with FCC Part 15 |
| EMC | Meets 2014/30/EU Directive, EN 61000-6-2, EN 61000-6-4 |
| Electrical Safety | Complies with 2014/35/EU Directive, EN 61010-1 standard |
| RoHS | Complies with 2011/65/EU Directive |
| Maritime Certification | Certified by DNV GL, ABS |
| Hazardous Area Certification | ATEX, IECEx, cNRTLus (Class I, Zone 2, Division 2) |
Industry Applications
The Bently Nevada 3500/15 106M1079-01 Universal AC Power Supply Module is widely used in the following industries:
- Oil & Gas: Suitable for offshore drilling platforms, refineries, and gas processing facilities.
- Power Generation: Applied in gas turbines, steam turbines, and hydroelectric power generation units.
- Chemical & Pharmaceutical: Provides reliable equipment monitoring in hazardous environments.
- Steel & Mining: Supports real-time condition monitoring of metallurgical and mining equipment.
- Marine & Offshore Engineering: Ensures stable power for propulsion systems and offshore industrial operations.
Bently Nevada 3500/15 106M1079-01 is in stock. Contact us for quick quotes and competitive prices.
