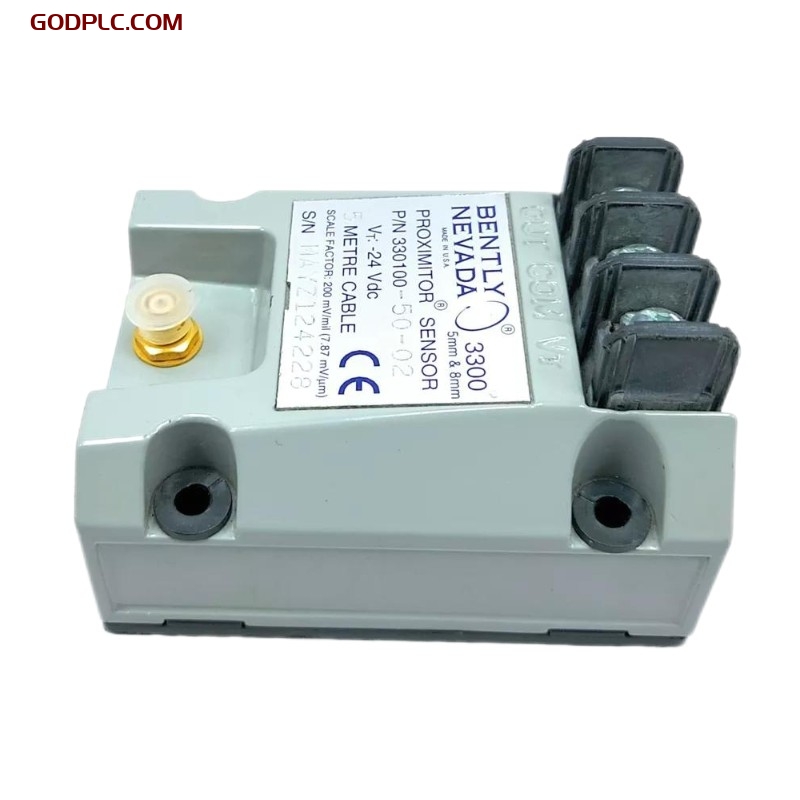

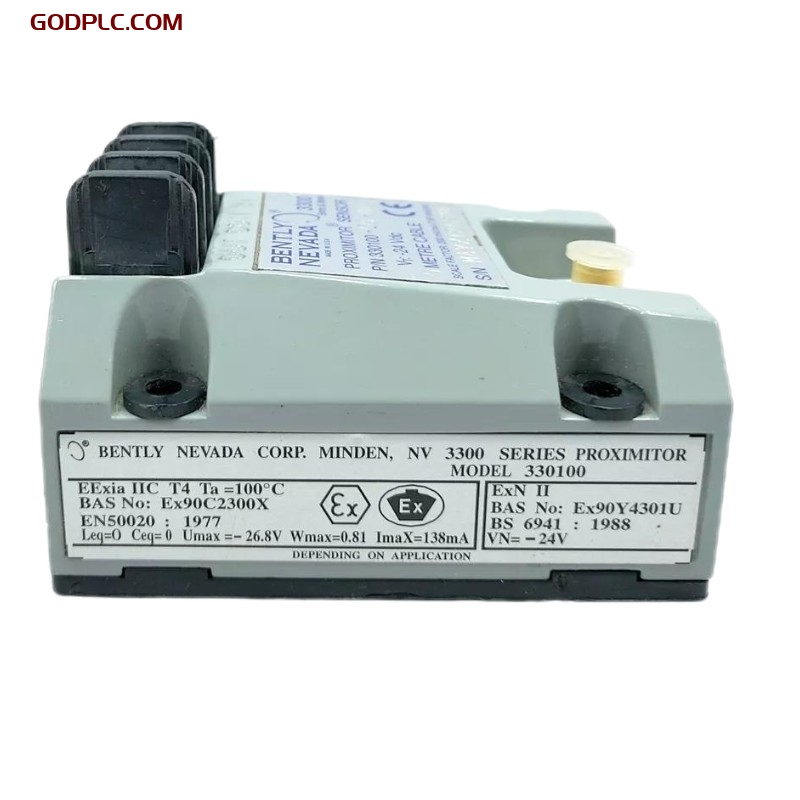

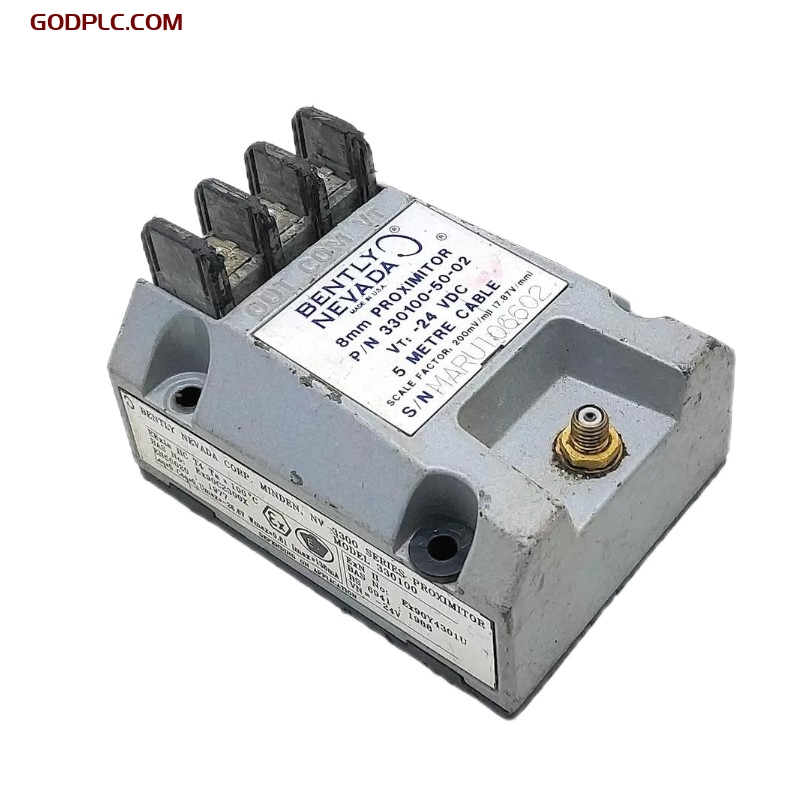

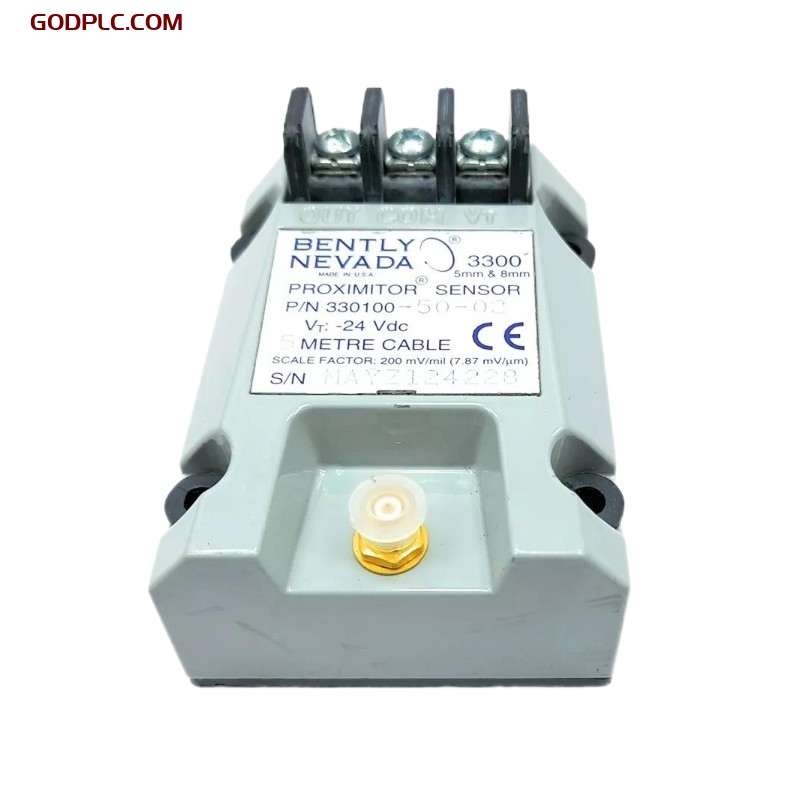

Bently Nevada 330100-50-02 Proximitor Sensor 2 Days Delivery
1. Product Overview
The Bently Nevada 330100-50-02 Proximitor® Sensor is a core component of the 3300 Proximity Transducer System, designed for vibration and position measurement in industrial machinery. This sensor works in conjunction with the 3300 XL 8 mm probe and 3300 XL extension cable to provide high-precision non-contact measurements, suitable for monitoring and protecting various rotating machinery. The Proximitor® Sensor measures the distance between the probe tip and the target surface, outputting a voltage signal proportional to the distance. It is widely used for vibration, position, Keyphasor®, and speed measurement applications in fluid-film bearing machines.
The sensor offers excellent temperature stability and linearity, providing stable signal output over a wide temperature range. Its design allows complete interchangeability between probes, extension cables, and sensors without the need for individual component matching or bench calibration, significantly simplifying installation and maintenance processes.
2. Key Features
- High-Precision Measurement: Provides voltage output proportional to the target distance, suitable for both static (position) and dynamic (vibration) measurements.
- Wide Temperature Range: Stable operation from -51°C to +100°C, suitable for extreme industrial environments.
- Full Interchangeability: No need for matching or calibration between probes, extension cables, and sensors, simplifying installation and maintenance.
- Strong Anti-Interference: Advanced electromagnetic shielding technology reduces external electromagnetic interference.
- Multiple Certifications: Complies with CE marking and is suitable for hazardous areas (Class I, Division 1 and Division 2).
- Easy Installation: ClickLoc™ connectors allow quick installation and removal without special tools.
3. Technical Specifications
Dimensions and Weight
| Parameter | Value |
|---|---|
| Total Length | 5.0 meters (16.4 feet) |
| Weight | 0.25 kg (0.55 lbs) |
General Information
| Parameter | Value |
|---|---|
| Power Supply | -17.5 Vdc to -26 Vdc |
| Maximum Current Draw | 12 mA |
| Output Resistance | 50 Ω |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap Setting | 1.27 mm (50 mils) |
| Incremental Scale Factor | 7.87 mV/μm (200 mV/mil) |
| Frequency Response | 0 to 6.5 kHz |
| Minimum Target Size | 15.2 mm (0.6 in) diameter |
| Operating Temperature | -51°C to +100°C |
| Storage Temperature | -51°C to +100°C |
| Relative Humidity | 100% condensing, non-submersible |
Electrical Characteristics
| Parameter | Value |
|---|---|
| Supply Sensitivity | Less than 2 mV/V |
| Output Resistance | 50 Ω |
| Probe DC Resistance | 7.45 ± 0.50 Ω (0.5 meters) |
| Extension Cable DC Resistance | 0.66 ± 0.10 Ω (3.0 meters) |
| Extension Cable Capacitance | 69.9 pF/m (21.3 pF/ft) |
Mechanical Characteristics
| Parameter | Value |
|---|---|
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 304 Stainless Steel |
| Sensor Case Material | A383 Aluminum |
| Connector Material | Gold-Plated Brass |
| Cable Tensile Strength | 330 N (75 lbs) |
Environmental Limits
| Parameter | Value |
|---|---|
| Probe Temperature Range | -51°C to +177°C |
| Extension Cable Temperature Range | -51°C to +177°C |
| Sensor Temperature Range | -51°C to +100°C |
| Relative Humidity | 100% condensing, non-submersible |
4. Industry Applications
The Bently Nevada 330100-50-02 Proximitor® Sensor is widely used in the following industries and applications:
- Power Generation: Vibration and position monitoring for steam turbines, gas turbines, hydro turbines, and generators.
- Oil and Gas: Condition monitoring and protection for compressors, pumps, and turboexpanders.
- Chemical Industry: Vibration monitoring for centrifuges, agitators, and reactors.
- Manufacturing: Vibration analysis for large rotating equipment such as fans, motors, and gearboxes.
- Aerospace: Testing and monitoring of engines and turbomachinery.
Bently Nevada 330100-50-02 is in stock. Contact us for quick quotes and competitive prices.
