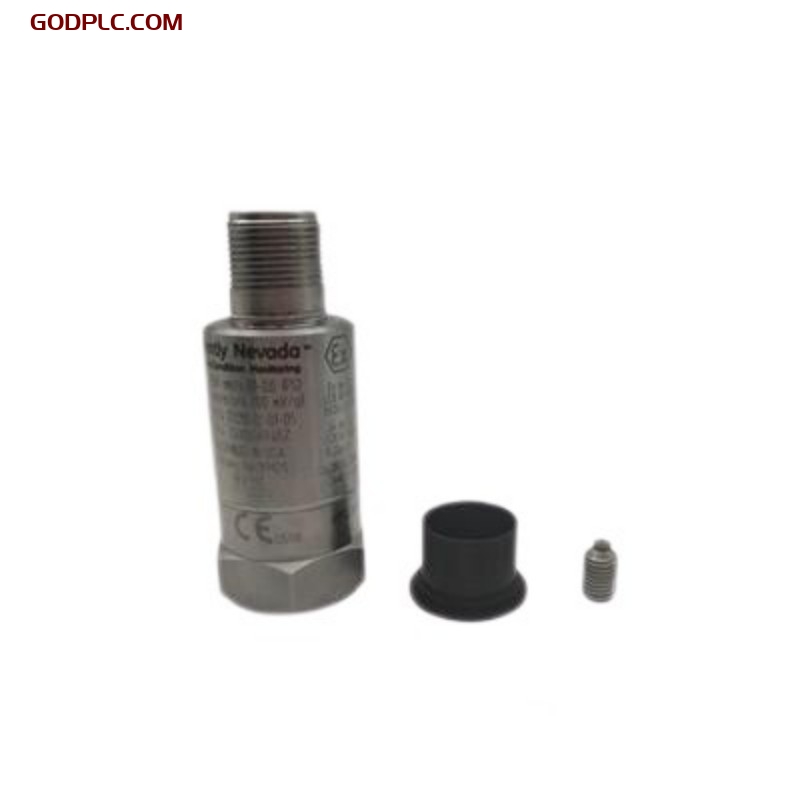

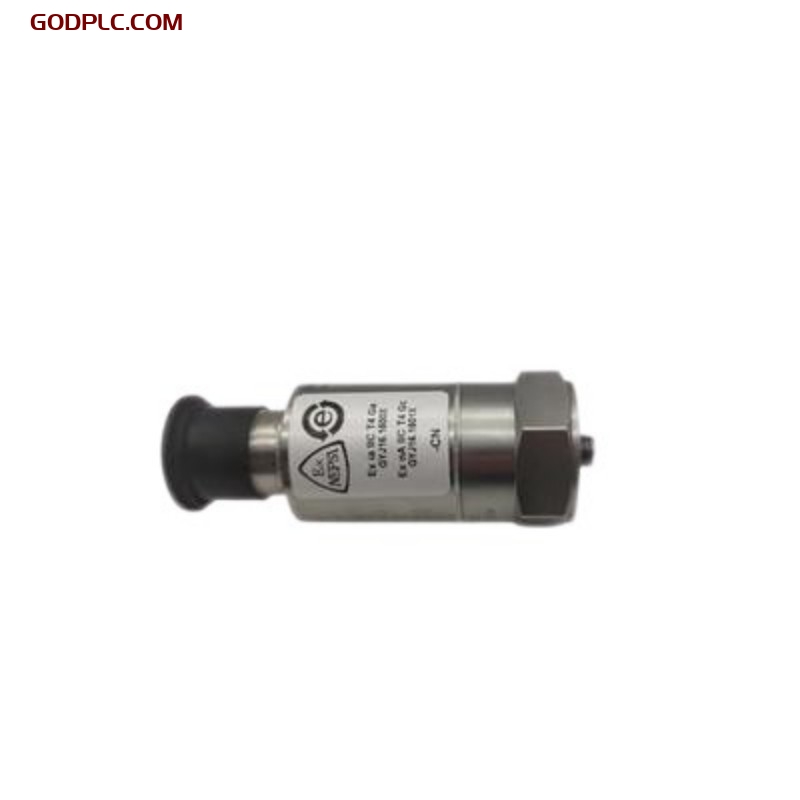

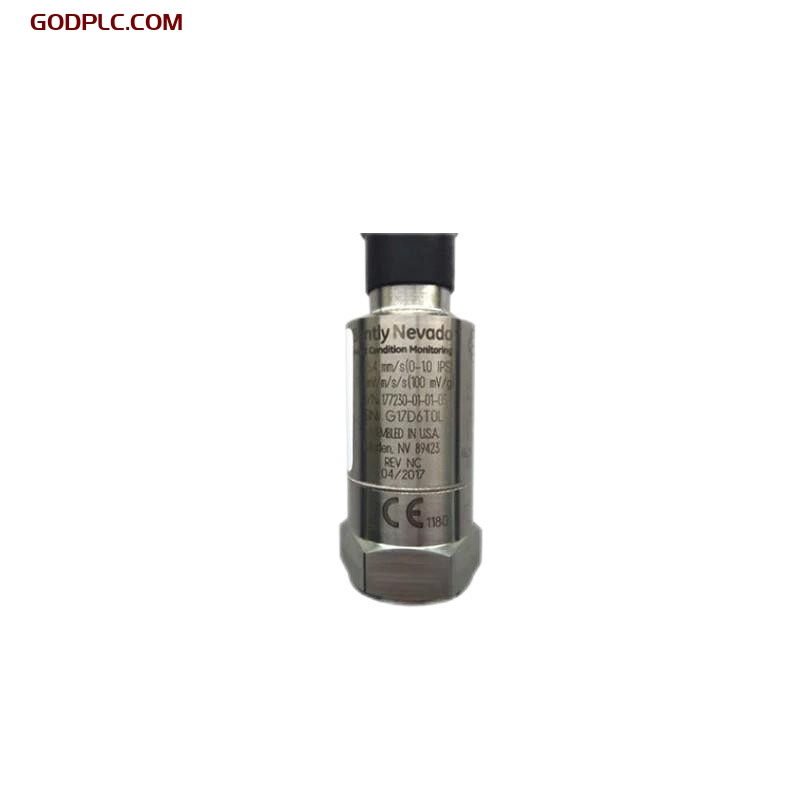

Bently Nevada 177230-01-02-05 Seismic Transmitter Contact The Sales
1. Product Overview
The Bently Nevada 177230-01-02-05 Seismic Transmitter is a high-performance vibration monitoring device designed for industrial applications requiring continuous condition monitoring of rotating and reciprocating machinery. This transmitter provides a reliable 4-20 mA current loop output that integrates seamlessly with PLCs, DCS, and SCADA systems.
With loop-powered operation, the transmitter is easy to install, requiring minimal configuration while providing highly accurate and repeatable data. It is engineered to withstand harsh industrial environments, ensuring long-term reliability and robust performance.
By utilizing advanced ceramic shear sensing technology, the 177230-01-02-05 offers precise vibration measurements, helping industries to optimize maintenance planning, reduce unexpected downtime, and prevent catastrophic machinery failures.
2. Key Features
✔ Easy Integration – Directly connects to PLCs, DCS, and SCADA without requiring additional configuration.
✔ Robust Design – Built with hermetic sealing and a 316L stainless steel housing for extreme environmental conditions.
✔ Accurate and Reliable – Provides high repeatability and precise vibration monitoring using industry-standard 4-20 mA output.
✔ Dual Output Signals – Offers both a 4-20 mA current loop for vibration velocity and an unbuffered dynamic acceleration signal for detailed analysis.
✔ Broad Frequency Response – Capable of measuring from 3 Hz to 10 kHz, ensuring suitability for various industrial machinery.
✔ Compact and Durable – Small footprint with a rugged design that ensures shock survivability up to 9,810 m/s² (1,000 g peak).
✔ Self-Test Feature – Enhances reliability by allowing users to verify the device’s operational status.
3. Technical Specifications
Physical Dimensions and Weight
| Parameter | Specification |
|---|---|
| Sensor Diameter | 25.4 mm (1.00 in) |
| Height | 66.0 mm (2.60 in) |
| Weight | 131 g (4.62 oz) |
| Case Material | 316L Stainless Steel |
| Connector Type | 3-pin MIL-C-5015 |
| Mounting Thread | ¼-28 UNF, M6 x 1, M8 x 1.25 |
| Mounting Torque | 4 to 7 N·m (35.4 to 62.0 in-lbf) |
General Electrical Specifications
| Parameter | Specification |
|---|---|
| Power Supply | 12 to 30 VDC (Loop-powered) |
| Current Consumption | 40 mA Max |
| Settling Time | < 15 seconds (within 2% of final value) |
Velocity Output (4-20 mA Current Loop)
| Parameter | Specification |
|---|---|
| Output Signal | 4-20 mA Current Loop |
| Full-Scale Range | 0 – 12.7 mm/s, 0 – 25.4 mm/s, or 0 – 50.8 mm/s |
| Sensitivity | 4 mA = 0 mm/s, 20 mA = Full Scale Range |
| Frequency Response | 3 Hz to 1 kHz or 10 Hz to 1 kHz |
| Linearity | ±1% of Full Scale |
Acceleration Output (Dynamic Signal Output)
| Parameter | Specification |
|---|---|
| Output Signal | Unbuffered Voltage from Pin C to Pin B |
| Sensitivity | 10.2 mV/m/s² (100 mV/g) ±20% |
| Full-Scale Range | 147 m/s² (15 g) Peak |
| Frequency Response | 2.5 Hz to 10 kHz |
| Bias Voltage | 2.5 V ± 0.1 V (Referenced to Pin B) |
Environmental Limits
| Parameter | Specification |
|---|---|
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Shock Survivability | 9,810 m/s² (1,000 g peak) |
| Humidity | Up to 100% (Non-submerged) |
| Electrical Isolation | > 10⁸ Ohms |
| Breakdown Voltage | 600 Vrms |
| Magnetic Field Sensitivity | < 20 μm/s/gauss (790 μin/s/gauss) peak |
Compliance & Certifications
| Certification | Description |
|---|---|
| FCC | Compliant with Part 15 regulations |
| EMC Directive | 2014/30/EU |
| RoHS Compliance | 2011/65/EU |
| Maritime Approval | Certified for DNV-GL ships and offshore applications |
| Hazardous Area Approval | ATEX, IECEx, CSA/NRTL/C for Zone 0, 1, and 2 |
4. Industry Applications
The Bently Nevada 177230-01-02-05 Seismic Transmitter is widely used in industries where vibration monitoring is essential for predictive maintenance and asset protection.
🔹 Power Generation – Monitoring turbines, generators, and auxiliary equipment to prevent failures.
🔹 Oil & Gas – Ensuring safe operation of compressors, pumps, and drilling equipment in hazardous environments.
🔹 Petrochemical Plants – Detecting early signs of mechanical degradation in refineries and chemical processing units.
🔹 Steel and Metal Processing – Protecting high-speed rotating machinery such as rolling mills and forging presses.
🔹 Manufacturing and Automation – Enhancing the reliability of motors, gearboxes, and other critical machinery.
🔹 Pulp and Paper Industry – Monitoring paper machine rolls and other rotating equipment for early fault detection.
Bently Nevada 177230-01-02-05 is in stock. Contact us for quick quotes and competitive prices.
