ABB PP883 3BSE092979R1 Touchscreen Panel Order online
1. Product Overview

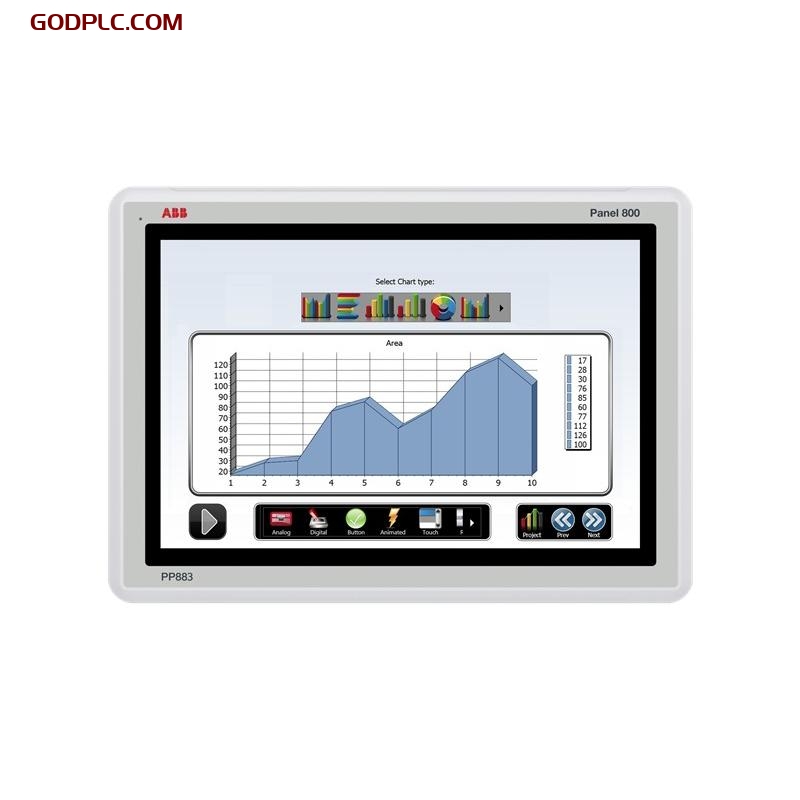

The ABB PP883 3BSE092979R1 is a high-performance industrial touchscreen panel from the Panel 800 series, designed for harsh industrial environments. It features a high-resolution TFT/LED display, multi-protocol compatibility, and a rugged diecast aluminum housing. With Panel Builder 800 engineering tools and pre-integrated templates, it enables rapid application development and supports both local and remote communication expansions.
2. Key Features
- Intuitive Operation: Panel Builder 800 tool with Microsoft® Windows® compatibility and multilingual support.
- Advanced Display: Wide-screen TFT/LED with vector graphics and icon-based navigation.
- Industrial Durability: IP65 front panel rating, operational in -10°C to +60°C and 85% humidity.
- Open Architecture: .NET framework support and multi-brand controller connectivity (Modbus, PROFIBUS, EtherNet/IP).
- Simulation Capability: Pre-deployment application testing via Panel Builder 800.
3. Technical Specifications
Table 1: Physical Parameters
| Parameter | Specification |
|---|---|
| Dimensions (W×H×D) | 340 × 242 × 57 mm |
| Weight | 2.6 kg |
Table 2: Display & Touch
| Parameter | Specification |
|---|---|
| Display Type | TFT/LED Wide Screen |
| Screen Size | 8.0-inch (diagonal) |
| Resolution | 800 × 600 pixels |
| Touch Technology | Resistive Touchscreen |
| Brightness Control | Manual/Auto Adjustment |
Table 3: Environmental Ratings
| Parameter | Specification |
|---|---|
| Operating Temp. | -10°C to +60°C |
| Storage Temp. | -20°C to +70°C |
| Humidity | ≤85% (non-condensing) |
| Protection Class | IP65 (Front Panel) |
| Vibration Resistance | 5-9 Hz/3.5mm, 9-150 Hz/1g |
Table 4: Communication & Interfaces
| Parameter | Specification |
|---|---|
| Protocols | Modbus RTU/TCP, PROFIBUS DP, EtherNet/IP |
| Ethernet | 1 × 10/100 Mbps RJ45 |
| USB Ports | 2 × USB 2.0 (Host/Device) |
| Serial Port | 1 × RS-485/RS-232 (Isolated) |
| Expansion Slot | 1 × SD Card (up to 32GB) |
Table 5: Electrical Characteristics
| Parameter | Specification |
|---|---|
| Power Supply | 24 V DC (±20%) |
| Power Consumption | 12W (Typ.), 18W (Max.) |
| Insulation Class | Double Insulation (IEC 61140) |
Table 6: Certifications & Standards
| Certification | Standard |
|---|---|
| EMC | EN 61000-6-2, EN 61000-6-4 |
| Safety | UL 508, CE, FCC Class A |
| Environmental | RoHS, WEEE |
4. Industry Applications
- Manufacturing Automation: Real-time monitoring of production lines and PLC/robot integration.
- Energy Management: SCADA integration for grid load monitoring and fault analysis.
- Water Treatment: Pump/valve control and water quality monitoring in humid environments.
- Oil & Gas: Process visualization in non-hazardous zones with DCS compatibility.
- Transportation: Signal control and station management in rail systems.
ABB PP883 3BSE092979R1 is in stock. Contact us for quick quotes and competitive prices.
