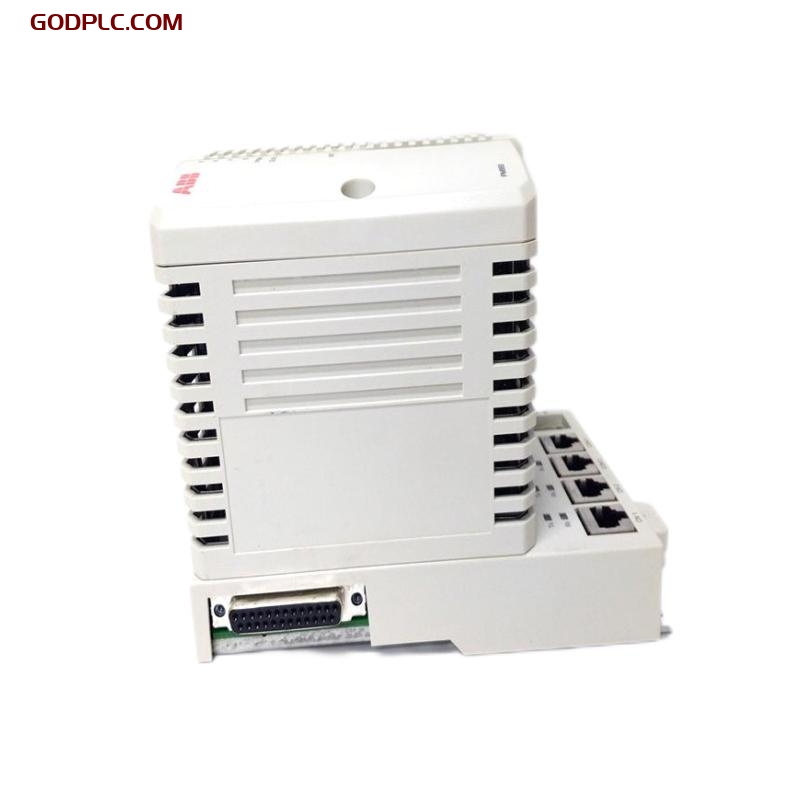

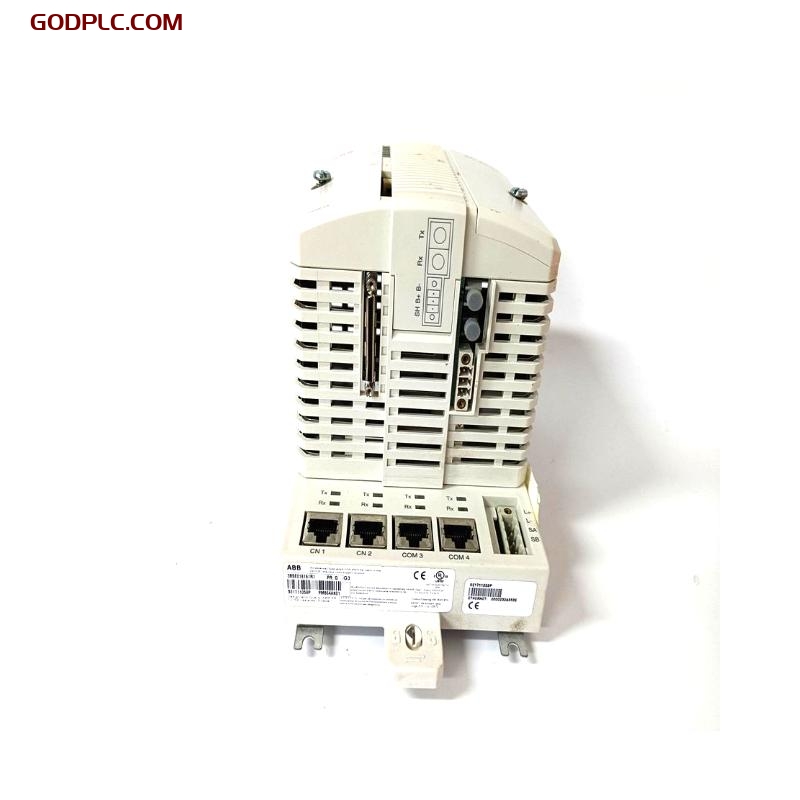

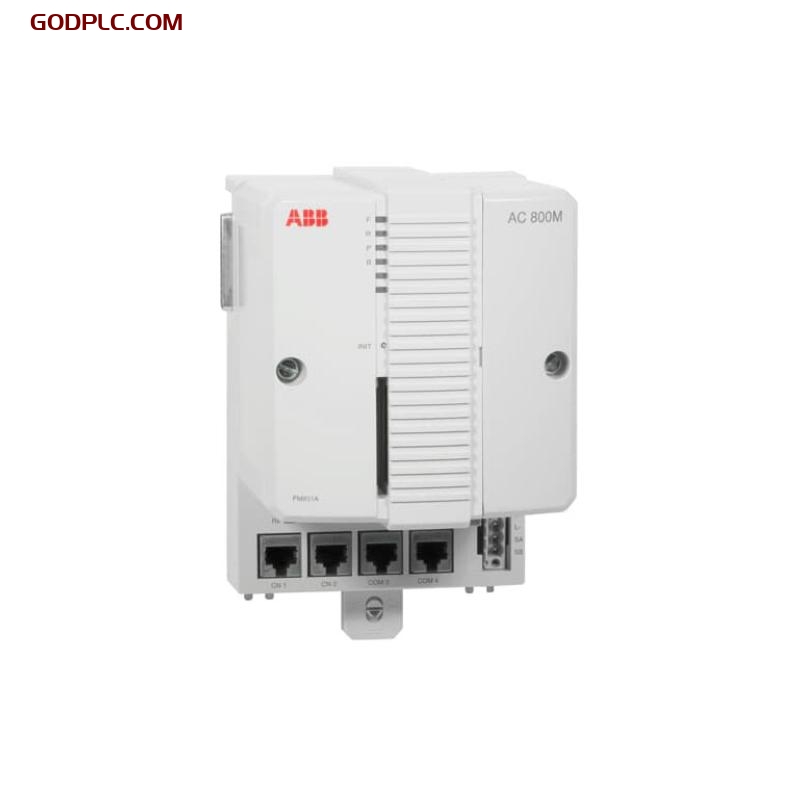

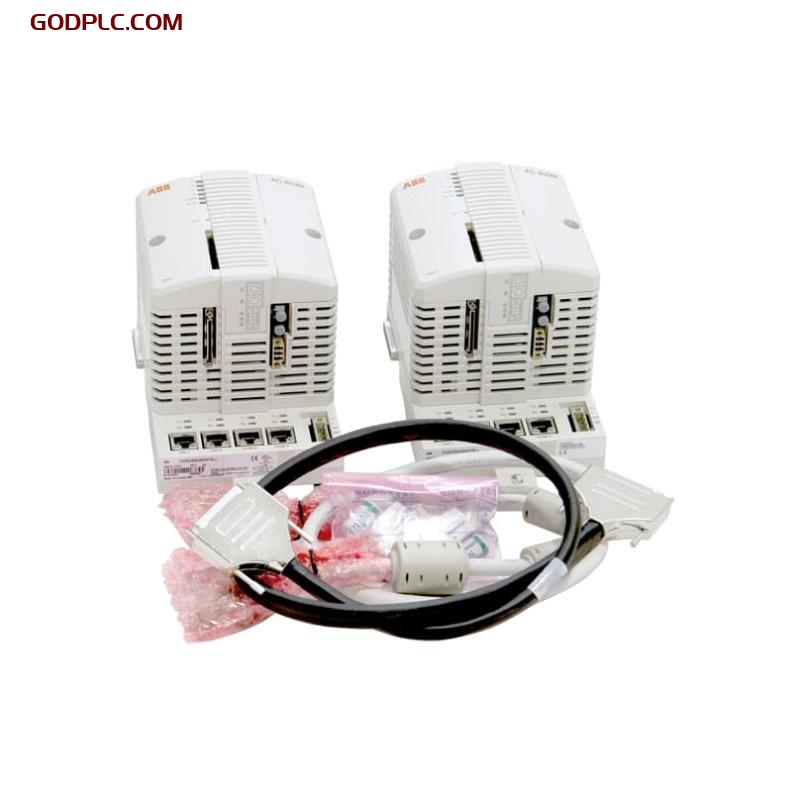

ABB PM857K02 3BSE088386R1 Redundant Processor Unit Cheap&Stock
1. Product Overview
The ABB PM857K02 3BSE088386R1 is a high-performance redundant processor unit that is part of the AC 800M control system. This processor provides powerful computing capabilities and supports SIL 2 and SIL 3 safety functions. With a dual-processor redundancy design, it ensures high system availability and features a variety of communication interfaces, making it suitable for industrial automation and process control applications. The PM857K02 seamlessly integrates with the ABB 800xA control system and supports S800 I/O high-integrity modules.
2. Key Features
- High Availability: Supports redundancy for CPU, CEX-Bus, communication interfaces, and S800 I/O.
- High Integrity: Supports SIL 2 and SIL 3 safety levels (requires SM812 safety module and safety software).
- Rich Interfaces: Equipped with Ethernet communication ports, RS-232 serial ports, and CEX-Bus expansion interface.
- Powerful Processing: MPC866 processor with a clock frequency of 96 MHz and Boolean operation execution time of 0.17 ms.
- ABB 800xA Compatibility: Can be configured using 800xA Control Builder and supports IEC 61508 and TÜV-certified safety control environments.
- Real-Time Clock: 1 ms clock synchronization accuracy ensures precise time management in the control system.
3. Technical Specifications
Dimensions and Weight
| Parameter | Specification |
| Width | 119 mm |
| Height | 186 mm |
| Depth | 135 mm |
| Weight | 2.7 kg |
General Information
| Parameter | Specification |
| Part Number | 3BSE088386R1 |
| Redundancy Support | Yes |
| High Integrity Support | Yes |
| Processor Type | MPC866 |
| Processor Clock Frequency | 96 MHz |
| Power Supply Voltage | 24 V DC (19.2-30 V DC) |
| Typical/Maximum Power Consumption | 210 / 360 mA |
| Typical/Maximum Power Dissipation | 5.1 W / 8.6 W |
| Built-in Backup Battery | Lithium, 3.6 V |
| EMC Certification | Yes |
| TÜV Certification | SIL 2 and SIL 3 |
Memory and Processing Power
| Parameter | Specification |
| Total Memory | 32 MB |
| Available RAM | 22.184 MB |
| Flash Storage | None |
| Flash PROM (for firmware storage) | 18 MB |
Control Capabilities
| Parameter | Specification |
| Maximum I/O Signals | 128 |
| Maximum Applications per Controller | 32 |
| Maximum Programs per Application | 64 |
| Maximum Diagrams per Application | 128 |
| Maximum Tasks per Controller | 32 |
| Supported Different Cycle Times | 32 |
| Minimum Cycle Time per Application | 10 ms |
Communication and Interfaces
| Parameter | Specification |
| Ethernet Channels | 2 |
| Ethernet Protocol | IEEE 802.3, 10 Mbit/s, RJ-45 |
| Control Network Protocol | MMS and IAC |
| Recommended Control Network Backbone | 100 Mbit/s Switched Ethernet |
| Real-Time Clock Stability | 100 ppm (approximately 1 hour/year) |
| RS-232C Serial Ports | 2 (COM3, COM4) |
| COM3 (Non-redundant only) | RS-232C, 75-19200 baud, RJ-45, non-optically isolated, full RTS-CTS support |
| COM4 (Non-redundant only) | RS-232C, 9600 baud, RJ-45, optically isolated, no RTS-CTS support |
I/O Expansion Capability
| Parameter | Specification |
| Supported Communication Modules on CEX-Bus | 12 |
| Maximum Power Supply Current on CEX-Bus | 2.4 A |
| I/O Clusters on Modulebus with Non-redundant CPU | 1 electrical, 7 optical |
| I/O Clusters on Modulebus with Redundant CPU | 0 electrical, 7 optical |
| Maximum I/O Modules on Modulebus | 96 (single PM857), 84 (redundant PM857) |
| Maximum I/O Signals on Modulebus | 128 |
| Modulebus Scan Rate | 0 – 100 ms (actual time depends on the number of I/O modules) |
| Power Supply Current on Electrical Modulebus | 24V: max 1.0 A, 5V: max 1.5 A |
4. Industry Applications
The ABB PM857K02 3BSE088386R1 is widely used in various industrial automation and process control applications, including:
- Oil & Gas: Ensuring process safety and efficiency in upstream, midstream, and downstream operations.
- Chemical & Pharmaceutical: Providing precise control and compliance with safety regulations in chemical processing and pharmaceutical production.
- Power Generation & Distribution: Enhancing reliability and intelligent management of power plants and grid networks.
- Water Treatment & Environmental Protection: Applied in water plants, wastewater treatment facilities, and environmental monitoring systems.
- Metallurgy & Mining: Increasing automation and optimizing resource utilization in metal processing and mining industries.
ABB PM857K02 3BSE088386R1 is in stock. Contact us for quick quotes and competitive prices.
