ABB PM 904F 3BDH001002R0001 CPU Module Fast Delivery
Product Overview

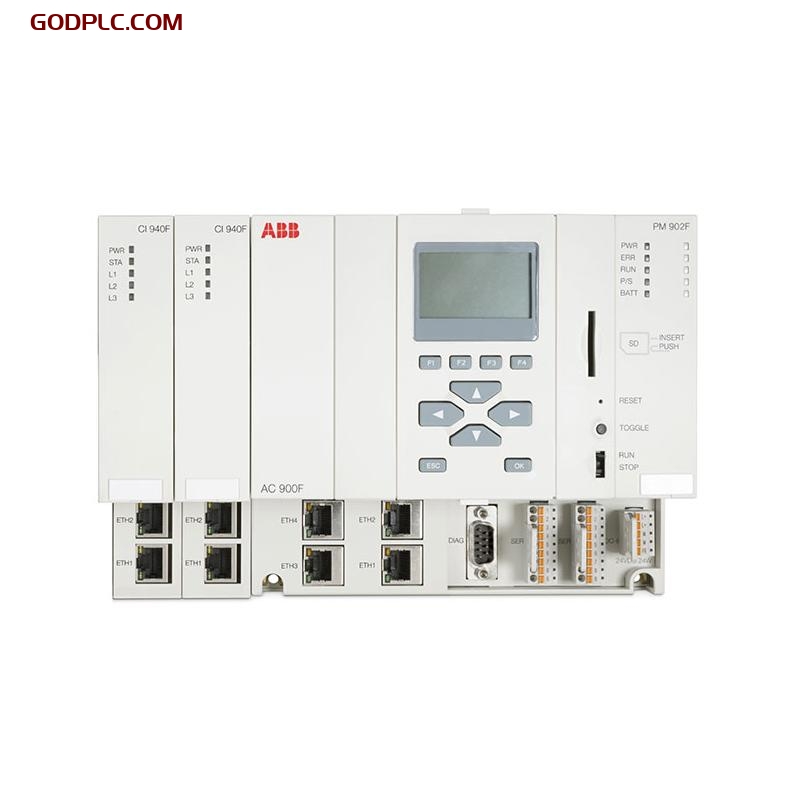

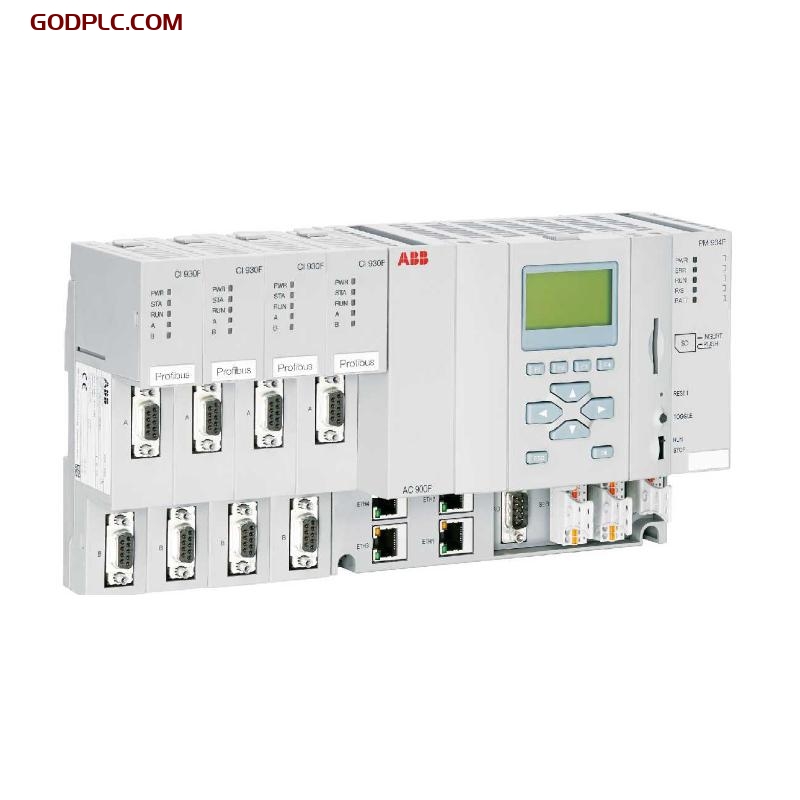

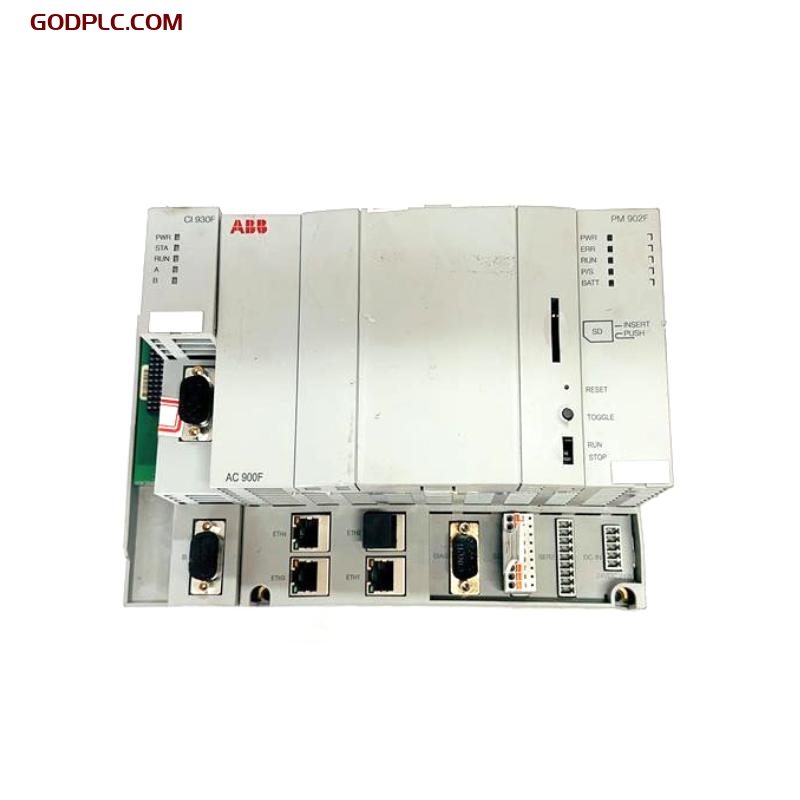

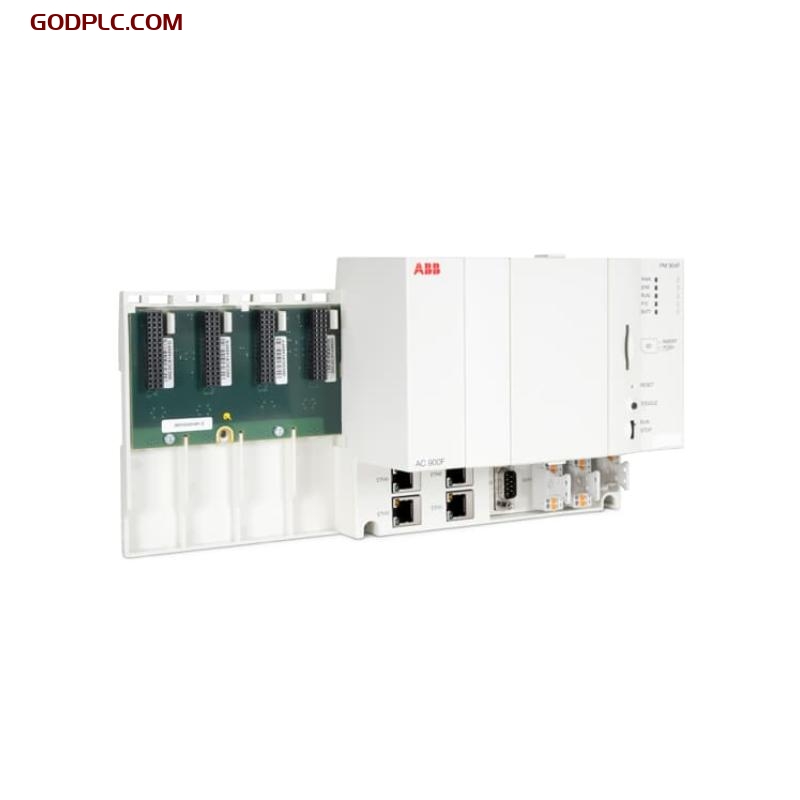

The ABB PM 904F 3BDH001002R0001 CPU module is a high-end base unit in the Freelance AC 900F controller family. Designed to support up to 1500 I/Os, the module features 4 Ethernet interfaces, an 800 MHz CPU clock, and 48 MB of controller memory, including 16 MB of battery-buffered SRAM and 32 MB of DRAM. It includes 4 slots for Communication Interface Modules (CIM), making it suitable for complex industrial control applications.
The operating system can be loaded during software installation, and an external 24 V DC power supply is required. Software version 2019 or higher is mandatory. The module does not include the TD 951F display unit and TA 951F battery.
Key Features
- High Connectivity: Multiple serial and Ethernet ports to connect various industrial devices.
- Built-in SD Card Support: Flexibility for data storage.
- New Ethernet-based Protocols: Supports Modbus TCP and IEC 60870-5-104 for enhanced communication.
- G3 Compliant: Conforms to ISA 71.04 G3 corrosion protection standard for harsh industrial environments.
- Built-in Power Supply: Simplifies connections by removing the need for an external power source.
- Optional LCD Display: Provides enhanced security with controller lock function.
- Optional Redundancy: Offers improved reliability with redundancy configurations.
Technical Specifications
Dimensions and Weight
| Item | Value |
| Width | 285 mm |
| Height | 152 mm |
| Depth | 95 mm |
| Weight (including base) | 1.1 kg |
General Information
| Item | Value |
| Model | PM 904F 3BDH001002R0001 |
| Life Cycle Status | Active |
| Redundancy | Yes |
| Clock Frequency | 800 MHz |
| 1000 Boolean Operations Performance | 0.12 ms |
| Total Memory | 48 MB |
| RAM Available for Application | 16 MB |
| Power Supply | 24 V DC |
| Power Consumption (+24 V) | 24 W (typical) / 30 W (max) |
| Power Dissipation | 18 W |
| Built-in Backup Battery | Lithium Battery (TA 951F) |
| Clock Synchronization | Yes |
| Ethernet Channels | 4 |
| Ethernet Interface | 100/10 Mbit/s, RJ-45, 8-pole |
| RS-232C Interface | 3 (2 general, 1 for service tool) |
Environmental and Certification
| Item | Value |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Temperature Change Rate | 3K/min in -20°C to +70°C range |
| Corrosion Protection | G3 Compliant (ISA 71.04) |
| Relative Humidity | Max. 93%, non-condensing |
| Vibration | 2 g, 2 Hz to 150 Hz |
| Protection Class | IP20 |
| Altitude | < 2000 m |
| Emission & Immunity | EN 61000-6-4, EN 61000-6-2 |
| Environmental Conditions | Industrial |
| CE Mark | Yes |
Industry Applications
The ABB PM 904F 3BDH001002R0001 CPU module is widely used in industrial automation systems requiring high-performance processing, flexible communication, and redundancy options. Key applications include:
- Oil & Gas: For production monitoring, remote data collection, and control.
- Energy Management: Real-time monitoring and automation of power systems.
- Water Treatment: Effective control solutions for water plants and wastewater treatment.
- Manufacturing: Automation of production lines and data exchange.
ABB PM 904F 3BDH001002R0001 is in stock. Contact us for quick quotes and competitive prices.
