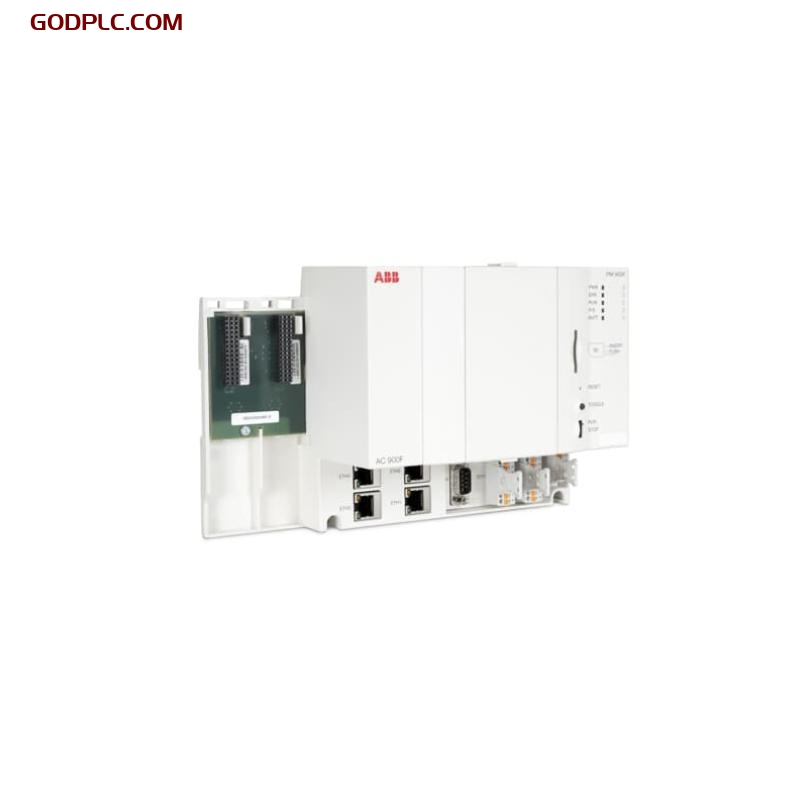

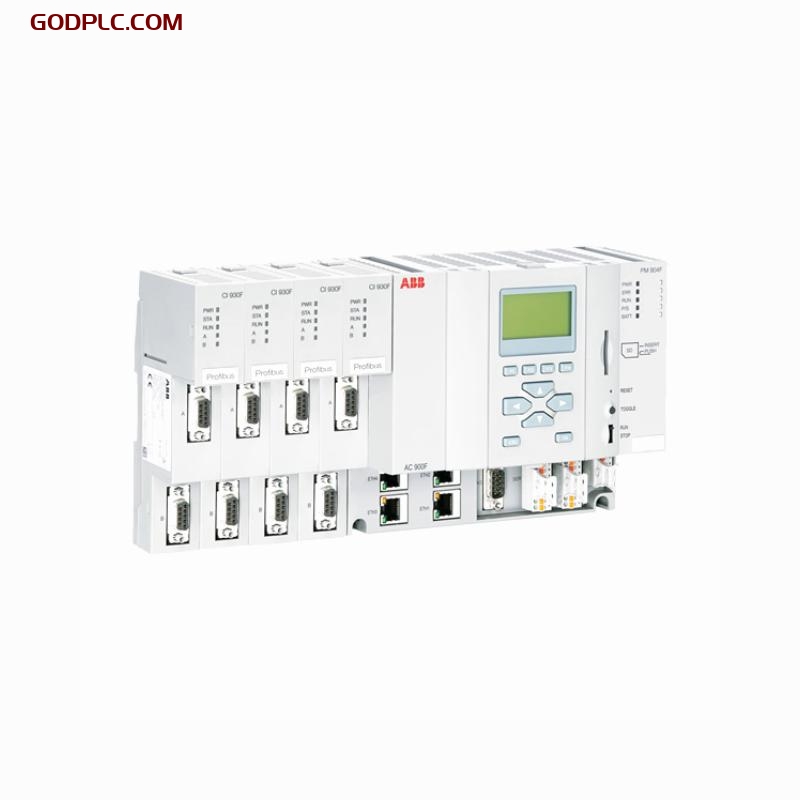

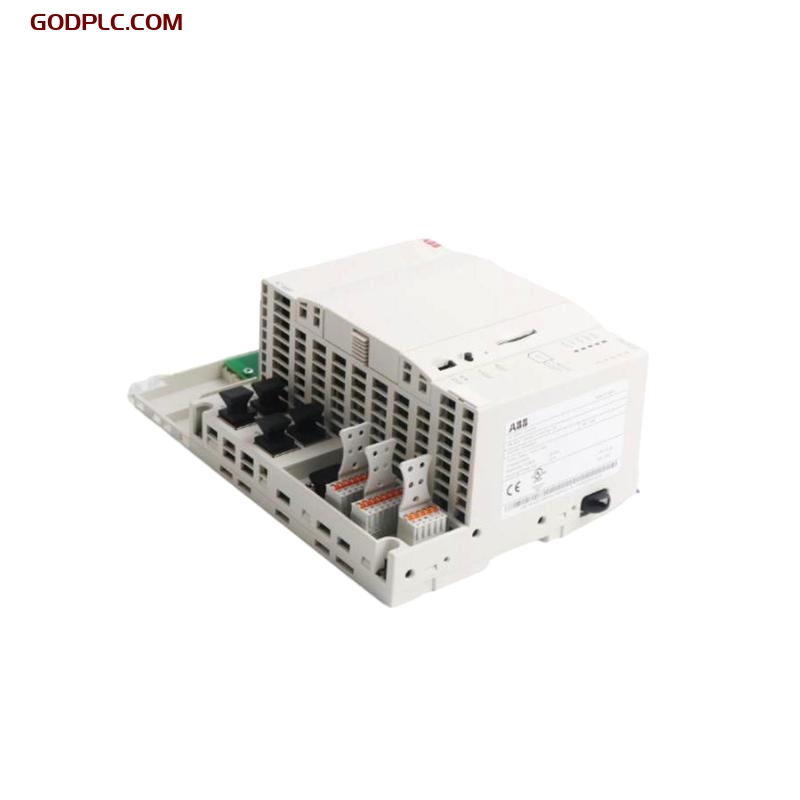

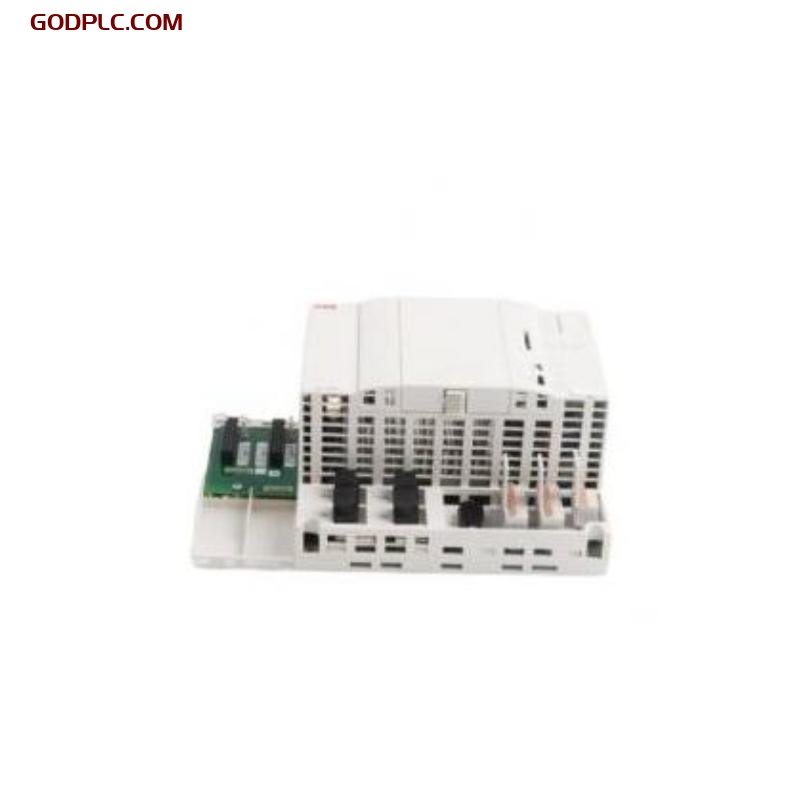

ABB PM 902F 3BDH001000R0001 CPU module Cheap&Stock
The ABB PM 902F 3BDH001000R0001 CPU module is a core component of the Freelance AC 900F controller family, designed to deliver exceptional processing power and broad connectivity. Supporting up to 1500 I/O points, with up to 24MB of memory and 8MB of battery-buffered SRAM, this module meets the demands of industrial automation systems for performance and reliability. It features redundancy, powerful processing capabilities, and support for various Ethernet-based protocols, making it an ideal choice for modern industrial control systems.
Key Features
- Outstanding Performance: Equipped with an 800 MHz PowerQUICC II Pro processor for efficient data processing and quick response.
- Strong Connectivity: Offers 4 Ethernet ports and multiple RS-232C interfaces for easy device connectivity.
- Redundancy Design: Supports redundancy to ensure high availability and minimize downtime.
- Memory & Storage: Provides 24MB controller memory, with 8MB available for application use, and supports SD cards for data storage.
- Supports Modern Protocols: Built-in support for Modbus TCP and IEC 60870-5-104 Ethernet protocols to meet diverse industrial communication needs.
- Environmentally Resilient: IP20 protection and G3 corrosion protection standard, ideal for harsh industrial environments.
- Built-in Backup Battery: Features a lithium battery (TA 951F) for reliable system backup.
Technical Specifications
Dimensions & Weight
| Parameter | Specification |
| Width | 227 mm |
| Height | 152 mm |
| Depth | 95 mm |
| Weight | 1.1 kg |
General Information
| Parameter | Specification |
| Life Cycle Status | Active |
| Redundancy | Yes |
| Clock Frequency | 800 MHz |
| Performance (per 1000 boolean operations) | 0.12 ms |
| Memory | 24 MB |
| Available RAM for Application | 8 MB |
| Processor Type | PowerQUICC II Pro |
| Clock Synchronization | Yes |
| Backup Battery | Lithium Battery (TA 951F) |
| Ethernet Ports | 4 |
| RS-232C Interfaces | 3 (2 general, 1 for service tool) |
Power Supply & Consumption
| Parameter | Specification |
| Power Supply | 24 V DC |
| Power Consumption (typical/max) | 24 W / 30 W |
| Power Dissipation | 18 W |
Environmental & Certification
| Parameter | Specification |
| Operating Temperature | -20°C … +70°C |
| Storage Temperature | -40°C … +85°C |
| Temperature Change Rate | 3K/min |
| Corrosion Protection Level | G3 compliant |
| Relative Humidity | Max 93%, non-condensing |
| Vibration | 2 g, 2 Hz … 150 Hz |
| Protection Class | IP20 |
| Altitude | < 2000 m |
| Emission & Immunity Standards | EN 61000-6-4, EN 61000-6-2 |
| CE Mark | Yes |
| Electrical Safety | IEC/EN 61010-1, IEC/EN 61010-2-201 |
| Hazardous Location Certification | cULus Class 1 Div 2 |
| RoHS Compliance | Complies with Directive 2011/65/EU, (EU) 2015/863 |
| WEEE Compliance | Complies with Directive 2012/19/EU |
| Certifications | Industrial Environment |
Communication Interfaces & Support
| Parameter | Specification |
| Ethernet Interface | 100/10 Mbit/s, RJ-45, female (8-pole) |
| Supported Ethernet Protocols | Modbus TCP, IEC 60870-5-104 |
| RS-232C Interface | 3 (2 general, 1 for service tool) |
Industry Applications
The ABB PM 902F 3BDH001000R0001 CPU module is suitable for a wide range of industrial automation applications, including but not limited to:
- Power Automation
- Factory Automation
- Water Treatment
- Oil and Gas
- Manufacturing Control Systems
- Energy Management Systems
Its high performance and broad protocol support make it an ideal choice for industrial control systems in critical applications that require high reliability and performance.
ABB PM 902F 3BDH001000R0001 is in stock. Contact us for quick quotes and competitive prices.
