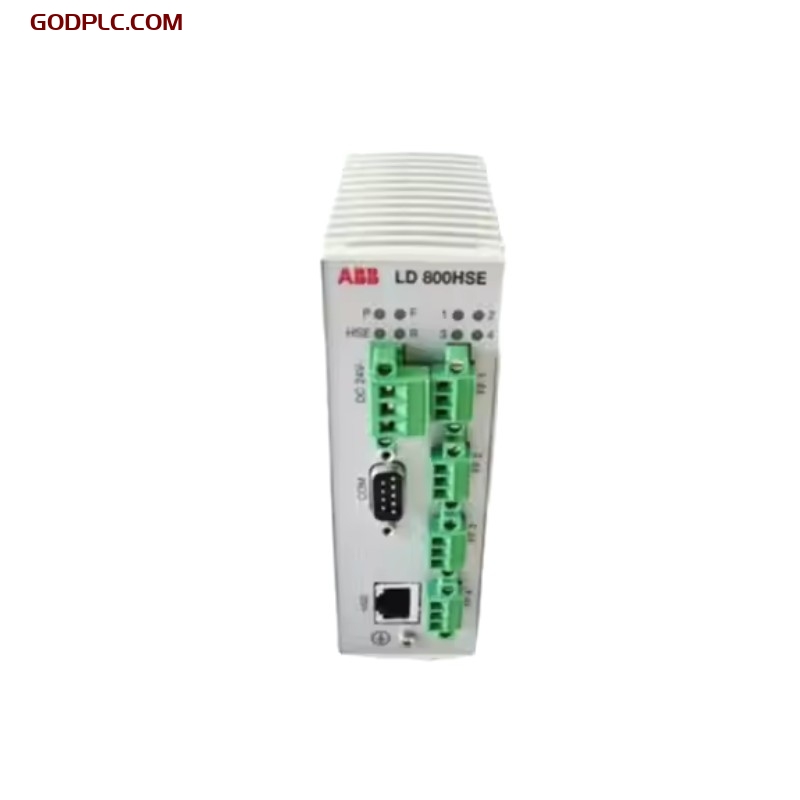

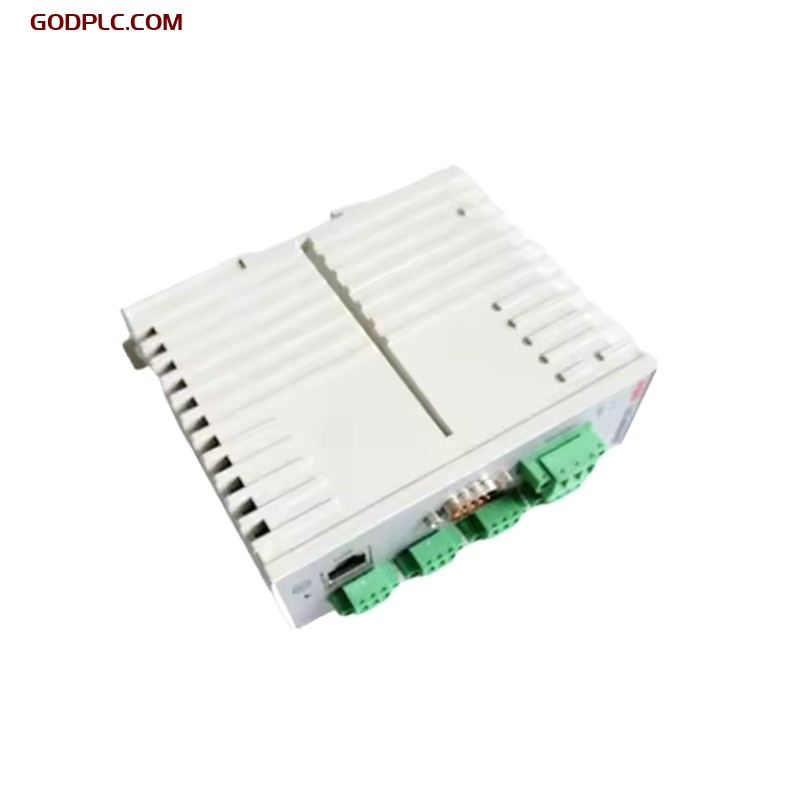

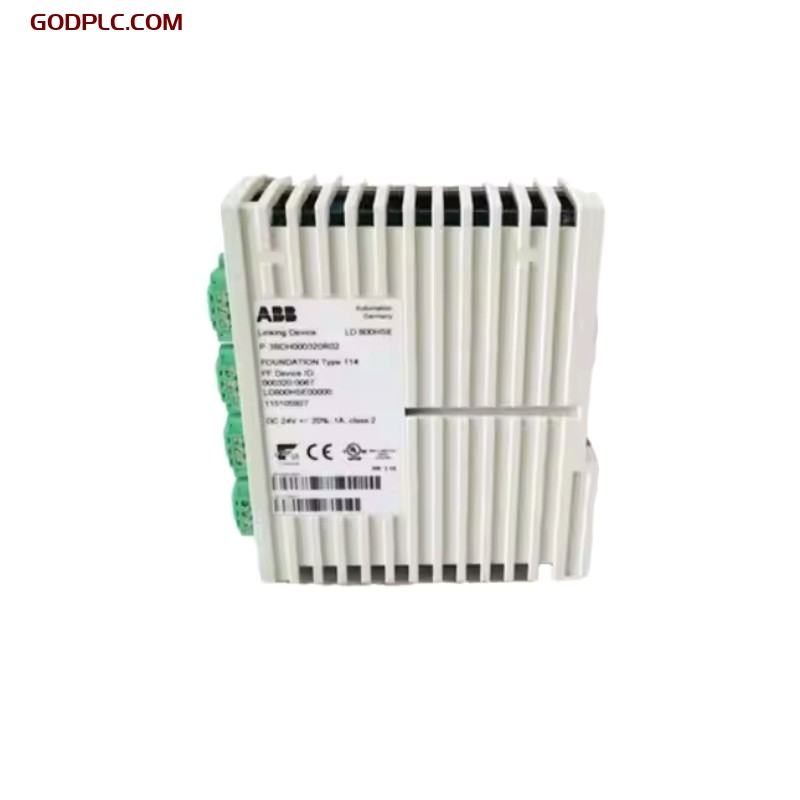

ABB LD 810HSE EX 3BSE091722R1 Linking Device Fast Delivery
Product Overview
The ABB LD 810HSE EX 3BSE091722R1 Linking Device is a high-performance communication module designed for DIN rail mounting, specifically intended for industrial automation and process control systems. The module features 4 H1 links and one HSE connector, ensuring efficient and stable signal transmission. The LD 810HSE EX module requires an external 24 VDC power supply, with H1 links needing separate power. It is important to note that this device cannot replace one of the LD 800 Linking Devices in a redundant pair. If replacing devices in a redundant pair, both devices must be replaced with the LD 810HSE EX.
Key Features
- DIN Rail Mounting Design: Simplifies installation and maintenance, easily integrating into existing control systems.
- Multiple Connectivity Options: Equipped with 4 H1 links and 1 HSE connector for flexible and diverse system connections.
- External Power Supply: Requires an external 24 VDC power source for reliable high-power operation.
- Separate Power for H1 Links: Each H1 link requires separate power to ensure optimal communication quality.
- No Redundant Pair Replacement: This device cannot replace one of the devices in a redundant pair of LD 800 Linking Devices, ensuring system stability and consistency.
Technical Specifications
Dimensions and Weight
| Parameter | Value |
| Product Net Depth/Length | 105 mm |
| Product Net Height | 100 mm |
| Product Net Width | 35 mm |
| Product Net Weight | 0.25 kg |
General Information
| Parameter | Value |
| Product Name | Communication Module |
| Mounting Type | DIN Rail Mounting |
| Power Requirements | External 24 VDC power supply |
| H1 Link Requirements | Separate power for each H1 link |
| Applicable Industries | Industrial Automation, Process Control |
| Limitation | Not suitable for replacing devices in a redundant pair of LD 800 devices |
Industry Applications
The ABB LD 810HSE EX 3BSE091722R1 Linking Device is widely used in industrial automation and process control systems, particularly in environments that demand high reliability and stable communication. It is suitable for industries such as petrochemical, power, pharmaceutical, steel, and more, especially for control systems that require the integration of various communication methods. With its flexible connection options, the device ensures efficient equipment management and data exchange.
ABB LD 810HSE EX 3BSE091722R1 is in stock. Contact us for quick quotes and competitive prices.
