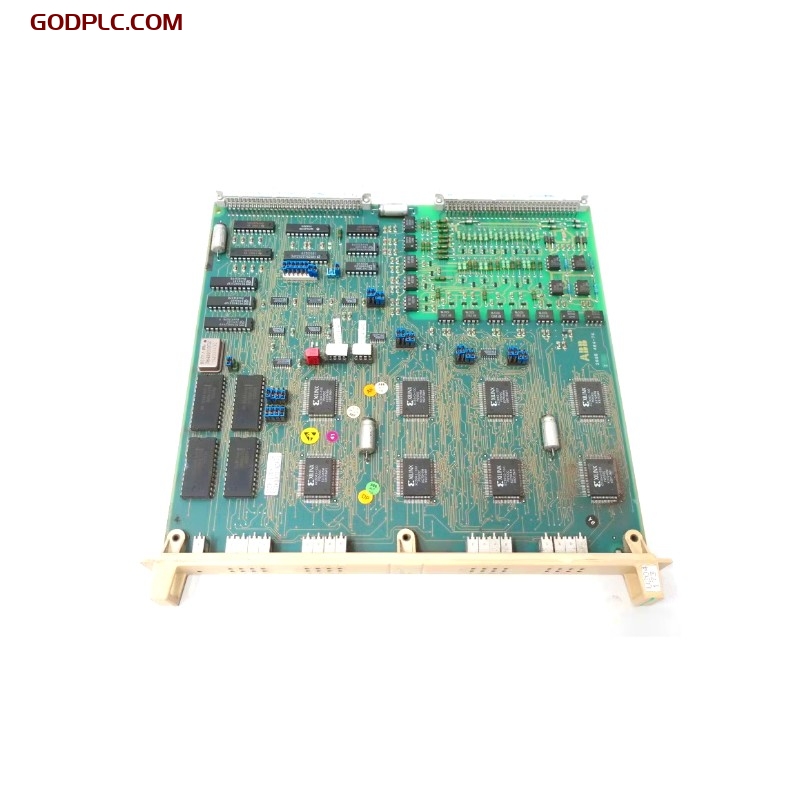

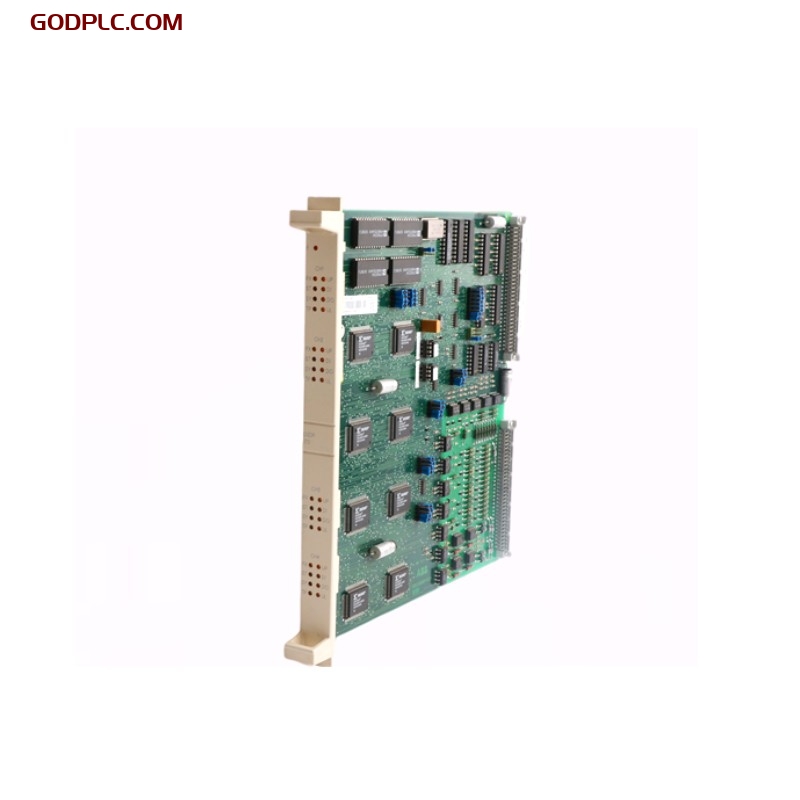

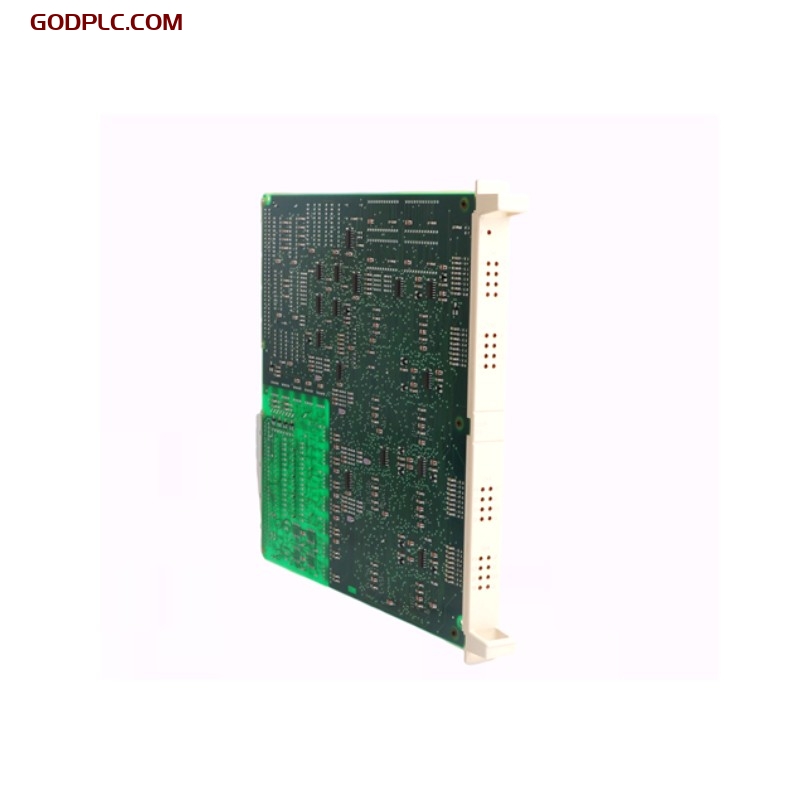

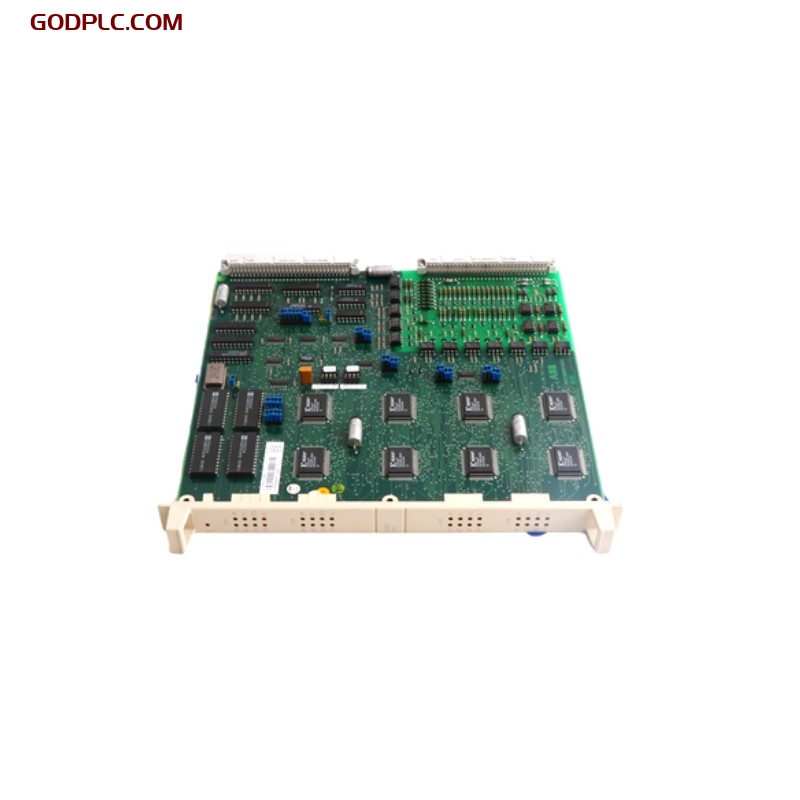

ABB DSDP 170 57160001-ADF Pulse Counting Module 2 Days Delivery
1. Product Overview
The ABB DSDP 170 57160001-ADF Pulse Counting Module is a high-performance pulse counting module primarily designed for positioning/length and speed/frequency measurements. The module supports a maximum pulse frequency of up to 2.5 MHz and is widely used in industrial automation systems for precise measurement of speed, frequency, and position. It allows users to monitor the operating status of various machinery and equipment, ensuring optimal system performance.
2. Key Features
- High Precision Counting: Capable of accurately measuring pulse signals with a maximum pulse frequency of 2.5 MHz.
- Multi-Functional Application: Suitable for position, length, speed, and frequency measurements, compatible with various types of sensor inputs.
- Compact Design: The module features a small and lightweight design, ideal for installation in tight spaces.
- High Reliability: Designed for industrial environments, it can withstand harsh conditions for long-term operation.
3. Technical Specifications
3.1 Dimensions and Weight
| Parameter | Value |
| Product Net Depth / Length | 328.5 mm |
| Product Net Height | 18 mm |
| Product Net Width | 238.5 mm |
| Product Net Weight | 0.38 kg |
3.2 General Information
| Parameter | Value |
| Product Type | I/O Module |
| Medium Description | Pulse Counting Board |
| Maximum Pulse Frequency | 2.5 MHz |
| Technical Description | Primarily intended for position/length and speed/frequency measuring |
3.3 Electrical Performance
| Parameter | Value |
| Input Signal Type | Pulse Signal |
| Output Signal Type | Digital Signal |
| Voltage Range | 24V DC |
4. Industry Applications
The ABB DSDP 170 57160001-ADF Pulse Counting Module is widely used in various industries, particularly in applications requiring accurate measurement of speed, frequency, position, and length. Common application areas include:
- Automation Production Lines: Used to measure the speed of conveyor belts or the frequency of material flow.
- Machine Equipment Monitoring: Helps measure the operational position and speed of equipment, ensuring safety and efficiency.
- Precision Metering: Used in fields that require accurate counting, such as metering equipment in the pharmaceutical industry.
ABB DSDP 170 57160001-ADF is in stock. Contact us for quick quotes and competitive prices.
