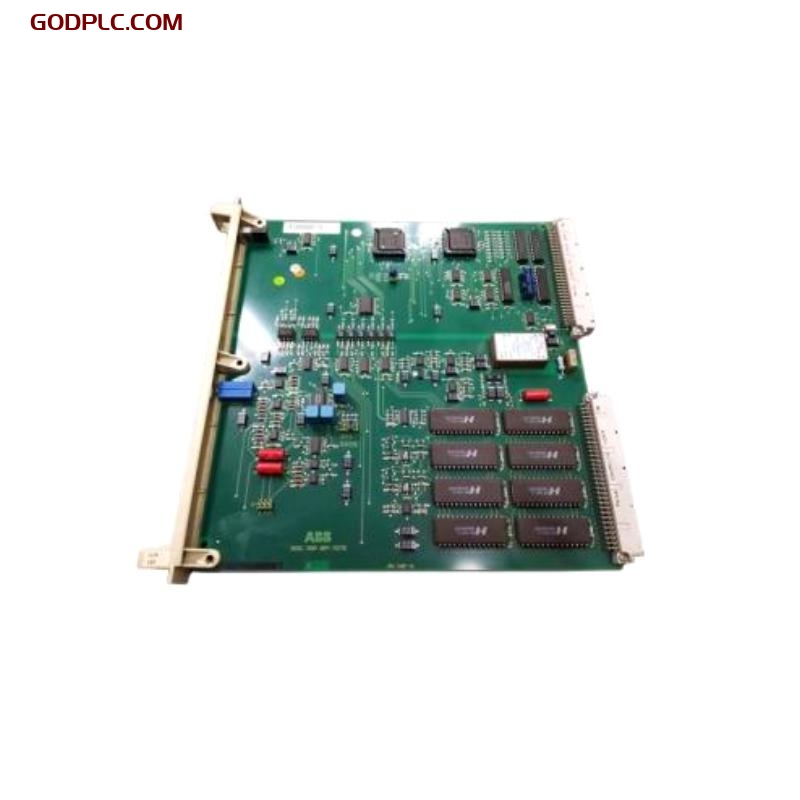

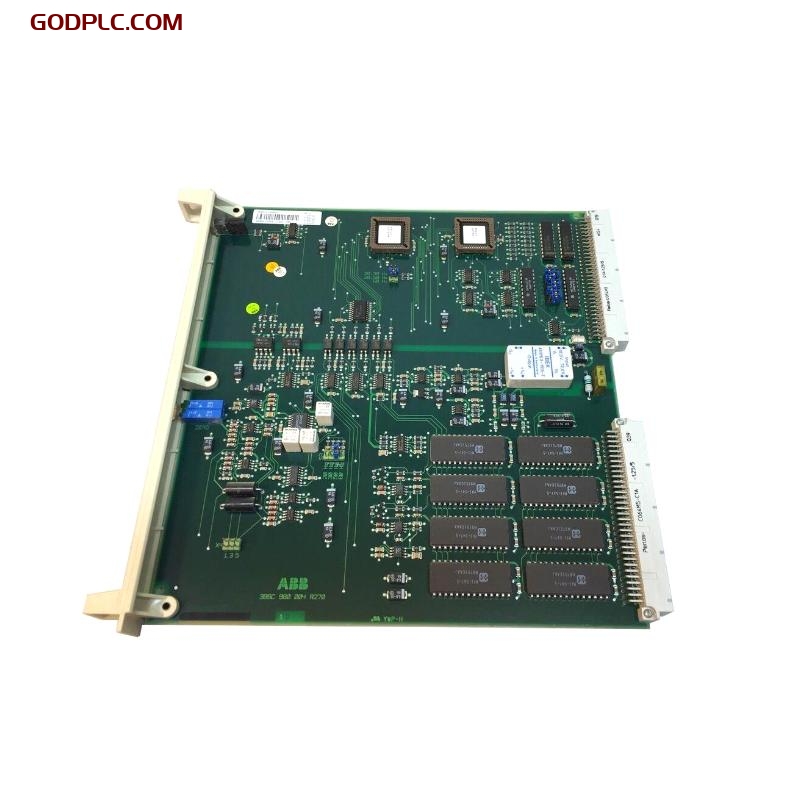

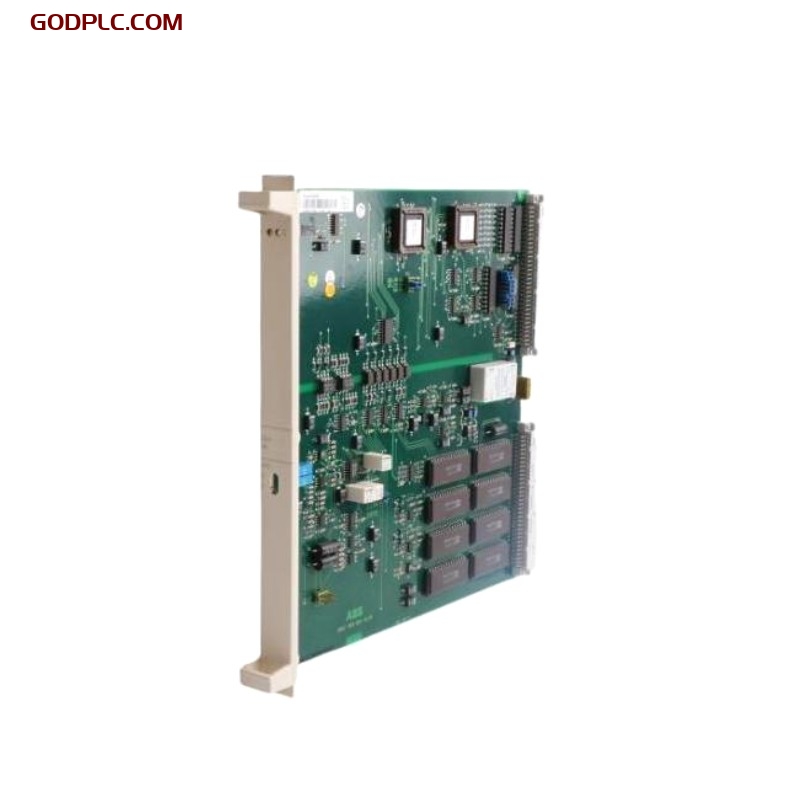

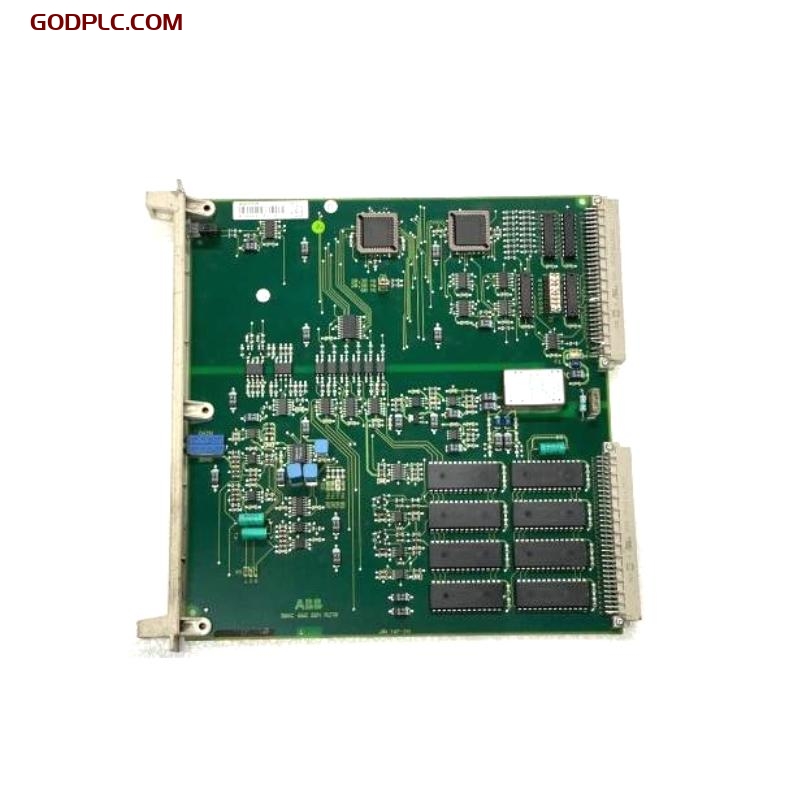

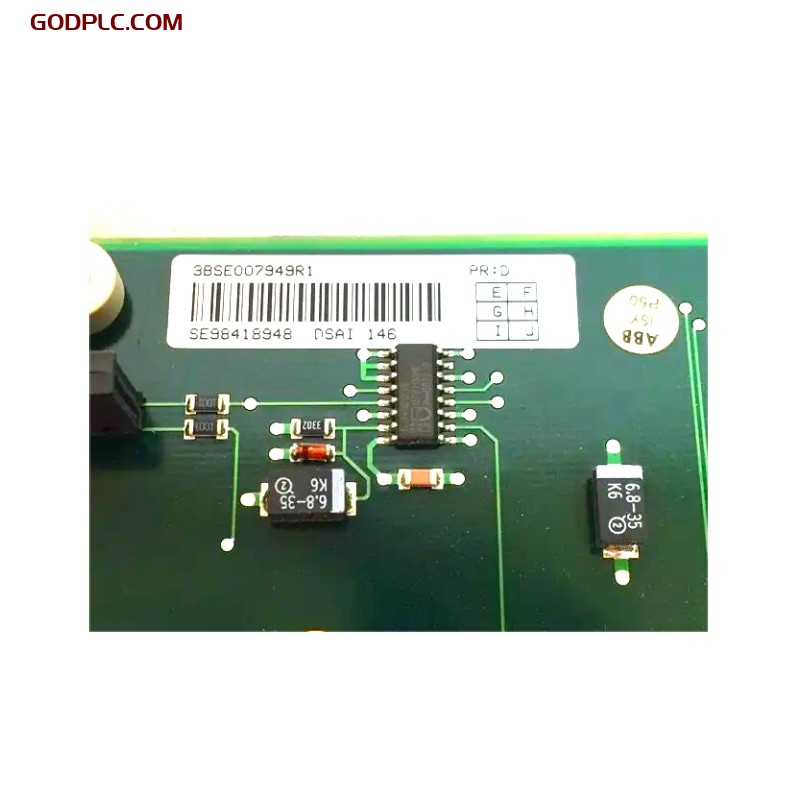

ABB DSAI 146 3BSE007949R1 Analog Input Module Consulting Price
1. Product Overview
The ABB DSAI 146 3BSE007949R1 is a high-performance Analog Input Module designed to process signals from various analog devices, specifically suited for applications requiring precise temperature and process monitoring. This unit supports up to 31 channels and is primarily configured to handle Pt100 temperature sensors, offering reliable and accurate input processing for industrial applications.
This module is part of ABB’s extensive range of I/O modules and is tailored for environments where robust performance and reliability are paramount. It is typically deployed in systems requiring high-density input monitoring, offering flexibility for process control in sectors such as manufacturing, energy, and utilities.
2. Main Features
- High Channel Density: Supports up to 31 channels, allowing for high input density and minimizing the need for additional modules.
- Pt100 Sensor Compatibility: Specifically designed for Pt100 temperature sensors, ensuring precise temperature monitoring in various industrial processes.
- Compact Design: The module’s compact dimensions make it suitable for installations where space is limited.
- Reliable Performance: Ensures stable operation even under demanding industrial conditions, providing accurate analog-to-digital conversions.
- User-Friendly Interface: Simplified wiring and setup processes ensure ease of integration into existing systems.
- Wide Range of Applications: Ideal for use in temperature monitoring, process control, and various industrial automation systems.
3. Technical Specifications
Dimensions and Weight
| Parameter | Value |
| Product Net Depth / Length | 324 mm |
| Product Net Height | 22.5 mm |
| Product Net Width | 234 mm |
| Product Net Weight | 0.4 kg |
General Information
| Parameter | Value |
| Number of Channels | 31 Channels |
| Sensor Type Supported | Pt100 |
| Operating Temperature | -20°C to +60°C |
| Power Supply Requirements | 24 V DC |
Input Characteristics
| Parameter | Value |
| Input Type | Differential/Single-Ended |
| Input Range | ±10 V |
| Resolution | 16-bit |
| Accuracy | ±0.1% of full scale |
| Conversion Time | 100 ms |
Environmental and Safety Parameters
| Parameter | Value |
| Environmental Conditions | Suitable for industrial environments |
| Certification | CE, UL, RoHS Compliant |
4. Industry Applications
The ABB DSAI 146 3BSE007949R1 Analog Input Module is primarily utilized in industries where accurate analog signal measurement and temperature monitoring are crucial. Some key applications include:
- Temperature Monitoring in Industrial Processes: The module is widely used in environments requiring precise temperature control, such as HVAC systems, power generation, and chemical processing.
- Process Control in Manufacturing: With its ability to interface with Pt100 sensors, it is ideal for monitoring and controlling temperatures in various manufacturing processes, ensuring quality and efficiency.
- Energy and Utilities: In power plants and utility management systems, the module helps in the precise measurement of temperature across various system components, contributing to system stability and performance optimization.
- Environmental Monitoring: The module is used for continuous temperature data logging and monitoring in various research and environmental protection applications.
ABB DSAI 146 3BSE007949R1 is in stock. Contact us for quick quotes and competitive prices.
