ABB DO880 3BSE028602R1 Digital Output Module Order online
1. Product Overview

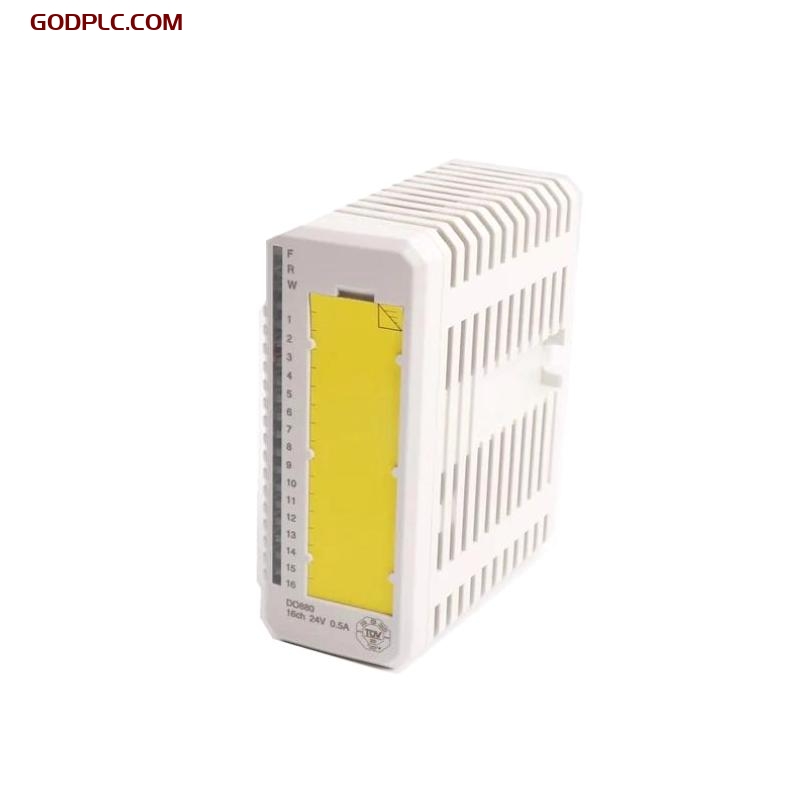

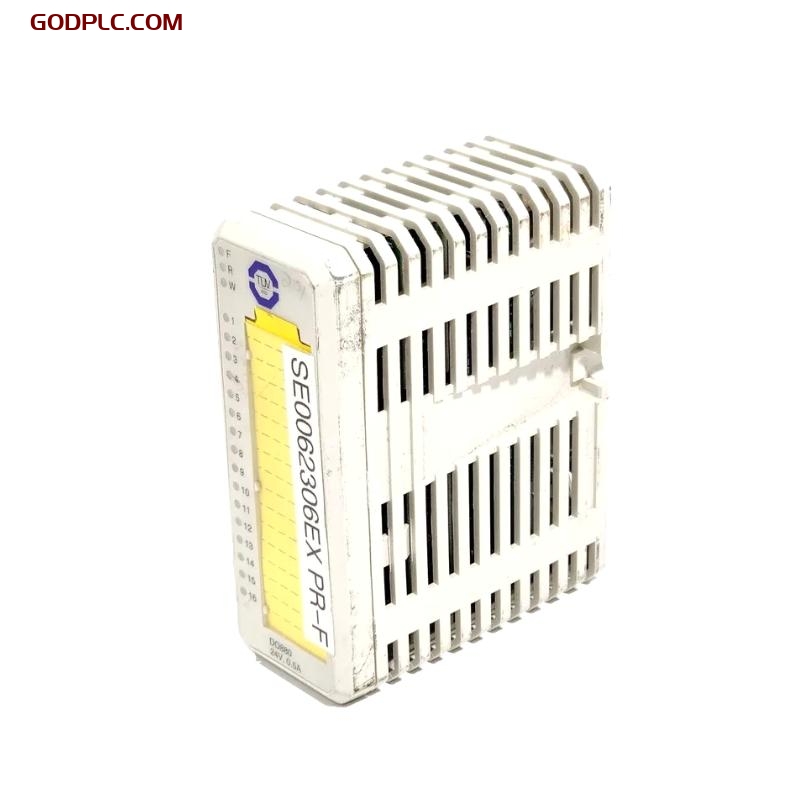

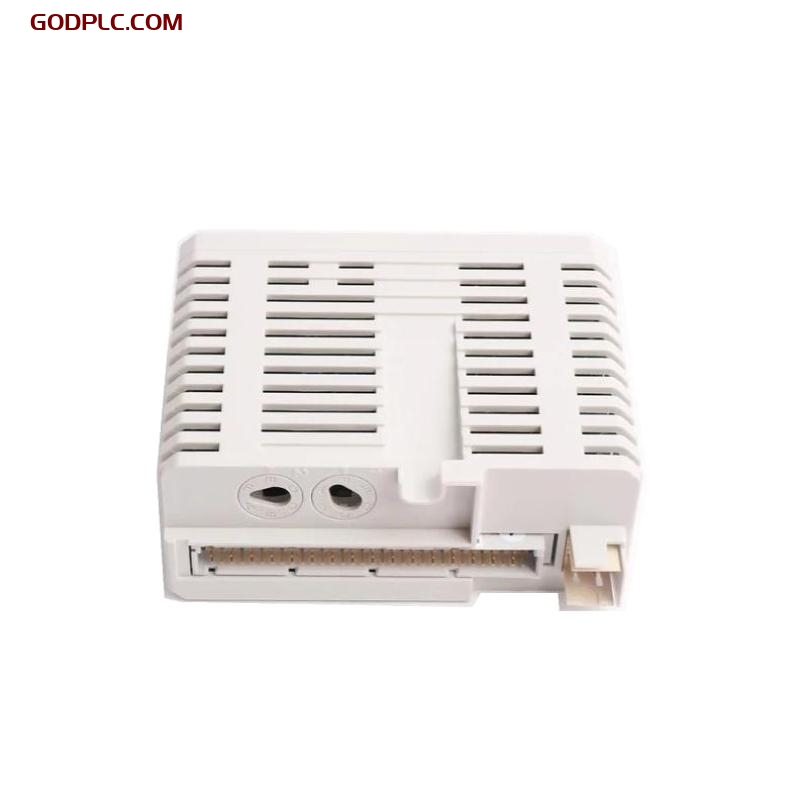

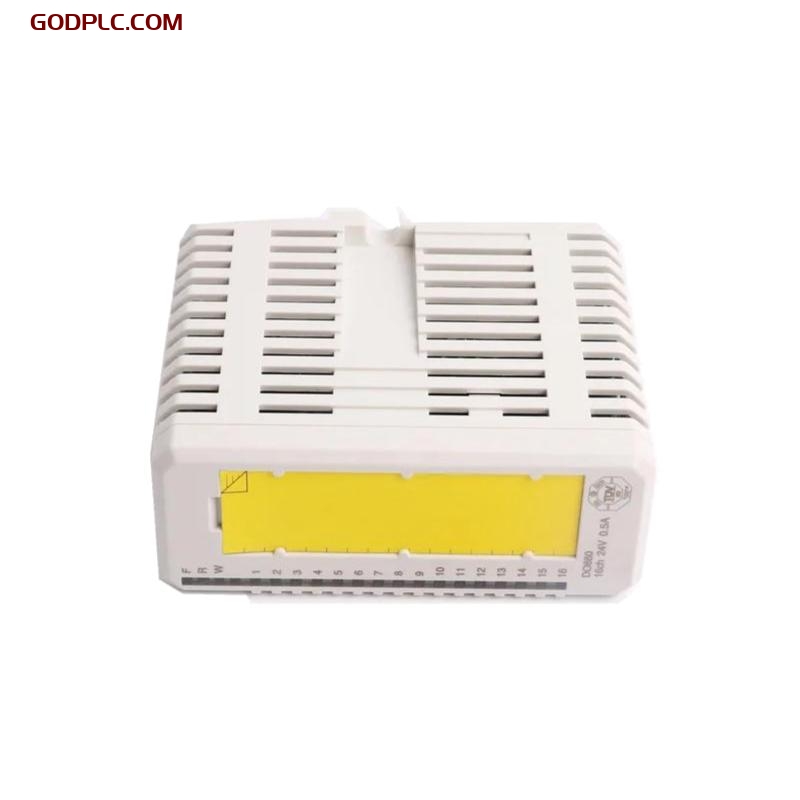

The ABB DO880 3BSE028602R1 Digital Output Module is a high-performance 16-channel 24 V digital output module, suitable for both single and redundant applications. The module’s maximum continuous output current is 0.5 A, meeting the demands of various industrial automation systems. Each output channel features a high-side driver design with overcurrent limiting and over-temperature protection, ensuring reliability in harsh environments. Additionally, the module includes advanced fault diagnostics, status indicator LEDs, and configurable loop monitoring, enhancing system safety and reliability.
2. Key Features
- Channel Count:16 x 24 V d.c. current-sink outputs, designed as an isolated group.
- Flexible Configuration:Supports both redundant and single configurations, catering to various system requirements.
- Loop Monitoring:Capable of monitoring short-circuit and open-circuit conditions, with configurable monitoring thresholds.
- Advanced Diagnostics:Diagnoses output switching states without the need for pulse operation.
- Status Indication:Each channel is equipped with a status indicator, providing real-time feedback on output status and fault information.
- Fault Tolerant Design:Meets IEC 61508, SIL1 fault tolerance, especially suitable for Normally De-energized systems.
- Environmental Certification:Complies with SIL3 and Category 4 safety standards, ensuring reliable operation in hazardous and complex environments.
3. Technical Specifications
Dimensions and Weight:
| Parameter | Specification |
| Width | 45 mm |
| Depth | 102 mm |
| Height | 119 mm |
| Weight | 0.20 kg |
General Information:
| Parameter | Specification |
| Signal Specifications | 24 V d.c. (19.2 – 32 V d.c.), 0.5 A |
| Channel Count | 16 |
| Signal Type | Current Sink, Current Limiting |
| Redundant Configuration | Yes |
| High Integrity | Yes |
| Built-in Safety | No |
Detailed Data:
| Parameter | Specification |
| Isolation | Isolated from ground group |
| Overcurrent Limiting | Short-circuit protection current-limiting output |
| Maximum Field Cable Length | 600 meters (656 yards) |
| Rated Insulation Voltage | 50 V |
| Dielectric Strength Test Voltage | 500 V a.c. |
| Power Consumption | 5.6 W (0.5 A x 16 channels) |
| +/-5V Module Bus Current Consumption | 45 mA |
| +/-24V Module Bus Maximum Current Consumption | 50 mA |
| +24V External Current Consumption | 10 mA |
Diagnostic Features:
| Parameter | Specification |
| Front LED Indicators | F (Fault), R (Run), W (Warning), Channel Status/Error |
| Process Power Monitoring per Channel | Yes |
| Configurable Loop Resistance Monitoring | From 50 Ω to 2 kΩ |
| Internal Circuit Status Indicators | Module Error, Module Warning, Internal Channel Error |
Environmental & Certification:
| Parameter | Specification |
| CE Marking | Yes |
| Electrical Safety | EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201 |
| Hazardous Location Certification | C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2 |
| Marine Certification | ABS, BV, DNV, LR |
| Operating Temperature | 0 to +55 °C (+32 to +131 °F) |
| Storage Temperature | -40 to +70 °C (-40 to +158 °F) |
| Pollution Degree | Pollution Degree 2, IEC 60664-1 |
| Corrosion Protection | ISA-S71.04: G3 |
| Relative Humidity | 5% to 95% non-condensing |
| Maximum Ambient Temperature | 55 °C (131 °F), 40 °C (104 °F) when installed vertically |
| Protection Class | IP20 (according to IEC 60529) |
| Mechanical Operating Conditions | IEC/EN 61131-2 |
| EMC | EN 61000-6-4, EN 61000-6-2 |
| Overvoltage Category | IEC/EN 60664-1, EN 50178 |
| Equipment Class | Class I (according to IEC 61140; grounded protection) |
| RoHS Compliance | DIRECTIVE/2011/65/EN (EN 50581:2012) |
| WEEE Compliance | DIRECTIVE/2012/19/EU |
Compatibility:
| Parameter | Specification |
| Compatibility with MTU | TU810, TU812, TU814, TU830, TU833, TU842, TU843, TU852 |
| Type Code | FE |
4. Industry Applications
The ABB DO880 Digital Output Module is widely used in various industrial sectors, especially in automation, process control, and safety systems. Its advanced fault diagnostics and fault tolerance features make it ideal for applications requiring high safety standards, such as in the oil & gas, power, chemical, and metallurgy industries. The module is designed to operate in complex and hazardous environments, providing current output and supporting redundant configurations to enhance reliability. This device is particularly suitable for building high-integrity control systems, ensuring that critical functions continue to operate even in the event of a fault, thus safeguarding personnel and equipment.
