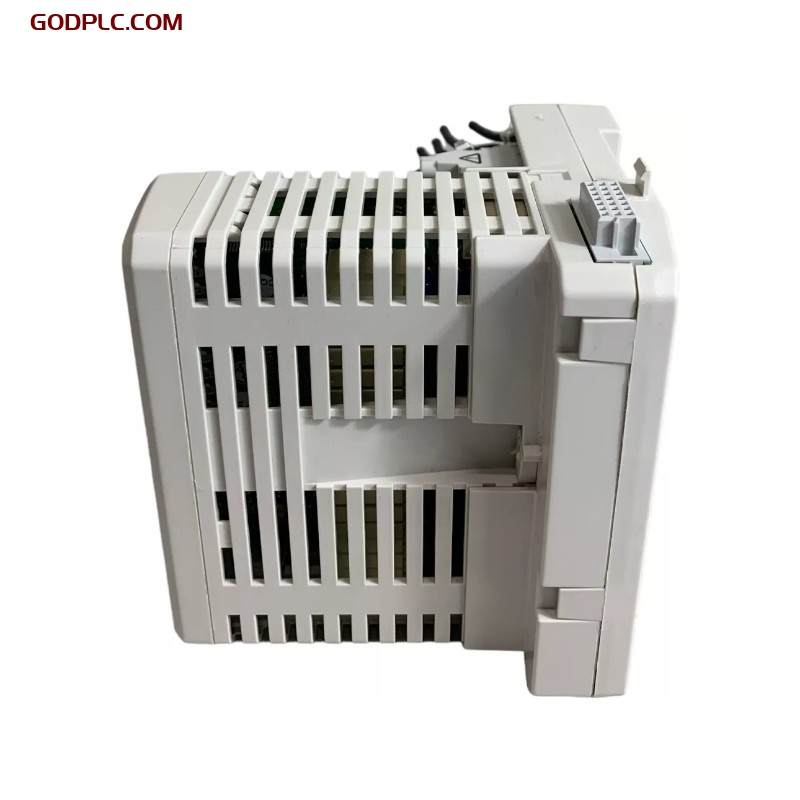

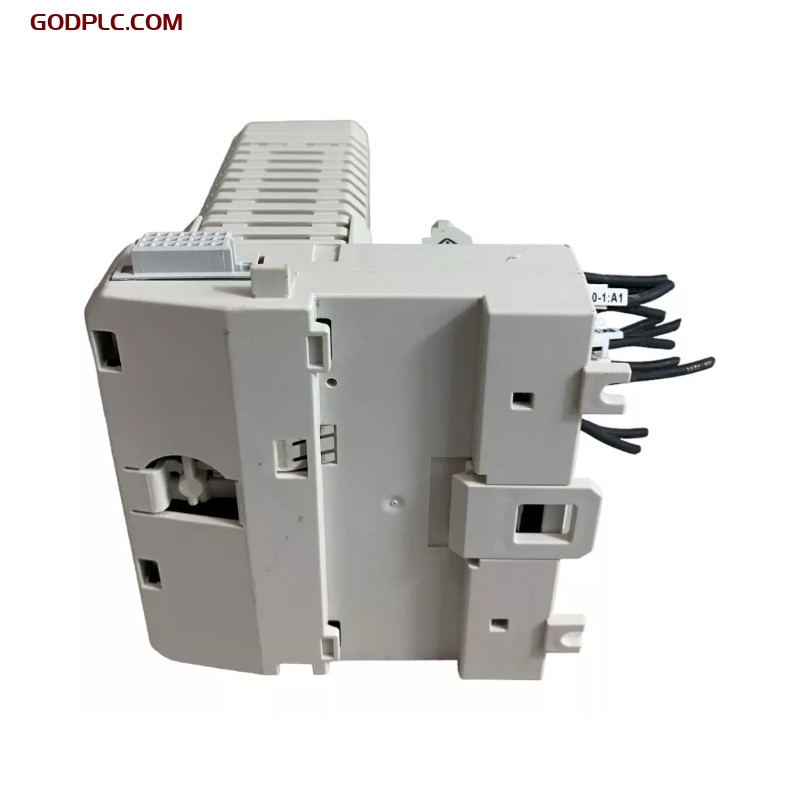

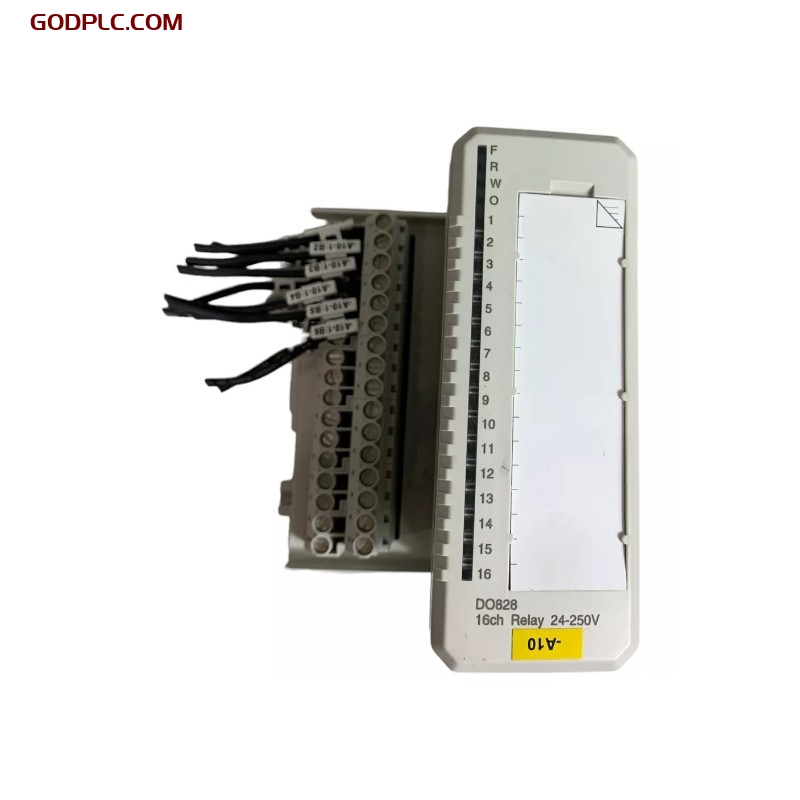

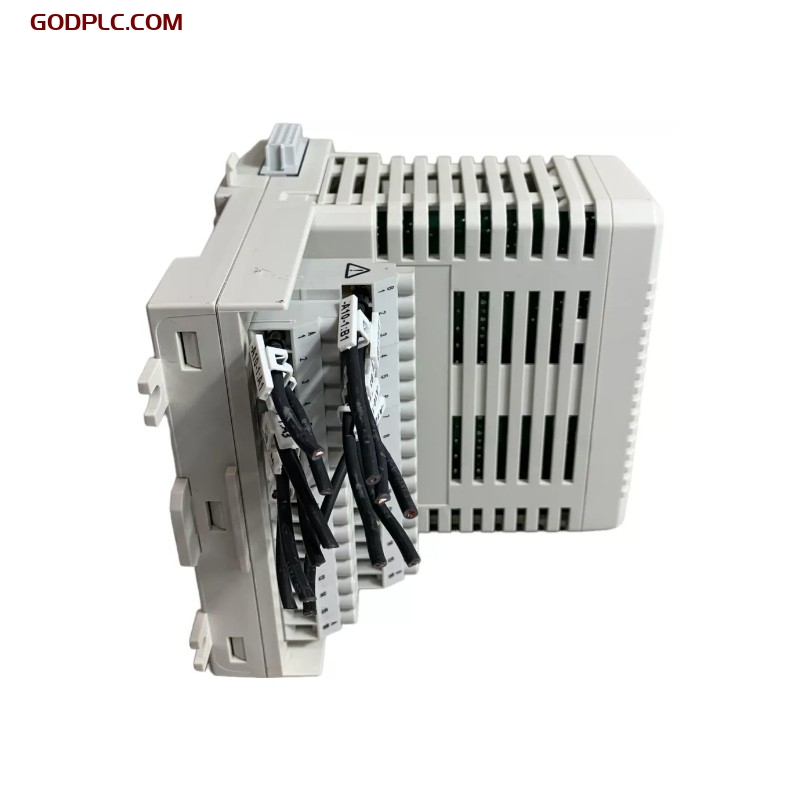

ABB DO828 3BSE069055R1 Digital Output Module Immediate Quote
The ABB DO828 3BSE069055R1 Digital Output Module is a 16-channel output module designed for the S800 I/O system, supporting 125 V d.c. and 250 V a.c. relay outputs. It is ideal for industrial automation applications where high reliability and safety are required. Each output channel is independently isolated, featuring optical isolation barriers, output state indication LEDs, relay drivers, relays, and EMC protection components, ensuring stable and secure outputs. The module includes relay power supply voltage supervision that triggers an error signal and activates a warning LED when power fails, allowing continuous system monitoring.
Key Features
- 16 Channels for 125 V d.c. / 250 V a.c. relay NO outputs
- Independently Isolated Channels: Provides reliable electrical isolation to prevent interference.
- Output Status Indicators: Each channel has an LED indicator showing real-time output status.
- Error Detection Mechanism: The module uses OSP to set outputs to a predetermined state upon error detection.
- Relay Power Supply Supervision: Monitors 12 V power supply; when lost, it generates an error signal and activates the warning LED.
- Module Monitoring & Diagnostics: Continuous module and channel status monitoring with error signals readable through the ModuleBus.
Technical Specifications
Dimensions & Weight
| Parameter | Specification |
| Width | 45 mm |
| Depth | 102 mm |
| Height | 119 mm |
| Weight | 0.18 kg |
General Information
| Parameter | Specification |
| Signal Specification | 125 V d.c. / 250 V a.c. (5 – 125 V d.c. / 5 – 250 V a.c.), 2 A |
| Number of Channels | 16 |
| Signal Type | Relay NO |
| HART | No |
| SOE | No |
| Redundancy | No |
| High Integrity | No |
| Intrinsic Safety | No |
| Mechanics | S800 Series |
Isolation & Current Specifications
| Parameter | Specification |
| Isolation Type | Individually Isolated |
| Maximum Field Cable Length | 600 meters |
| Rated Insulation Voltage | 250 V |
| Dielectric Test Voltage | 2000 V a.c. |
Power & Current Consumption
| Parameter | Specification |
| Power Dissipation | Typ. 3.5 W |
| 5V ModuleBus Consumption | 45 mA |
| 24V ModuleBus Consumption | 80 mA |
| External 24V Consumption | 0 |
Diagnostics & Indications
| Parameter | Specification |
| Front LEDs | F(ault), R(un), O(SP), Channel 1-16 Status |
| Supervision | 12V Relay Power Converter Monitor |
| Error Indications | Module Error, Module Warning, Channel Error |
Environment & Certification
| Parameter | Specification |
| CE Mark | Yes |
| Electrical Safety | EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201 |
| Protection Class | IP20 (IEC 60529) |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Pollution Degree | 2 (IEC 60664-1) |
| EMC | EN 61000-6-4, EN 61000-6-2 |
| Overvoltage Categories | IEC/EN 60664-1, EN 50178 |
Mechanical & Protection
| Parameter | Specification |
| Mounting | Vertical Installation |
| Enclosure Protection | No external protection |
| Corrosion Protection | ISA-S71.04: G3 |
Industry Applications
The ABB DO828 3BSE069055R1 Digital Output Module is widely used in industrial automation, building automation, energy management, and process control systems. Its robust isolation and multi-layer protection make it ideal for applications in industries such as metallurgy, power generation, chemical processing, and oil & gas, where high reliability and system stability are essential.
ABB DO828 3BSE069055R1 is in stock. Contact us for quick quotes and competitive prices.
