ABB DO820 3BSE008514R1 Digital Output Module Contact The Sales
Product Overview

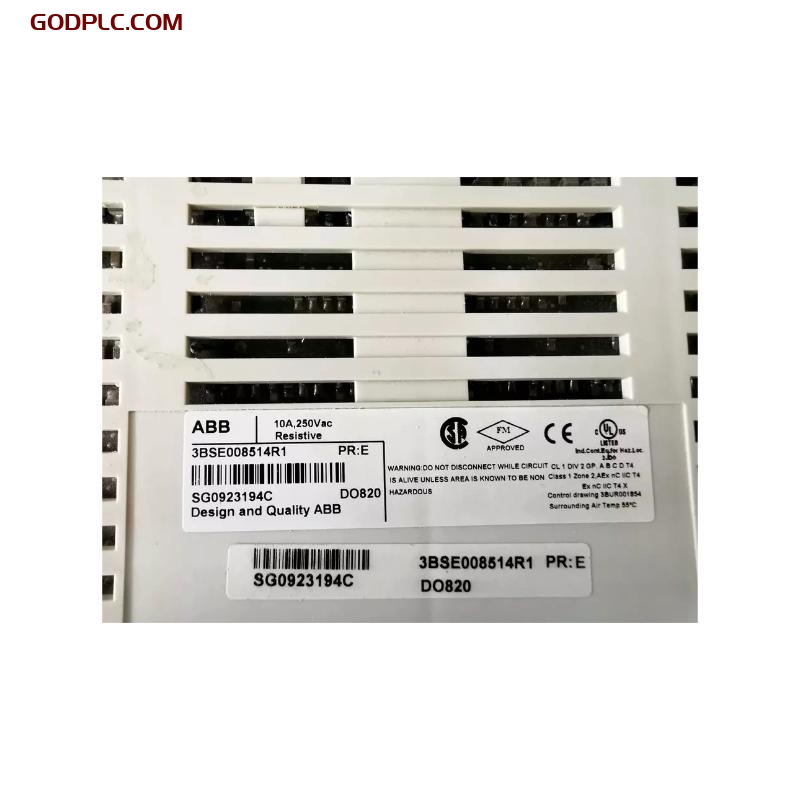

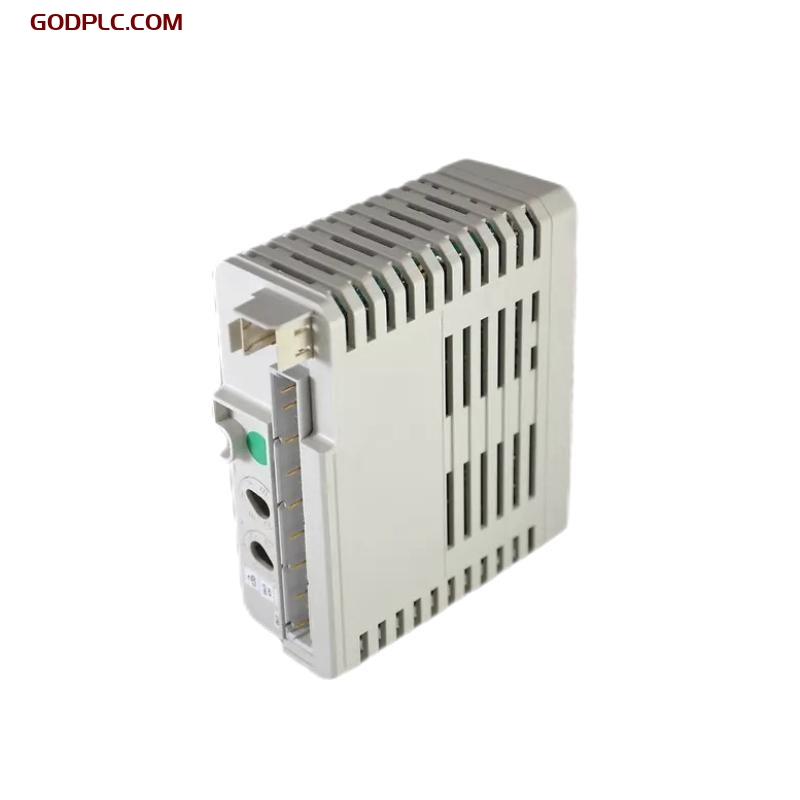

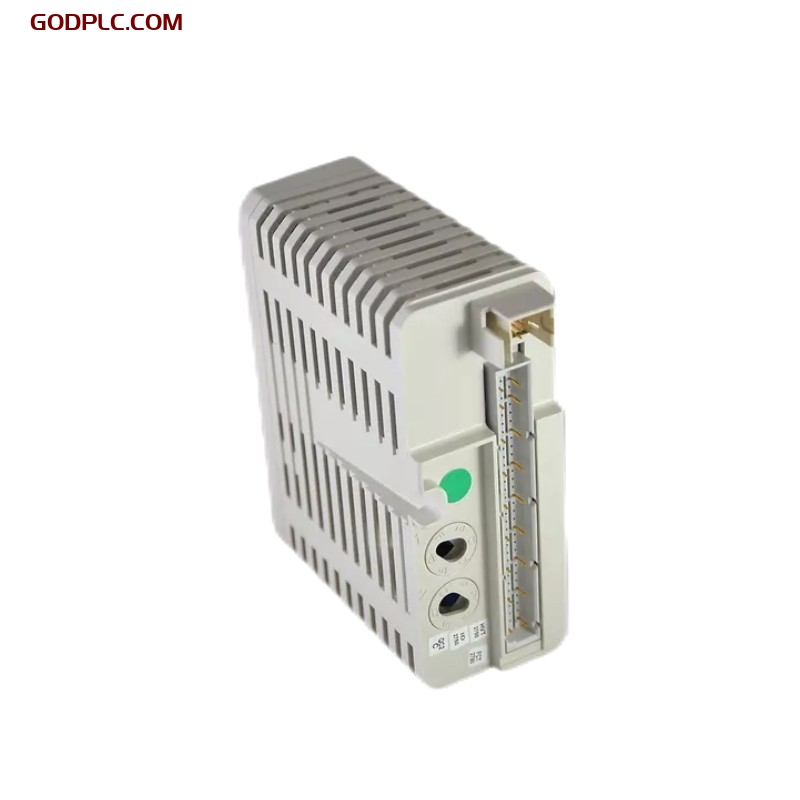

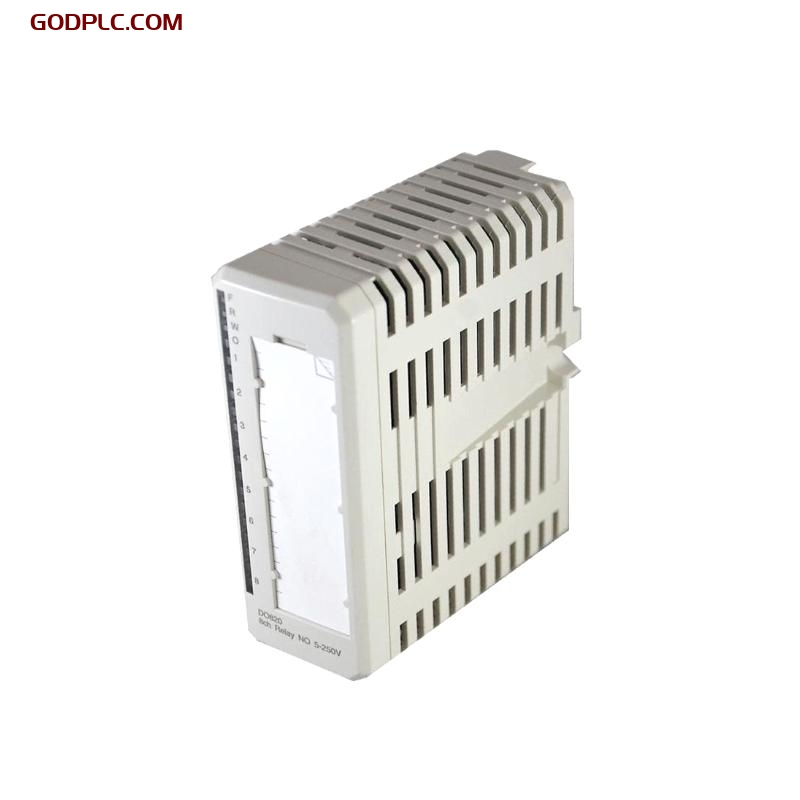

The ABB DO820 3BSE008514R1 Digital Output Module is an 8-channel 230 V a.c./d.c. relay output module designed for the S800 I/O system. Each output channel is independently isolated and features optical isolation protection, over-voltage and current protection, ensuring the device operates reliably in harsh industrial environments. The module supports a maximum voltage of 250 V a.c./d.c. and can handle up to 3 A of continuous output current. The module provides error signaling through warning LEDs when power is lost, and error signals can be read via the ModuleBus. The DO820 3BSE008514R1 is ideal for various automation control systems, offering high reliability and safety.
Key Features
- 8 Channels for 230 V a.c./d.c. relay NO outputs
- Individually Isolated Channels: Provides electrical isolation for each channel.
- Output Status Indicators: Each channel has an LED indicator showing real-time output status.
- Error Detection Mechanism: In case of errors, the module automatically sets outputs to predetermined states using OSP.
- 24V Power Supervision: The module detects power loss and triggers an error signal with a warning LED.
- Module Monitoring: Continuous monitoring of the module and channels for error detection.
Technical Specifications
Dimensions & Weight
| Parameter | Specification |
| Width | 45 mm |
| Depth | 102 mm |
| Height | 119 mm |
| Weight | 0.23 kg |
General Information
| Parameter | Specification |
| Signal Specification | 230 V a.c./d.c. (5 – 250 V a.c./d.c.), 3 A |
| Number of Channels | 8 |
| Signal Type | Relay NO |
| HART | No |
| SOE | No |
| Redundancy | No |
| High Integrity | No |
| Intrinsic Safety | No |
| Mechanics | S800 Series |
Isolation & Current Specifications
| Parameter | Specification |
| Isolation Type | Individually Isolated |
| Current Limiting | Can be limited by the MTU |
| Max Field Cable Length | 600 meters |
| Rated Insulation Voltage | 250 V |
| Dielectric Test Voltage | 2000 V a.c. |
Power & Current Consumption
| Parameter | Specification |
| Power Dissipation | Typ. 2.9 W |
| 5V ModuleBus Consumption | 60 mA |
| 24V ModuleBus Consumption | 140 mA |
| External 24V Consumption | 0 |
Diagnostics & Indications
| Parameter | Specification |
| Front LEDs | F(ault), R(un), W(arning), O(SP), Channel 1-8 Status |
| Supervision | 24/12 V Relay Power Converter Monitor |
| Error Indications | Module Error, Module Warning, Channel Error |
Environment & Certification
| Parameter | Specification |
| CE Mark | Yes |
| Electrical Safety | EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201 |
| Protection Class | IP20 (IEC 60529) |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Pollution Degree | 2 (IEC 60664-1) |
| EMC | EN 61000-6-4, EN 61000-6-2 |
| Overvoltage Categories | IEC/EN 60664-1, EN 50178 |
Mechanical & Protection
| Parameter | Specification |
| Mounting | Vertical Installation |
| Enclosure Protection | No external protection |
| Corrosion Protection | ISA-S71.04: G3 |
Industry Applications
The ABB DO820 3BSE008514R1 Digital Output Module is widely used in industrial automation, building automation, energy management, and process control systems. It is ideal for applications requiring high reliability and stability, particularly in industries such as metallurgy, power generation, chemical, and oil & gas.
ABB DO820 3BSE008514R1 is in stock. Contact us for quick quotes and competitive prices.
