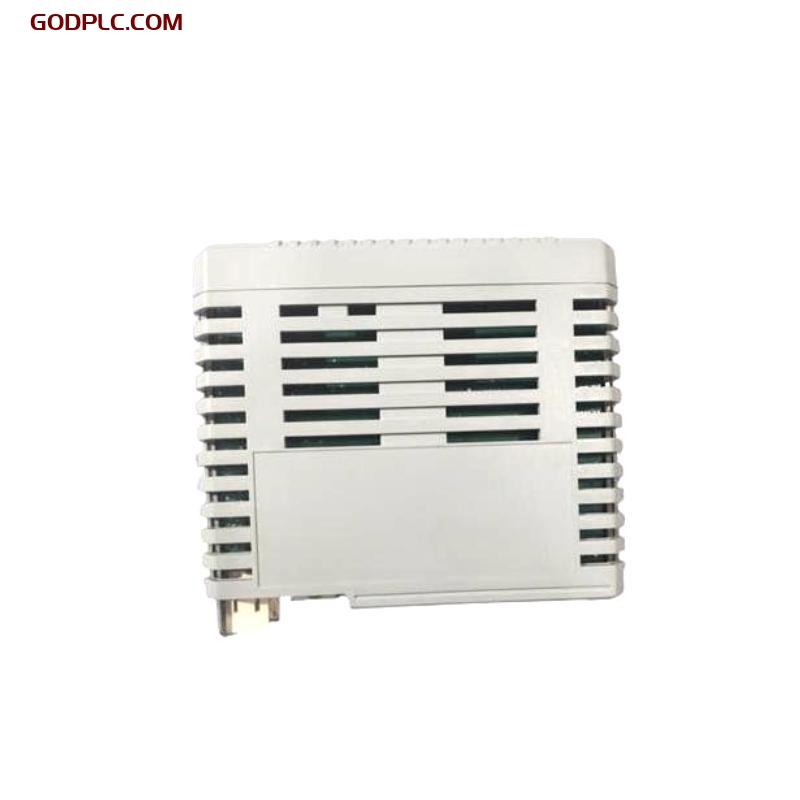

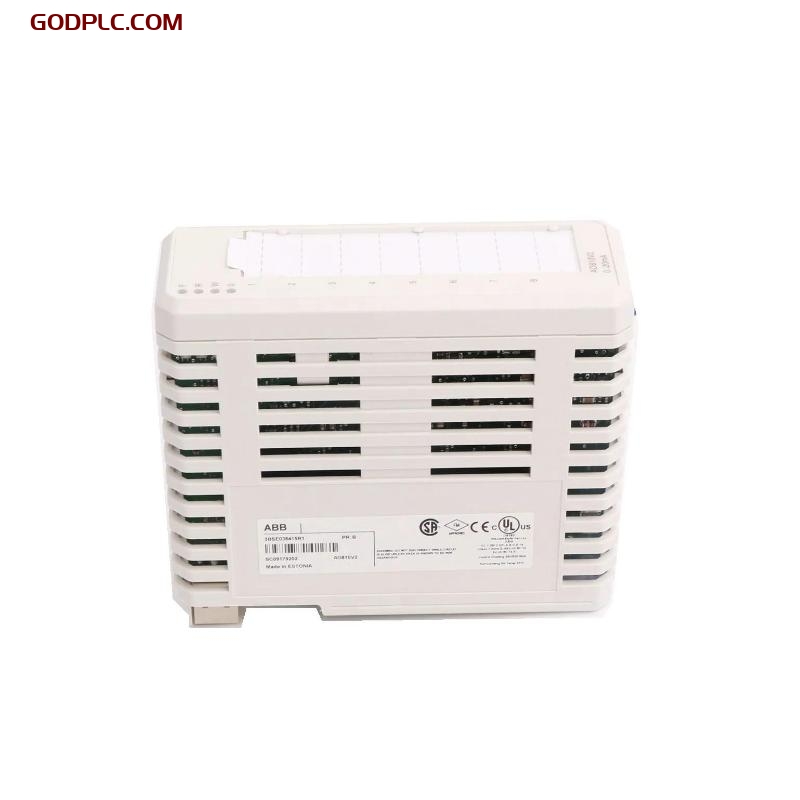

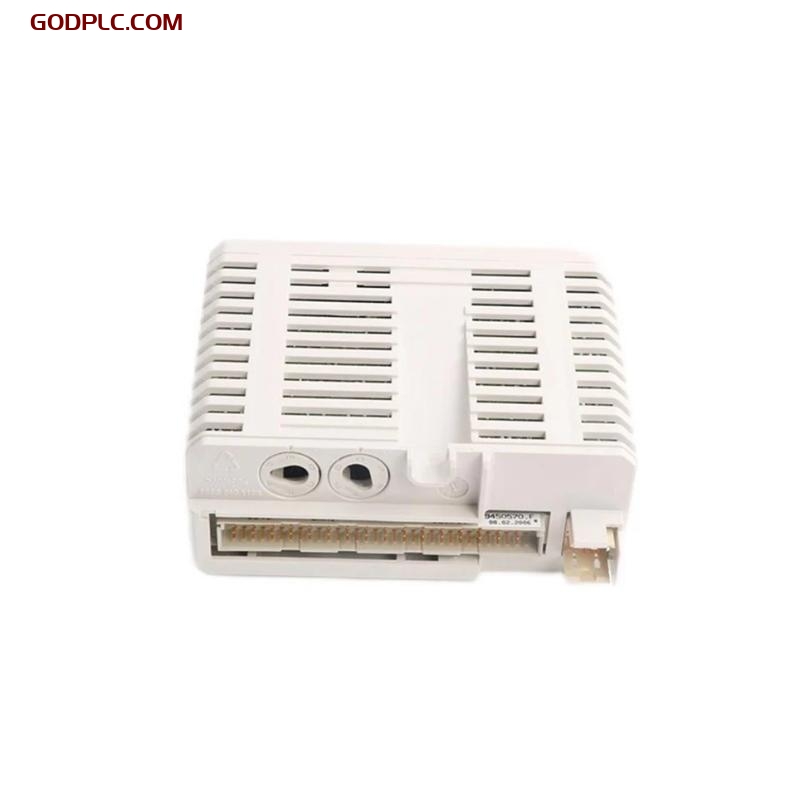

ABB DO818 3BSE069053R1 Digital Output Module Consulting Price
1. Product Overview
The ABB DO818 3BSE069053R1 Digital Output Module is a 32-channel 24 V digital output module designed for use in the S800 I/O system. This module is ideal for applications in industrial automation systems where stable and reliable digital signals are required to control external loads such as relays, lights, or other digital control devices. It offers an output voltage range of 12 to 32 V DC with a maximum continuous output current of 0.5 A. The module is equipped with multiple protection features such as short-circuit protection, overvoltage protection, and over-temperature protection to ensure reliable operation in harsh environments.
The module is divided into two isolated groups of 16 output channels each, with a voltage supervision input in each group. The integrated voltage monitoring input and status-indicating LEDs provide effective fault diagnosis and alerting functions, improving system reliability and ease of maintenance.
2. Key Features
- 32 Digital Output Channelswith a voltage range of 12 V to 32 V DC and a maximum continuous output current of 5 A per channel.
- Short-circuit Protection, Overvoltage Protection, and Over-temperature Protectionensure safe operation under demanding conditions.
- Two Isolated Output Groups, each with 16 output channelsand a voltage supervision input.
- Voltage Supervision Inputprovides error signals if voltage is lost, with these signals readable through the ModuleBus.
- EMC Protectionand Inductive Load Suppression ensure stable performance in electrically noisy environments.
- LED Indicatorsfor output status, simplifying troubleshooting and system diagnostics.
- Compliance with various international standards, including CE, UL, and IEC
3. Technical Specifications
Dimensions and Weight
| Parameter | Specification |
| Width | 45 mm (1.77″) |
| Depth | 102 mm (4.01″) |
| Height | 119 mm (4.7″) |
| Weight | 0.18 kg (0.4 lbs.) |
General Information
| Parameter | Specification |
| Type | Digital Output Module |
| Signal Specification | 24 V DC (12 – 32 V DC), 0.5 A |
| Number of Channels | 32 |
| Signal Type | Current Sourcing, Current Limiting |
| HART Support | No |
| SOE Support | No |
| Redundancy | No |
| High Integrity | No |
| Intrinsic Safety | No |
| Mechanics | S800 |
Electrical Characteristics
| Parameter | Specification |
| Output Load | < 0.32 Ω |
| Maximum Field Cable Length | 600 meters (656 yards) |
| Rated Insulation Voltage | 50 V |
| Dielectric Test Voltage | 500 V AC |
| Power Dissipation | Typical 2.8 W |
| +5 V ModuleBus Current Consumption | Typical 70 mA |
| +24 V ModuleBus Current Consumption | 0 |
| +24 V External Current Consumption | 40 mA |
Diagnostics
| Parameter | Specification |

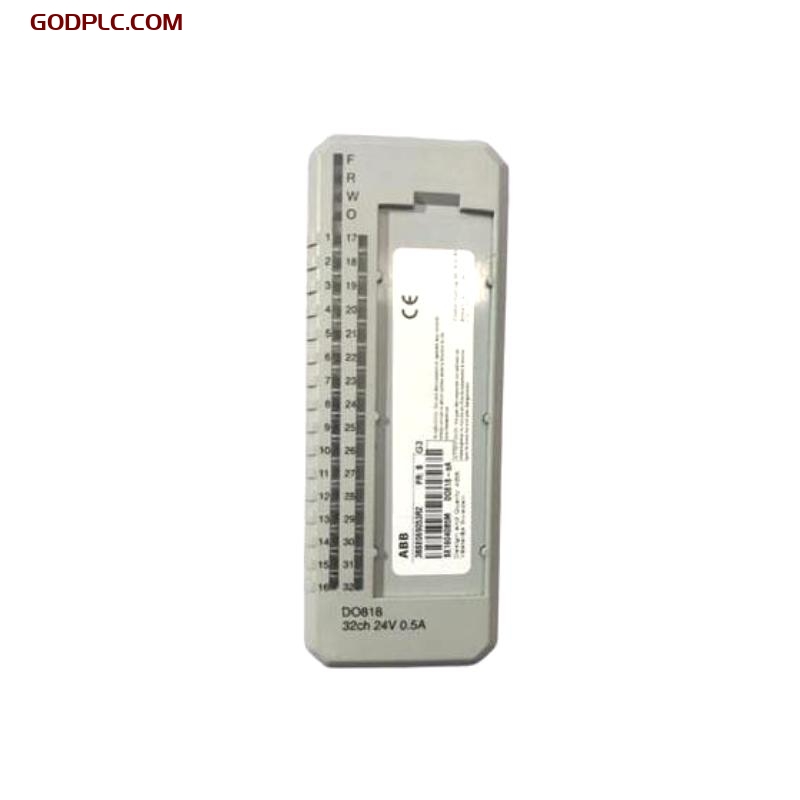

| Front LED Indicators | Fault (F), Run (R), Output State (O), Channel Status 1-32 |
| Voltage Supervision | 2 channels (1 per group) |
| Activated when process power drops below 12 V | Yes |
| Supervision Status Indication | Module Error, Module Warning, Channel Error |
Environment and Certification
| Parameter | Specification |
| CE Mark | Yes |
| Electrical Safety | EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201 |
| Hazardous Location | None |
| Marine Certification | ABS, BV, DNV, LR |
| Operating Temperature Range | 0 to +55°C (+32 to +131°F) |
| Storage Temperature Range | -40 to +70°C (-40 to +158°F) |
| Pollution Degree | 2 (IEC 60664-1) |
| Corrosion Protection | ISA-S71.04: G3 |
| Relative Humidity | 5% to 95% (non-condensing) |
| Protection Class | IP20 (IEC 60529) |
| Mechanical Operating Conditions | IEC/EN 61131-2 |
| EMC | EN 61000-6-4, EN 61000-6-2 |
| Overvoltage Categories | IEC/EN 60664-1, EN 50178 |
| Equipment Class | Class I (IEC 61140) |
| RoHS Compliance | Yes |
| WEEE Compliance | Yes |
Compatibility
| Parameter | Specification |
| Compatible with MTU | TU818, TU819, TU830 |
| Keying Code | EA |
4. Industry Applications
The ABB DO818 3BSE069053R1 Digital Output Module is widely used in various industries such as:
- Automation Control Systems: Provides stable and reliable digital output signals for controlling external devices like relays, lights, or motors in industrial automation systems.
- Manufacturing and Process Control: Commonly used in manufacturing plants, chemical industries, and food processing industries where it drives large numbers of industrial devices and ensures reliable operation.
- Energy Management: Ideal for use in energy management systems where output monitoring and protection are critical.
ABB DO818 3BSE069053R1 is in stock. Contact us for quick quotes and competitive prices.
