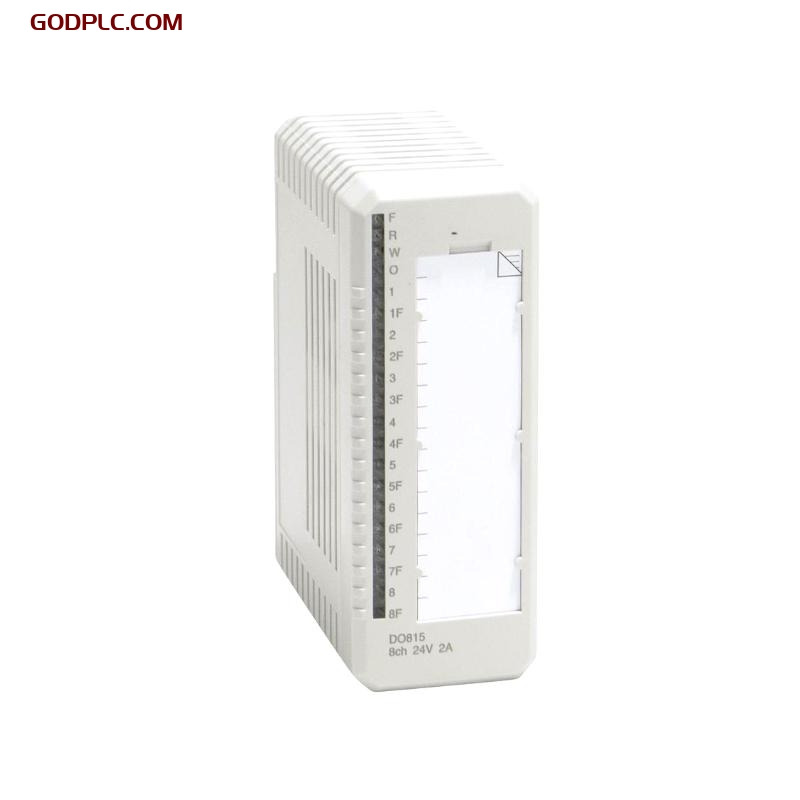

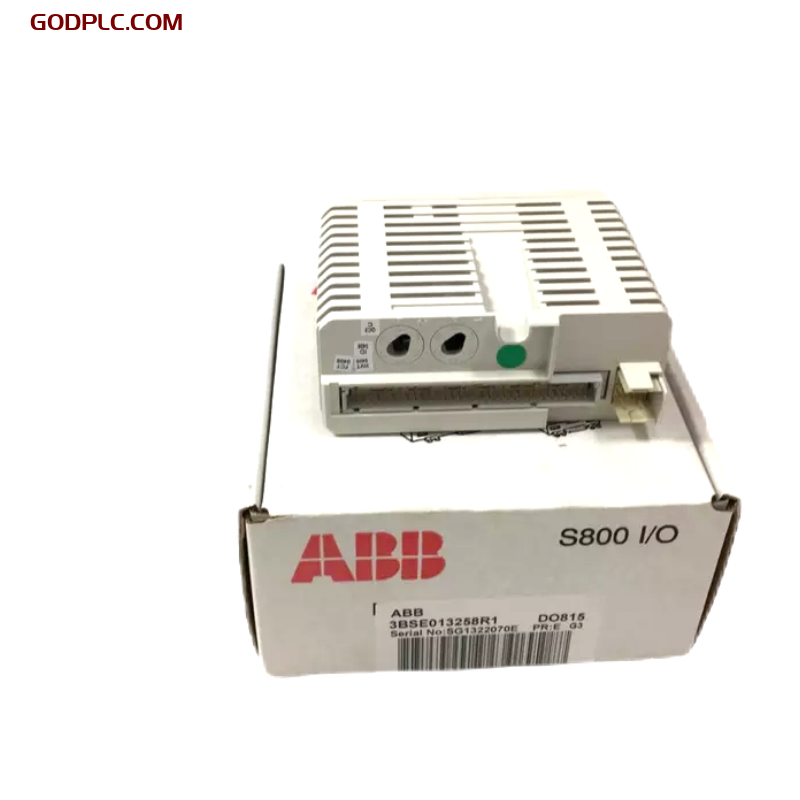

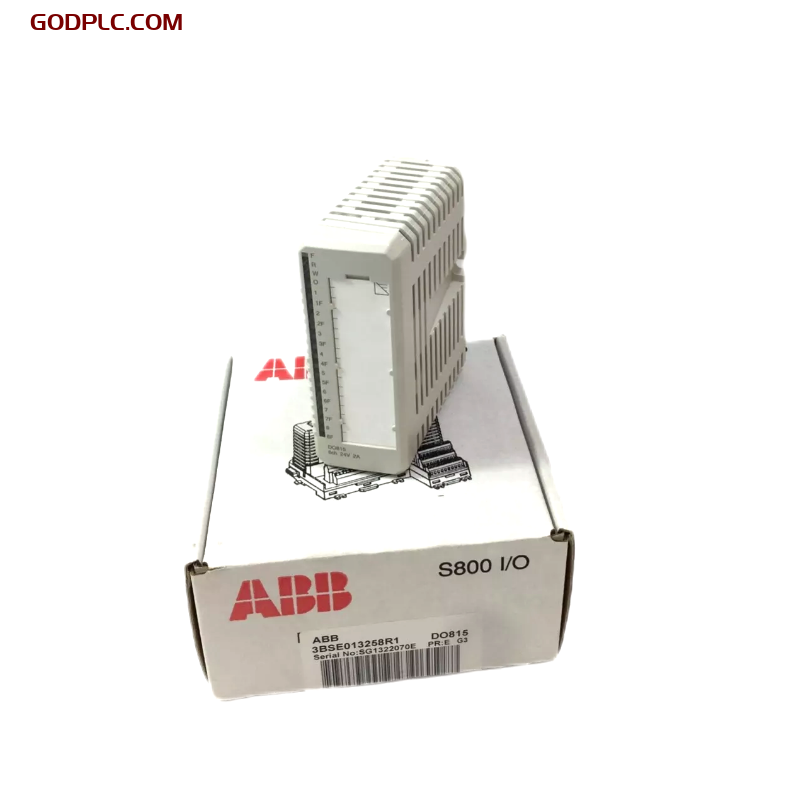

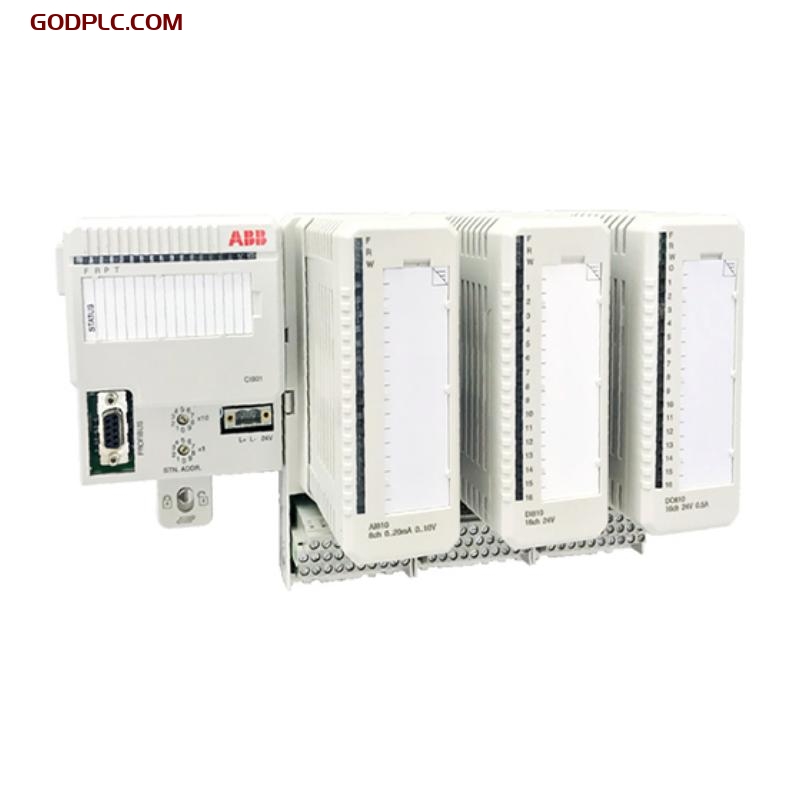

ABB DO815 3BSE013258R1 Digital Output Module 2 Days Delivery
1. Product Overview
The ABB DO815 3BSE013258R1 is a high-performance and reliable 8-channel 24 V digital output module designed for the S800 I/O system. The module features a wide output voltage range (10 V to 30 V), with a maximum continuous output current of 2 A at 24 V. Each output channel employs a high-side driver design with short circuit protection, overload protection, and open load detection, making it suitable for various industrial automation environments, especially those that require high reliability and safety.
The 8 output channels are divided into two independently isolated groups, each containing four channels. Each channel is equipped with short circuit and overload protection, open load detection (on active signal), EMC protection components, inductive load suppression, output status indicator LEDs, and an optical isolation barrier. These designs significantly enhance the device’s stability and safety, reducing the risk of faults.
2. Key Features
- 8 Channels for 24 V DC Current Sourcing Outputs, each channel with a maximum output current of 2 A.
- Two Independently Isolated Output Groups, each with 4 channels, and under-voltage detection.
- Output Status Indicators, including module fault, warning, channel status, and fault flags.
- Short Circuit Protection: Protection against short circuits to both ground and positive supply.
- Overload Protection: Prevents overload conditions.
- Open Load and Short Circuit Detection: Real-time monitoring of output status.
- Two Output Fault Operation Modes: Automatic reset mode and fault latching mode.
- Inductive Load Driving Capability: Capable of driving inductive loads for stable output.
- Filament Lamp Load Up to 10W, suitable for various industrial applications.
3. Technical Specifications
3.1 Dimensions and Weight
| Parameter | Specification |
| Width | 45 mm |
| Depth | 102 mm |
| Height | 119 mm |
| Weight | 0.2 kg |
3.2 General Information
| Parameter | Specification |
| Signal Specification | 24 V DC (10 – 32 V DC), 2A |
| Output Type | High-side driver, current limiting |
| HART Protocol | No |
| SOE (Sequence of Events) | No |
| Redundancy | No |
| High Integrity | No |
| Intrinsic Safety | No |
| Mechanical Mounting | S800 Series Module |
3.3 Electrical Parameters
| Parameter | Specification |
| Rated Insulation Voltage | 50 V |
| Dielectric Test Voltage | 500 V AC |
| Power Dissipation | Typ. 4 W |
| +5 V Modulebus Current Consumption | Typ. 120 mA, Max. 150 mA |
| +24 V Modulebus Current Consumption | 0 |
| +24 V External Current Consumption | 0 |
| Output Load | < 0.25 Ω |
| Maximum Field Cable Length | 600 meters (656 yards) |
3.4 Fault Detection and Indication
| Parameter | Specification |
| Front Panel LED Indicators | F (Fault), R (Run), W (Warning), OSP (Communication Error) |
| Channel Fault Detection | Short circuit, overload, under voltage, open load detection |
| Fault Indication | Module Error, Module Warning, Channel Error |
3.5 Environmental and Certification
| Parameter | Specification |
| CE Mark | Yes |
| Electrical Safety Certification | EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201 |
| Hazardous Location Certification | C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2 |
| Marine Certification | ABS, BV, DNV, LR |
| Operating Temperature Range | 0°C to +55°C |
| Storage Temperature Range | -40°C to +70°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Protection Class | IP20 |
| Pollution Degree | IEC 60664-1, Degree 2 |
3.6 EMC and Safety Standards
| Parameter | Specification |
| EMC Standards | EN 61000-6-4, EN 61000-6-2 |
| Overvoltage Categories | IEC/EN 60664-1, EN 50178 |
| Equipment Class | Class I (IEC 61140) |
| RoHS Compliance | DIRECTIVE/2011/65/EN |
| WEEE Compliance | DIRECTIVE/2012/19/EU |
4. Industry Applications
The ABB DO815 Digital Output Module is widely used in industrial automation, process control, power and energy management, and many other fields. Its stable output performance and high protection mechanisms make it especially suitable for systems that require high reliability and safety. Specific applications include:
- Industrial Control Systems: Used in various factory automation and process control systems to provide accurate signal output.
- Power Distribution Systems: Serves as a digital output module in power distribution and energy management systems, ensuring stable signal transmission.
- Smart Building Management: Controls lighting, HVAC, and other facilities in smart building systems.
Manufacturing and Robotics: Drives and controls mechanical equipment, ensuring the smooth operation of production lines.
ABB DO815 3BSE013258R1 is in stock. Contact us for quick quotes and competitive prices.
