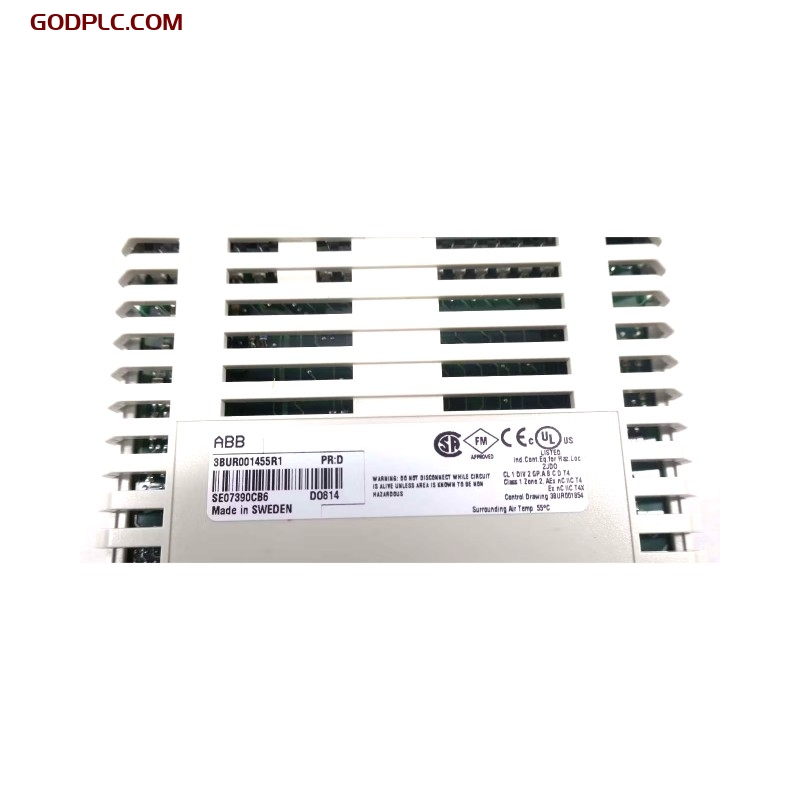

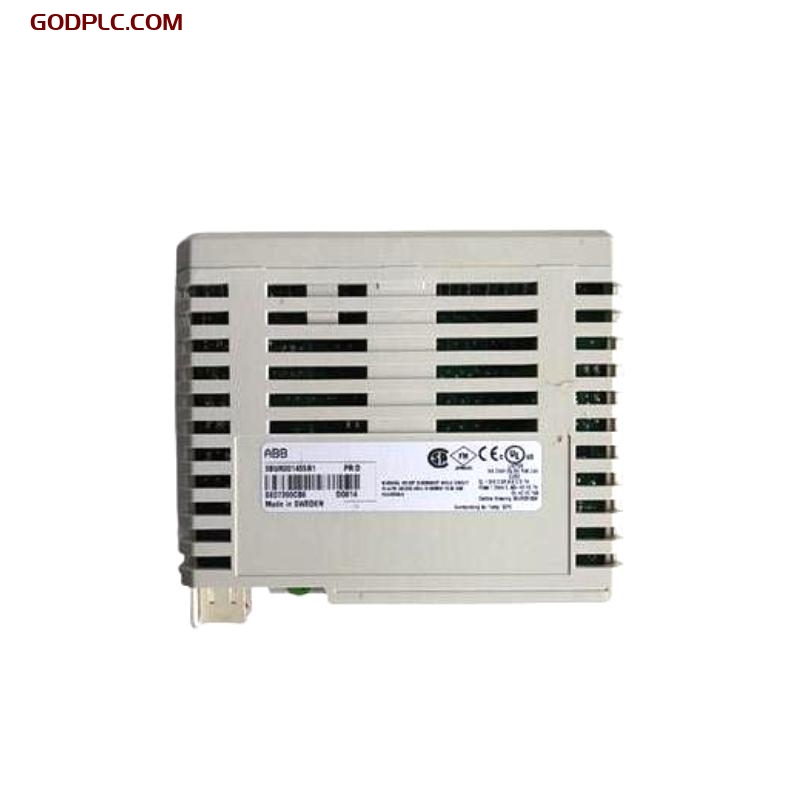

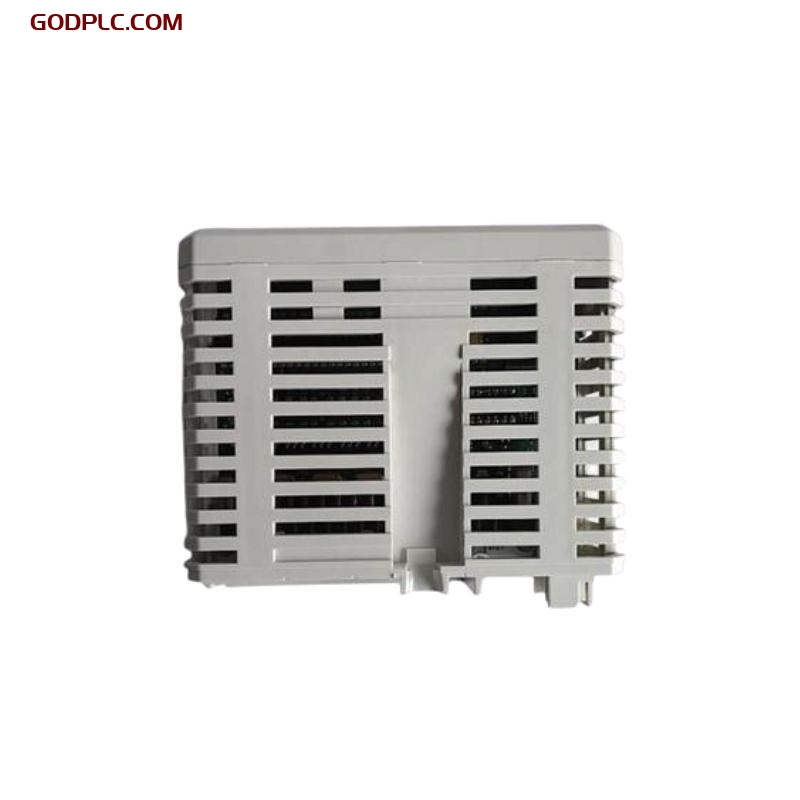

ABB DO814 3BUR001455R1 Digital Output Module Fast Delivery
1. Product Overview
The ABB DO814 3BUR001455R1 Digital Output Module is a reliable and robust output solution designed for the S800 I/O system. This module offers 16 channels of 24 V d.c. current sinking outputs, providing precise control over industrial processes. It is specifically built to withstand short circuits, overvoltage, and over-temperature conditions, making it ideal for demanding environments.
The module is divided into two isolated groups of 8 channels each, with each group featuring voltage supervision. Each output channel consists of an over-temperature protected low side switch, EMC protection, and inductive load suppression. This design ensures that your system remains stable and protected, even under challenging conditions.
The DO814 module provides an integrated error signal function that can be read through the ModuleBus. With the ability to protect against short circuits and overloads, it is well-suited for a variety of industrial applications where reliable output control and protection are critical.
2. Key Features
- 16 Channels for 24 V d.c. Current Sinking Outputs: Ensures efficient power management and control for various industrial devices.
- Two Isolated Groups: The 16 output channels are grouped into two isolated sections, each with one voltage supervision input for enhanced system protection.

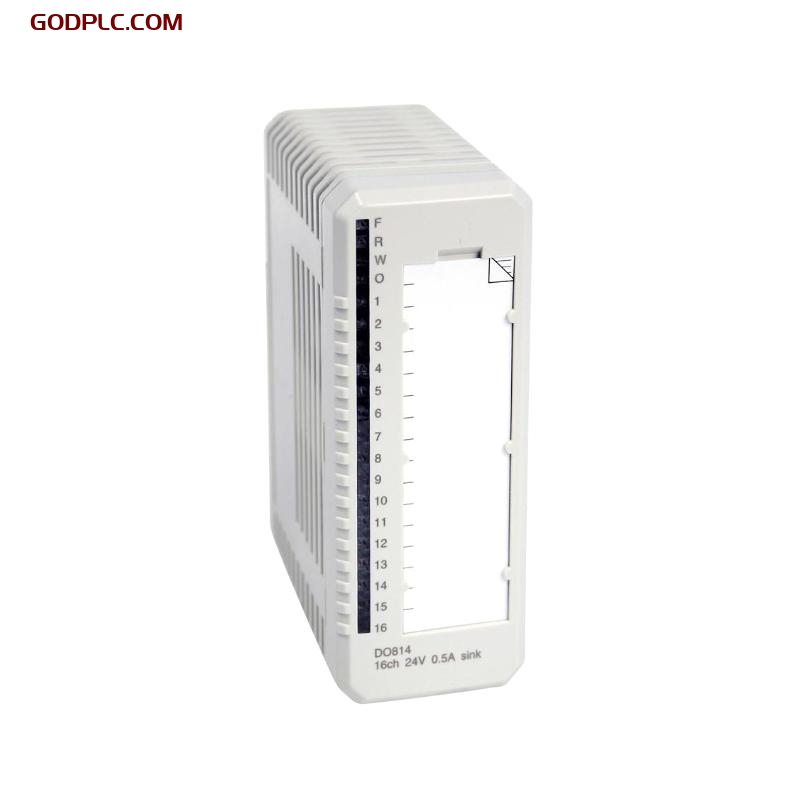

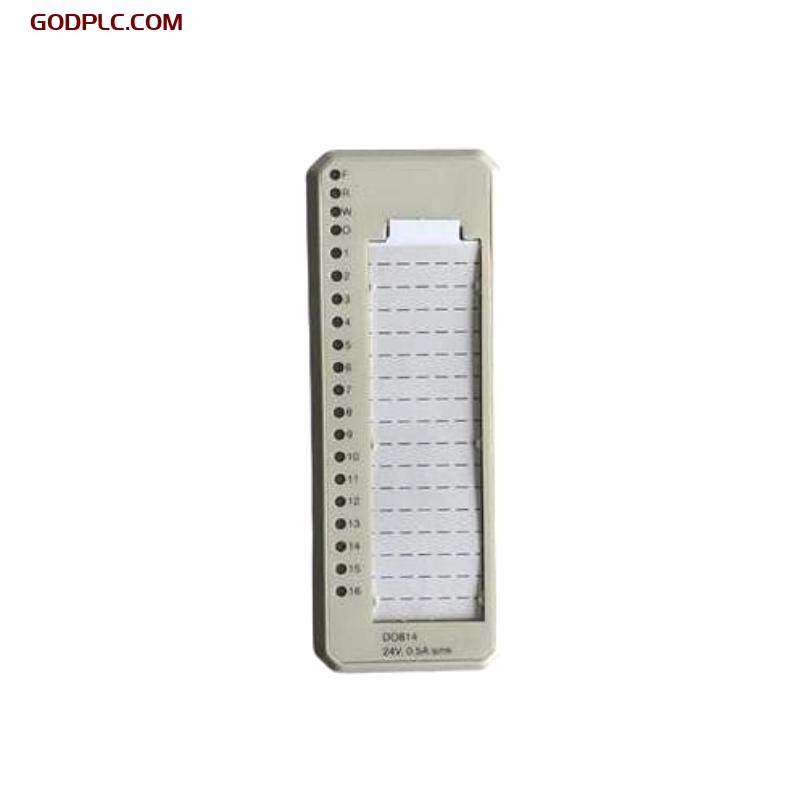

- Output Status Indicators: LEDs are provided for each output channel to indicate the operational status.
- OSP (Output State Protection): Automatically sets the outputs to a predetermined state in case of an error, ensuring safe operation.
- Protection Features: Includes short-circuit protection to ground and 30 V, over-voltage, and over-temperature protection to safeguard the module and connected devices.
- High Reliability: Features current limiting and error detection to enhance system robustness.
3. Technical Specifications
Dimensions and Weight
| Parameter | Value |
| Width | 45 mm |
| Depth | 102 mm |
| Height | 119 mm |
| Weight | 0.18 kg |
General Information
| Parameter | Value |
| Signal Specification | 24 V d.c. (12 – 32 V d.c.), 0.5 A |
| Number of Channels | 16 |
| Signal Type | Current sinking, current limiting |
| HART | No |
| SOE | No |
| Redundancy | No |
| High Integrity | No |
| Intrinsic Safety | No |
| Mechanics | S800 |
Electrical and Performance Data
| Parameter | Value |
| Isolation | Groupwise isolated from ground |
| Output Load | < 0.4 Ω |
| Current Limiting | Short-circuit proof, current-limited output |
| Maximum Field Cable Length | 600 meters (656 yards) |
| Rated Insulation Voltage | 50 V |
| Dielectric Test Voltage | 500 V a.c. |
| Power Dissipation | Typ. 2.1 W |
| Current Consumption +5 V Modulebus | 80 mA |
Environmental and Certification
| Parameter | Value |
| Operating Temperature | 0°C to +55°C (+32°F to +131°F) |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Protection Class | IP20 |
| EMC | EN 61000-6-4, EN 61000-6-2 |
| Overvoltage Categories | IEC/EN 60664-1, EN 50178 |
| RoHS Compliance | Directive/2011/65/EU (EN 50581:2012) |
| WEEE Compliance | Directive/2012/19/EU |
| Equipment Class | Class I according to IEC 61140 |
4. Industry Applications
The ABB DO814 Digital Output Module is suitable for a variety of industrial applications, especially those requiring reliable and precise control over multiple output channels.
- Industrial Automation: Ideal for controlling field devices such as motors, valves, and actuators in manufacturing and process control systems.
- Process Control: Provides robust output control for systems in industries like chemical, food and beverage, and pharmaceuticals.
- Energy and Utilities: Perfect for energy distribution and utility control systems where high reliability and protection are needed.
- Machine Control: Used in automated machinery to ensure the safe and efficient operation of complex systems.
- Hazardous Environments: With its built-in protection and robust design, it can be used in potentially hazardous locations when combined with suitable accessories.
ABB DO814 3BUR001455R1 is in stock. Contact us for quick quotes and competitive prices.
