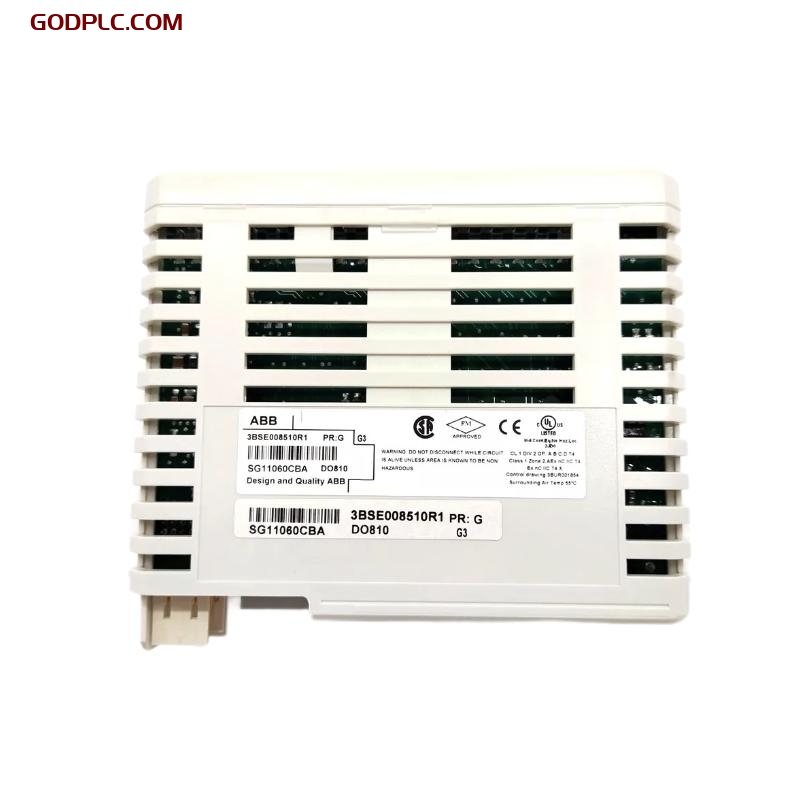

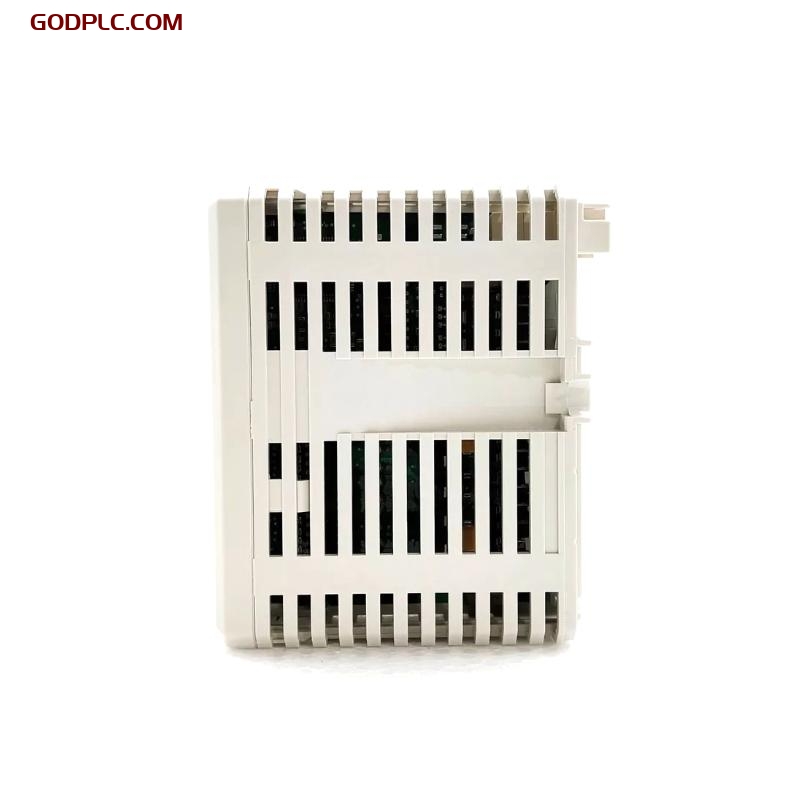

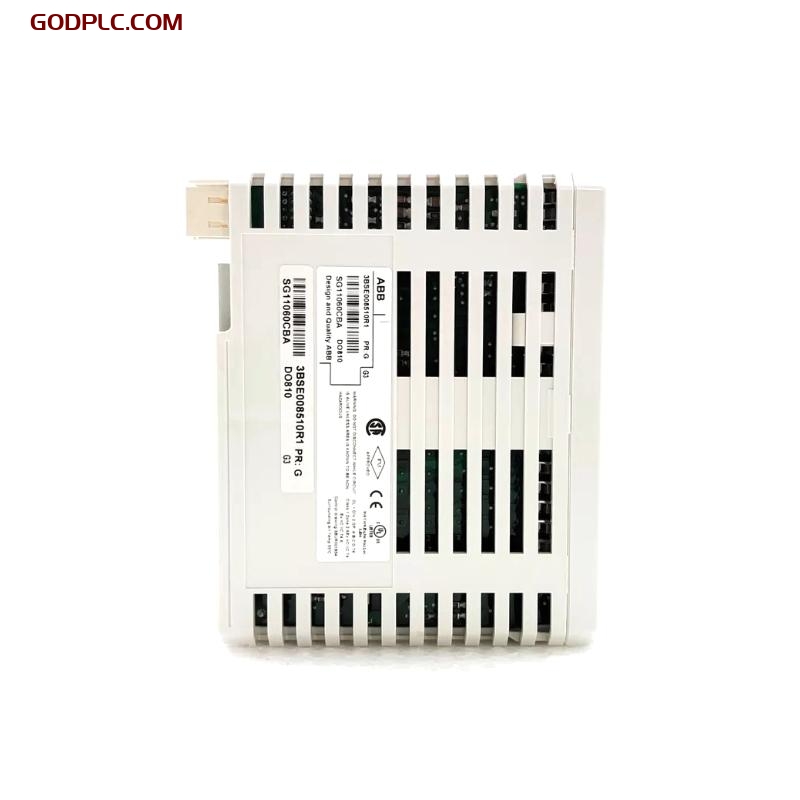

ABB DO810 3BSE008510R1 Digital Output Module In Stock
1. Product Overview
The ABB DO810 3BSE008510R1 Digital Output Module is an advanced output solution designed for industrial automation applications within the S800 I/O system. This module offers 16 channels of 24 V d.c. current sourcing outputs and is equipped with various protection mechanisms including short circuit, over-voltage, and over-temperature protection. The module is divided into two isolated groups, providing improved system stability and protection for sensitive field devices.
Each output channel is equipped with a short-circuit-proof current-limiting driver, EMC protection, and an optical isolation barrier. The module features process voltage supervision, providing error signals if there is a loss of voltage. It is ideal for applications that require reliable, high-power output control in demanding environments.
2. Key Features
- 16 Output Channels: Provides 16 channels for 24 V d.c. current sourcing outputs (12 – 32 V d.c.), with a maximum continuous output current of 0.5 A per channel.
- 2 Isolated Groups: The outputs are divided into two isolated groups with voltage supervision, ensuring greater protection and stability.
- Current Limiting: Each channel has built-in current limiting to prevent overload and damage to the system.
- Output Protection: The module includes short-circuit, over-voltage, and over-temperature protection.

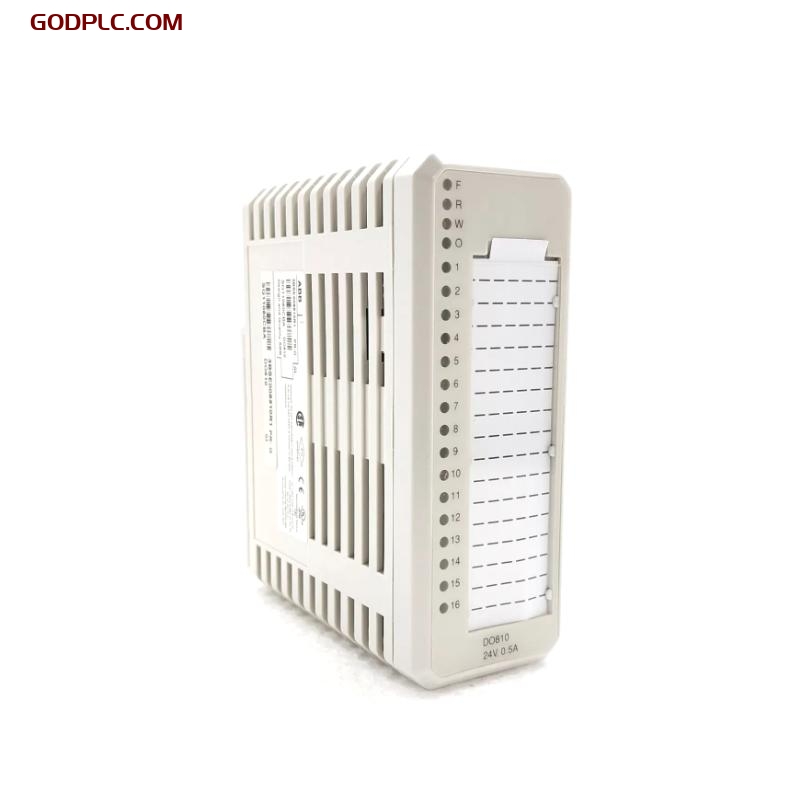

- Status Indicators: LED indicators for each channel display the operational status, including Fault, Run, Warning, and Output State (OSP).
- Process Voltage Supervision: Provides voltage monitoring and indicates any power loss via error signals.
- Environmentally Robust: The module is designed to operate in harsh industrial environments with high EMC immunity.
3. Technical Specifications
Dimensions and Weight
| Parameter | Value |
| Width | 45 mm |
| Depth | 102 mm |
| Height | 119 mm |
| Weight | 0.18 kg |
General Information
| Parameter | Value |
| Type | Digital Output Module |
| Signal Specification | 24V d.c. (12 – 32 V d.c.), 0.5 A |
| Number of Channels | 16 |
| Signal Type | Current sourcing, current limiting |
| HART | No |
| SOE | No |
| Redundancy | No |
| High Integrity | No |
| Intrinsic Safety | No |
| Mechanics | S800 |
Electrical and Performance Data
| Parameter | Value |
| Output Voltage Range | 10 – 30 V d.c. |
| Maximum Output Current | 0.5 A |
| Current Limiting | Built-in short circuit proof, current-limited output |
| Isolation | Groupwise isolated from ground |
| Output Load | < 0.4 Ω |
| Maximum Field Cable Length | 600 meters (656 yards) |
| Rated Insulation Voltage | 50 V |
| Dielectric Test Voltage | 500 V a.c. |
| Power Dissipation | Typ. 2.1 W |
| Current Consumption (+5 V Modulebus) | 80 mA |
Environmental and Certification
| Parameter | Value |
| Operating Temperature | 0°C to +55°C (+32°F to +131°F) |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Protection Class | IP20 |
| EMC | EN 61000-6-4, EN 61000-6-2 |
| Overvoltage Categories | IEC/EN 60664-1, EN 50178 |
| RoHS Compliance | Directive/2011/65/EU (EN 50581:2012) |
| WEEE Compliance | Directive/2012/19/EU |
| Equipment Class | Class I according to IEC 61140 |
| Marine Certification | ABS, BV, DNV, LR |
4. Industry Applications
The ABB DO810 3BSE008510R1 Digital Output Module is suitable for a variety of industrial applications requiring robust, reliable control of output signals. Its advanced features, such as current limiting, output protection, and process voltage supervision, make it ideal for high-load environments.
- Industrial Automation Systems: Provides precise control for high-power output devices such as motors, pumps, and actuators.
- Process Control Systems: Essential for controlling various field devices in manufacturing, chemical, and power plants.
- Machine Control: Useful in automated machinery systems, where reliable output control is required for safety and performance.
- Energy and Utility Control: Provides the necessary output control and protection for utility and energy distribution systems.
Hazardous Locations: With built-in intrinsic safety and protective features, it can be deployed in hazardous environments.
ABB DO810 3BSE008510R1 is in stock. Contact us for quick quotes and competitive prices.
