ABB DO801 3BSE020510R1 Digital Output Module Order online
1. Product Overview

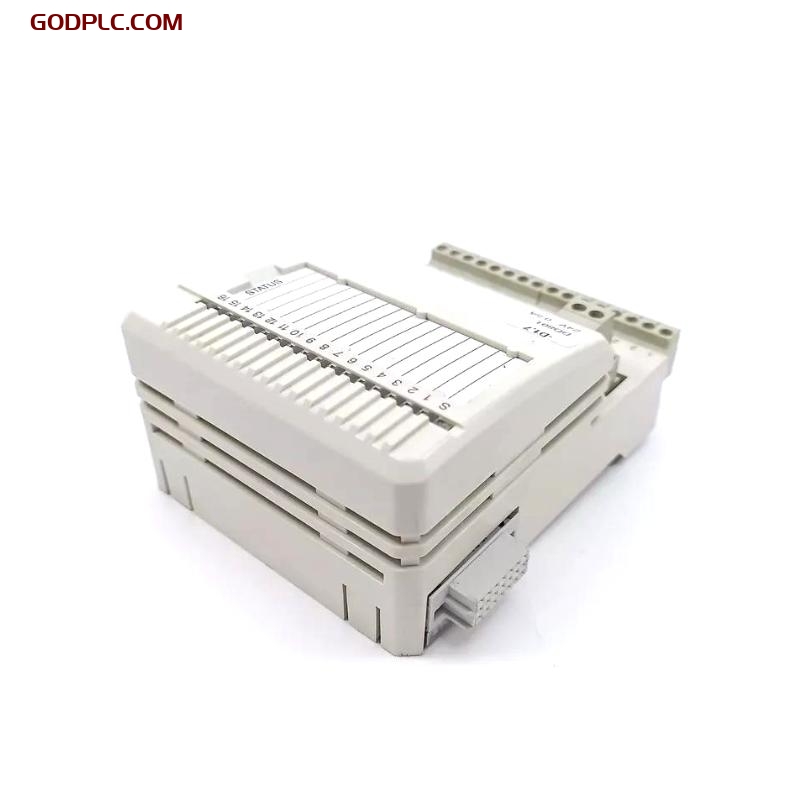

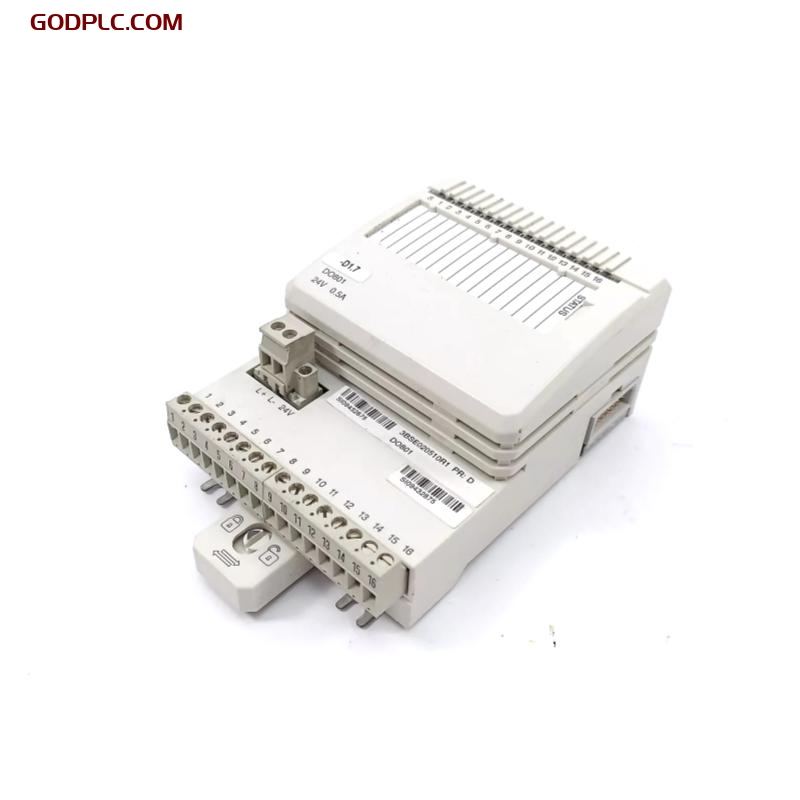

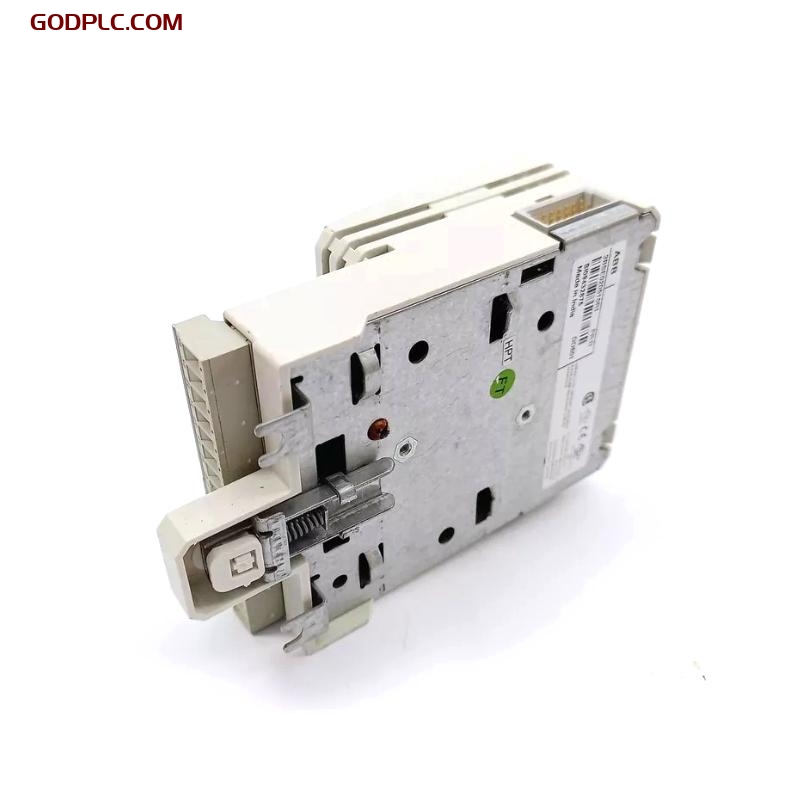

The ABB DO801 3BSE020510R1 is a high-performance 16-channel digital output module designed for industrial automation control systems. It provides reliable output control, ensuring stable operation even in harsh industrial environments. The module features short circuit, overvoltage, and overtemperature protection mechanisms, making it ideal for demanding industrial applications.
With an output voltage range of 10V to 30V and a maximum continuous output current of 0.5A, the DO801 is designed to work with various industrial equipment. The module is equipped with output state indicators, making it easier to monitor and diagnose system statuses. It can be used in both standard and redundant configurations, providing flexibility and ensuring high availability for critical systems.
2. Key Features
- 16 Output Channels: Supports 24V DC current sourcing outputs for various industrial applications.
- Short-Circuit, Over-Voltage, and Over-Temperature Protection: Ensures safe operation even in extreme conditions.
- Isolated Group: Provides groupwise isolation from the ground, preventing electrical interference.
- Output Status Indicators: Each channel features an output status LED for real-time monitoring.
- Current Sourcing and Limiting: Protects the system by limiting the current and preventing overloads.
- Advanced Diagnostics: The module provides advanced diagnostics, making it easier to identify faults and warnings.
- Flexible Integration: Easy integration with ABB S800L and other industrial automation equipment.
3. Technical Specifications
Dimensions and Weight
| Parameter | Value |
| Width | 86.1 mm |
| Height | 110 mm |
| Depth | 58.5 mm |
| Weight | 0.24 kg |
General Information
| Parameter | Value |
| Product Type | Digital Output Module |
| Detailed Description | High-performance 24V digital output module |
| Product Type | S800L Digital Output Module |
Electrical Performance
| Parameter | Value |
| Output Voltage Range | 10V to 30V |
| Maximum Continuous Output Current | 0.5A |
| Output Load | < 0.4 Ω |
| Rated Insulation Voltage | 50V |
| Dielectric Test Voltage | 500V AC |
| Power Dissipation | Typ. 2.1W |
Environment and Certification
| Parameter | Value |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Protection Class | IP20 |
| Electrical Safety | EN 61010-1, UL 61010-1 |
| RoHS Compliance | Directive 2011/65/EU |
4. Industry Applications
The ABB DO801 module is suitable for a wide range of industrial automation systems. Its reliable and high-performance outputs make it ideal for controlling industrial devices and providing precise output control in real-time. Typical applications include:
- Industrial Automation Systems: Providing high-efficiency control and data transmission.
- Process Control Systems: Ensuring accurate control of sensors and actuators in complex systems.
- Remote Control and Monitoring: Used for remote management and monitoring of industrial equipment.
- Redundant Systems: Provides backup output channels for high-availability applications.
- Manufacturing and Heavy Industries: Used for controlling actuators, switches, and other automation devices.
ABB DO801 3BSE020510R1 is in stock. Contact us for quick quotes and competitive prices.
