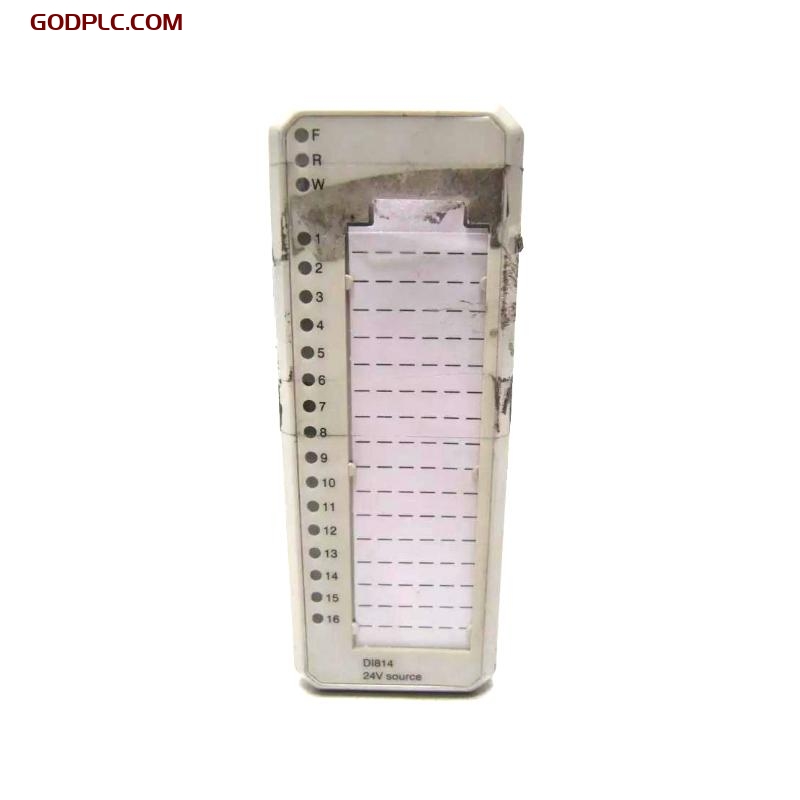

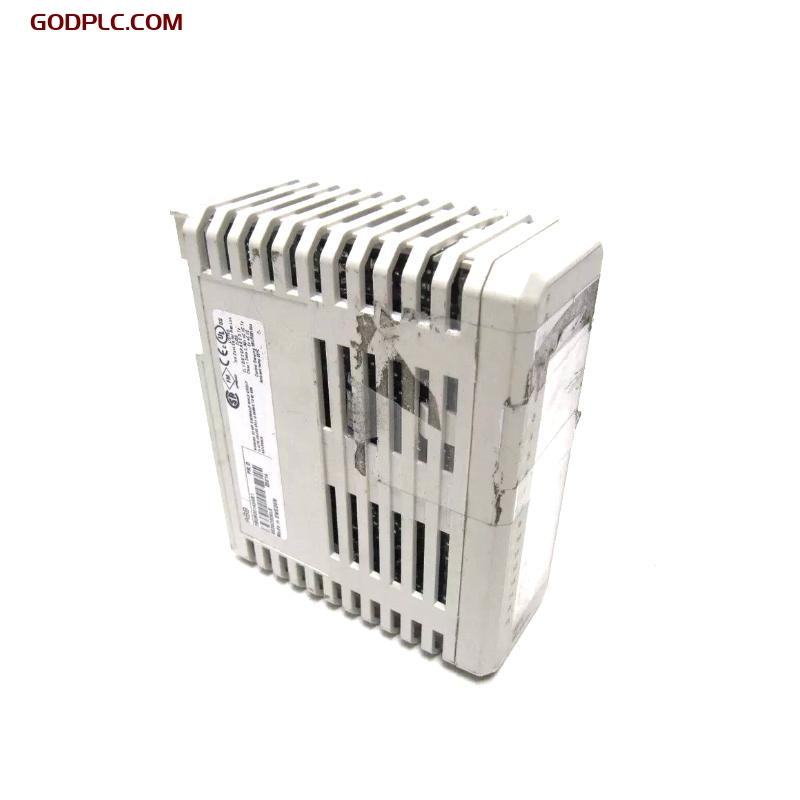

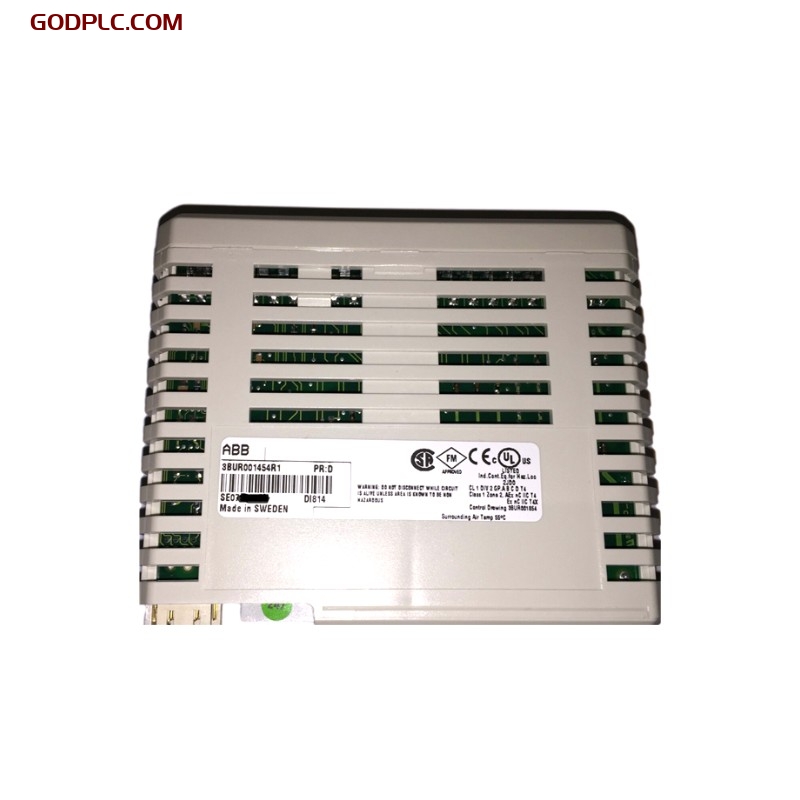

ABB DI814 3BUR001454R1 Digital Input Module In Stock
1. Product Overview
The ABB DI814 3BUR001454R1 Digital Input Module is a high-performance module designed for use in industrial automation systems. It provides 16 channels for 24 V d.c. input signals, divided into two isolated groups. Each channel includes current limiting components, EMC protection, input state LED indicators, and optical isolation barriers to ensure stable and interference-free signal collection. The module also features process voltage supervision, providing error signals when the voltage disappears, and can monitor the input state through ModuleBus.
The DI814 module is ideal for large-scale automation systems, offering reliable and efficient data acquisition from field devices. With its compact design and long cable length support (up to 600 meters), it is well-suited for installation in control panels or cabinets with limited space.
2. Key Features
- 16 Channels for 24 V d.c. Inputs: Provides reliable digital input channels with current sourcing for various industrial applications.
- Two Isolated Groups: Inputs are divided into two isolated groups, each with voltage supervision for enhanced reliability.
- Current Limiting and EMC Protection: Each input channel includes current limiting and EMC protection to ensure stable and safe operation.
- Input State Indicators: Includes LED indicators for each channel to show input status (“0” or “1”).
- Process Voltage Supervision: Provides voltage monitoring for each group, issuing error signals when voltage disappears.
- Long Cable Length Support: Supports cable lengths up to 600 meters (656 yards) for extended reach in large installations.
3. Technical Specifications
Dimensions and Weight
| Parameter | Value |
| Width | 59 mm |
| Height | 186 mm |
| Depth | 127.5 mm |
| Weight | 0.15 kg |
General Information
| Parameter | Value |
| Product Number | 3BUR001454R1 |
| ABB Model Name | DI814 |
| Catalog Description | DI814 24V d.c. Digital Input Module |
| Detailed Description | Package includes CI814 Communication Interface and TP814 Baseplate |
| Product Type | Digital Input Module |
Electrical Performance
| Parameter | Value |
| Input Voltage Range (“0”) | -30 .. 5 V |
| Input Voltage Range (“1”) | 15 .. 30 V |
| Input Impedance | 3.5 kΩ |
| Maximum Cable Length | 600 meters (656 yards) |
| Power Consumption | Typ. 1.8 W |
Environmental and Certification
| Parameter | Value |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95%, Non-condensing |
| Protection Class | IP20 |
| Electrical Safety | IEC/EN 61010-1, UL 61010-1 |
| RoHS Compliance | Directive 2011/65/EU |
4. Industry Applications
The ABB DI814 3BUR001454R1 Digital Input Module is widely used in industrial automation systems, especially for applications requiring high-efficiency digital input. The module’s long cable length support and process voltage supervision make it suitable for large-scale automation, data acquisition, and device monitoring applications.
Typical applications include:
- Industrial Automation Control Systems: Provides stable digital input for monitoring field devices in real-time.
- Process Automation: Enables real-time data collection from sensors and actuators for process control.
- Remote Device Management: Collects device status information and supports remote diagnostics.
Data Acquisition Systems: Gathers signals from field devices and transmits them to central control systems for processing.
ABB DI814 3BUR001454R1 is in stock. Contact us for quick quotes and competitive prices.
