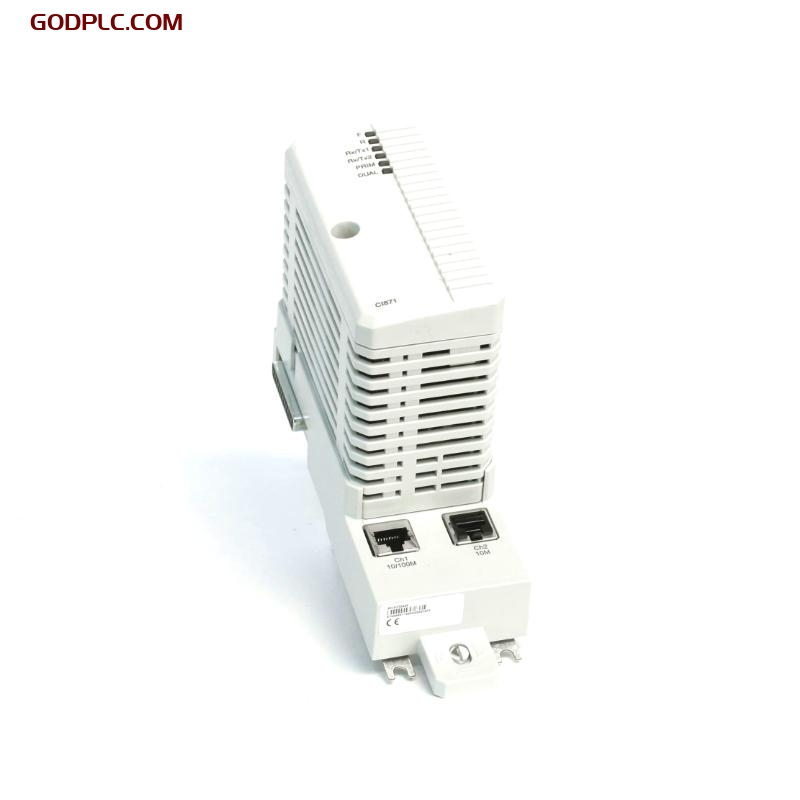

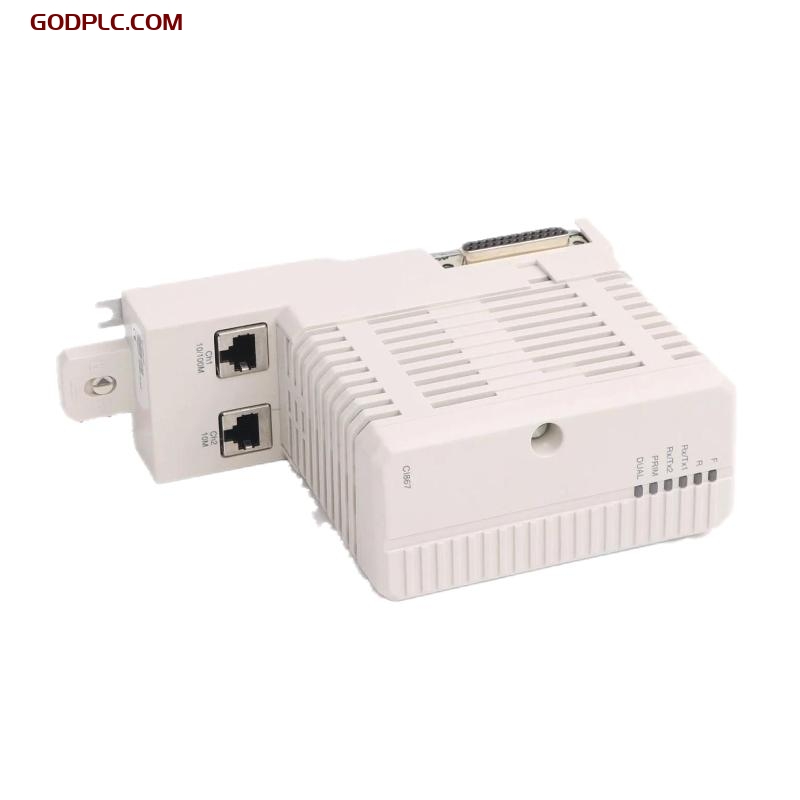

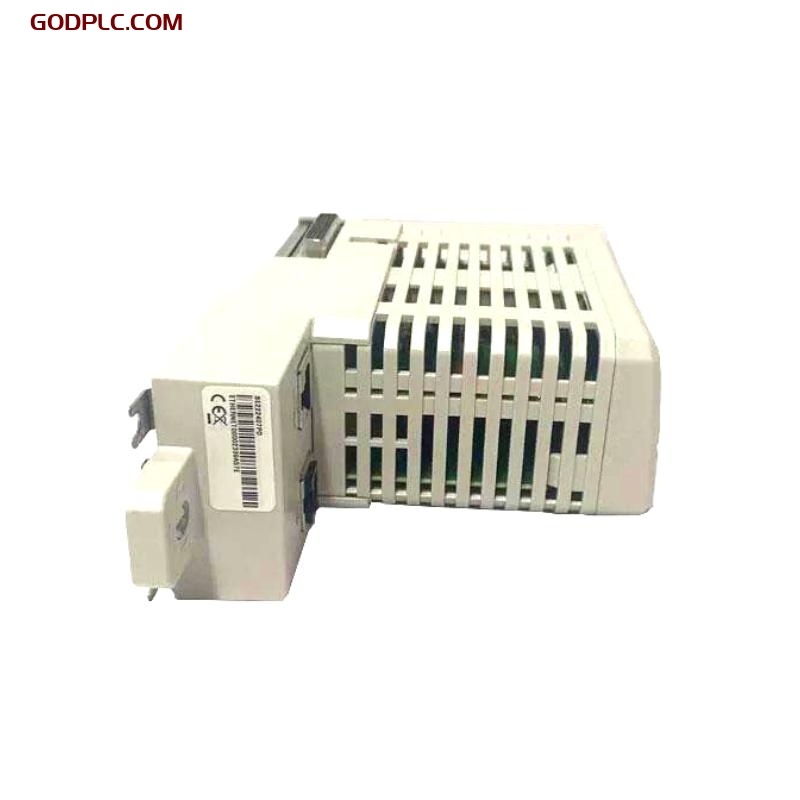

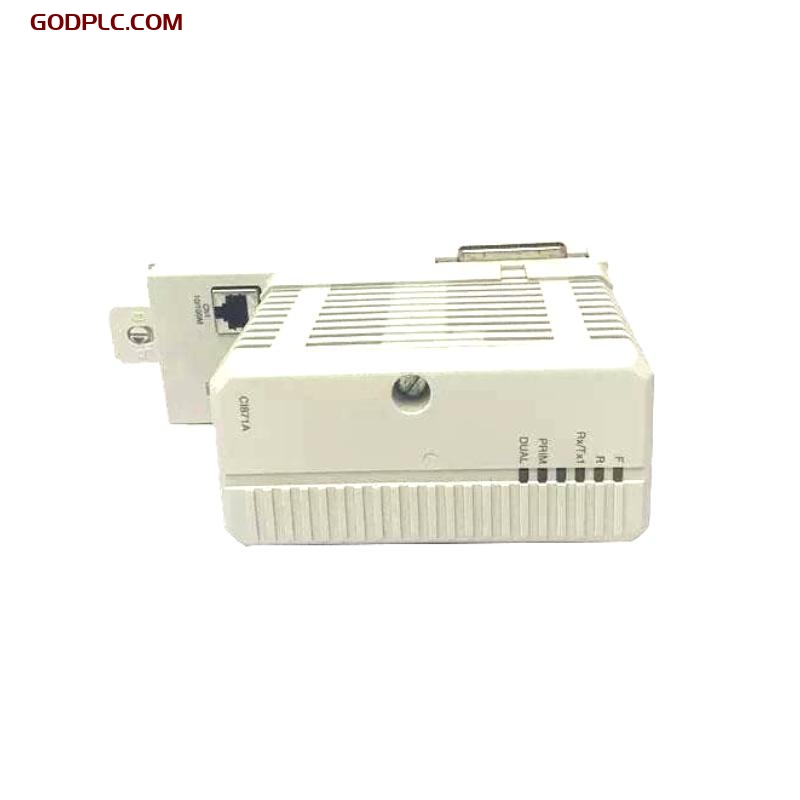

ABB CI871A 3BSE092693R1 AC 800M Communication Interface Module Order online
1. Product Overview
The ABB CI871A 3BSE092693R1 is an AC 800M communication interface module designed to connect PROFINET IO devices via Ethernet. It supports transmission speeds of 10/100 Mbps and utilizes an RJ45 connector for physical connectivity. The module is compatible with System 800xA versions 6.0.3.3 and later, offering hot-swap functionality for seamless maintenance without interrupting system operations.
The CI871A includes CEX-Bus logic, a communication unit, and a DC/DC converter that supplies the required 24V voltage through the CEX-Bus, ensuring reliable power management for connected devices. By connecting the module to an Ethernet switch, it can be easily integrated into larger industrial automation networks.
2. Key Features
- PROFINET IO Connectivity: Connects PROFINET IO devices through Ethernet.
- Compatibility: Works exclusively with System 800xA versions 6.0.3.3 and later.
- Hot Swap Support: Allows for module replacement without interrupting operation.
- Module Redundancy: Supports redundancy for improved system reliability.
- Efficient Power Management: DC/DC converter provides 24V supply through the CEX-Bus.
- Environmental Adaptability: Operates within wide temperature ranges and adheres to industrial standards.
3. Technical Specifications
Dimensions and Weight
| Item | Value |
| Width | 59 mm |
| Height | 185 mm |
| Depth | 127.5 mm |
| Weight (including base) | 0.7 kg |
General Information
| Item | Value |
| Article Number | 3BSE092693R1 |
| Communication Protocol | PROFINET IO |
| Master/Slave | Master |
| Transmission Speed | 10/100 Mbps |
| Line Redundancy | No |
| Module Redundancy | Yes |
| Hot Swap | Yes |
| Used with HI Controller | Yes |
Electrical Parameters
| Item | Value |
| Max Units on CEX Bus | 12 |
| Typical 24V Consumption | 160 mA |
Environmental and Certification
| Item | Value |
| Operating Temperature | +5 to +55°C (+41 to +131°F) |
| Storage Temperature | -40 to +70°C (-40 to +158°F) |
| Altitude | 2000 m according to IEC/EN 61131-2 |
| Pollution Degree | Degree 2 according to IEC/EN 61131-2 |
| Corrosion Protection | G3 compliant to ISA 71.04 |
| Relative Humidity | 5 to 95%, non-condensing |
| Protection Class | IP20 according to EN60529, IEC 529 |
| CE Marking | Yes |
4. Industry Applications
The ABB CI871A 3BSE092693R1 AC 800M Communication Interface Module is widely used in industrial automation and process control systems, particularly in environments where high reliability and stability are required. Its applications include:
- Smart Manufacturing: Enables high-speed data communication between field devices via PROFINET IO.
- Process Control: Facilitates communication between various control units on automated production lines and complex control systems.
- Energy Management: Used in energy management systems for reliable interconnection between devices, enhancing system reliability and maintainability.
