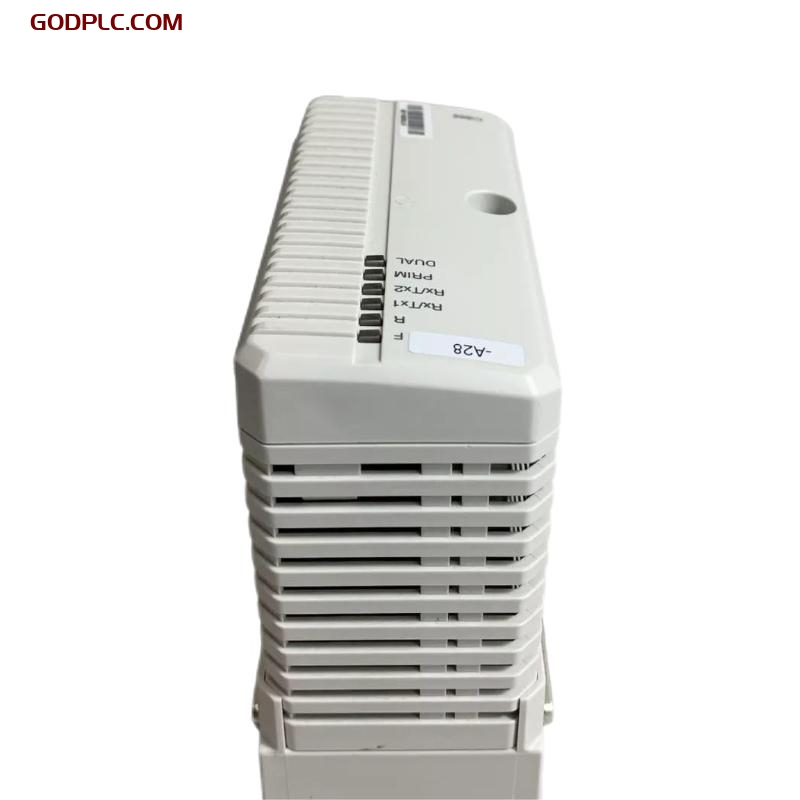

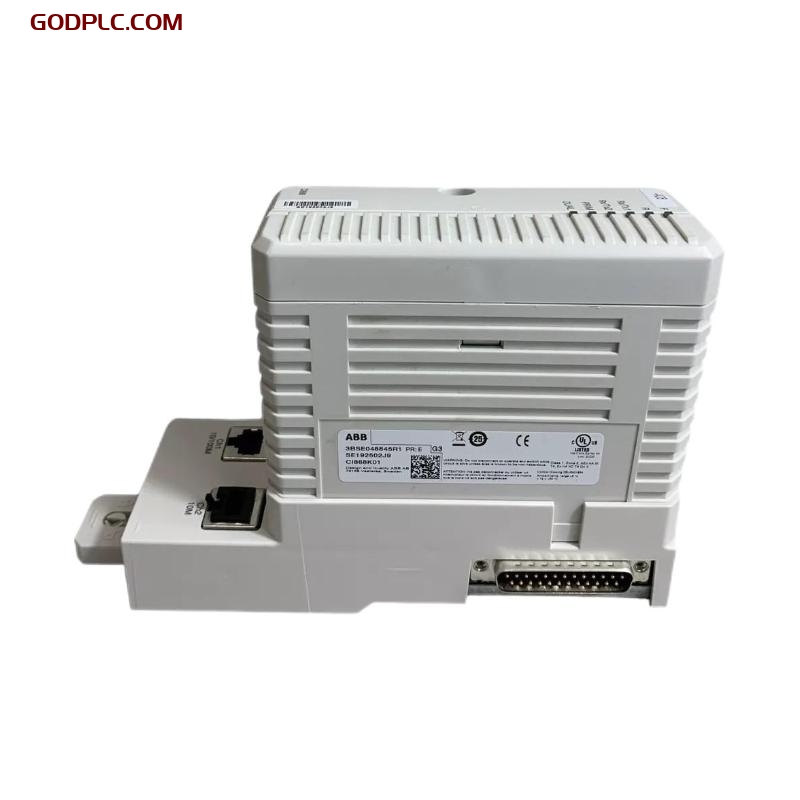

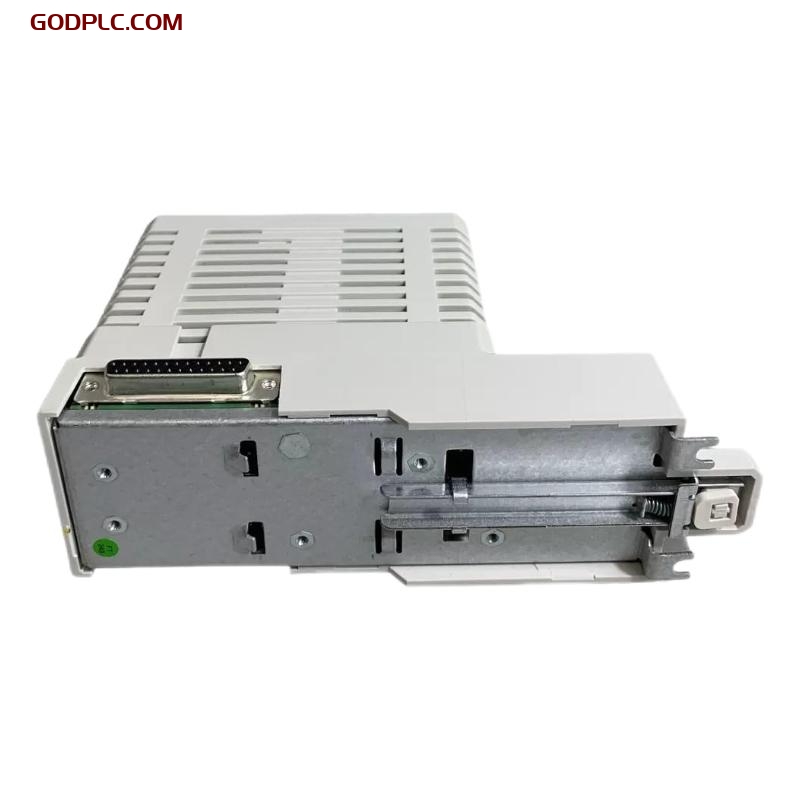

ABB CI868A 3BSE092691R1 Communication Module Price Advantage
Product Overview
The ABB CI868A (3BSE092691R1) Communication Module is a versatile communication interface designed to seamlessly integrate AC 800M controllers with external Ethernet devices via the IEC 61850 – Edition 2 standard. This enables the combination of Process Automation and Electrical Control in a unified controller, ideal for modern industrial applications, especially in substation automation.
By adhering to the IEC 61850 standard, the CI868A facilitates the use of both MMS (Client) and GOOSE protocols, allowing efficient communication between devices in a substation or process control environment. The module supports up to 120 IEDs for GOOSE messaging and up to 40 IEDs for MMS, making it a scalable and robust solution for high-performance control systems.
The CI868A module is compatible with System 800xA versions 6.0.3.3, 6.1.1, and later, ensuring smooth integration into existing and future ABB control systems.
Key Features
- Protocol Support:Communication via IEC 61850 standards for both MMS (client) and GOOSE (publisher & subscriber).
- Maximum Devices:Support for up to 120 IEDs (GOOSE) and 40 IEDs (MMS) per module.
- System Compatibility:Works seamlessly with ABB AC 800M controllers and the System 800xA platform (versions 6.0.3.3, 6.1.1, and later).
- Hot Swap Capability:The module supports hot-swapping for easy maintenance and system upgrades without requiring downtime.

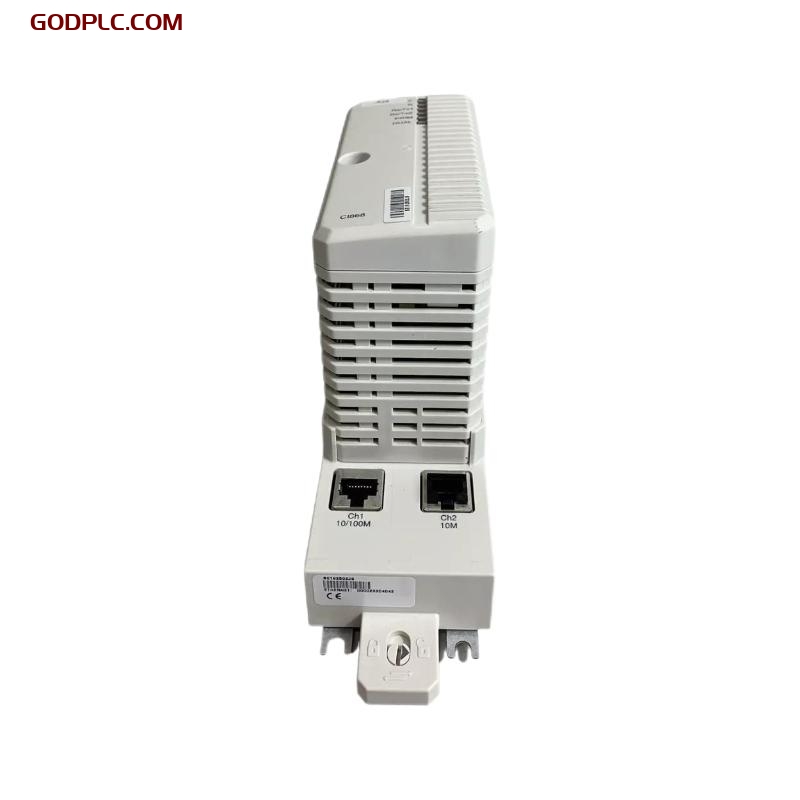

- Ethernet Connectivity:Dual RJ45 connectors for 10/100 Mbps Ethernet connectivity, ensuring reliable communication with external network devices.
- Compact Design:Designed for space-saving installations, with an IP20 protection class for general environments.
- Robust Certifications:Complies with several industrial certifications, including UL 61010-1, RoHS, and WEEE, ensuring reliable performance in demanding environments.
Technical Specifications
1. Dimensions and Weight
| Parameter | Value |
| Width | 59 mm |
| Height | 185 mm |
| Depth | 127.5 mm |
| Weight (including base) | 0.7 kg |
2. General Information
| Parameter | Value |
| Article Number | 3BSE092691R1 |
| Communication Protocol | IEC 61850 |
| Client or Server | MMS (Client), GOOSE (Publisher & Subscriber) |
| Transmission Speed | 10/100 Mbps |
| Network Redundancy | No |
| Module Redundancy | No |
| Hot Swap | Yes |
| Used with HI Controller | Yes |
3. Power Consumption
| Parameter | Value |
| 24 V Consumption (typ.) | 160 mA |
| Power Dissipation | 3.8 W |
4. Environmental Conditions
| Parameter | Value |
| Operating Temperature | +5 to +55 °C (+41 to +131 °F) |
| Storage Temperature | -40 to +70 °C (-40 to +158 °F) |
| Altitude | 2000 m according to IEC/EN 61131-2 |
| Pollution Degree | Degree 2 according to IEC/EN 61131-2 |
| Corrosion Protection | G3 compliant to ISA 71.04 |
| Relative Humidity | 5 to 95 %, non-condensing |
| Protection Class | IP20 (EN60529, IEC 529) |
5. Certifications
| Parameter | Value |
| CE Marking | Yes |
| Electrical Safety | UL 61010-1, UL 61010-2-201 |
| Hazardous Location | UL 60079-15, cULus Class 1, Zone 2 |
| Marine Certificates | DNV-GL (pending ABS, BV, LR) |
| RoHS Compliance | DIRECTIVE/2011/65/EU |
| WEEE Compliance | DIRECTIVE/2012/19/EU |
Industry Applications
The ABB CI868A Communication Module is primarily used in industrial automation, especially in substation automation systems, where it ensures robust and reliable communication between control devices and external systems. It is ideal for high-performance environments that require real-time communication using both MMS and GOOSE protocols. This module can be implemented in applications such as:
- Energy Management Systems (EMS)
- Substation Automation
- Process Automation
- Grid Monitoring and Control
- Renewable Energy Integration
The CI868A is perfectly suited for industries like electric utilities, power distribution, and renewable energy where safety, efficiency, and integration are critical.
ABB CI868A 3BSE092691R1 is in stock. Contact us for quick quotes and competitive prices.
