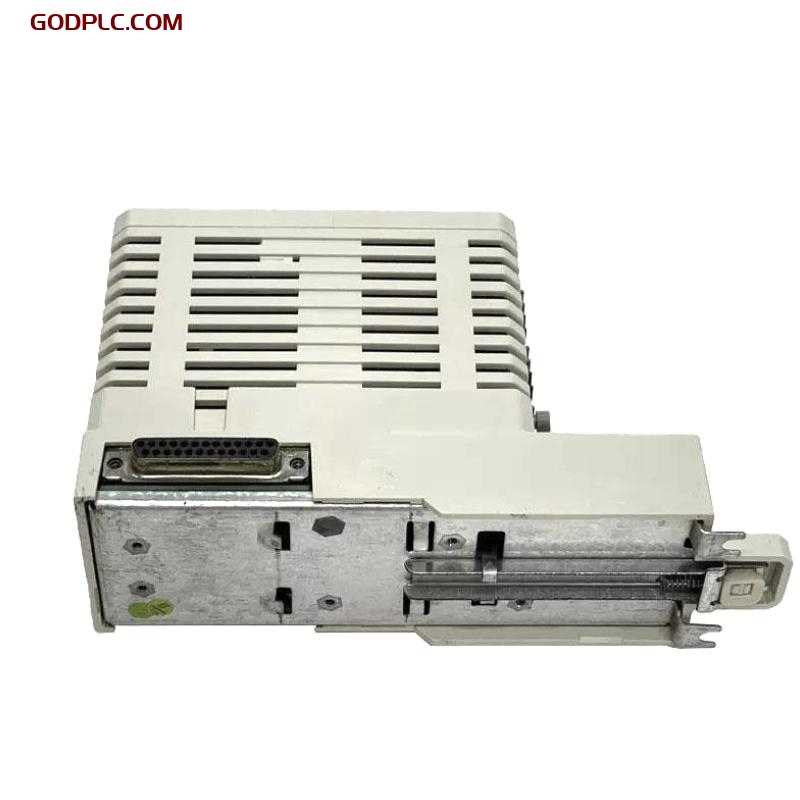

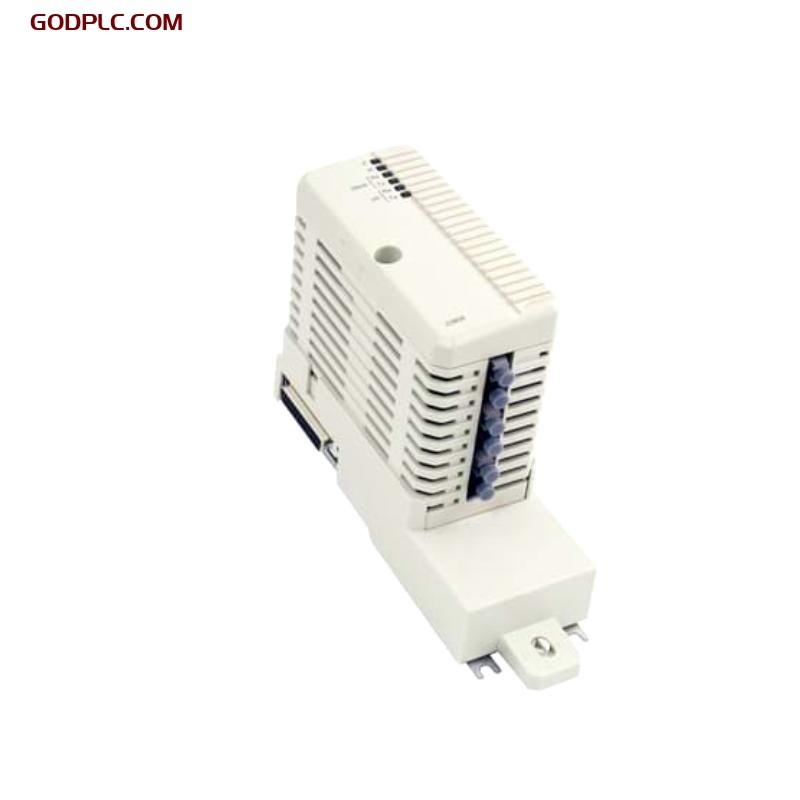

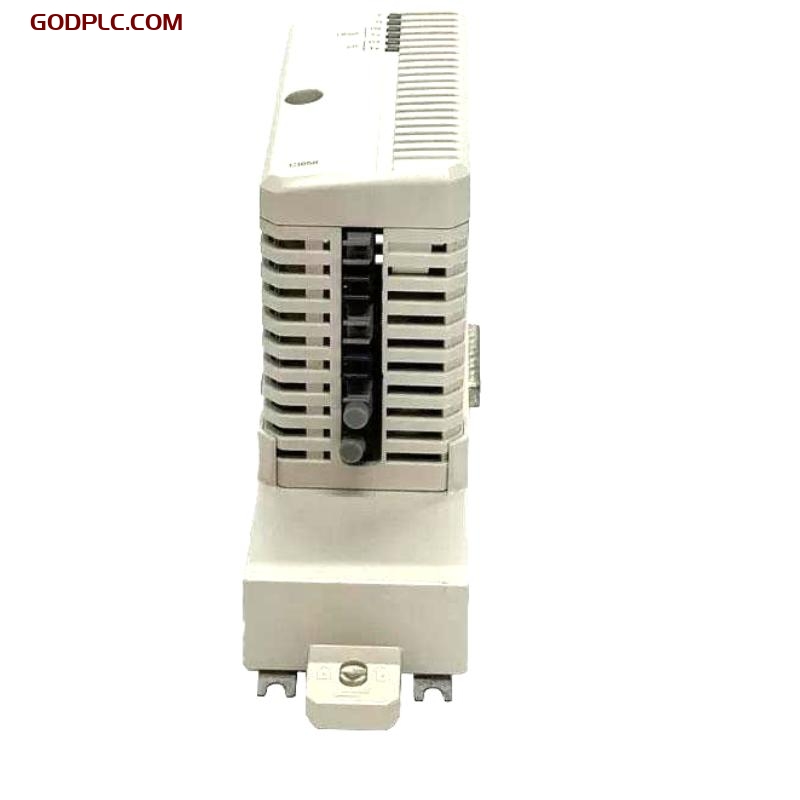

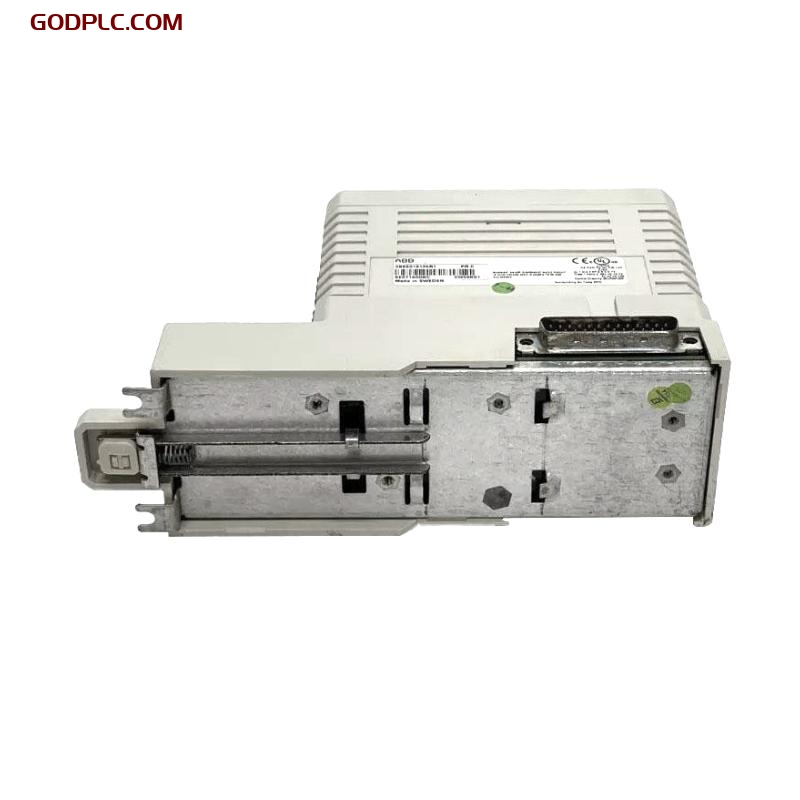

ABB CI858 3BSE018135R1 DriveBus Interface Module Cheap&Stock
1. Product Overview
The ABB CI858 3BSE018135R1 DriveBus Interface Module is a communication interface module specifically designed for ABB drives and special I/O units. It utilizes the DriveBus protocol to communicate with ABB’s AC 800M controller and is widely used in sectional drive applications such as rolling mill drive systems and paper machine control systems. The CI858 module is powered by the processor unit via the CEX bus and does not require any additional external power, providing reliable communication services for the system.
This module supports hot swap functionality, allowing up to 24 ABB drives to be connected, and a maximum of two CI858 modules can be connected to an AC 800M controller. If more than one ABB drive is connected, a branching unit (NDBU) is required to implement a logical bus structure with a physical star topology. The branching units can also be chained to extend connection capabilities.
2. Key Features
- DriveBus Protocol Support: Specifically designed for communication between ABB drives and I/O units.
- Hot Swap Support: No downtime required for swapping devices, offering flexibility and efficiency.
- High Connectivity: Each CI858 module can connect up to 24 ABB drives, and up to 2 CI858 modules can be connected to an AC 800M controller.
- No External Power Source Needed: Powered through the CEX bus from the processor unit, reducing installation and maintenance complexity.
- Branching Unit Support: Multiple drives can be connected using the NDBU branching unit, ensuring efficient connection and communication.
- Wide Industrial Certification: Compliant with RoHS and WEEE directives and certified by ABS, BV, DNV-GL, LR, among others.
3. Technical Specifications
Dimensions and Weight
| Parameter | Value |
| Width | 59 mm (2.3 in.) |
| Height | 185 mm (7.3 in.) |
| Depth | 127.5 mm (5.0 in.) |
| Weight | 0.7 kg |
General Information
| Parameter | Value |
| Article Number | 3BSE018135R1 |
| Communication Protocol | ABB DriveBus |
| Master or Slave | Master |
| Transmission Speed | 8 Mbit/s |
| Line Redundancy | No |
| Module Redundancy | No |
| Hot Swap | Yes |
| Used with HI Controller | No |
Electrical Performance
| Parameter | Value |
| Max Units on CEX Bus | 2 |
| Connector Type | Optical |
| Typical 24 V Consumption | 200 mA (typical) |
Environmental and Certifications
| Parameter | Value |
| Operating Temperature | +5 to +55 °C (+41 to +131 °F) |
| Storage Temperature | -40 to +70 °C (-40 to +158 °F) |
| Corrosion Protection | G3 compliant to ISA 71.04 |
| Protection Class | IP20 (EN60529, IEC 529) |
| CE Marking | Yes |
| Marine Certificates | ABS, BV, DNV-GL, LR |
| RoHS Compliance | Compliant with Directive 2011/65/EU (EN 50581:2012) |
| WEEE Compliance | Compliant with Directive 2012/19/EU |
4. Industry Applications
- Rolling Mill Drive Systems: Suitable for steel and metal processing industries, providing efficient and precise drive control.
- Paper Machine Control Systems: Widely used in the paper manufacturing industry, offering high reliability and flexibility for smooth operation of paper machines.
- Other Industrial Automation Systems: Ideal for applications requiring sectional drive control and efficient communication in various automated systems.
ABB CI858 3BSE018135R1 is in stock. Contact us for quick quotes and competitive prices.
