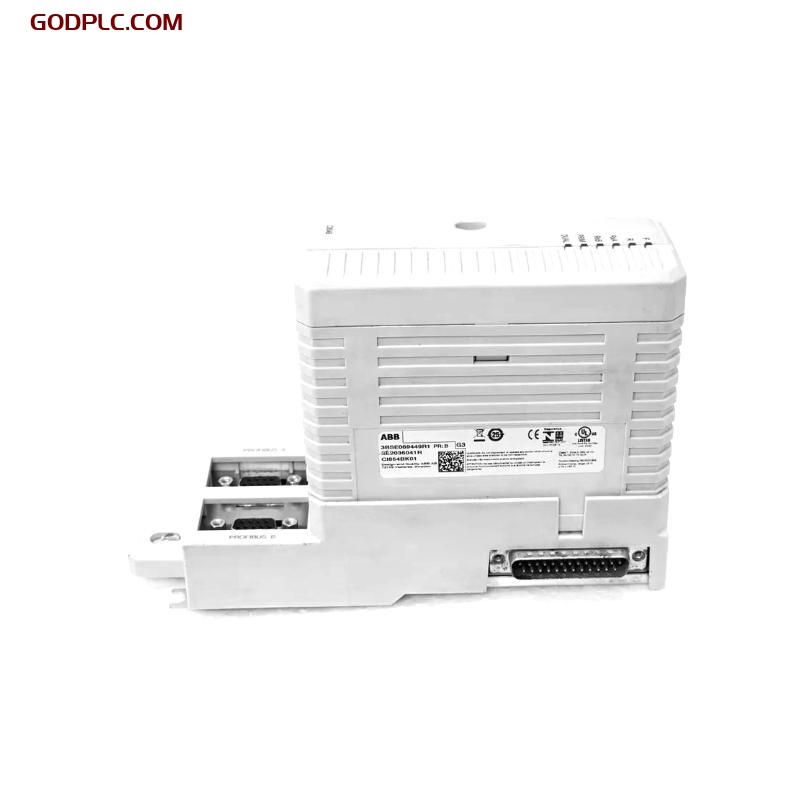

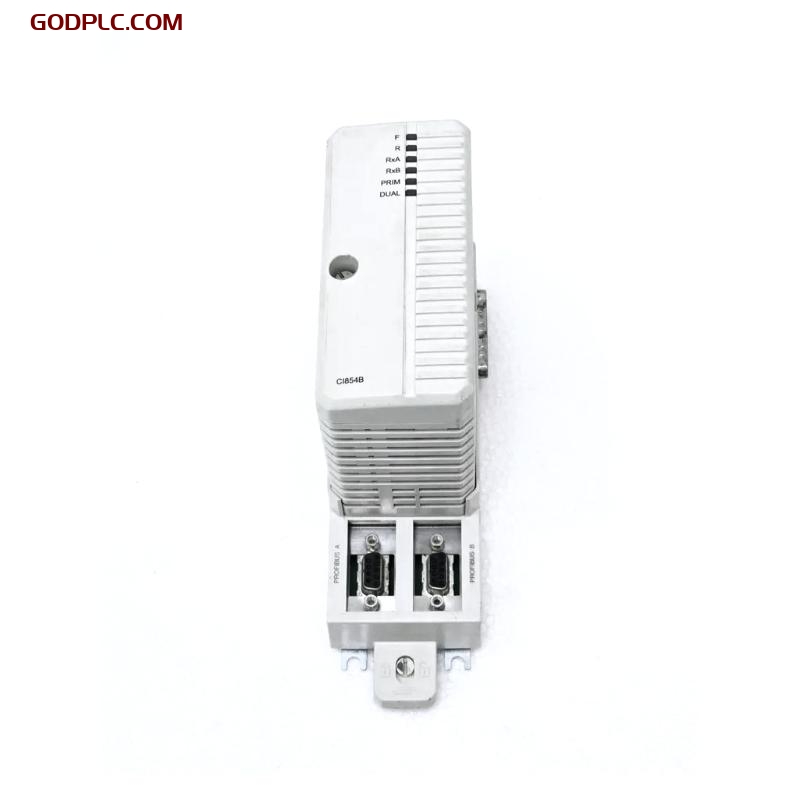

ABB CI854B 3BSE069449R1 Communication Interface Module Consult Us
Product Overview
The ABB CI854B 3BSE069449R1 Communication Interface Module is a high-performance communication interface designed for industrial automation control systems. It is used to connect remote I/O, fieldbus instruments, and controllers via the PROFIBUS DP protocol. With support for the PROFIBUS DP-V1 protocol and PROFIBUS master redundancy, this module offers a high-speed and reliable communication solution. Its two PROFIBUS ports enable line redundancy and master redundancy, ensuring high availability and flexibility of the communication system. The module is compatible with ABB System 800xA and other systems such as S800 I/O, PROFIBUS DP/DP-V1, and FOUNDATION Fieldbus systems, and supports hot-swappable operations to meet diverse industrial environment requirements.
Key Features
- High-Performance Communication: Supports PROFIBUS DP-V1 protocol with a transmission rate of up to 12 Mbps for high-speed data transmission.
- Redundancy Support: Supports PROFIBUS master redundancy, enabling communication link and master redundancy with two CI854B modules, ensuring system stability.
- Flexible Connectivity: Connects remote I/O, drives, low-voltage electrical equipment, and more via PROFIBUS, applicable to a wide range of industrial control systems.
- Module Redundancy: The module itself is designed with redundancy for enhanced reliability.
- Hot-Swappable: Supports hot-swapping for easy maintenance and replacement.
- Environmental Resilience: With excellent temperature and protection ratings, suitable for various industrial applications.
- Compact Design: A compact size suitable for DIN rail mounting.
Technical Specifications
Dimensions and Weight
| Item | Specification |
| Width | 59 mm |
| Height | 185 mm |
| Depth | 127.5 mm |
| Weight | 0.7 kg |
General Information
| Item | Specification |
| Communication Protocol | PROFIBUS DP-V1 |
| Master or Slave | Master |
| Number of Channels | 2 |
| Transmission Speed | 9.6 kbit/s – 12,000 kbit/s |
| Line Redundancy | Yes |
| Module Redundancy | Yes |
| Hot-Swappable | Yes |
| Used with HI Controller | Yes |
Electrical Parameters
| Item | Specification |
| Max Units on CEX Bus | 12 |
| Connector | DB female (9-pin) |
| 24V Consumption | Typical 190 mA |
Industry Applications
The ABB CI854B 3BSE069449R1 Communication Interface Module is widely used in industries such as industrial automation, process control, and energy management. Due to its excellent redundancy design and high transmission speed, it is especially suited for the following sectors:
- Industrial Automation: Connects remote I/O, field devices, and drive systems to enable efficient monitoring and control of industrial equipment.
- Energy Management: Ensures high-speed data transmission and system stability in power and energy monitoring systems.
- Oil and Gas: Facilitates collaboration between equipment in oil drilling and natural gas extraction operations.
- Manufacturing: Enables stable communication between devices and central control systems in production line automation.
ABB CI854B 3BSE069449R1 is in stock. Contact us for quick quotes and competitive prices.
