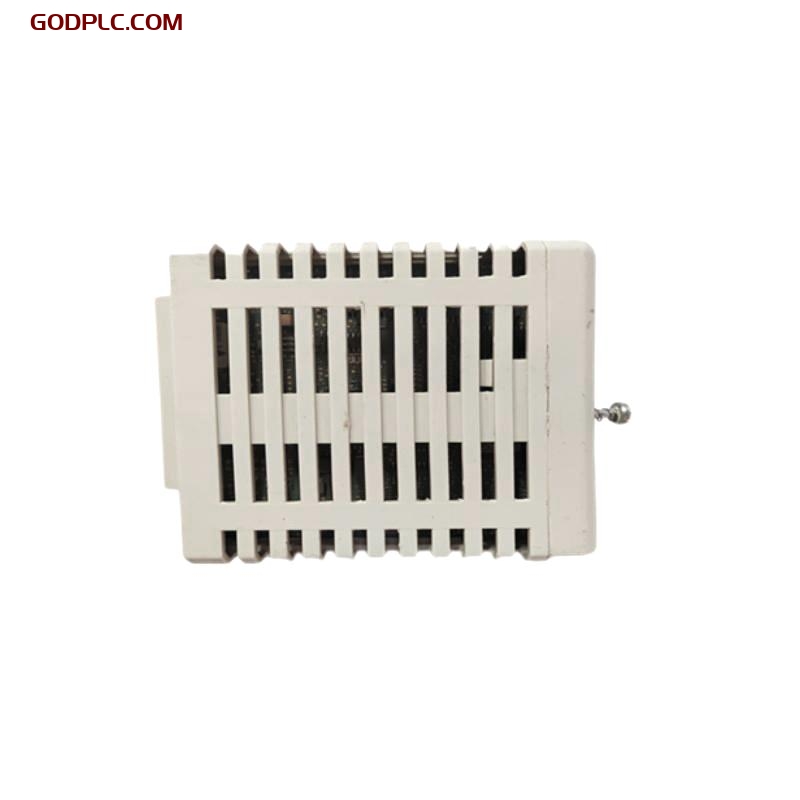

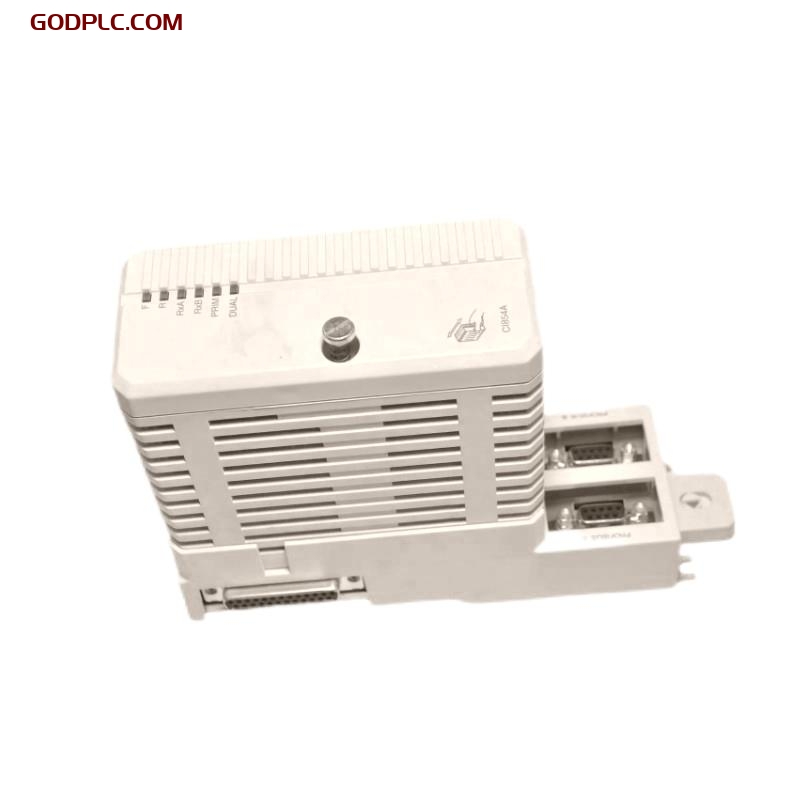

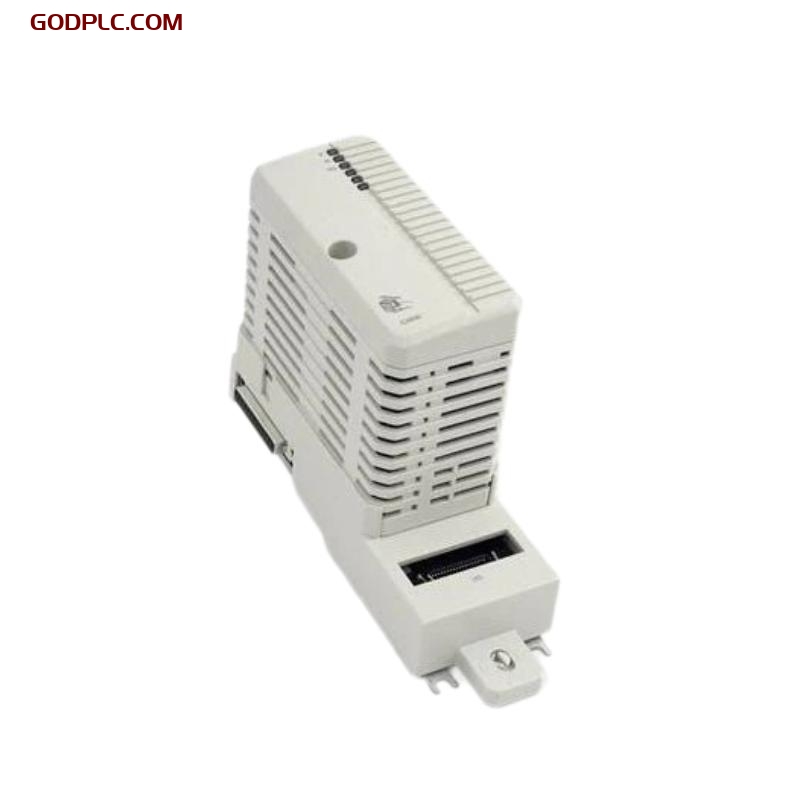

ABB CI854A 3BSE030220R1 Communication Interface Module Contact The Sales
1. Product Overview
The ABB CI854A 3BSE030220R1 Communication Interface Module is designed to connect remote I/O and fieldbus devices in industrial automation systems. Utilizing the PROFIBUS DP-V1 protocol, the module provides fast data transmission (up to 12Mbps) and supports two PROFIBUS ports for redundant line configurations. It also supports master redundancy for increased system reliability. The CI854A is compatible with the AC 800M control system and can be connected to PROFIBUS PA devices via the LD 800P linking device. This module is versatile and supports integration with various I/O systems, including PROFIBUS DP/DP-V1 and FOUNDATION Fieldbus systems.
2. Key Features
- High-Speed Data Transmission: Supports transmission speeds up to 12 Mbps, meeting the communication needs of most field devices.
- Module Redundancy: Supports both module and master redundancy for enhanced system availability.
- Hot-Swap Capability: Enables maintenance and module replacement without system downtime.
- Environmental Adaptability: Operates in a temperature range from +5°C to +55°C, suitable for various industrial environments.
- High Compatibility: Compatible with a wide range of PROFIBUS DP, DP-V1, and FOUNDATION Fieldbus devices.
- DIN Rail Mounting: Easy to install and maintain with a DIN rail mount.
3. Technical Specifications
(1) Dimensions and Weight
| Parameter | Value |
| Height | 185 mm (7.3 in.) |
| Width | 59 mm (2.3 in.) |
| Depth | 127.5 mm (5.0 in.) |
| Weight | 700 g (1.5 lbs) |
(2) General Information
| Parameter | Value |
| Protocol | PROFIBUS DP-V1 |
| Part Number | 3BSE030220R1 (CI854AK01) |
| Life Cycle Status | Classic |
| Master/Slave | Master |
| Number of Channels | 2 |
| Transmission Speed | 9.6 – 12,000 kbit/s |
| Line Redundancy | Supported |
| Module Redundancy | Supported |
| Hot-Swap | Supported |
| Compatible with HI Controller | Yes |
| Max Units on CEX Bus | 12 |
| Connector Type | DB Female (9-pin) |
| 24V Power Consumption | Typical 190 mA |
(3) Environment and Certifications
| Parameter | Value |
| Operating Temperature | +5°C to +55°C (41°F to 131°F) |
| Storage Temperature | -40°C to +70°C (-40°F to 158°F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Protection Class | IP20 (according to EN60529, IEC 529) |
| CE Marking | Yes |
| Marine Certifications | BV, DNV-GL, LR |
| RoHS Compliance | – |
| WEEE Compliance | DIRECTIVE/2012/19/EU |
4. Industry Applications
The ABB CI854A module is ideal for industrial automation systems requiring reliable and real-time communication. Typical applications include:
- Industrial Automation: Connecting field devices in production lines and factories for data acquisition and monitoring.
- Remote I/O Systems: Enabling high-speed data exchange between remote I/O devices and control systems.
- Metallurgical Industry: Ensuring real-time monitoring and control of critical equipment in steel plants and similar environments.
- Energy Sector: Supporting automation systems in power, oil, and gas industries for effective field device management and monitoring.
- Water and Wastewater Treatment: Used in automation control systems for water treatment plants and sewage plants.
ABB CI854A 3BSE030220R1 is in stock. Contact us for quick quotes and competitive prices.
