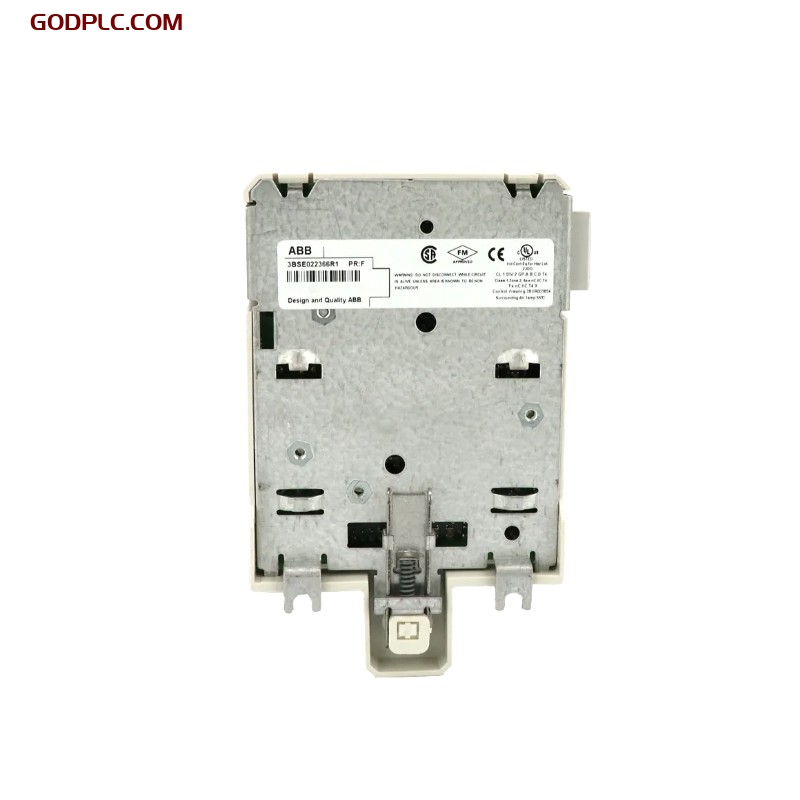

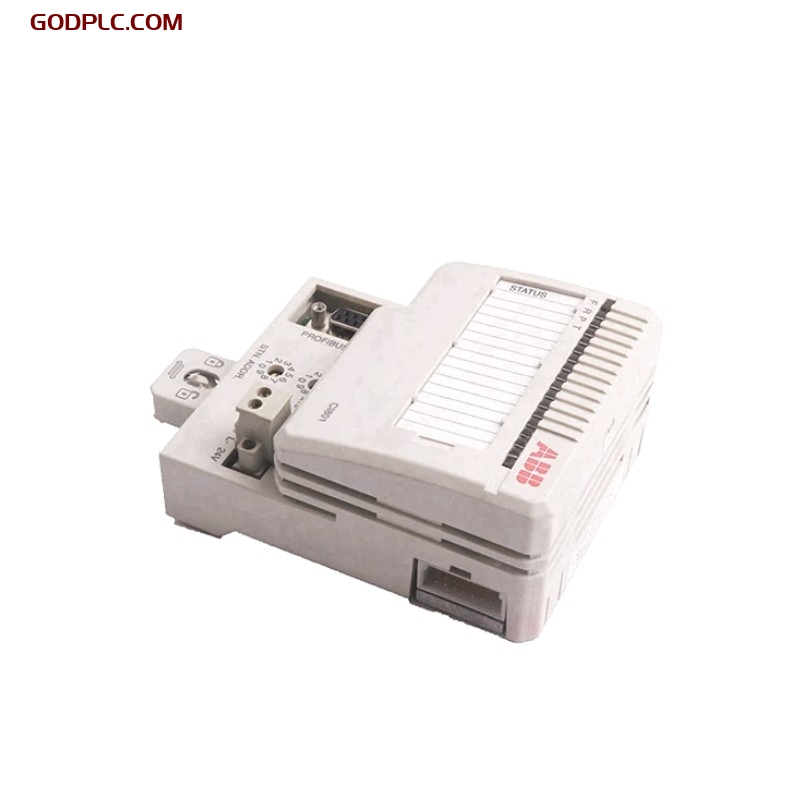

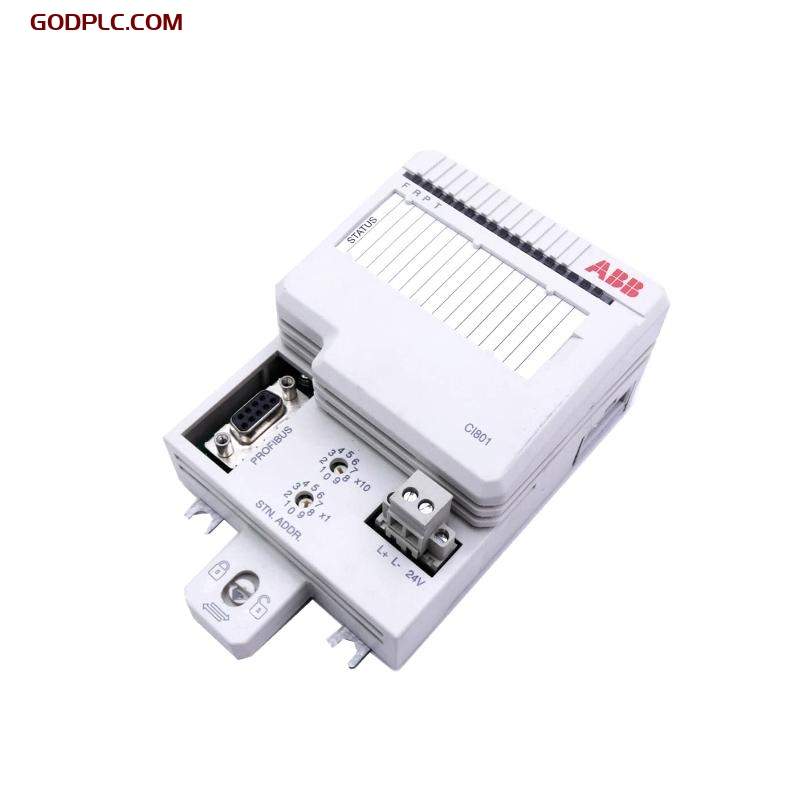

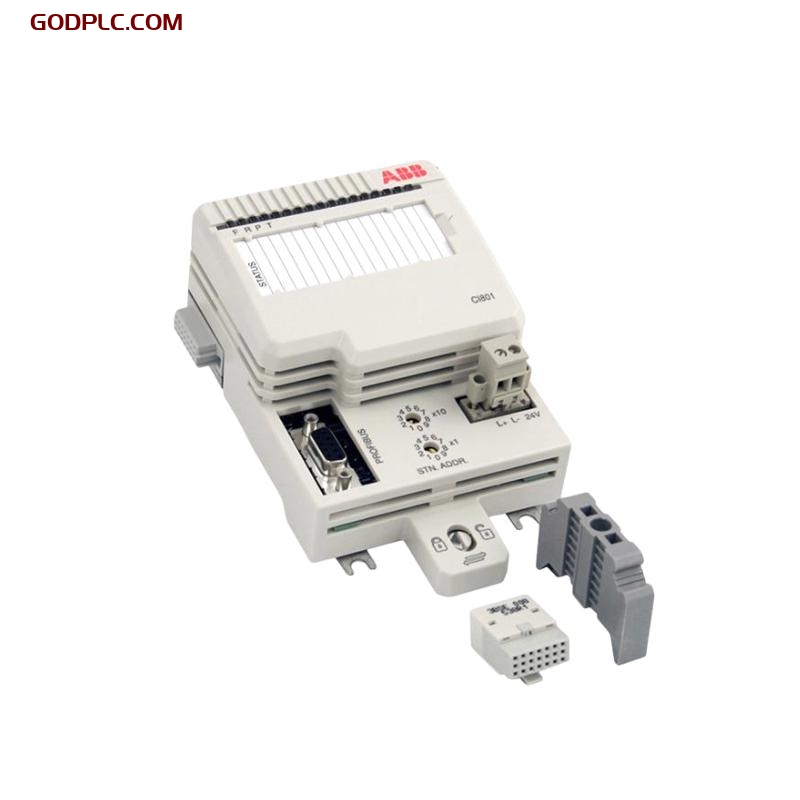

ABB CI801 3BSE022366R1 Fieldbus Communication Interface Module Contact The Sales
Product Overview
The ABB CI801 3BSE022366R1 Fieldbus Communication Interface (FCI) Module is a key component of the S800 I/O system, designed for industrial automation applications. It supports the PROFIBUS DP-V1 protocol and acts as a slave device, performing functions such as signal processing, supervision information gathering, Output Safety Protection (OSP) handling, Hot Configuration InRun, and HART pass-through. The module communicates with the controller via the PROFIBUS DP-V1 fieldbus, provides isolated power to I/O modules, and supports HART protocol pass-through, making it ideal for industrial scenarios requiring high reliability and flexibility.
Key Features
- PROFIBUS DP-V1 Interface: Ensures efficient data transmission.
- I/O Module Supervision: Monitors I/O modules for stable system operation.
- Isolated Power Supply: Enhances system safety with isolated power for I/O modules.
- Output Safety Protection (OSP): Automatically switches to a safe state in case of errors.
- Hot Configuration InRun: Allows configuration changes without system interruption.
- HART Pass-Through: Supports HART protocol for smart device communication.
Technical Specifications
Mechanical Data
| Parameter | Value/Description |
|---|---|
| Dimensions (W×H×D) | 85.8 mm × 136 mm × 58.5 mm |
| Weight | 0.3 kg |
General Information
| Parameter | Value/Description |
|---|---|
| Model | ABB CI801 3BSE022366R1 |
| Type | Fieldbus Communication Interface (FCI) Module |
| Communication Protocol | PROFIBUS DP-V1 |
| Master/Slave Mode | Slave |
| Line Redundancy | No |
| Module Redundancy | No |
| Hot Swap Support | No |
| Compatible with HI Controllers | Yes |
Electrical Performance
| Parameter | Value/Description |
|---|---|
| +24 V Current Consumption | 140 mA (Typical) |
Certifications
| Parameter | Value/Description |
|---|---|
| CE Mark | Yes |
| Electrical Safety | EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201 |
| Hazardous Locations | C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2 |
| Marine Certifications | ABS, BV, DNV-GL, LR |
| Operating Temperature | 0 to +55°C (+32 to +131°F) |
| Storage Temperature | -40 to +70°C (-40 to +158°F) |
| Pollution Degree | Degree 2 (IEC 60664-1) |
| Corrosion Protection | ISA-S71.04: G3 |
| Relative Humidity | 5-95% (non-condensing) |
| Protection Class | IP20 (EN60529, IEC 529) |
| RoHS Compliance | DIRECTIVE/2011/65/EU (EN 50581:2012) |
| WEEE Compliance | DIRECTIVE/2012/19/EU |
Industry Applications
- Oil & Gas: Ensures reliable data transmission in offshore platforms or refineries.
- Power Systems: Real-time monitoring and control in substations or power plants.
- Chemical Processing: Safety monitoring of reactors and pipelines.
- Manufacturing Automation: Enhances communication efficiency in production lines.
- Water Treatment: Optimizes remote management of pump stations and valves.
ABB CI801 3BSE022366R1 is in stock. Contact us for quick quotes and competitive prices.
