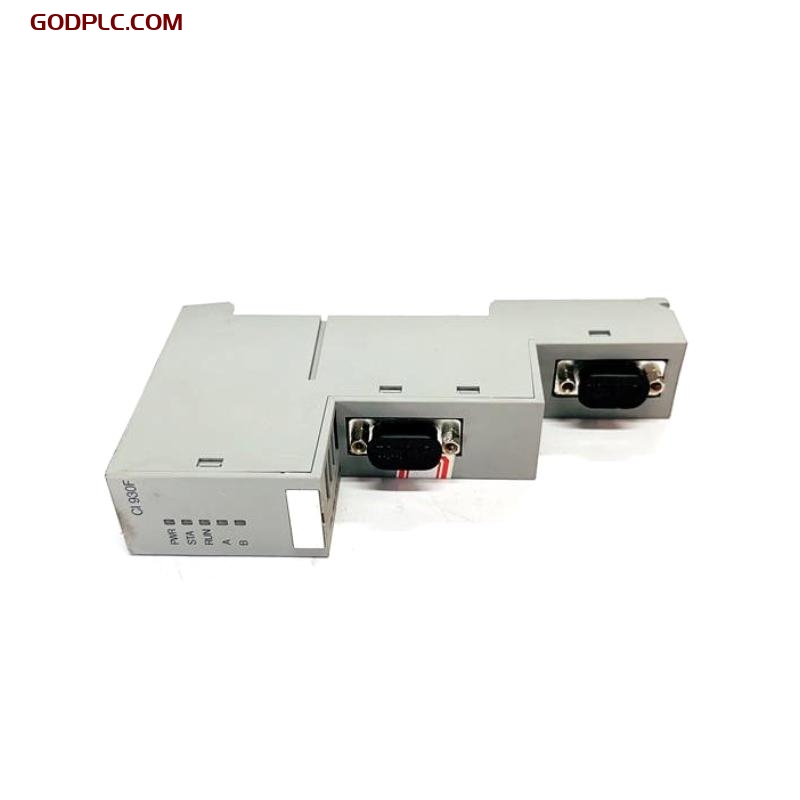

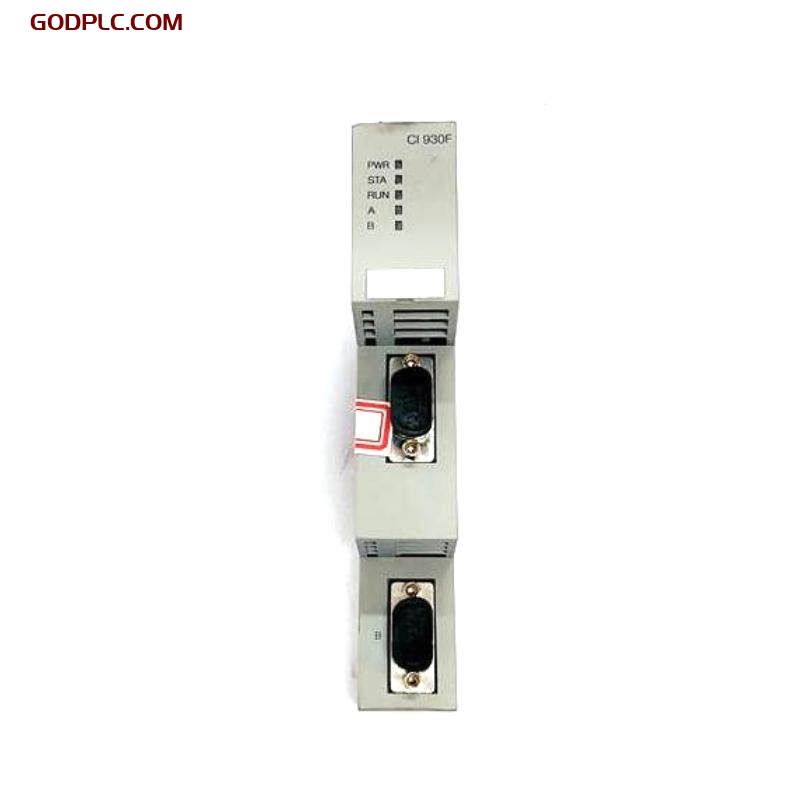

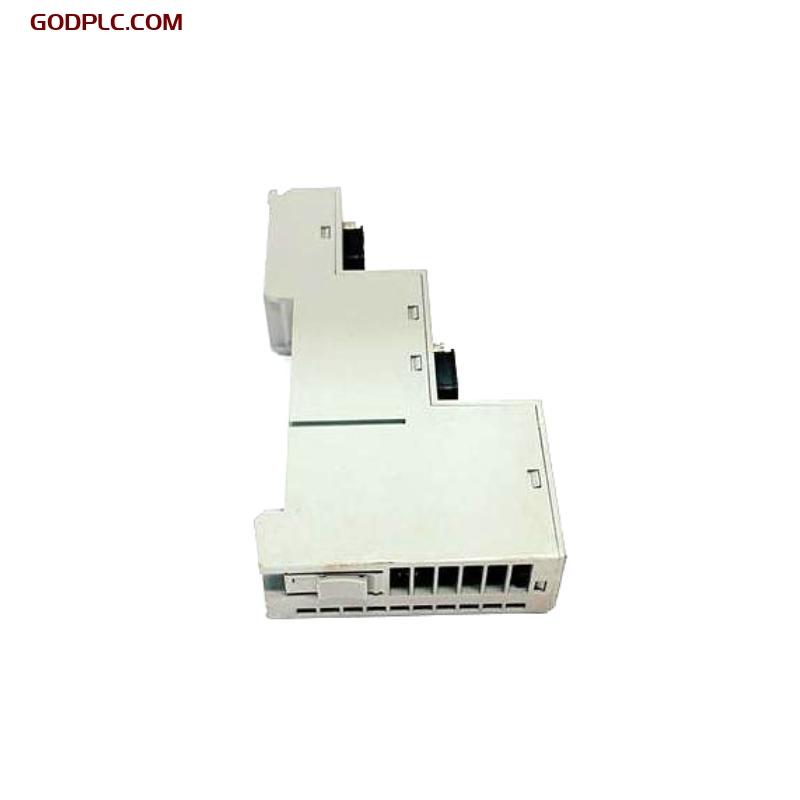

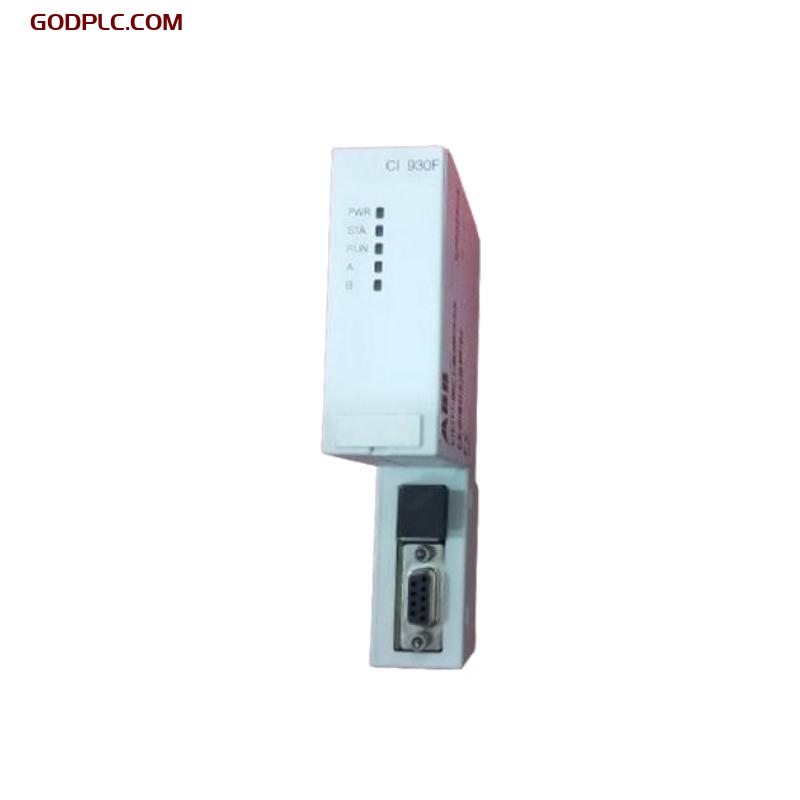

ABB CI 930F 3BDH001010R0002 PROFIBUS DP Master Module 2 Days Delivery
1. Product Overview
The ABB CI 930F 3BDH001010R0002 PROFIBUS DP Master Module is a high-performance communication interface designed for use with ABB AC 900F controllers. It supports PROFIBUS DP-V0 and DP-V1 protocols, offering data transmission rates from 9.6 kBit/s to 12 MBit/s. This module features built-in line redundancy and hot swapping, making it ideal for applications requiring high availability and fault tolerance.
With two D-Sub 9-pin connectors for Line A and Line B, the CI 930F ensures robust communication even in case of line failures. Its IP20 protection class makes it suitable for general industrial environments, and it operates within a temperature range of -20°C to +70°C. This module is widely used in industrial automation, process control, and redundant communication systems.
2. Key Features
- PROFIBUS DP Master: Supports communication with PROFIBUS DP field devices and remote I/Os.
- Line Redundancy: Ensures high reliability through built-in line redundancy.
- Hot Swap: Allows for easy maintenance and replacement without system downtime.
- High-Speed Communication: Supports transmission speeds from 9.6 kBit/s to 12 MBit/s.
- IP20 Protection: Suitable for general industrial environments.
- Wide Compatibility: Designed for use with ABB AC 900F controllers.
3. Technical Specifications
Dimensions and Weight
| Parameter | Value |
|---|---|
| Width | 28 mm |
| Height | 152 mm |
| Depth | 85 mm |
| Weight | 0.115 kg |
General Information
| Parameter | Value |
|---|---|
| Article Number | 3BDH001010R0002 |
| Communication Protocol | PROFIBUS DP Master Communication Interface |
| Life Cycle Status | Active |
| Transmission Speed | 9.6 kBit/s to 12 MBit/s |
| Line Redundancy | Yes |
| Hot Swap | Yes |
Electrical Performance
| Parameter | Value |
|---|---|
| Connector | Two D-Sub 9-pin terminals |
| 24 V Consumption (typical) | 80 mA, via CPU module 24 V terminal |
| Power Dissipation | 1.8 W |
Environment and Certification
| Parameter | Value |
|---|---|
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Altitude | < 2000 m |
| Corrosion Protection | G3 compliant (ISA 71.04) |
| Relative Humidity | Max. 95%, non-condensing |
| Protection Class | IP20 |
| CE Mark | Yes |
| Electrical Safety | IEC/EN 61010-1, IEC/EN 61010-2-201 |
| Hazardous Location | cULus Class 1 Div 2 |
| RoHS Compliance | Directive 2011/65/EU, (EU) 2015/863 |
| WEEE Compliance | Directive 2012/19/EU |
4. Industry Applications
The ABB CI 930F PROFIBUS DP Master Module is widely used in industrial automation and process control systems. Its line redundancy and hot swap features make it ideal for redundant communication systems, ensuring high availability and minimizing downtime. Typical applications include industrial automation, power generation, oil and gas, and process automation systems.
