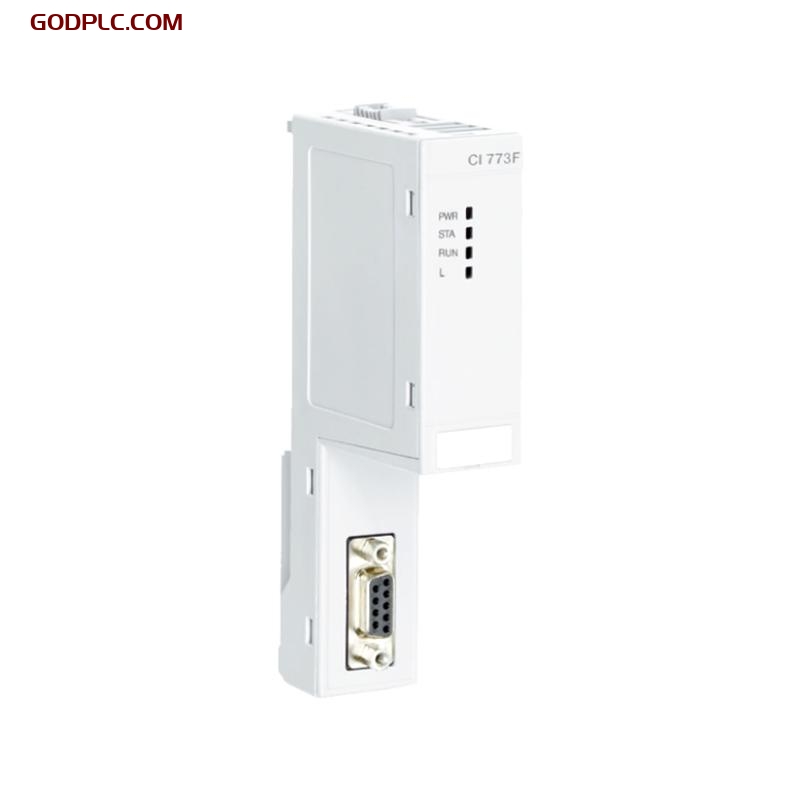

ABB CI 773F 3BDH000395R0001 PROFIBUS Master Communication Interface Fast Delivery
1. Product Overview
The ABB CI 773F 3BDH000395R0001 PROFIBUS Master Communication Interface is designed for communication with PROFIBUS DP fieldbus devices or remote I/Os in industrial automation systems. It supports PROFIBUS PA through a separate PA/DP coupler, making it versatile for both process automation and general industrial control applications. The device features high-speed communication with a transmission rate of 9.6 kBit/s to 12 MBit/s and supports PROFIBUS DP-V0/V1 protocols.
This interface is equipped with a D-Sub 9-pin terminal and is compatible with both AC 700F and AC 900F controllers. It supports controller redundancy, ensuring higher system availability. The CI 773F module also offers hot swapping, allowing for easy maintenance without system downtime. With IP20 protection, it can operate in harsh environments with temperatures ranging from -20°C to +70°C.
2. Key Features
- PROFIBUS DP Master: Enables communication with PROFIBUS DP field devices or remote I/Os.
- Controller Redundancy Support: Ideal for systems requiring high reliability and fault tolerance.
- PROFIBUS PA Support: Through a separate PA/DP coupler, it supports process automation applications.
- High-Speed Communication: Supports transmission speeds ranging from 9.6 kBit/s to 12 MBit/s.
- Hot Swap Functionality: Facilitates easy replacement without system downtime.
- IP20 Protection: Suitable for less demanding industrial environments.
3. Technical Specifications
Dimensions and Weight
| Parameter | Value |
|---|---|
| Width | 28 mm |
| Height | 135 mm |
| Depth | 75 mm |
| Weight | 0.096 kg |
General Information
| Parameter | Value |
|---|---|
| Article Number | 3BDH000395R0001 |
| Communication Protocol | PROFIBUS DP Master Communication Interface |
| Life Cycle Status | Active |
| Transmission Speed | 9.6 kBit/s to 12 MBit/s |
| Redundancy | Supports Controller Redundancy |
| Hot Swap | Yes |
Electrical Performance
| Parameter | Value |
|---|---|
| Connector | D-Sub 9-pin terminal |
| 24 V Consumption (typical) | 80 mA, via CPU module 24 V terminal |
| Power Dissipation | 1.6 W |
Environment and Certification
| Parameter | Value |
|---|---|
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Altitude | < 2000 m |
| Corrosion Protection | G3 compliant (ISA 71.04) |
| Relative Humidity | Max. 95%, non-condensing |
| Protection Class | IP20 |
| CE Mark | Yes |
| Electrical Safety | IEC/EN 61010-1, IEC/EN 61010-2-201 |
| Hazardous Location | cULus Class 1 Div 2 |
| RoHS Compliance | Directive 2011/65/EU, (EU) 2015/863 |
| WEEE Compliance | Directive 2012/19/EU |
4. Industry Applications
The ABB CI 773F PROFIBUS Master Communication Interface is ideal for industrial automation systems requiring high-speed and reliable communication. Its support for PROFIBUS DP and PROFIBUS PA protocols makes it a versatile choice for both general automation and process control applications. It is widely used in industries such as petrochemicals, power, and manufacturing.
ABB CI 773F 3BDH000395R0001 is in stock. Contact us for quick quotes and competitive prices.
