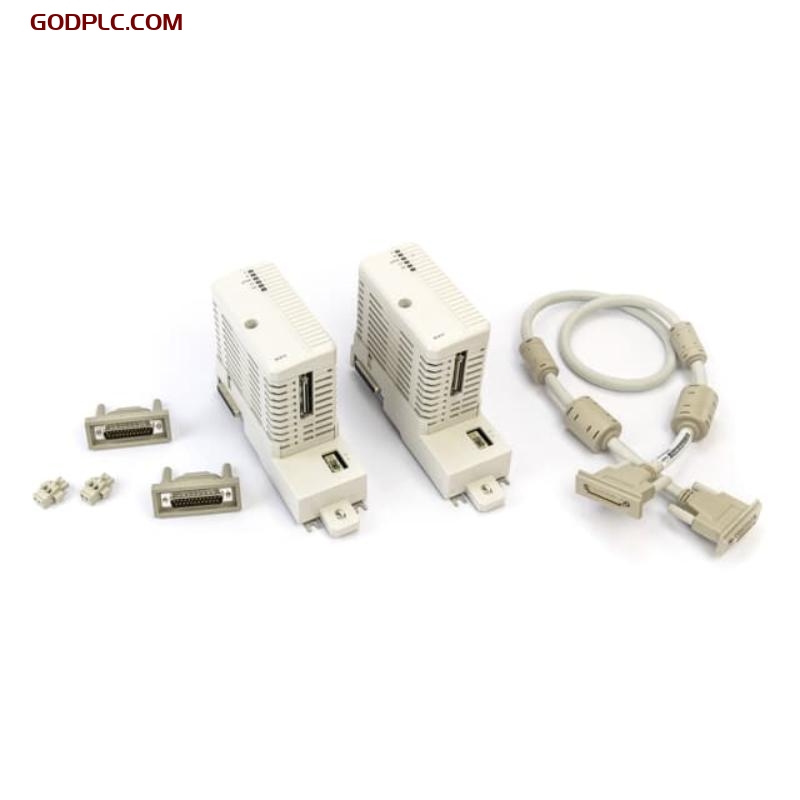

ABB BC820K02 3BSE071500R1 CEX-Bus Interconnection Unit In Stock
Product Overview
The ABB BC820K02 3BSE071500R1 CEX-Bus Interconnection Unit is a high-performance device designed to extend onboard communication ports and support redundant communication interface units. It can divide the CEX-Bus into two independent segments up to 200 meters apart, enhancing system availability. Powered via the CEX-Bus from the processor unit, it also supports redundant power through an external connector. The BC820K02 supports online CPU replacement and hot-swap functionality, making it ideal for industrial automation systems requiring high reliability and flexibility.
Key Features
- Redundant Communication Support: Enhances system reliability with redundant communication interfaces.
- Online CPU Replacement: Allows CPU replacement without system interruption.
- External Power Support: Provides redundant power supply via an external connector.
- Hot-Swap Functionality: Facilitates maintenance and upgrades.
- Long-Distance Extension: Extends CEX-Bus and RCU-Link cable lengths up to 200 meters.
- Compatibility: Works with PM858, PM862, PM866 (PR.F or later), and PM866A processor units.
Technical Specifications
Mechanical Data
| Parameter | Value/Description |
|---|---|
| Dimensions (W×H×D) | 59 mm × 185 mm × 127.5 mm |
| Weight (including base) | 1.4 kg |
General Information
| Parameter | Value/Description |
|---|---|
| Model | ABB BC820K02 3BSE071500R1 |
| Type | CEX-Bus Interconnection Unit |
| Redundancy Support | Yes |
| High Integrity | No |
| Performance | Hot-swap supported |
Electrical Performance
| Parameter | Value/Description |
|---|---|
| Power Supply | L+ and L-, 24 V nominal (19.2-30 V DC range) |
| Power Dissipation | 2.9 W (Typical) |
| +24 V Current Consumption | 120 mA (Typical), 200 mA (Max) |
Certifications
| Parameter | Value/Description |
|---|---|
| Operating Temperature | +5 to +55°C (+41 to +131°F) |
| Storage Temperature | -40 to +70°C (-40 to +158°F) |
| Relative Humidity | 5-95% (non-condensing) |
| Protection Class | IP20 (EN 60529, IEC 529) |
| CE Mark | Yes |
| Electrical Safety | UL 61010-1, UL 61010-2-201 |
| Hazardous Locations | cULus Class 1, Zone 2, AEx nA IIC T4, ExnA IIC T4Gc X |
| Marine Certifications | ABS, BV, DNV-GL, LR |
| RoHS Compliance | EN 50581:2012 |
| WEEE Compliance | DIRECTIVE/2012/19/EU |
Industry Applications
- Oil & Gas: Extends communication interfaces and supports redundant control systems.
- Chemical Processing: Ensures high-reliability communication in complex process control systems.
- Power Systems: Used in power plants and substations for communication extension and redundancy.
- Water Treatment: Supports long-distance communication in distributed control systems.
- Manufacturing Automation: Enables flexible communication extension in production line control systems.
ABB BC820K02 3BSE071500R1 is in stock. Contact us for quick quotes and competitive prices.
