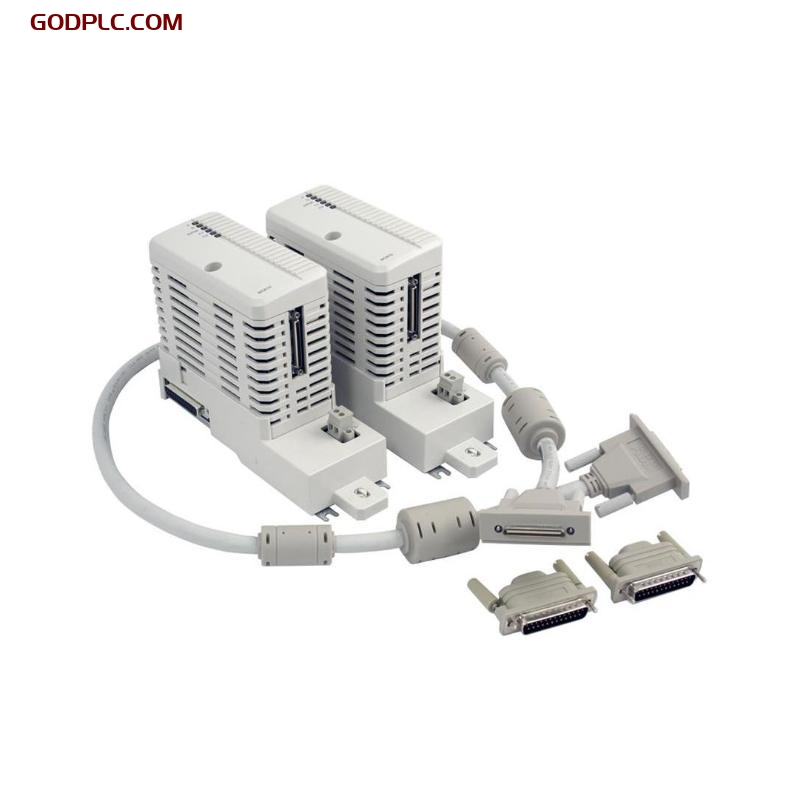

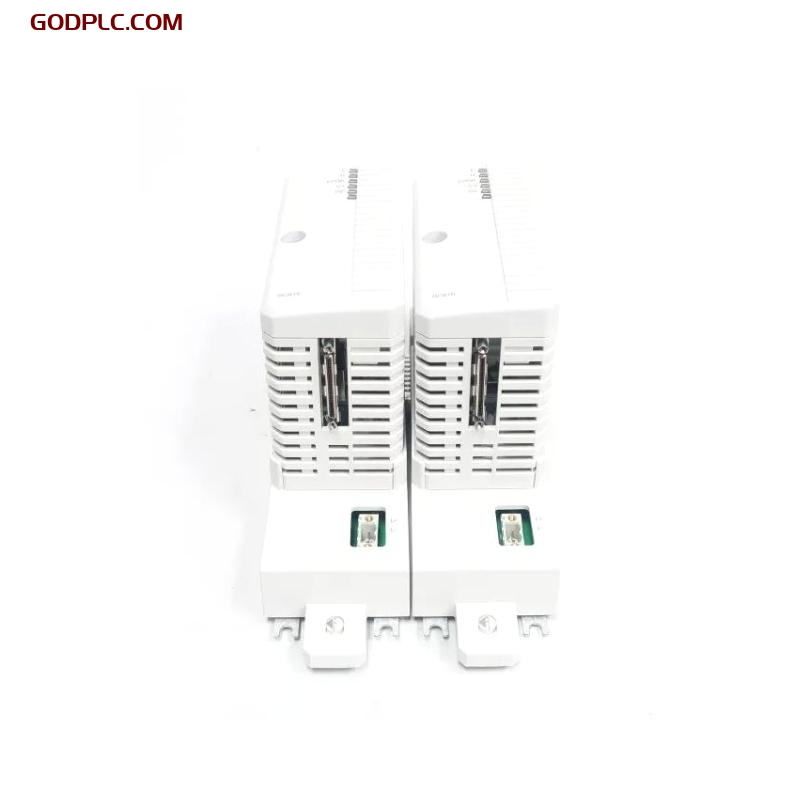

ABB BC810K02 3BSE031155R1 CEX-Bus Interconnection Unit Order online
1. Product Overview
The ABB BC810K02 3BSE031155R1 CEX-Bus Interconnection Unit is an industrial device designed to extend and optimize CEX-Bus communication, supporting redundant communication interface units and online CPU replacement. It consists of two primary parts: the baseplate (TP857) and the power supply/logic board. The baseplate houses connectors for the CEX-Bus and external power, grounded to the DIN rail through the metal parts of the housing. The power supply and logic board contains the +3.3 V converter, logic, drivers for CEX-Bus interconnection, and the connector for the interconnection cable.
The BC810K02 module supports redundant communication interfaces and can operate in systems with high availability. It allows for online replacement of the CPU baseplate without interrupting the CEX traffic, improving system reliability and reducing downtime. The module also supports hot swapping, making maintenance and device replacement easier.
2. Key Features
- Redundant Communication Support: The module supports redundant communication interfaces to ensure high system reliability.
- Online CPU Replacement: It allows for online CPU baseplate replacement without disturbing CEX traffic.
- External Power Supply Support: Provides stable external power input for consistent operation.
- Hot Swap Functionality: The module features hot swapping, making it easy to replace or maintain without shutting down the system.
- High Integrity Design: Ensures system stability and fault tolerance in critical applications.
- Improved Availability: The CEX-Bus is segmented to improve the availability of systems with redundant communication interfaces.
3. Technical Specifications
Dimensions and Weight
| Parameter | Value |
|---|---|
| Width | 59 mm |
| Height | 185 mm |
| Depth | 127.5 mm |
| Weight (including baseplate) | 1.5 kg (3.31 lbs) |
General Information
| Parameter | Value |
|---|---|
| Article Number | 3BSE031155R1 (BC810K02) |
| Redundancy | Yes |
| High Integrity | Yes |
| Performance | Hot Swap Supported |
Electrical Performance
| Parameter | Value |
|---|---|
| Power Supply Input | L+ and L- 24 V nominal, variation 19.2 V DC to 30 V DC |
| Power Consumption (+24V) | Typical 50 mA, Max 70 mA |
| Power Dissipation | 1.2 W (Typical) |
| Power Consumption (Total) | 1.2 W (Typical) |
Environmental and Certification
| Parameter | Value |
|---|---|
| Operating Temperature | +5 to +55 °C (+41 to +131 °F) |
| Storage Temperature | -40 to +70 °C (-40 to +158 °F) |
| Relative Humidity | 5 to 95%, Non-condensing |
| Protection Class | IP20 (EN60529, IEC 529) |
| CE Mark | Yes |
| Electrical Safety | UL 61010-1, UL 61010-2-201 |
| Hazardous Location | cULus Class 1, Zone 2, AEx nA IIC T4, ExnA IIC T4Gc X |
| Marine Certification | ABS, BV, DNV-GL, LR |
| RoHS Compliance | EN 50581:2012 |
| WEEE Compliance | DIRECTIVE/2012/19/EU |
4. Industry Applications
The ABB BC810K02 CEX-Bus Interconnection Unit is widely used in industrial automation systems requiring high availability and redundant communication interfaces. Its online CPU replacement capability and hot swap feature make it ideal for critical systems where minimizing downtime is crucial. The device is especially beneficial in industries like oil and gas, manufacturing, and process control systems that require robust, high-availability communication networks.
ABB BC810K02 3BSE031155R1 is in stock. Contact us for quick quotes and competitive prices.
