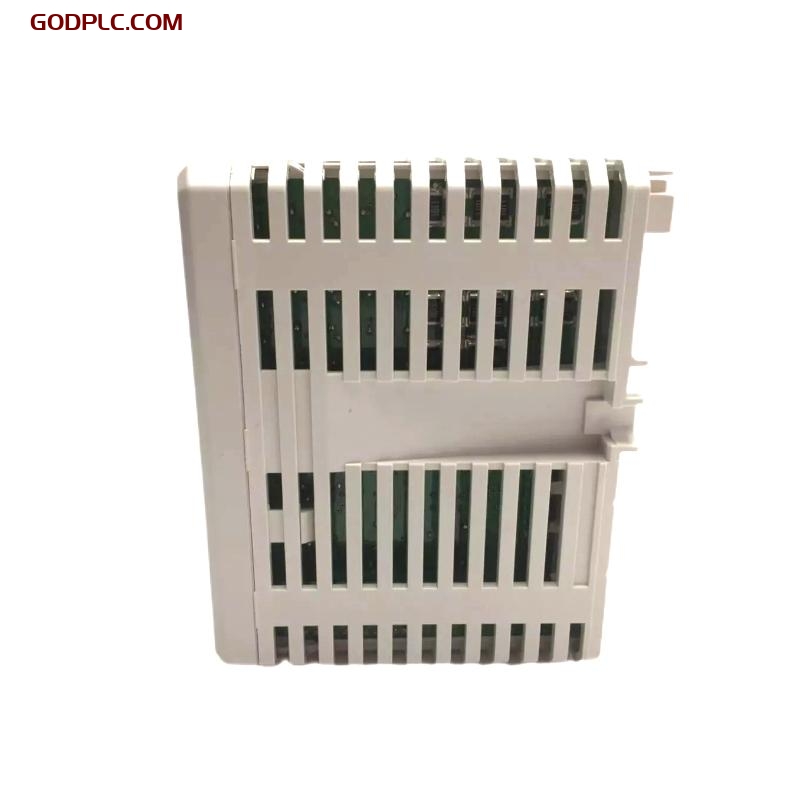

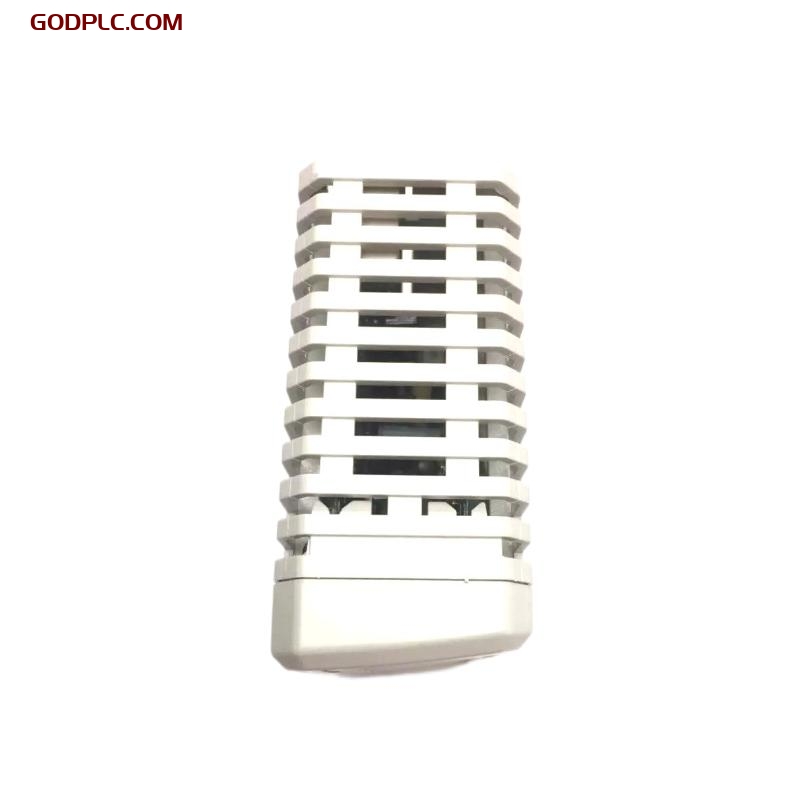

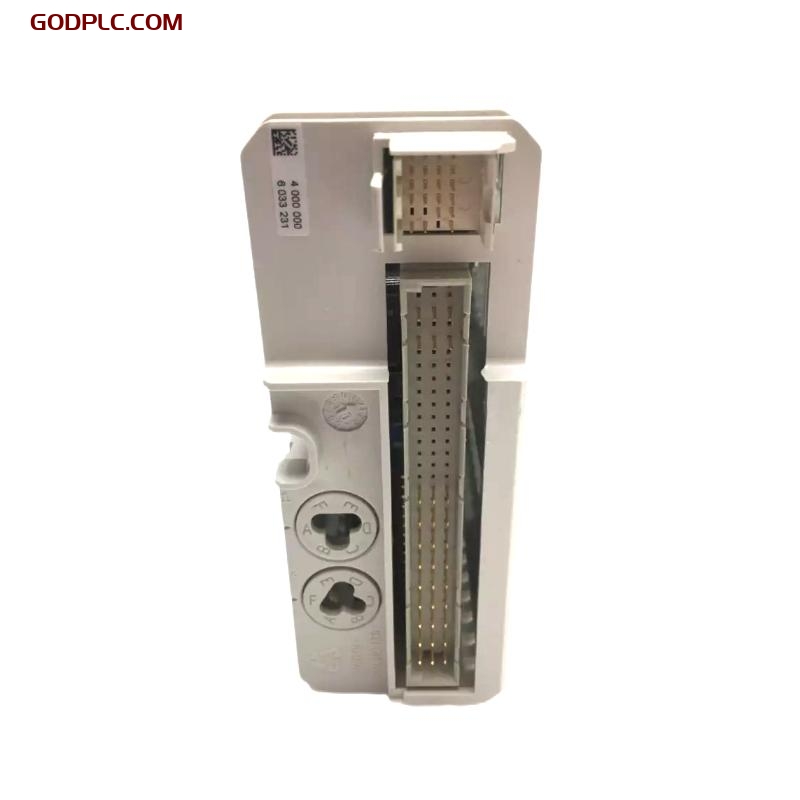

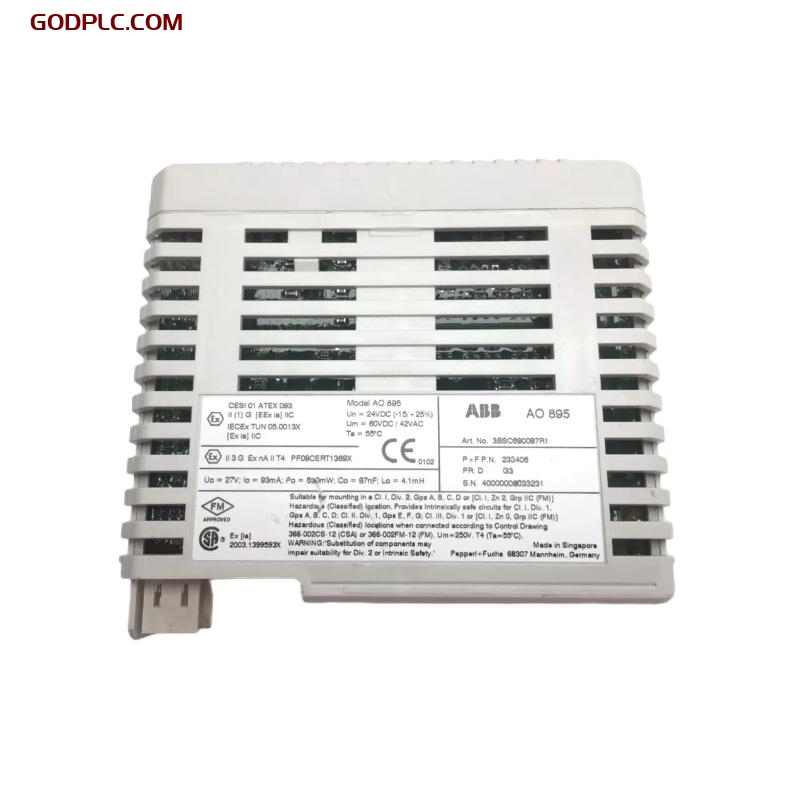

ABB AO895 3BSC690087R1 Analog Output Module Price Advantage
1. Product Overview
The ABB AO895 3BSC690087R1 is an 8-channel analog output module designed for use in hazardous areas to connect to process equipment without the need for additional external devices. Each channel includes intrinsic safety protection components and supports HART communication. The module allows each channel to drive up to 20 mA loop current into field loads like Ex-certified current-to-pressure converters, with overload conditions limited to 22 mA. All 8 channels are isolated in one group from the ModuleBus and power supply, with power conversion from the 24 V on the power supply connections.
This module provides precise 4…20 mA analog outputs and offers features like short-circuit protection, current limiting, and temperature drift compensation, ensuring reliable operation in demanding environments. It is widely used in process automation, industrial control systems, and applications in hazardous areas.
2. Key Features
- 8 Channels Output: Supports 4…20 mA output for driving Ex-certified I/P actuators.
- HART Communication: Each channel supports HART protocol for communication with smart devices.
- Intrinsic Safety: Each channel complies with intrinsic safety standards for use in hazardous areas.
- Temperature Compensation: Typical temperature drift is 50 ppm/°C, ensuring accuracy in different temperature conditions.
- High Stability: Typical error of 0.05%, maximum error of 0.1% at 650 ohms.
- Short-Circuit Protection & Current Limiting: The module includes short-circuit protection, with current limiting to prevent overload damage.
- Durable Design: Conforms to IEC/EN 61131-2, suitable for harsh working conditions.
3. Technical Specifications
Dimensions and Weight
| Parameter | Value |
|---|---|
| Width | 45 mm |
| Depth | 102 mm |
| Height | 119 mm |
| Weight | 0.2 kg |
General Information
| Parameter | Value |
|---|---|
| Article Number | 3BSC690087R1 |
| Type | Analog Output Module |
| Output Signal | 4…20 mA |
| Channels | 8 |
| Signal Type | Unipolar Single Ended |
| HART | Yes |
| SOE | No |
| Redundancy | No |
| High Integrity | No |
| Intrinsic Safety | Yes |
| Electrical Safety | EN 61010-1, EN 61010-2-201 |
| Protection Class | IP20 |
| Hazardous Location | ATEX/IECEx Zone 2 |
| Operating Temp. | 0 to +55°C |
| Storage Temp. | -40 to +70°C |
Electrical Performance
| Parameter | Value |
|---|---|
| Resolution | 12 bits |
| Output Current Range | 4…20 mA |
| Overload Current | 2.5 mA to 22.4 mA |
| Output Load | < 725 Ω (at 20 mA), No Overrange |
| < 625 Ω (up to 22 mA) | |
| Output Error | Typical 0.05%, Max 0.1% (at 650 Ω) |
| Temperature Drift | Typical 50 ppm/°C, Max 100 ppm/°C |
| Rise Time | 30 ms (10% to 90%) |
| Current Limiting | Short Circuit Proof, Current Limited |
| Max Power Consumption | 4.25 W |
| Modulebus Current Consumption | Typical 130 mA |
| External 24 V Consumption | Typical 250 mA, Max < 330 mA |
Diagnostics
| Parameter | Value |
|---|---|
| LED Indicators | F (Fault), R (Run), W (Warning), O (SP), Tx (HART Communication) |
| Supervision | Internal process supply, Open wire if > 1 mA is set |
Environment & Certification
| Parameter | Value |
|---|---|
| CE Mark | Yes |
| Marine Certification | No |
| Pollution Degree | Degree 2 (IEC 60664-1) |
| Relative Humidity | 5 to 95%, Non-condensing |
| Max Ambient Temperature | 55°C (131°F), 40°C (104°F) for Vertical Mounting |
| Corrosion Protection | ISA-S71.04: G3 |
| EMC | EN 61000-6-4 and EN 61000-6-2 |
| Overvoltage Categories | IEC/EN 60664-1, EN 50178 |
4. Industry Applications
The ABB AO895 module is widely used in industrial automation and process control systems, especially in hazardous environments. Its intrinsic safety protection and HART communication capability make it ideal for industries such as oil and gas, power generation, and chemicals. It is especially beneficial in applications requiring precise and stable outputs, such as driving current-to-pressure converters (I/P actuators) and regulating valves.
The module is suitable for applications in:
- Chemical and Refining Plants: Used in automated flow, pressure, temperature, and level control.
- Oil and Gas Industry: Perfect for controlling equipment in harsh environments and hazardous areas.
- Power Generation: Commonly used in automation systems and device control in power plants.
- Industrial Equipment: Utilized for controlling and regulating industrial field devices.
ABB AO895 3BSC690087R1 is in stock. Contact us for quick quotes and competitive prices.
