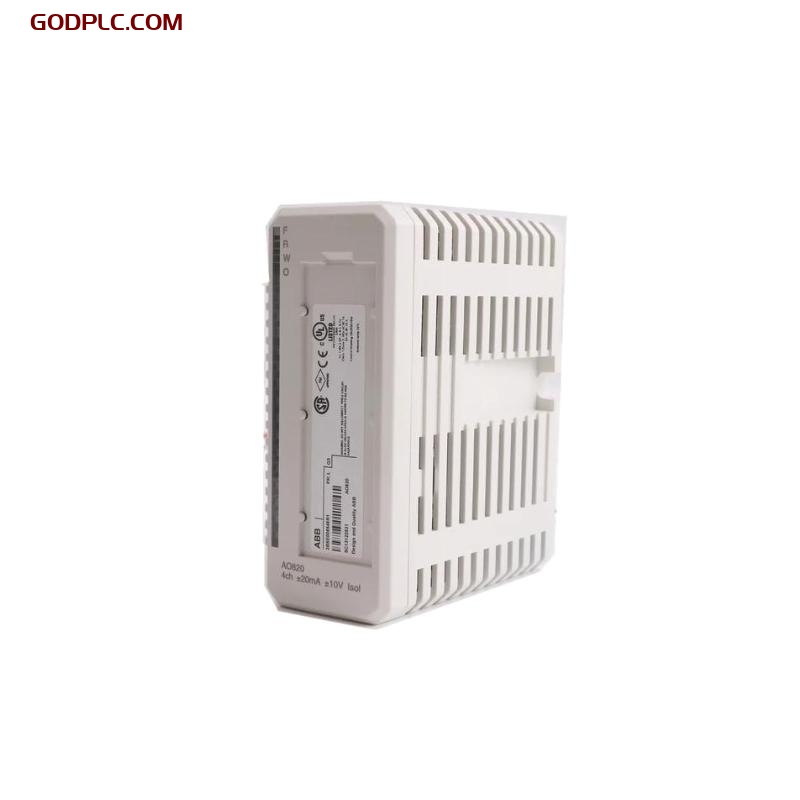

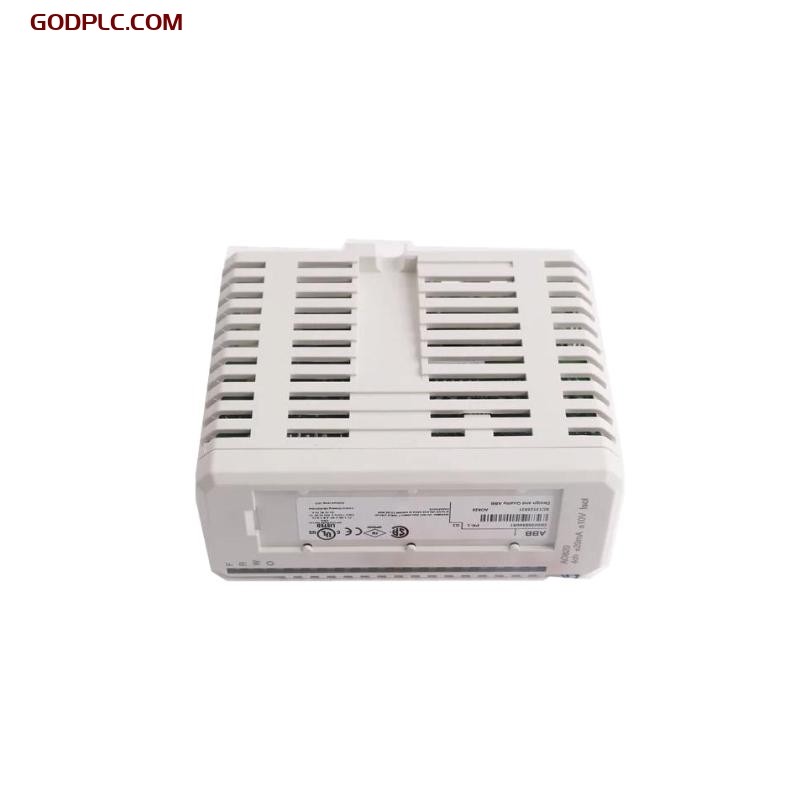

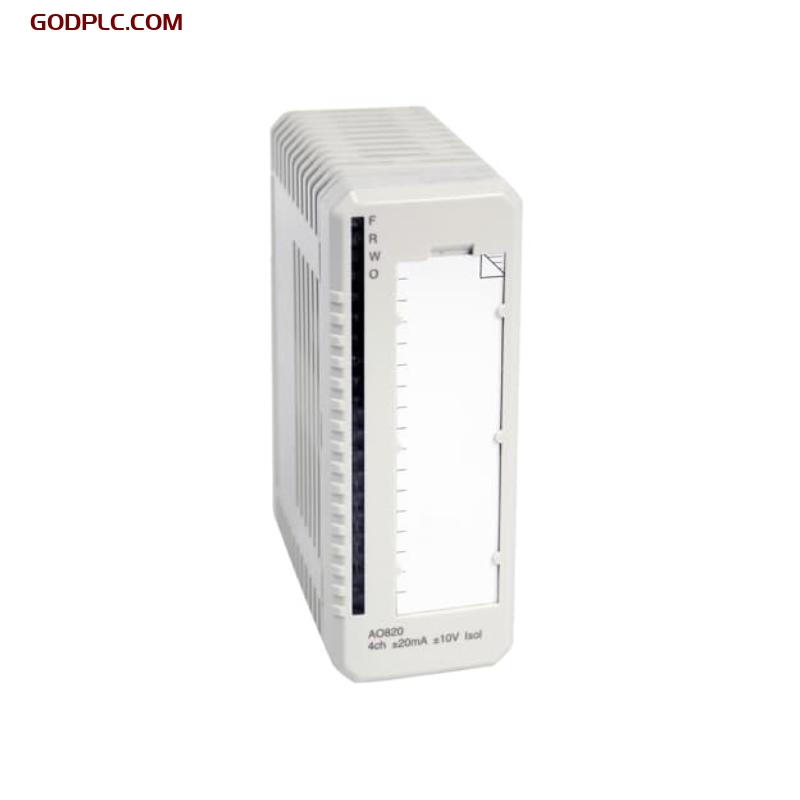

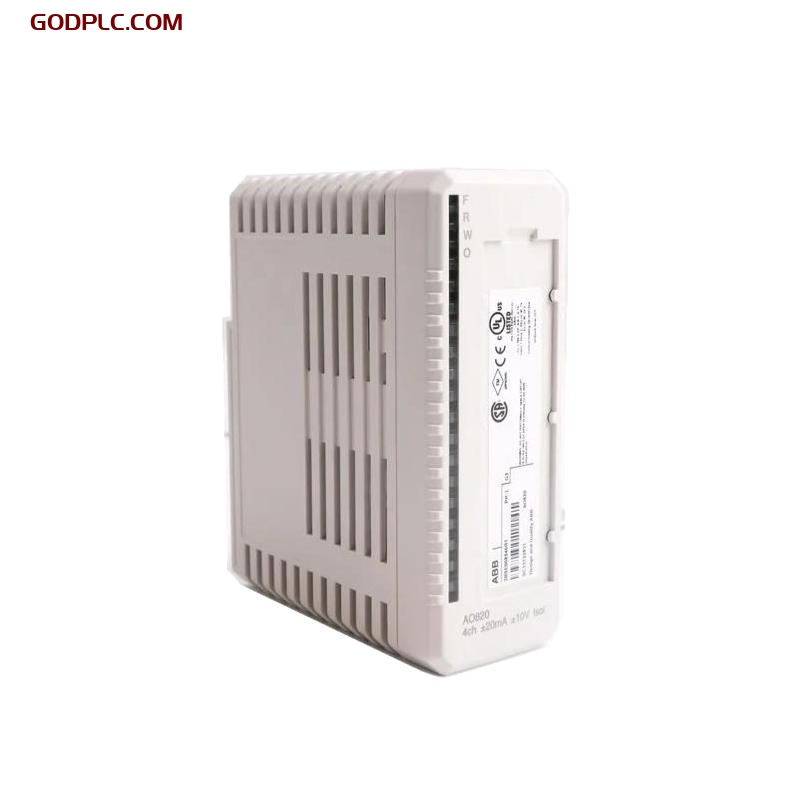

ABB AO820 3BSE008546R1 Analog Output Module Consult Us
1. Product Overview
The ABB AO820 3BSE008546R1 Analog Output Module is a versatile and reliable solution designed for industrial automation applications where precise analog output signals are required. This module features four configurable bipolar analog output channels, allowing users to select between current and voltage outputs based on their specific requirements. With individual galvanic isolation for each channel, the AO820 ensures enhanced safety and reliability in demanding industrial environments.
2. Key Features
- Configurable Output Channels:Each of the four channels can be independently configured for either current or voltage output, providing flexibility in various application scenarios.
- Galvanic Isolation:All channels are individually isolated, ensuring channel-to-channel and channel-to-circuit common isolation for improved safety and noise immunity.
- Comprehensive Diagnostics:The module includes open-circuit diagnostics and process voltage supervision input, with error signals accessible via the ModuleBus for easy troubleshooting and maintenance.
- High Accuracy and Stability:With a resolution of 12 bits including sign, the AO820 offers precise control over output signals, minimizing errors and ensuring consistent performance.
- Robust Design:Rated for operation in harsh conditions, with a wide temperature range and protection against electrical interference, making it suitable for diverse industrial settings.
3. Technical Specifications
Dimension & Weight
| Width | 45 mm |
| Depth | 102 mm |
| Height | 119 mm |
| Weight | 0.18 kg |
General Information
| Model Number | AO820 3BSE008546R1 |
| Type | Analog Output Module |
| Channels | 4 Bipolar Channels |
| Configurable Output | Current / Voltage Selectable per Channel |
| I/O Signals | -20 mA…+20 mA, 0…20 mA, 4…20 mA, -10 V…+10 V, 0…10 V, 2…10 V |
| Resolution | 12 Bits (including sign) |
| Isolation | Individually isolated (channel-to-channel and channel-to-common) |
| Under/Over Range | ±15% |
| Output Load | ≤ 550 Ω (current), ≥ 5 kΩ (voltage) |
| Error | Max. 0.1% (voltage); Typ. 0.1% at 250 ohms; Max 0.15% (current) |
| Temperature Drift | Max 90 ppm/°C |
| Rise Time | < 0.7 ms |
| Update Cycle Time | ≤ 1.5 ms |
| Current Limiting | Short circuit proof current limited output |
| Max Field Cable Length | 600 meters (656 yards) |
| Rated Insulation Voltage | 50 V |
| Dielectric Test Voltage | 500 V AC |
| Power Dissipation | Typ. 6 W |
| Current Consumption | +5 V Modulebus: Max 100 mA +24 V Modulebus: Max 260 mA |
4. Industry Applications
The ABB AO820 3BSE008546R1 Analog Output Module is ideally suited for a wide range of industrial automation applications, including but not limited to:
- Process Control Systems:Providing precise control signals for valves, actuators, and other process equipment.
- Machinery Control:Ensuring accurate speed, position, and force control in CNC machines, robotics, and material handling systems.
- Building Automation:Facilitating control of HVAC systems, lighting controls, and other building management systems.
- Power Generation and Distribution:Managing analog signals in power plants, substations, and renewable energy installations.
- Water and Wastewater Treatment:Regulating flow rates, chemical dosing, and other critical parameters in treatment plants.
ABB AO820 3BSE008546R1 is in stock. Contact us for quick quotes and competitive prices.
