ABB AO815 3BSE052605R1 Analog Output Module Contact The Sales
Product Overview

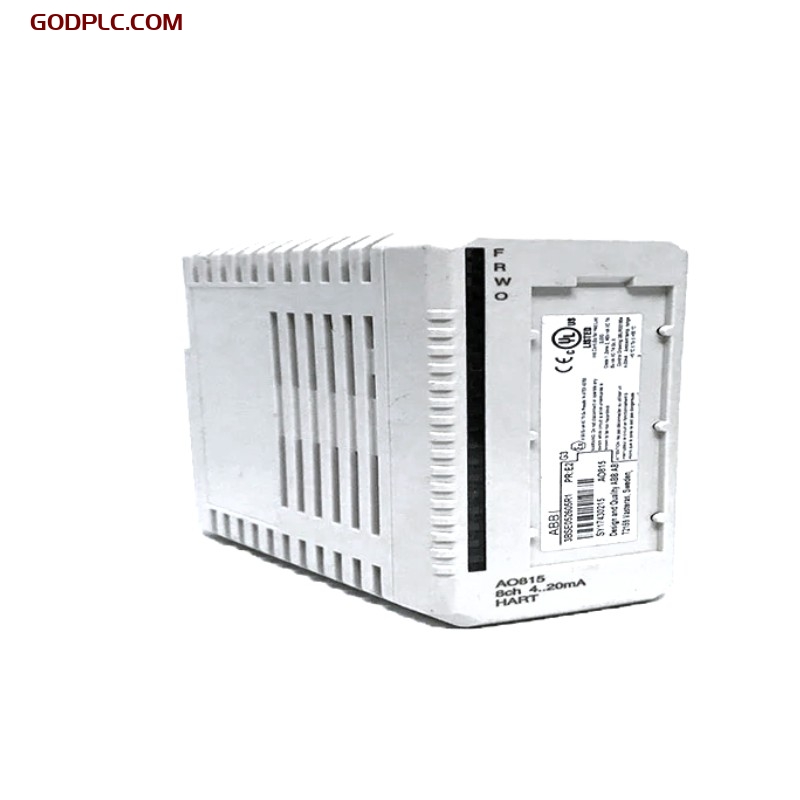

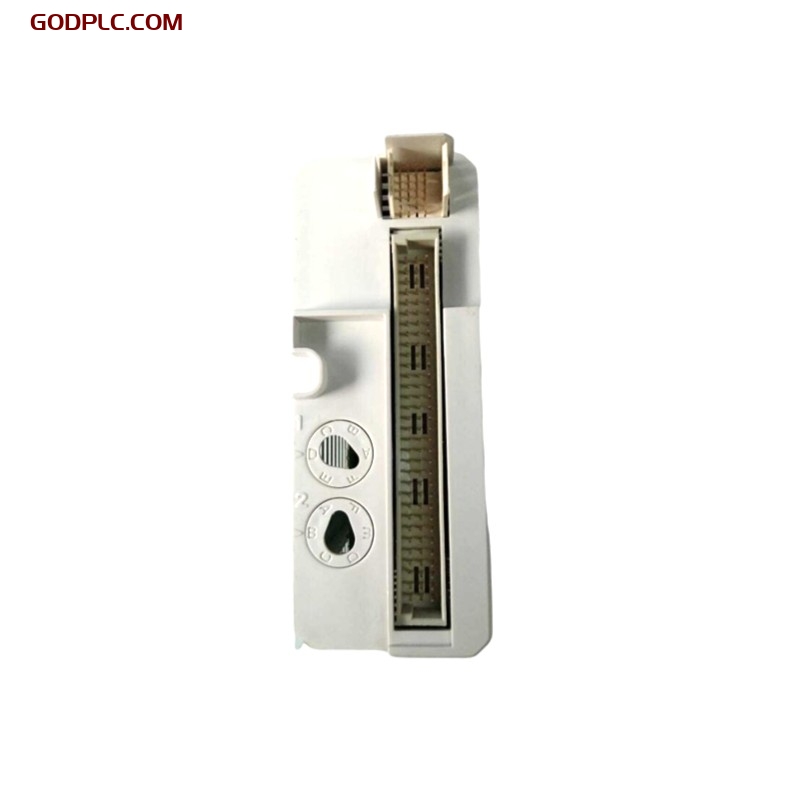

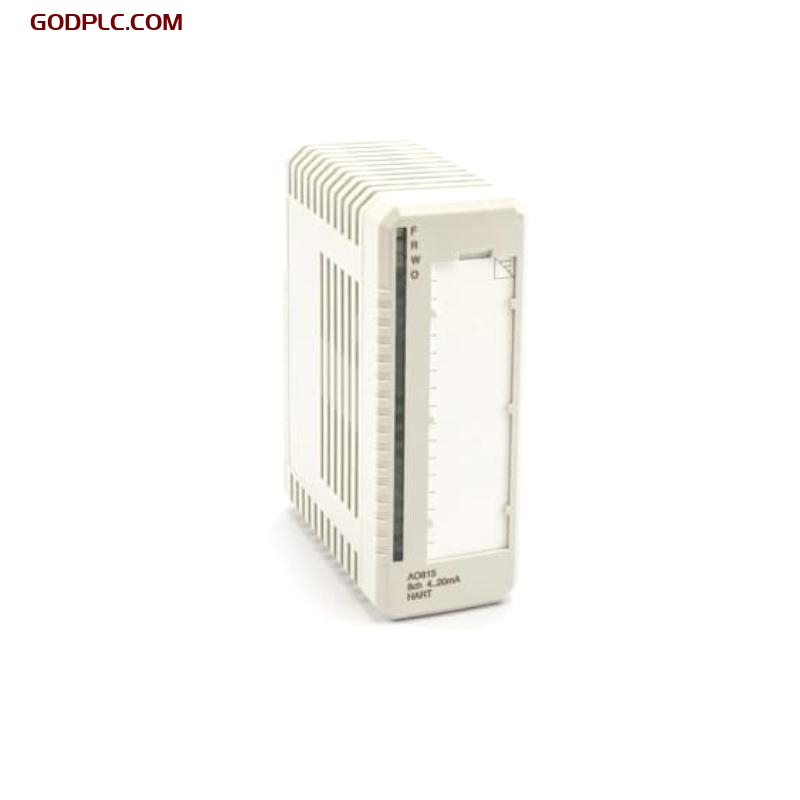

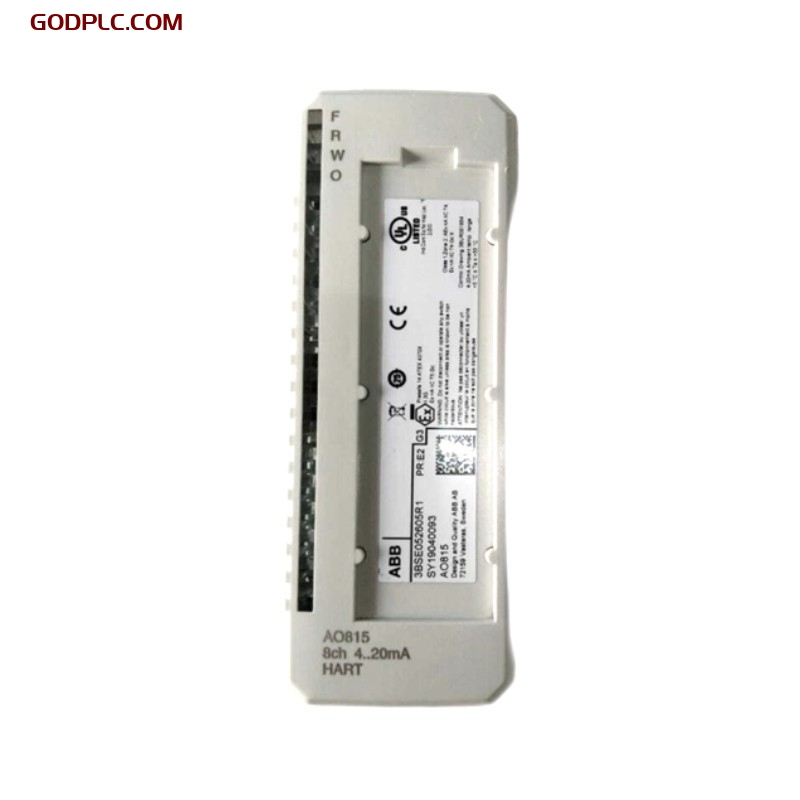

The ABB AO815 3BSE052605R1 Analog Output Module is a versatile and reliable solution designed for various industrial automation applications. This module features eight unipolar analog output channels, ensuring precise control and monitoring of processes. It performs cyclic self-diagnostics to ensure continuous and accurate operation. With HART pass-through communication capability and comprehensive diagnostic functionalities, the AO815 module offers both performance and reliability in demanding industrial environments.
Key Features
- Eight Unipolar Analog Output Channels: Provides precise control with a 4…20 mA current signal.
- Self-Diagnostic Functionality: Ensures continuous monitoring and reporting of any potential issues.
- HART Pass-Through Communication: Supports point-to-point communication for seamless integration.
- Comprehensive Diagnostics: Includes external channel error, internal channel error, and module error detection.
- Isolation: One group of eight channels isolated from ground for enhanced safety.
- Short Circuit Protection: Secures analog inputs to ZP or +24 V.
- Wide Operating Range: Operates efficiently within a temperature range of 0 to +55°C (with storage down to -40°C).
- High Accuracy: Offers a resolution of 12 bits and a maximum error of 0.1%.
- Robust Construction: Rated insulation voltage of 50 V and dielectric test voltage of 500 V AC.
- Compliance: Conforms to CE, EN 61010-1, UL 61010-1, and other relevant standards.
Technical Specifications
| Parameter | Value |
|---|---|
| Width | 45 mm |
| Depth | 102 mm |
| Height | 119 mm |
| Weight | 0.21 kg |
| Channels | 8 unipolar analog outputs |
| Current Signal | 4…20 mA |
| Resolution | 12 bit |
| Isolation | Groupwise isolated from ground |
| Under/Over Range | -12.5% / +15% |
| Output Load | Max 750 Ω |
| Error | Max. 0.1% |
| Temperature Drift | Max. 50 ppm/°C |
| Input Filter Rise Time | 23 ms (0-90%), max 4 mA / 12.5 ms |
| Update Cycle Time | 10 ms |
| Current Limiting | Short circuit proof current limited output |
| Max Field Cable Length | 600 meters (656 yards) |
| Rated Insulation Voltage | 50 V |
| Dielectric Test Voltage | 500 V a.c. |
| Power Dissipation | 3.5 W (typ.) |
| Current Consumption | +5 V Modulebus: Max. 125 mA +24 V Modulebus: 0 +24 V external: Max. 165 mA |
| Diagnostic LEDs | F(ault), R(un), W(arning), O(SP) |
| Supervision Status | Module Error, Module Warning, Channel Error |
| Environment Compliance | Degree 2, IEC 60664-1, Pollution degree, etc. |
| Certification | CE mark, EN 61010-1, UL 61010-1, etc. |
| Hazardous Location | C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2 |
| Marine Certification | BV, DNV, LR |
| Temperature Range | Operating: 0 to +55 °C Storage: -40 to +70 °C |
| Humidity | 5 to 95%, non-condensing |
| Max Ambient Temperature | 55 °C (131 °F), compact MTU: 40 °C (104 °F) |
| Protection Class | IP20 according to IEC 60529 |
| Mechanical Conditions | IEC/EN 61131-2 |
| EMC | EN 61000-6-4, EN 61000-6-2 |
| Overvoltage Categories | IEC/EN 60664-1, EN 50178 |
| Equipment Class | Class I according to IEC 61140 |
| RoHS Compliance | DIRECTIVE/2011/65/EU (EN 50581:2012) |
| WEEE Compliance | DIRECTIVE/2012/19/EU |
| Compatibility | Use with MTU: TU810, TU812, TU814, TU830, TU833 |
| Keying Code | DB |
Industry Applications
The ABB AO815 3BSE052605R1 Analog Output Module is ideal for use in various industrial applications including, but not limited to:
- Process Control Systems
- Manufacturing Automation
- Power Generation and Distribution
- Water and Wastewater Treatment
- HVAC Systems
- Building Automation
- Industrial Machinery Control
- Material Handling Systems
ABB AO815 3BSE052605R1 is in stock. Contact us for quick quotes and competitive prices.
