ABB AO801 3BSE020514R1 Analog Output Module 2 Days Delivery
Product Overview

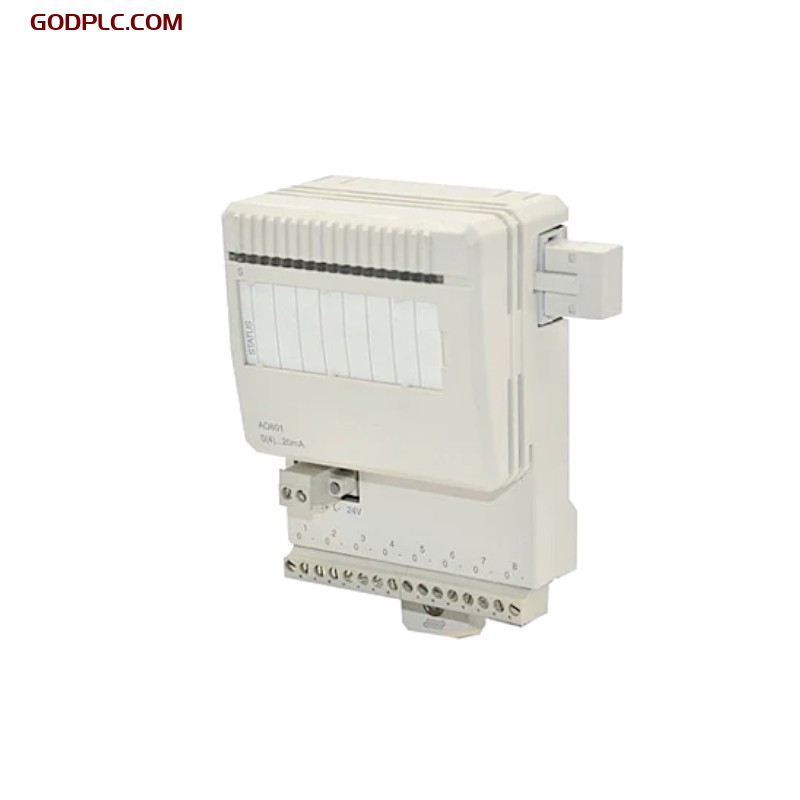

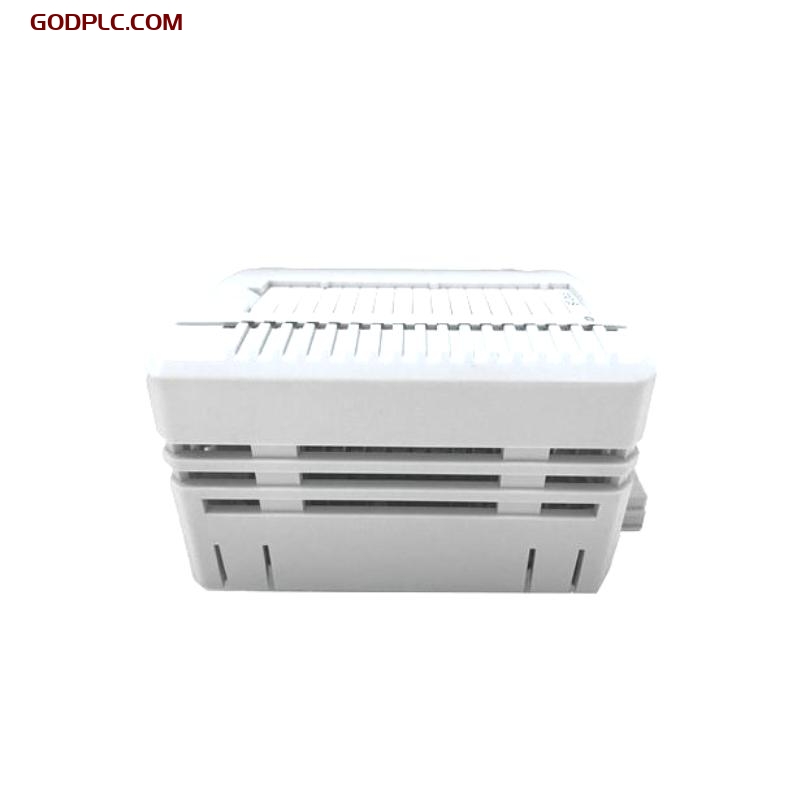

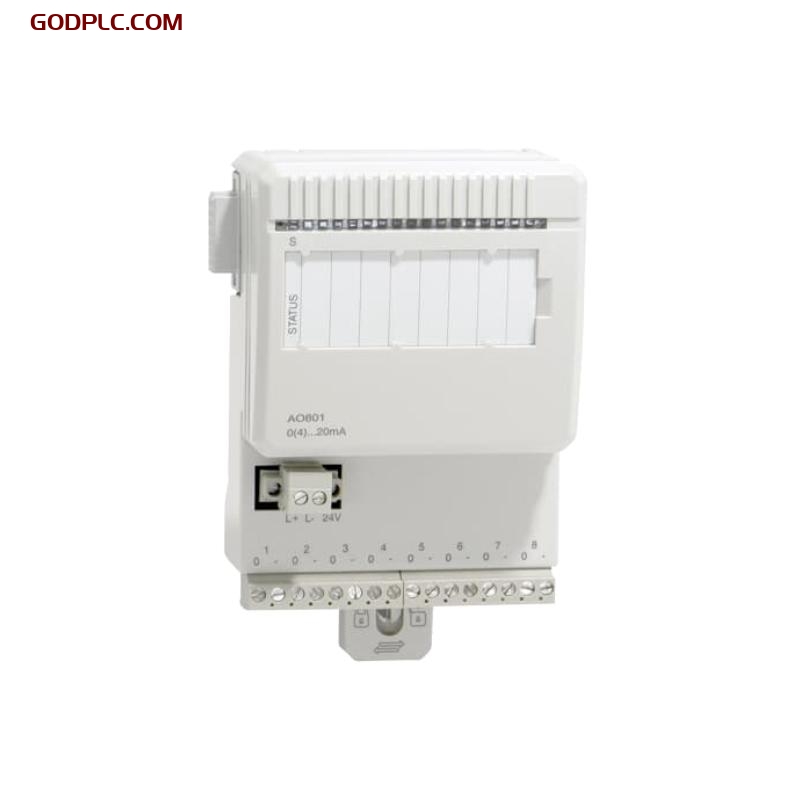

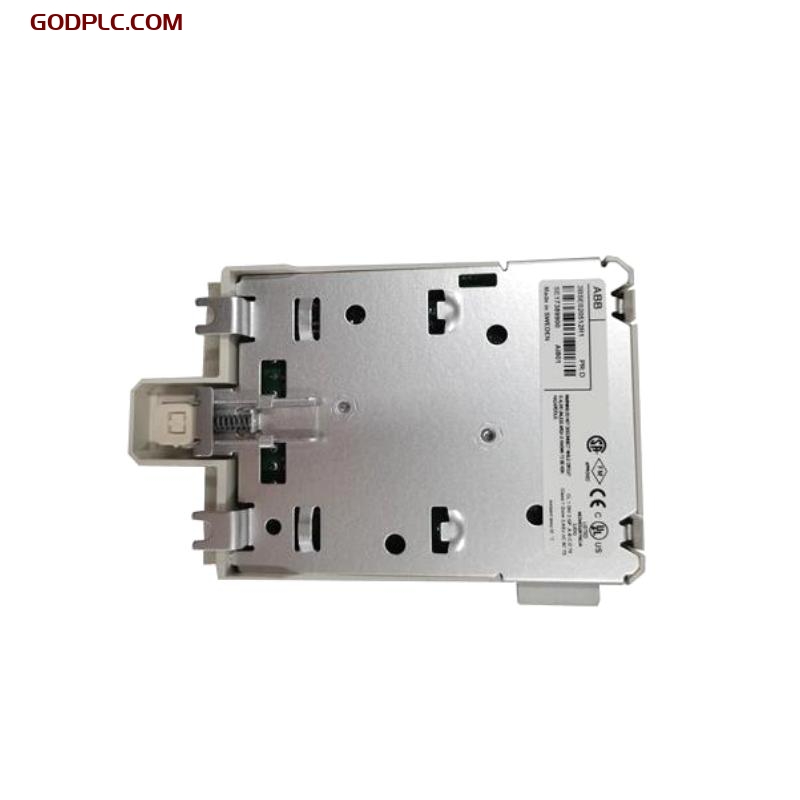

The ABB AO801 3BSE020514R1 Analog Output Module is a high-reliability device designed for industrial automation control, featuring 8 single-ended unipolar analog output channels supporting 0…20 mA and 4…20 mA current signals. With built-in self-diagnostics and Output Safety Protection (OSP), the module ensures system safety by switching outputs to predefined states upon error detection. It is ideal for applications requiring high precision, fast response (1 ms update cycle), and robust short-circuit/overload protection.
Key Features
- 8-Channel Analog Output: 0…20 mA and 4…20 mA current signals.
- Self-Diagnostics & Safety: Cyclic self-check with OSP for fail-safe operation.
- Short-Circuit Protection: Secured against ZP or +24 V shorts.
- High Precision: 12-bit resolution, 0.1% error.
- Field Flexibility: Supports up to 600 m cable length and multiple wire gauges.
- Modular Design: S800L mechanics for easy installation.
Technical Specifications
General Information
| Parameter | Value/Description |
|---|---|
| Model | ABB AO801 3BSE020514R1 |
| Type | Analog Output Module |
| Signal Range | 0…20 mA, 4…20 mA |
| Channels | 8 |
| Signal Type | Single-Ended Unipolar |
| HART Support | No |
| Intrinsic Safety | No |
| Protection Class | IP20 (IEC 60529) |
Electrical Performance
| Parameter | Value/Description |
|---|---|
| Resolution | 12-bit |
| Isolation | Groupwise (to ground) |
| Output Load | Max 850 Ω |
| Error | 0.1% |
| Temperature Drift | 30 ppm/°C (Typ), 50 ppm/°C (Max) |
| Rise Time | 10 µs |
| Update Cycle Time | 1 ms |
| Current Limiting | Short-circuit proof |
| Max Cable Length | 600 m (656 yd) |
Power & Wiring
| Parameter | Value/Description |
|---|---|
| Power Dissipation | 3.8 W |
| +5 V Modulebus | 70 mA |
| +24 V External | 200 mA |
| Supported Wire | Solid: 0.05-2.5 mm² (30-12 AWG) Stranded: 0.05-1.5 mm² (30-12 AWG) |
| Torque | 0.5-0.6 Nm |
Certifications
| Parameter | Value/Description |
|---|---|
| CE Mark | Yes |
| Safety Certifications | EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201 |
| Hazardous Locations | C1 Div 2 cULus, ATEX Zone 2 |
| Marine Certifications | ABS, BV, DNV, LR |
Mechanical Data
| Parameter | Value/Description |
|---|---|
| Dimensions (W×D×H) | 86.1 mm × 58.5 mm × 110 mm |
| Weight | 0.24 kg |
Industry Applications
- Oil & Gas: Control valve positioners and flow meters.
- Chemical Processing: Precision control in corrosive environments.
- Power Systems: Regulate actuators in substations.
- Water Treatment: Manage pumps and filtration systems.
- Manufacturing: Drive servo motors or frequency converters.
ABB AO801 3BSE020514R1 is in stock. Contact us for quick quotes and competitive prices.
