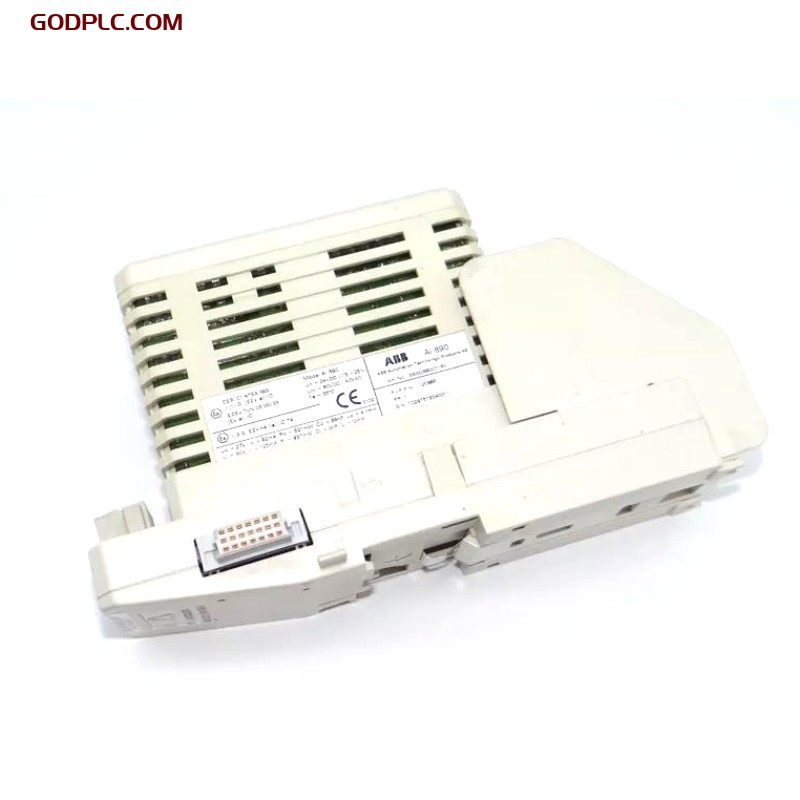

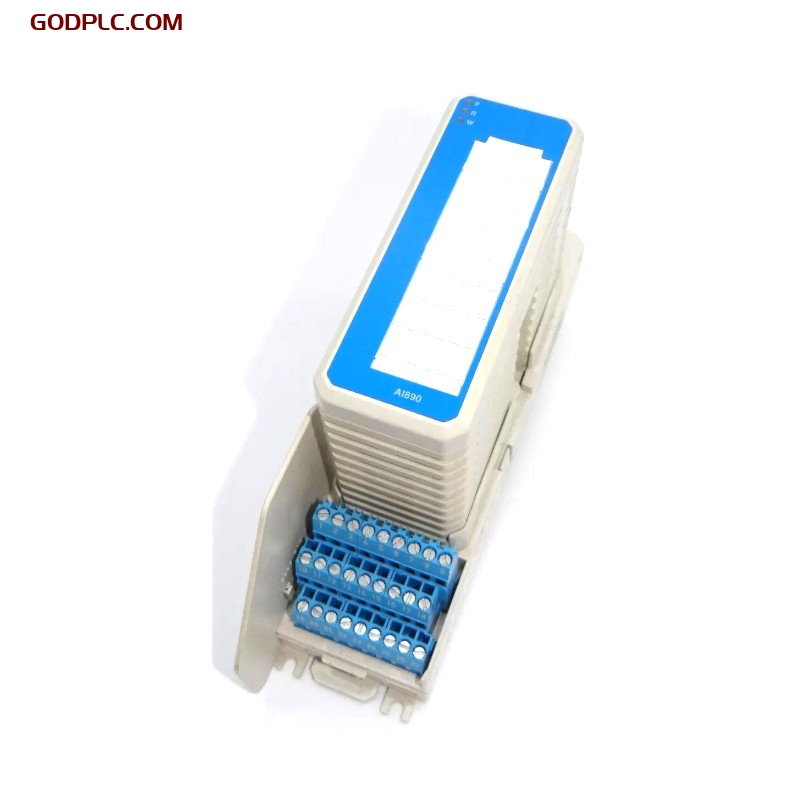

ABB AI890 3BSC690071R1 Analog Input Module Order online
Product Overview
The ABB AI890 3BSC690071R1 Analog Input Module is an industrial automation device designed for hazardous areas, featuring Intrinsic Safety (IS) protection on each channel. It allows direct connection to process equipment in Zone 0/1 without additional external protection devices. The module offers 8 single-ended unipolar input channels, supporting 0~20 mA and 4~20 mA current signals, and is capable of powering and monitoring two-wire transmitters. With groupwise isolation and robust design, it ensures high reliability and safety in complex industrial environments.
Key Features
- Intrinsic Safety Design: Each channel includes IS protection, enabling direct connection to Zone 0/1 devices (ATEX/IECEx certified).
- Multi-Channel Input: 8 independent channels for 0~20 mA and 4~20 mA current signals.
- Transmitter Power Supply: Each channel provides 15 V/20 mA to power Ex-certified two-wire transmitters.
- Overcurrent Protection: Current limited to 23 mA for safe operation under overload conditions.
- Fast Response: Update cycle of 5 ms for real-time monitoring and control.
- Compact Design: Lightweight and small dimensions for easy installation and integration.
Technical Specifications
| Parameter | Details |
|---|---|
| Input Channels | 8 (single-ended unipolar) |
| Input Signal Types | 0~20 mA, 4~20 mA |
| Resolution | 12-bit |
| Isolation | Groupwise isolation (from ground) |
| Input Voltage Drop | Typ. 3 V (including PTC) |
| Transmitter Power Supply | 15 V/20 mA (supports Ex-certified transmitters) |
| Overcurrent Protection | Current limited to 23 mA |
| Error | Max. 0.1% |
| Temperature Drift | Typ. 50 ppm/°C, Max. 100 ppm/°C |
| Input Filter | Rise time 75 ms (0-90%) |
| Update Cycle | 5 ms |
| CMRR | >80 dB (50 Hz/60 Hz) |
| NMRR | >20 dB (50 Hz/60 Hz) |
| Power Consumption | 1.5 W |
| Current Consumption | +5 V: Typ. 70 mA, Max. 150 mA; +24 V: Typ. 220 mA, Max. <300 mA |
| Dimensions (W×D×H) | 45 mm × 102 mm × 119 mm |
| Weight | 0.2 kg |
| Operating Temperature | 0~+55 °C |
| Protection Class | IP20 (IEC 60529) |
| Certifications | CE, ATEX/IECEx Zone 2, cFMus C1 Div 2, RoHS, WEEE |
Industry Applications
- Oil & Gas: Monitoring pressure, flow, and temperature transmitter signals in hazardous areas.
- Natural Gas Processing: Monitoring critical process parameters in pipelines and storage tanks.
- Pharmaceutical Industry: Acquiring sensor signals from reactors and tanks in explosive environments.
- Mining: Real-time monitoring of gas concentration and pressure in mines.
- Energy Management: Monitoring power equipment in hazardous areas.
ABB AI890 3BSC690071R1 is in stock. Contact us for quick quotes and competitive prices.
