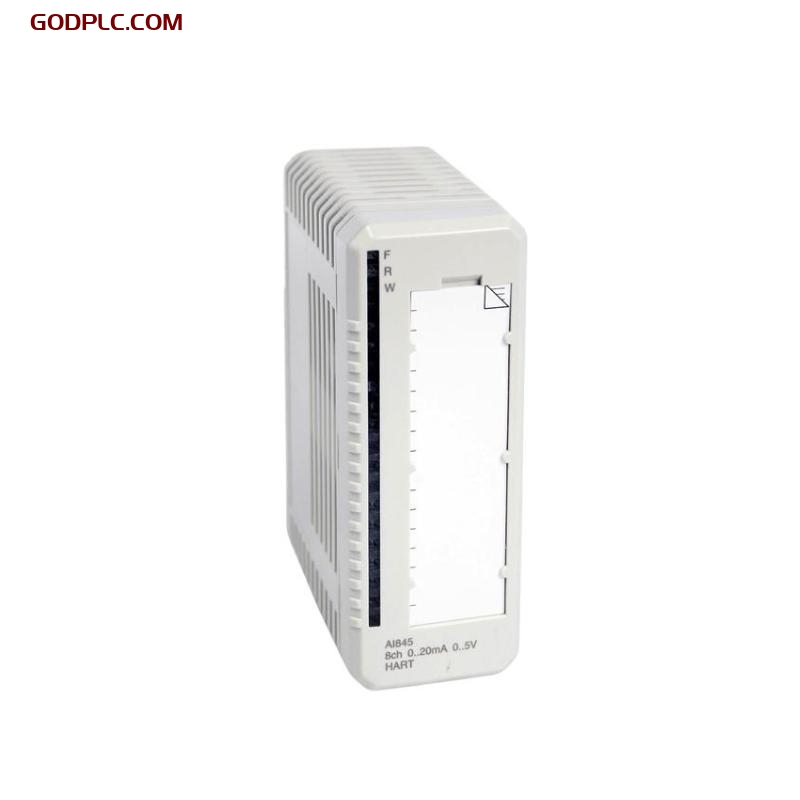

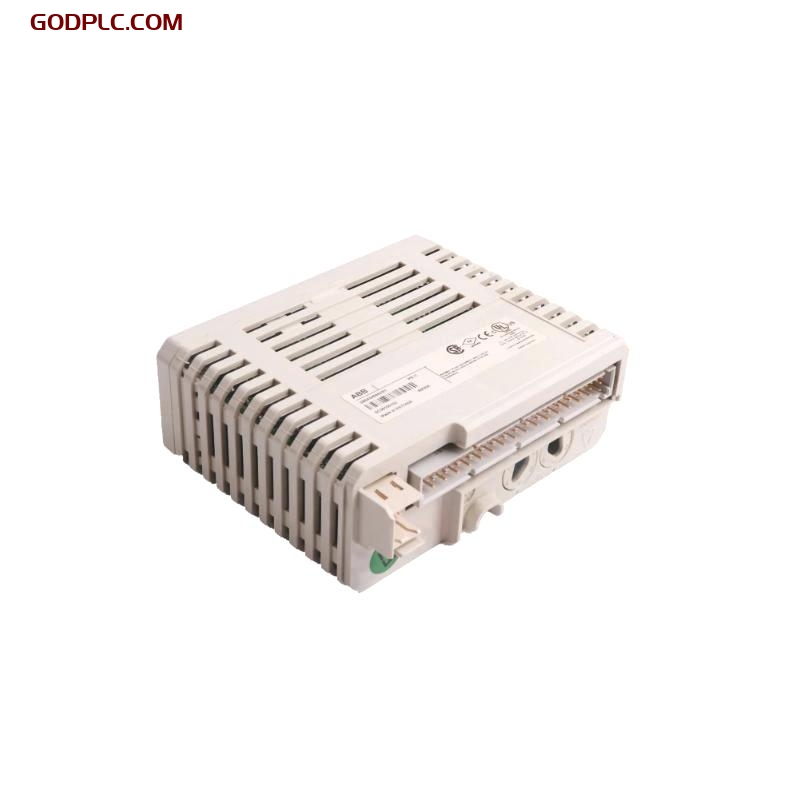

ABB AI845 3BSE023675R1 Analog Input Module Immediate Quote
Product Overview
The ABB AI845 3BSE023675R1 Analog Input Module is designed for precise signal processing in industrial applications. This module features 8 channels that can be configured as either voltage or current inputs, depending on the used Master Terminal Unit (MTU). It supports single or redundant operations and offers high levels of accuracy and diagnostics capabilities.
Key Features
- Versatile Input Channels: Each of the 8 channels can handle both voltage and current inputs, providing flexibility in various applications.
- Isolation: One group of 8 channels is isolated from ground to ensure safety and reduce noise interference.
- High Resolution: The module provides a 12-bit resolution for accurate signal conversion.
- HART Pass-Through Communication: Supports HART protocol for seamless integration with compatible devices.
- Advanced Diagnostics: On-board diagnostics help in quick fault detection and resolution.
- Current-Limited Transmitter Supply: Per channel, ensuring safe operation even if there are short circuits or overloads.
Technical Specifications
| Parameter | Value |
|---|---|
| Article Number | 3BSE023675R1 |
| Type | Analog Input |
| Signal Specification | 0…20 mA, 4…20 mA, 0…5 V, 1…5 V d.c. |
| Number of Channels | 8 |
| Signal Type | Unipolar single-ended |
| HART Compatibility | Yes |
| Redundancy | Yes |
| High Integrity | No |
| Intrinsic Safety | No |
| Mechanics | S800 |
| Resolution | 12 Bit |
| Input Impedance | 10 MΩ (voltage input), 250 Ω (current input) |
| Isolation | Groupwise isolated from ground |
| Under/Over Range | 0 / +15% (0..20 mA, 0..5 V), -12.5% / +15% (4..20 mA, 1..5 V) |
| Error | Max. 0.1% |
| Temperature Drift | Max. 50 ppm/°C |
| Input Filter (rise time) | 290 ms |
| Update Cycle Time | 10 ms |
| Current Limiting | Built-in current-limited transmitter power |
| Maximum Field Cable Length | 600 meters (656 yards) |
| Max Input Voltage (non-destructive) | 11 V d.c. |
| NMRR, 50Hz, 60Hz | > 40 dB |
| Rated Insulation Voltage | 50 V |
| Dielectric Test Voltage | 500 V a.c. |
| Power Dissipation | 3.5 W |
| Current Consumption +5 V Modulebus | 100 mA |
| Current Consumption +24 V Modulebus | 50 mA |
| Current Consumption +24 V external | Max. 265 mA (22 mA + transmitter current * 1.32) |
| Diagnostics | Front LED’s F(ault), R(un), W(arning) |
| Supervision | Module error, analog readback, reference voltage, internal power supply, checksum, watchdog, memory error |
| Internal Channel Error | Low pass filter, multiplexer, test channel error |
| External Channel Error | External power supply low, transmitter power, external shunt error |
| Status Indication of Supervision | Module Error, Module Warning, Channel error |
| Environmental Compliance | CE mark Yes |
| Electrical Safety | EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201 |
| Hazardous Location | C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2 |
| Marine Certification | BV, DNV, LR |
| Operating Temperature | 0 to +55 °C (+32 to +131 °F) |
| Storage Temperature | -40 to +70 °C (-40 to +158 °F) |
| Pollution Degree | Degree 2, IEC 60664-1 |
| Corrosion Protection | ISA-S71.04: G3 |
| Relative Humidity | 5 to 95%, non-condensing |
| Max Ambient Temperature | 55 °C (131 °F), for vertical mounting in compact MTU 40 °C (104 °F) |
| Protection Class | IP20 according to IEC 60529 |
| Mechanical Operating Conditions | IEC/EN 61131-2 |
| EMC | EN 61000-6-4 and EN 61000-6-2 |
| Overvoltage Categories | IEC/EN 60664-1, EN 50178 |
| Equipment Class | Class I according to IEC 61140; (earth protected) |
| RoHS Compliance | DIRECTIVE/2011/65/EU (EN 50581:2012) |
| WEEE Compliance | DIRECTIVE/2012/19/EU |
| Compatibility | Use with MTU: TU810, TU812, TU814, TU818, TU830, TU833, TU835, TU838, TU844, TU845, TU854 |
| Keying Code | CC |
| Dimensions | Width: 45 mm, Depth: 102 mm, Height: 119 mm |
| Weight | 0.23 kg |
Industry Applications
The ABB AI845 3BSE023675R1 Analog Input Module is suitable for use in various industrial sectors where precise analog signal processing is required. Some typical applications include:
- Process Automation: For monitoring and controlling process variables such as temperature, pressure, and flow rates.
- Manufacturing: In production lines for quality control and machine monitoring.
- Building Automation: For HVAC systems and energy management.
- Power Generation: In power plants for monitoring electrical parameters.
- Water Treatment: For monitoring water quality parameters and controlling treatment processes.
ABB AI845 3BSE023675R1 is in stock. Contact us for quick quotes and competitive prices.
