ABB AI843 3BSE028925R1 Analog Input Module Consult Us
Product Overview

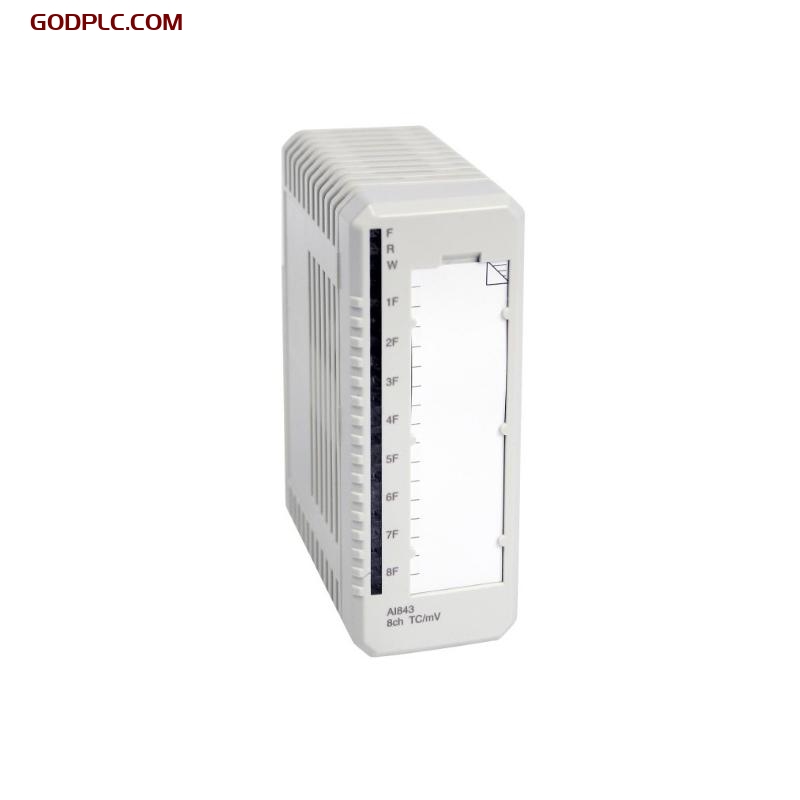

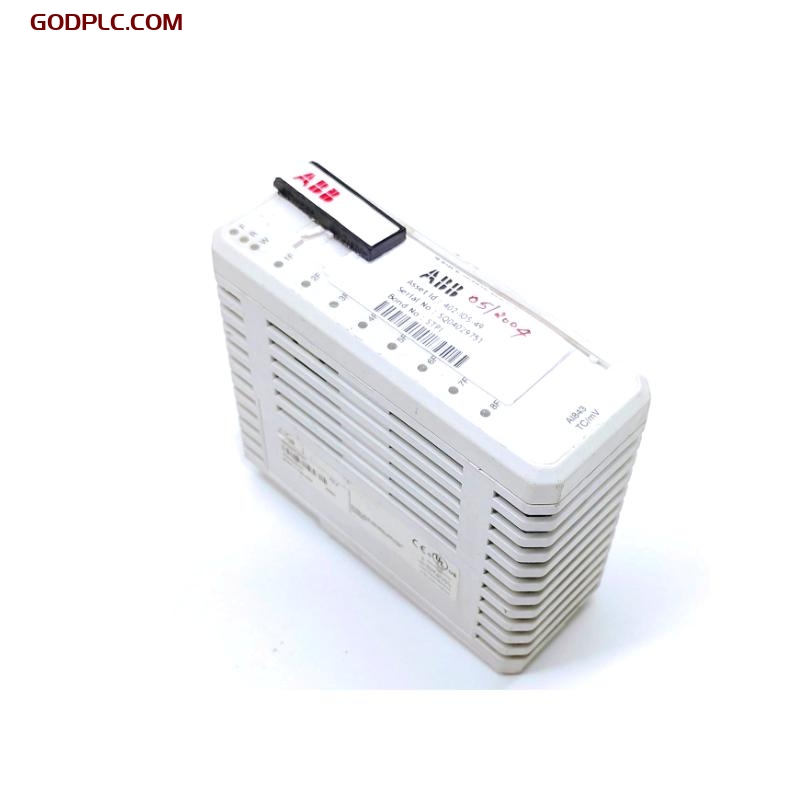

The ABB AI843 3BSE028925R1 Analog Input Module is a high-performance industrial automation device designed for thermocouple and millivolt (mV) signal measurement. It features 8 differential input channels, supporting various thermocouple types (B, C, E, J, K, L, N, R, S, T, U) and linear mV signals ranging from -30 mV to +75 mV. The module includes a dedicated Pt100 RTD channel for Cold Junction (CJ) compensation, ensuring high accuracy in thermocouple measurements. With its 16-bit resolution and strong anti-interference capability (CMRR 100 dB), the module is ideal for high-precision temperature measurement in complex industrial environments.
Key Features
- Multi-Channel Differential Input: 8 independent differential input channels for thermocouple and mV signal measurement.
- Dedicated CJ Compensation Channel: Includes a dedicated Pt100 RTD channel for CJ temperature measurement.
- High Resolution: 16-bit A/D conversion for precise signal acquisition.
- Redundancy Support: Supports single or redundant operation for enhanced system reliability.
- Wire-Break Detection: Open-circuit detection for input channels ensures system reliability.
- Flexible Configuration: Supports user-defined CJ temperature or CJ temperature from the application.
Technical Specifications
| Parameter | Details |
|---|---|
| Input Channels | 8 (differential) |
| Signal Types | Thermocouples: B, C, E, J, K, L, N, R, S, T, U; mV signals: -30 mV to +75 mV |
| Resolution | 16-bit |
| Input Impedance | >1 MΩ |
| Cold Junction Compensation | Dedicated Pt100 RTD channel, supports 4-wire measurement |
| Isolation | Groupwise isolation (from ground) |
| Error | Max. 0.1% |
| Temperature Drift | Typ. 10 ppm/°C, Max. 25 ppm/°C |
| Input Filter | 1.1 kHz |
| Update Cycle | 50 Hz: 320 + 80 × (number of active channels) ms; 60 Hz: 267 + 67 × (number of active channels) ms |
| Maximum Cable Length | 600 meters (or max. 500 Ω) |
| CMRR | 100 dB |
| NMRR | >40 dB |
| Power Consumption | 1.5 W |
| Current Consumption | +5 V: 60 mA; +24 V: 50 mA |
| Dimensions (W×D×H) | 45 mm × 102 mm × 119 mm |
| Weight | 0.157 kg |
| Operating Temperature | 0~+55 °C |
| Protection Class | IP20 (IEC 60529) |
| Certifications | CE, EN 61010-1, UL 61010-1, RoHS, WEEE |
Industry Applications
- Industrial Process Control: High-precision temperature measurement in chemical, oil, and metallurgical industries.
- Energy Management: Monitoring equipment temperature in power plants and substations.
- Laboratory Equipment: Integration into high-precision measurement devices for research and experiments.
- Food & Pharmaceutical: Monitoring and recording critical temperature parameters in controlled processes.
ABB AI843 3BSE028925R1 is in stock. Contact us for quick quotes and competitive prices.
