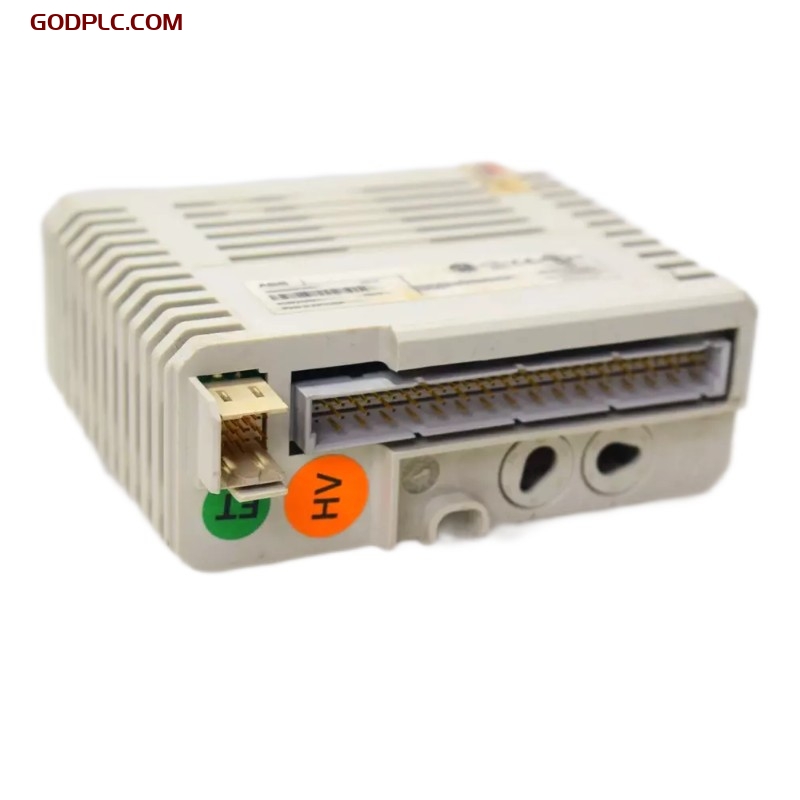

ABB AI810 3BSE008516R1 Analog Input Module Cheap&Stock
Product Overview
The ABB AI810 3BSE008516R1 Analog Input Module is a versatile and robust solution designed for modern industrial automation needs. This module accommodates a wide range of input types, including both voltage and current signals, enabling it to serve diverse application requirements. With eight channels available, the AI810 is optimized for high-performance measurement and monitoring in various industrial systems.
Engineered to withstand challenging operating conditions, the AI810 features built-in protection mechanisms, ensuring longevity and reliability in demanding environments. Its capacity to manage signals without sustaining damage from overvoltage or short circuits makes it an excellent choice for process control applications. The module’s flexibility in handling various input types (current and voltage) allows for seamless integration into existing systems, promoting efficiency and safety.
Key Features
- 8-Channel Configuration: The AI810 supports up to eight independent channels, capable of measuring 0…20 mA, 4…20 mA, 0…10 V, or 2…10 V d.c., facilitating multifaceted data acquisition.
- Short-Circuit Protection: Each current input channel can handle short circuits to the transmitter supply up to 30 V d.c., preventing damage and ensuring long-term functionality.
- Voltage Input Protection: The voltage inputs are designed to withstand overvoltage and undervoltage conditions of at least 30 V d.c., enhancing operational safety.
- High Resolution: Featuring a resolution of 12 bits, the module ensures precise and repeatable measurements, crucial for effective process controls.
- Built-in Isolation: The entire group of eight channels is isolated from ground, reducing the potential for interference and improving signal integrity.
- Flexible Power Supply Connections: The transmitter supply can be connected to various terminals, including L1+, L1-, L2+, and L2-, allowing for flexible setup configurations.

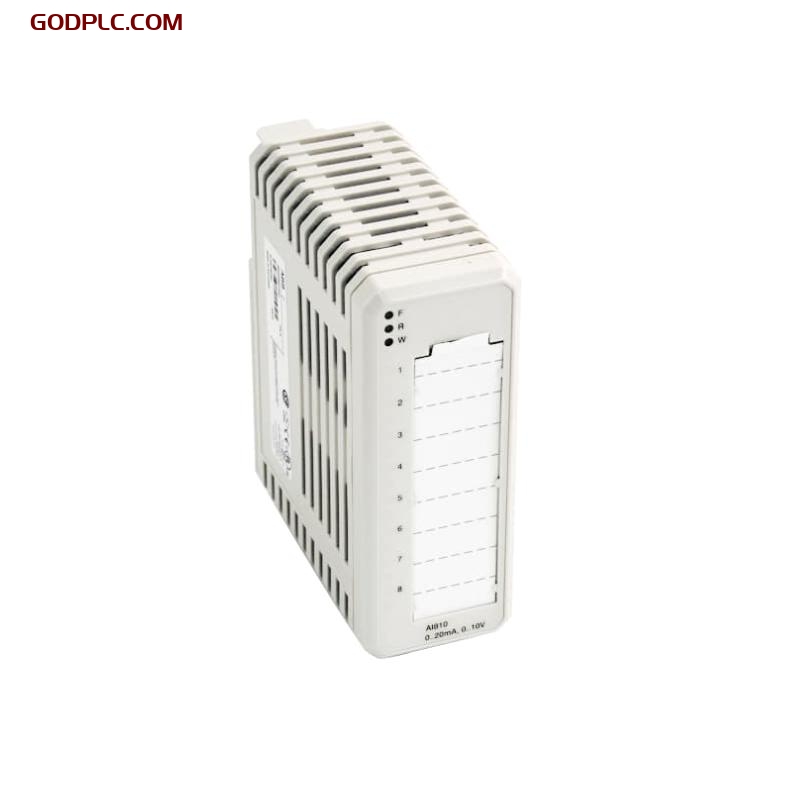

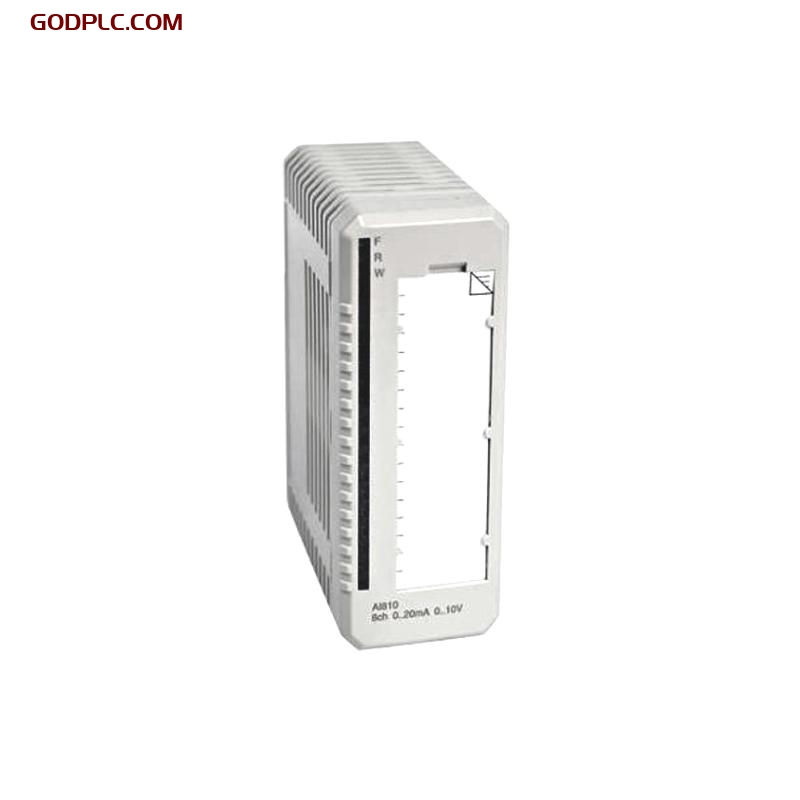

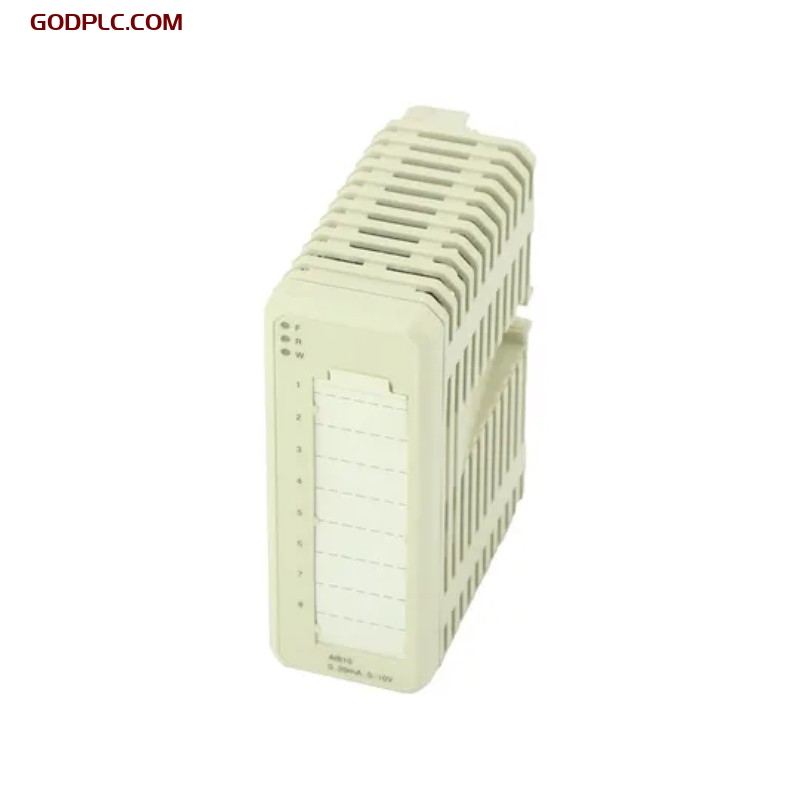

- LED Diagnostic Indicators: Front-mounted LEDs display status indicators for faults, operational run, and warnings, facilitating quick identification of issues.
Technical Specifications
The following table outlines the main parameters of the ABB AI810 Analog Input Module, including the dimensions and weight:
| Parameter | Specification |
| Article Number | 3BSE008516R1 |
| Type | Analog Input |
| Signal Specification | 0…20 mA, 4…20 mA, 0…10 V, 2…10 V |
| Number of Channels | 8 |
| Signal Type | Unipolar single-ended |
| HART | No |
| Resolution | 12 Bit |
| Input Impedance | 290 kΩ (voltage input) |
| Isolation | Groupwise isolated from ground |
| Under/Over Range | -5% / +15% |
| Maximum Error | Max 0.1% |
| Temperature Drift | Voltage: Typ. 70 ppm/°C, Max. 100 ppm/°C; Current: Typ. 50 ppm/°C, Max. 80 ppm/°C |
| Input Filter (rise time 0-90%) | 140 ms |
| Update Cycle Time | 8 ms |
| Current Limiting | Transmitter power can be current limited by the MTU |
| Maximum Field Cable Length | 600 meters (656 yards) |
| Max Input Voltage (non-destructive) | 30 V d.c. |
| NMRR (50Hz, 60Hz) | > 40 dB |
| Rated Insulation Voltage | 50 V |
| Dielectric Test Voltage | 500 V a.c. |
| Power Dissipation | 1.5 W |
| Current Consumption +5 V Modulebus | 70 mA |
| Current Consumption +24 V Modulebus | 40 mA |
| Dimensions | 45 x 102 x 119 mm |
| Weight | 0.2 kg |
Industry Applications
The ABB AI810 Analog Input Module is widely applicable across various industries, making it a go-to component for numerous automation projects. Typical applications include:
- Process Control: Ideal for monitoring and controlling various systems in manufacturing settings, such as temperature, pressure, and flow measurements.
- Energy Management: Effective for applications that require precise monitoring of energy consumption and distribution in electrical systems.
- Environmental Monitoring: Suitable for environmental applications needing accurate readings of parameters like air quality and liquid levels.
- HVAC Systems: Supports HVAC control systems by accurately measuring temperature and pressure for improved climate management.
- Research and Development: Facilitates experimental setups in laboratories requiring reliable measurement and data acquisition across different signal types.
ABB AI810 3BSE008516R1 is in stock. Contact us for quick quotes and competitive prices.
