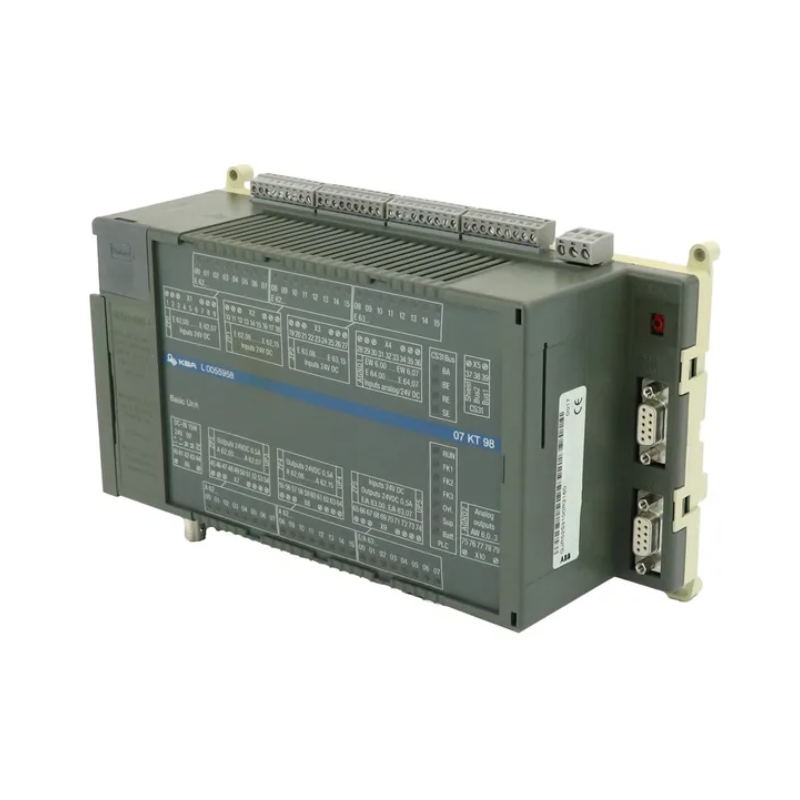

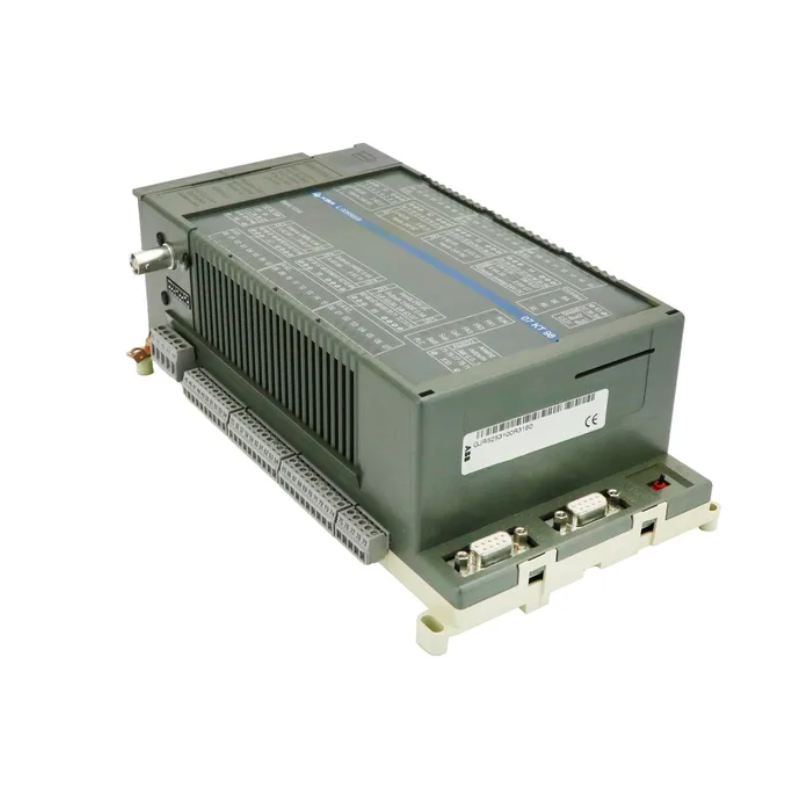

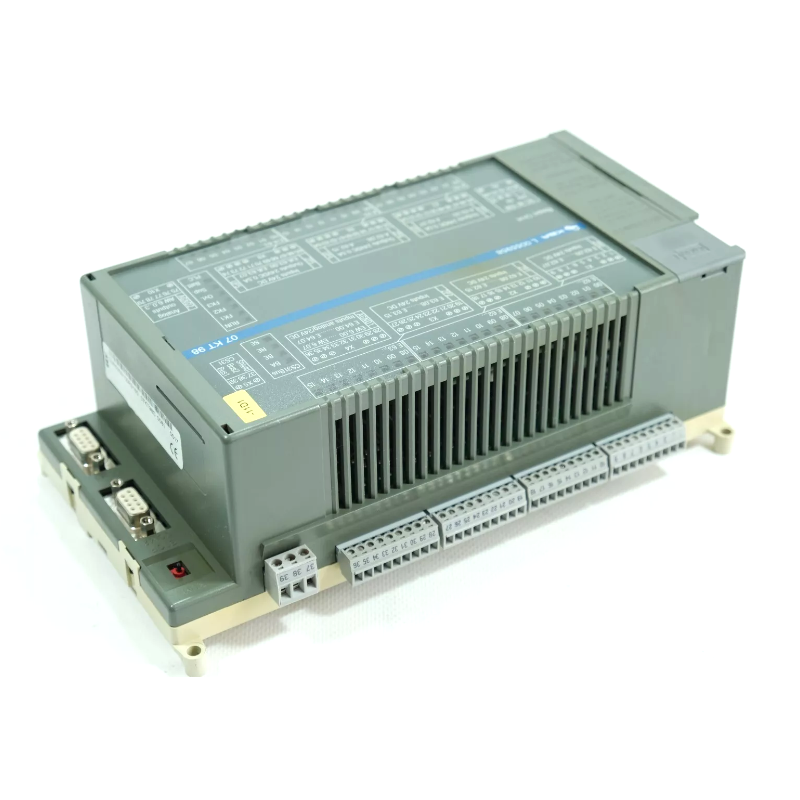

ABB 07KT98C GJR5253100R3260 Basic Unit Consulting Price
1. Product Overview
The ABB 07KT98C GJR5253100R3260 is an advanced basic unit designed for industrial automation systems, providing a wide range of digital and analog inputs and outputs. It is tailored for complex control and monitoring tasks in industrial settings, where high-density I/O configurations are required. This module is equipped with multiple communication interfaces, including MODBUS for flexibility and ease of integration into existing automation networks.
The 07KT98C supports a variety of applications in process control, manufacturing automation, and monitoring systems. It offers a highly reliable and customizable solution for controlling machinery, gathering sensor data, and ensuring the efficient operation of automated systems. With integrated features such as high-speed counters, real-time clock, and support for SmartMedia cards, it provides a robust and reliable platform for automation tasks.
2. Technical Specifications
General Parameters
| Parameter | Specification |
| Order Number | GJR5253100R3260 |
| Power Supply Voltage | 24V DC |
| Power Consumption | Max 0.35A |
| User Program Storage | 1 MB |
| User Data Storage | 1 MB + 256 kB RETAIN + 128 kB (Flash EPROM) |
| Digital Inputs | 24 digital inputs, grouped into 3 sets of 8 each, electrically isolated |
| Digital Outputs | 16 transistor outputs, divided into 2 groups of 8, electrically isolated |
| Digital I/O | 8 digital I/O, 1 group, electrically isolated |
| Analog Inputs | 8 analog inputs, 1 group, configurable to 0…10V, 0…5V, +10V, +5V, 0…20mA, 4…20mA, Pt100 (2-wire or 3-wire), differential inputs, digital inputs |
| Analog Outputs | 4 analog outputs, 1 group, configurable to 0…10V, 0…20mA, 4…20mA |
| Serial Interfaces | COM1, COM2, MODBUS interfaces for programming, test functions, and freely programmable interfaces |
| Parallel Interfaces | For connection of couplers 07 KP 90 (RCOM), 07 KP 93 (2 x MODBUS), 07 MK 92 (freely programmable) |
| System Bus Interface | CS31 system bus interface |
| High-Speed Counter | Integrated high-speed counter with multiple configurable functions |
| Real-Time Clock | Integrated real-time clock for accurate time management |
| Storage Medium | SmartMedia card for operating system, user program, and user data storage |
| LED Displays | For signal conditions, operational status, and error messages |
| Data Backup | Lithium battery (07 LE 90) for data backup |
| Weight | 1.6 kg |
| Dimensions | 240 x 140 x 85 mm |
| Programming Software | 907 AC 1131 (V4.1 and above for ARCNET interface) 907 AC 1131 (V4.2.1 and above for PROFIBUS-DP interface) |
| Operating Temperature | 0°C to 55°C |
Digital Input Characteristics
| Parameter | Specification |
| Number of Channels | 24 digital inputs (3 groups, 8 inputs each) |
| Input Voltage Range | Signal 0: -30V to +5V, Signal 1: +13V to +30V |
| Input Current | 7.0 mA at 24V input, > 0.2 mA at 5V input |
Digital Output Characteristics
| Parameter | Specification |
| Number of Channels | 16 digital outputs (2 groups of 8 each) |
| Output Current | Rated 500 mA per group, max 625 mA |
| Load Capacity | Max 625 mA, short-circuit protection |
Analog Input Characteristics
| Parameter | Specification |
| Number of Channels | 8 analog inputs (1 group) |
| Input Voltage Range | 0-10V, ±10V, 0-5V, ±5V, 0-20mA, 4-20mA, Pt100 (2-wire or 3-wire) |
| Input Impedance | > 100kΩ for voltage, ~330Ω for current |
Analog Output Characteristics
| Parameter | Specification |
| Number of Channels | 4 analog outputs (1 group) |
| Output Signal Range | 0…10V, 0…20mA, 4…20mA |
| Resolution | 12-bit resolution |
3. Key Features
- High-Density I/O Configuration: Provides 24 digital inputs, 16 digital outputs, 8 analog inputs, and 4 analog outputs, meeting various industrial control needs.
- Flexible Analog Input Configuration: Analog input channels are configurable for multiple signal types, making it adaptable to various sensor requirements.
- Integrated High-Speed Counter: The module includes an integrated high-speed counter, ideal for pulse counting applications.
- Real-Time Clock: An integrated real-time clock ensures accurate time management, useful for applications requiring precise time control.
- Data Storage and Backup: Utilizes SmartMedia cards for program and data storage and backup, ensuring stable operation and ease of data management.
- Robust Communication Interfaces: Supports MODBUS interfaces, freely programmable interfaces, and PROFIBUS-DP interfaces, enabling integration into diverse network architectures.
- Reliability and Diagnostics: Equipped with LED indicators to display operational status and error messages in real-time, facilitating troubleshooting and maintenance.
- Data Backup: Features a lithium battery (07 LE 90) for data backup, ensuring data integrity in case of power interruptions.
4. Applications
The ABB 07KT98C GJR5253100R3160 basic unit is used in various industrial automation and process control systems. It is particularly suited for the following applications:
- Process Control Systems: Real-time collection and processing of signals for precise process control in industrial production.
- Smart Manufacturing: Integrated into automated production lines to monitor and control equipment, optimizing production efficiency.
- Energy Management Systems: Used in the power and energy industries for automation, ensuring safe and efficient operation of electrical systems.
- Chemical and Pharmaceutical: Applied in chemical and pharmaceutical industries for precise process control and monitoring to ensure product quality.
- Water Treatment and Environmental Monitoring: Used in water quality monitoring and environmental control systems to optimize resource usage and ensure stable operations.
