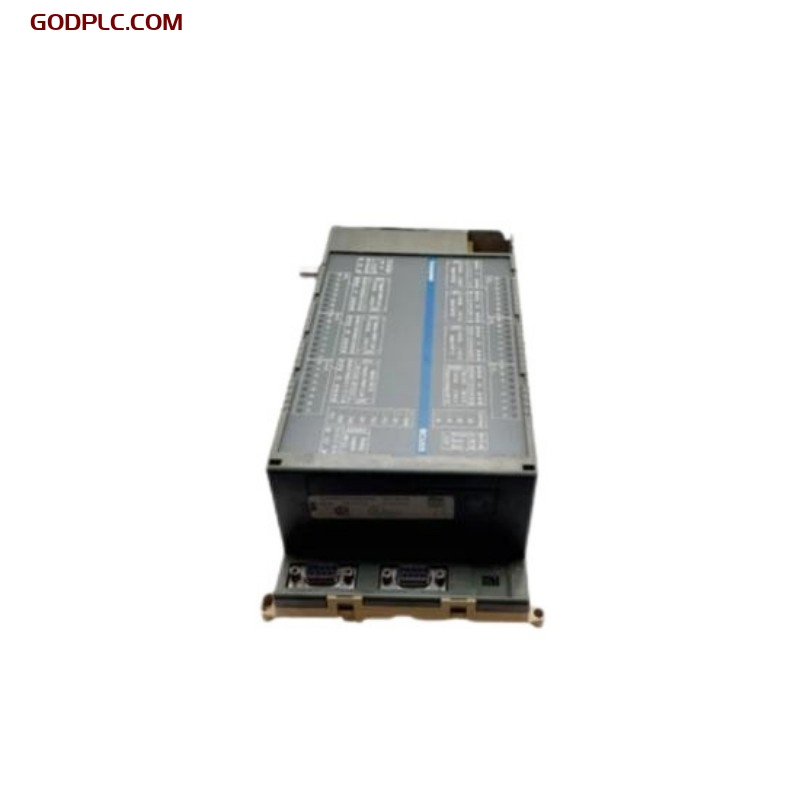

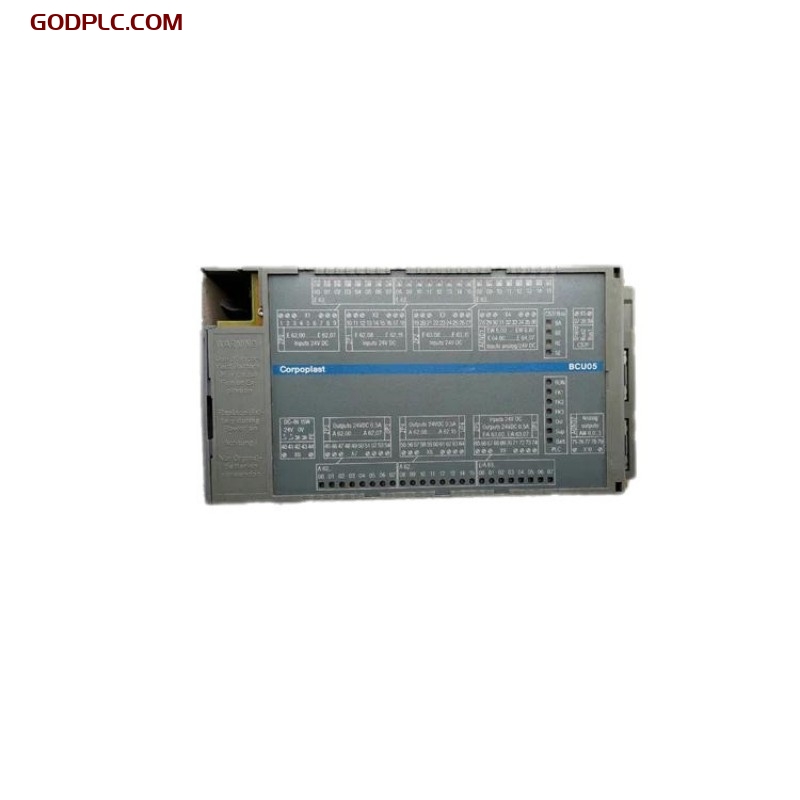

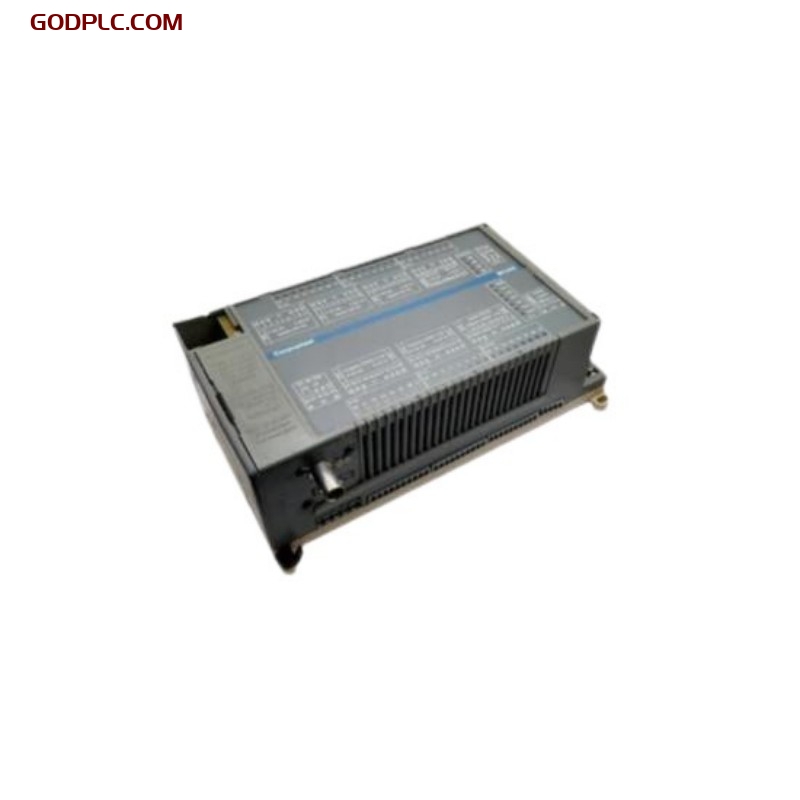

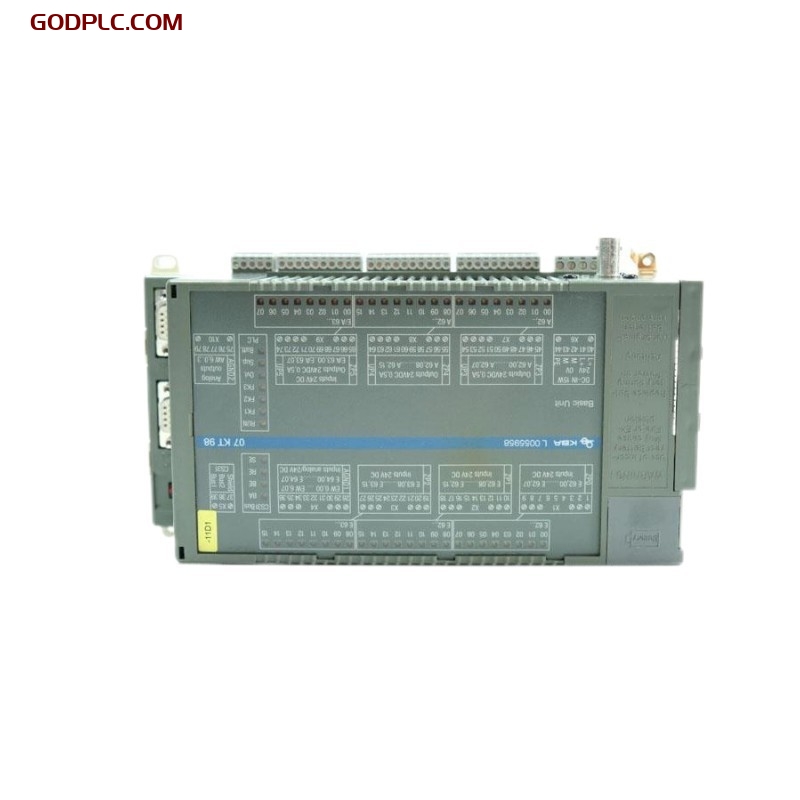

ABB 07KT98 GJR5253100R1260 Advant Controller 31 Basic Unit 2 Days Delivery
1. Product Overview
The ABB 07KT97 GJR5253000R0278 is a basic unit in the Advant Controller 31 series, primarily used in intelligent decentralized automation systems. This controller can function as a bus master, a remote processor, or operate as a standalone unit. It features a wide range of input and output interfaces, strong processing capabilities, and flexible communication options, making it suitable for various industrial automation applications.
The controller operates on a 24V DC power supply and includes built-in Flash EPROM for storing user programs and data. It also supports SmartMedia card expansion for additional storage. With its robust diagnostic capabilities and fault detection functions, the device ensures stable operation in industrial environments.
2. Key Features
-
Flexible I/O Interfaces:
- 24 digital inputs with LED indicators
- 16 transistor digital outputs with LED indicators
- 8 configurable digital input/output ports
- 8 configurable analog inputs (voltage, current, Pt100)
- 4 configurable analog outputs (voltage, current)
-
Powerful Processing & Storage:
- 480 KB user program memory
- 256 KB user data storage
- 2 MB RAM
- Flash EPROM for backup storage
- SmartMedia card support (2MB or 8MB)
-
Comprehensive Communication Interfaces:
- 2 serial communication ports (COM1 and COM2, supporting MODBUS)
- 1 CS31 system bus interface
- Optional communication module expansion (supports ARCNET, PROFIBUS, CANopen, Ethernet)
-
High Reliability Design:
- LED indicators for monitoring system status
- 24V DC power input with polarity protection
- Built-in high-speed counter (supports up to 50kHz frequency input)
- Integrated real-time clock (RTC)
- Optional 07 LE 90 lithium battery for data and time backup during power failure
3. Technical Specifications
3.1 Mechanical Specifications
| Parameter | Specification |
|---|---|
| Dimensions | 240 × 140 × 85 mm |
| Weight | 1.6 kg |
| Mounting | DIN rail or screw mounting |
| Enclosure Material | Industrial-grade durable plastic |
3.2 General Information
| Parameter | Specification |
|---|---|
| Processor | Built-in high-performance processor |
| User Storage | 480 KB (user program) + 256 KB (user data) |
| RAM | 2 MB |
| Data Storage | Flash EPROM, supports SmartMedia cards |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
3.3 Power Supply & Consumption
| Parameter | Specification |
|---|---|
| Rated Voltage | 24 V DC |
| Voltage Range | 20.4 V – 28.8 V DC |
| Maximum Power Consumption | 0.35 A |
| Reverse Polarity Protection | Yes |
3.4 Digital Inputs
| Parameter | Specification |
|---|---|
| Input Channels | 24 |
| Grouping | 3 groups of 8 each |
| Input Voltage | 0 – 30 V DC |
| High-Level Threshold | ≥ 13 V |
| Low-Level Threshold | ≤ 5 V |
| Isolation | Electrically isolated between groups |
| Signal Indication | One LED per channel |
3.5 Digital Outputs
| Parameter | Specification |
|---|---|
| Output Channels | 16 (transistor outputs) |
| Grouping | 2 groups of 8 each |
| Rated Output Current | 500 mA |
| Maximum Current | 625 mA |
| Reverse Protection | Yes |
| Overload Protection | Yes (auto shut-off during short circuit) |
| Signal Indication | One LED per channel |
3.6 Analog Inputs
| Parameter | Specification |
|---|---|
| Input Channels | 8 |
| Configurable Modes | 0-10V, 0-5V, ±10V, ±5V, 0-20mA, 4-20mA, Pt100 |
| Resolution | 12-bit |
| Input Impedance | >100 kΩ (voltage input), ~330 Ω (current input) |
| Isolation | None |
| Overload Protection | Auto shut-off of overloaded channels |
3.7 Analog Outputs
| Parameter | Specification |
|---|---|
| Output Channels | 4 |
| Configurable Modes | ±10V, 0-20mA, 4-20mA |
| Resolution | 12-bit |
| Output Load | 0-500Ω (current mode), max ±3mA (voltage mode) |
| Isolation | None |
3.8 Communication Interfaces
| Interface | Specification |
|---|---|
| COM1 / COM2 | RS-232, supports MODBUS |
| CS31 Bus | 1 port for system expansion |
| Expansion Interface | Supports ARCNET, PROFIBUS, CANopen, Ethernet |
4. Industry Applications
Due to its stable performance, flexible configuration, and comprehensive communication capabilities, the ABB 07KT97 GJR5253000R0278 is widely used in the following industries and fields:
- Industrial Automation: Smart manufacturing production lines, automated equipment control
- Power Systems: Substation automation control, power distribution network management
- Process Control: Precise process control in chemical, pharmaceutical, and food industries
- Water Treatment: Wastewater treatment plants, automated water pump stations
- Transportation Systems: Subway signal control, traffic monitoring, and management
- Energy Management: Smart buildings, HVAC (heating, ventilation, and air conditioning) control systems
- Mining and Metallurgy: Mining monitoring, smelting equipment control
ABB 07KT97 GJR5253000R0278 is in stock. Contact us for quick quotes and competitive prices.
