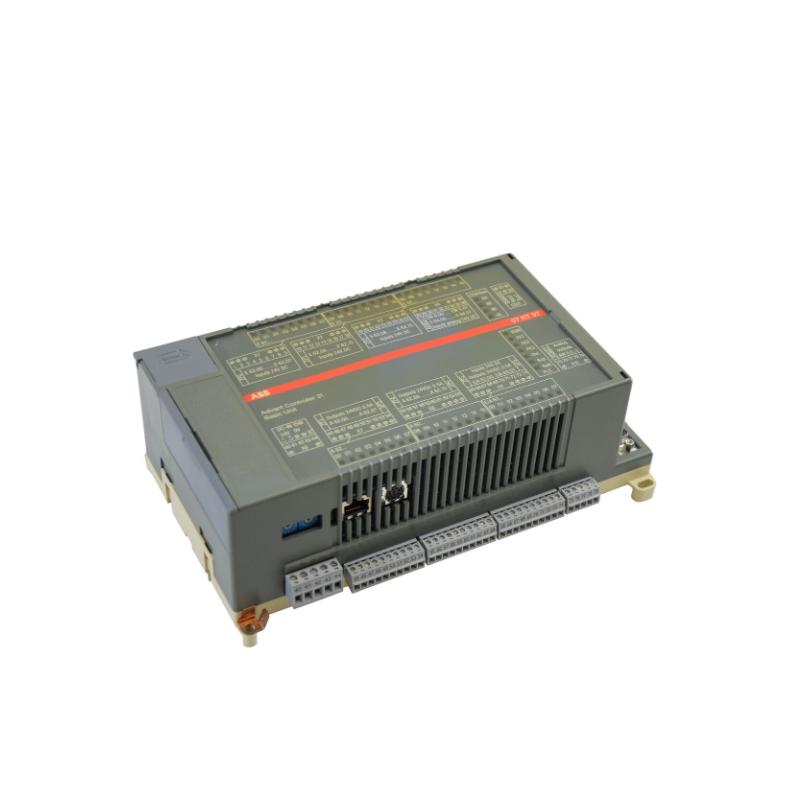

ABB 07KT97 GJR5253000R0270 Basic Unit Fast Delivery
1. Product Overview
The ABB 07KT97 GJR5253000R0270 basic unit is designed for the Advant Controller 31 series, making it ideal for decentralized automation systems. It can function as a bus master, slave, or standalone control unit, offering a variety of digital and analog input/output interfaces to meet various industrial control needs. This module features high processing power, supports the CS31 system bus for expansion, and integrates powerful diagnostics and data management functions.
The 07KT97 supports 24 digital inputs, 16 digital outputs, 8 analog inputs, and 4 analog outputs, making it suitable for process control, production monitoring, and automation control systems. The module also features an integrated real-time clock and high-precision hardware counter for handling high-speed pulse signal processing. User data and program storage is backed up through built-in Flash storage and SmartMedia cards, ensuring data longevity and easy updates.
2. Technical Specifications
General Parameters
| Category | Specification |
|---|---|
| Order Number | GJR5253000R0270 |
| Supply Voltage | 24V DC |
| Power Consumption | Max 0.35A |
| Digital Inputs | 24 digital inputs, divided into 3 groups of 8 each |
| Digital Outputs | 16 digital outputs, divided into 2 groups of 8 each |
| Digital I/O | 8 configurable digital I/O channels |
| Analog Inputs | 8 analog inputs, supporting various signal types |
| Analog Outputs | 4 analog outputs, supporting various signal types |
| Serial Interfaces | 2 serial interfaces (COM1, COM2) |
| Parallel Interface | 1 parallel interface |
| System Bus Interface | CS31 system bus interface |
| Storage | Flash EPROM 512 kB (480 kB user program + configuration data), RAM 2 MB |
| Real-Time Clock | Resolution: 1 second |
| LED Displays | 60 LEDs for operational status and error messages |
| Dimensions | 240 x 140 x 85 mm |
| Weight | 1.6 kg |
| Operating Temperature | 0°C to 55°C |
Digital Input Characteristics
| Parameter | Specification |
|---|---|
| Number of Channels | 24 digital inputs (3 groups, 8 inputs each) |
| Input Voltage Range | Signal 0: -30V to +5V, Signal 1: +13V to +30V |
| Input Current | 7.0 mA at 24V input, > 0.2 mA at 5V input |
| Signal Delay | Typical 7 ms (configurable to 1 ms) |
Digital Output Characteristics
| Parameter | Specification |
|---|---|
| Number of Channels | 16 digital outputs (2 groups of 8 each) |
| Output Current | Rated 500 mA per group, max 625 mA |
| Load Capacity | Max 625 mA, short-circuit protection |
Analog Input Characteristics
| Parameter | Specification |
|---|---|
| Number of Channels | 8 analog inputs |
| Input Voltage Range | 0-10V, ±10V, 0-5V, ±5V, 0-20mA, 4-20mA |
| Input Impedance | > 100kΩ for voltage, ~330Ω for current |
Analog Output Characteristics
| Parameter | Specification |
|---|---|
| Number of Channels | 4 analog outputs |
| Output Signal Range | ±10V, 0-20mA, 4-20mA |
| Resolution | 12-bit resolution |
3. Key Features
- High-Density I/O: Provides 24 digital inputs, 16 digital outputs, 8 analog inputs, and 4 analog outputs, suitable for diverse industrial control needs.
- Scalability: Supports expansion via the CS31 system bus, expandable to 992 digital inputs/outputs and 224 analog inputs/outputs.
- Flexible Analog Input Configuration: 8 analog input channels, configurable for multiple voltage, current, and Pt100 temperature sensor types, adaptable to various sensor needs.
- High-Precision Data Acquisition: 12-bit resolution for analog inputs and outputs ensures accurate data collection, suitable for precision control applications.
- Integrated High-Speed Counter: Supports counting frequencies up to 50 kHz, ideal for high-speed pulse counting.
- Reliable Diagnostics: Built-in self-diagnostics with LED displays for operational status and error messages, simplifying fault troubleshooting.
- Robust Communication Interfaces: Two serial interfaces and one parallel interface support various communication protocols, enabling flexible network integration.
- Data Backup and Recovery: SmartMedia card support for operating system, user program, and data backup, ensuring long-term stability and easy updates.
- Wide Application Range: Suitable for process control, smart manufacturing, energy management, chemical and pharmaceutical industries, and more.
4. Applications
The ABB 07KT97 GJR5253000R0270 basic unit is widely used in industrial automation and process control systems. Key application areas include:
- Process Control: Real-time acquisition of digital and analog signals for precise process control in manufacturing lines.
- Smart Manufacturing: Integrated into automated production lines, monitoring and controlling equipment, optimizing production processes.
- Energy Management: Monitors and controls the status of electrical systems, ensuring grid safety and stability.
- Chemical and Pharmaceutical: Used in automated systems in the chemical and pharmaceutical industries, ensuring safe and efficient production processes.
- Water Treatment and Environmental Control: Used in water quality monitoring and environmental control, optimizing resource usage and ensuring operational stability.
ABB 07KT97 GJR5253000R0270 is in stock. Contact us for quick quotes and competitive prices.
